Victron 48V 20000VA MultiPlus 48/20k/250-100 Inverter/Charger


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

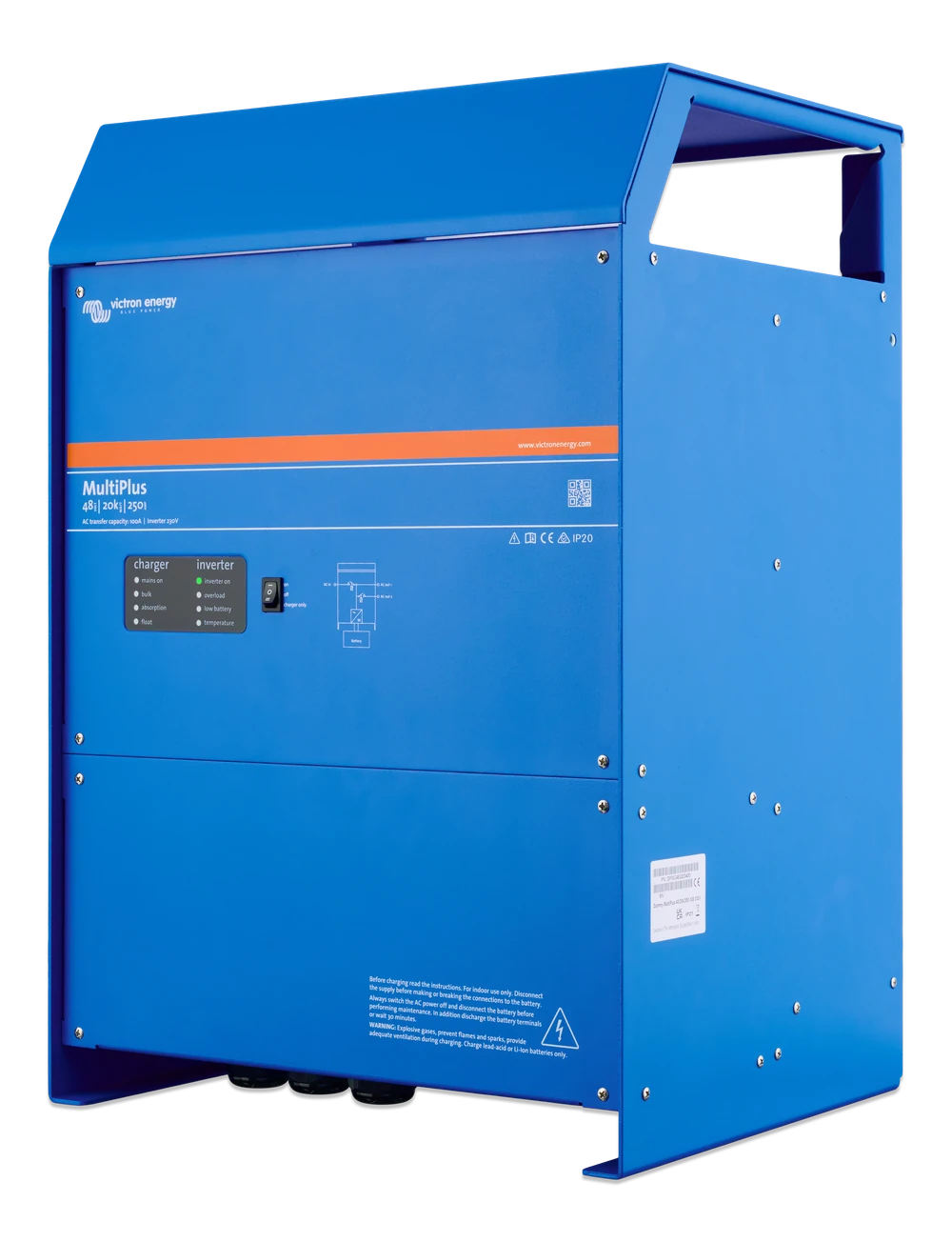

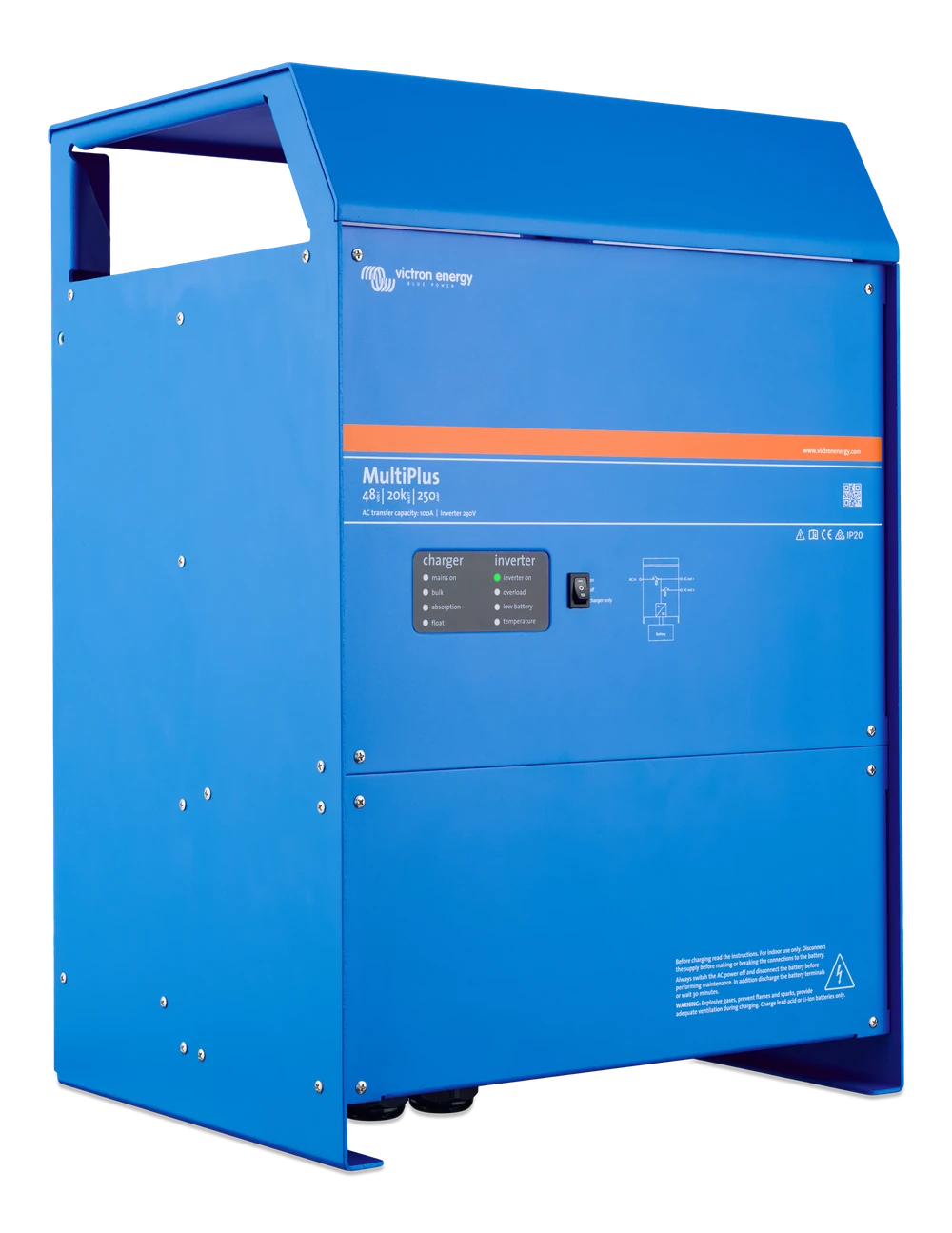

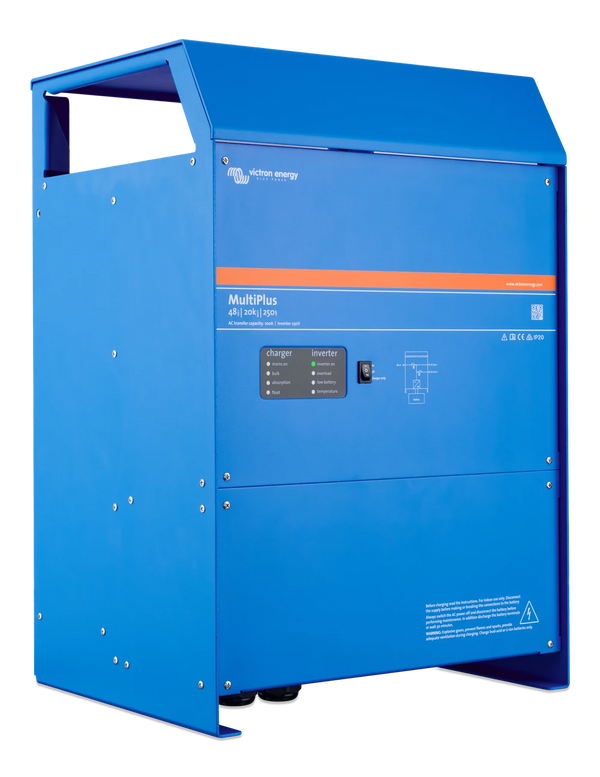

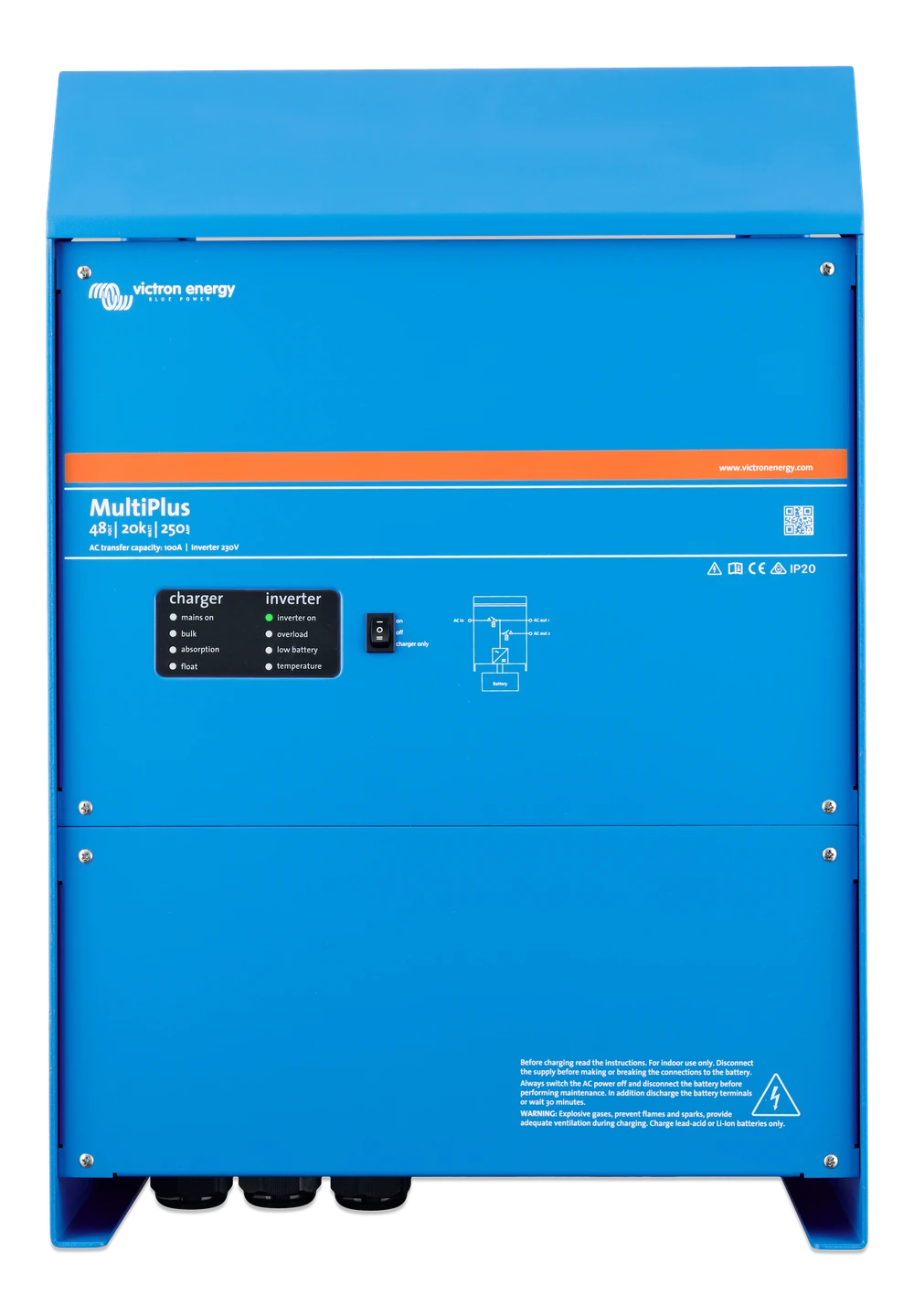

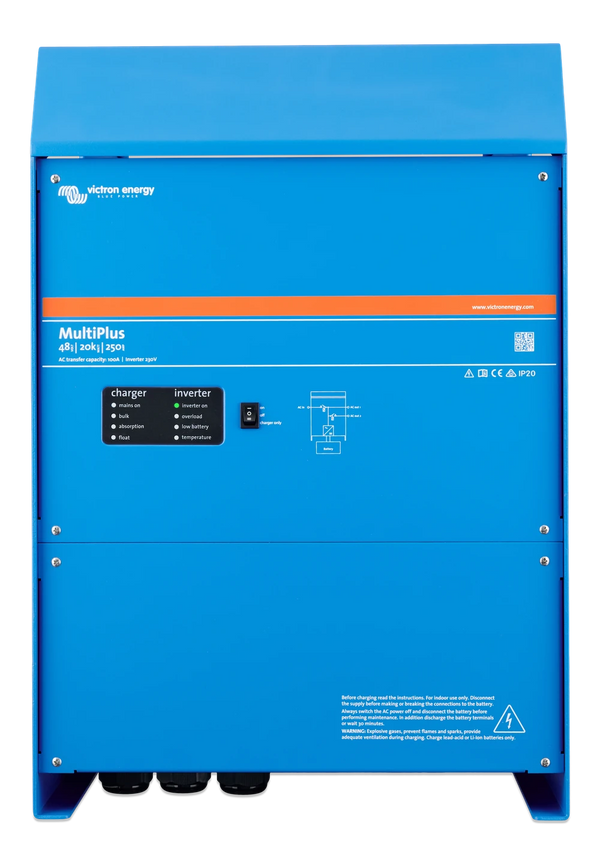

Victron MultiPlus 48/20k/250-100 230V - High-Capacity Inverter/Charger

Professional-Grade Inverter/Charger with ESS Functionality

The Victron MultiPlus 48/20k/250-100 230V is a powerful multifunctional inverter/charger designed for demanding off-grid, marine, mobile, and industrial applications. It combines a high-capacity 230V inverter with a robust battery charger and includes Energy Storage System (ESS) functionality for seamless integration with solar, generator, and grid-connected systems. Delivering continuous output of 20 kW at 25°C, peak power of 25 kW for short durations, and time-limited output of 21 kW for 5 hours, it ensures uninterrupted power for critical loads.

PowerControl & PowerAssist – Intelligent Load Management

PowerControl allows precise regulation of AC input current, preventing overloads on generators or the grid. PowerAssist extends this capability by supplementing insufficient grid or generator power with battery energy during peak demand, then recharging the battery when load decreases. This ensures reliable operation of critical systems and maximizes self-consumption of renewable energy.

Seamless AC Supply & Dual Outputs

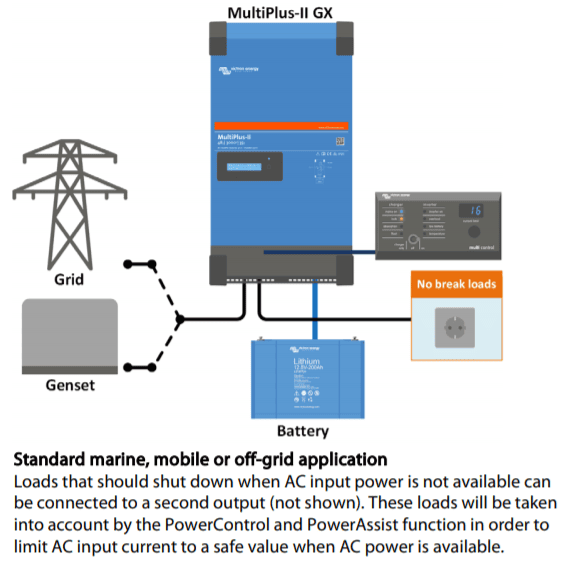

The main AC output provides instantaneous transfer (<20 milliseconds) during grid or generator outages, keeping sensitive electronics operational. A secondary AC output is live only when input power is present, ideal for non-critical loads such as water heaters. Both outputs integrate with PowerControl and PowerAssist for intelligent load management.

Scalable & Flexible System Design

The MultiPlus supports three-phase operation and parallel configuration for extremely high power requirements. On-site configuration is fast with VEConfigure software, while monitoring and control can be achieved via Cerbo GX, Ekrano GX, Digital Multi Control Panel, VictronConnect app, or VRM Online portal. Remote monitoring allows operational data to be stored, accessed, and adjusted via the internet for full system oversight.

High Efficiency & Robust Build

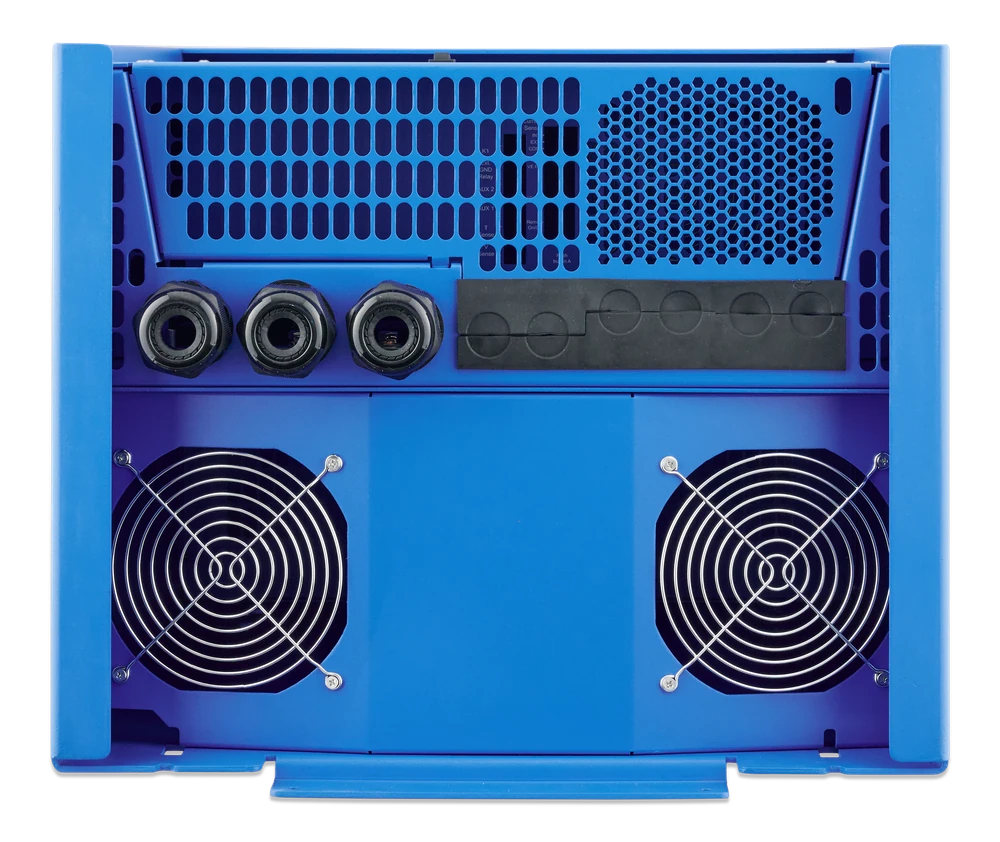

With a maximum efficiency of 96%, the MultiPlus minimizes energy losses while providing reliable AC power. Its sturdy aluminium IP20 enclosure and fan-assisted cooling allow safe operation in temperatures from -40°C to +65°C. It supports lithium, lead-acid, and zinc-bromine batteries, offering versatile energy storage solutions.

Applications

  • Off-grid homes and commercial installations
  • Marine and yachting systems requiring uninterrupted AC power
  • High-demand mobile and vehicle applications

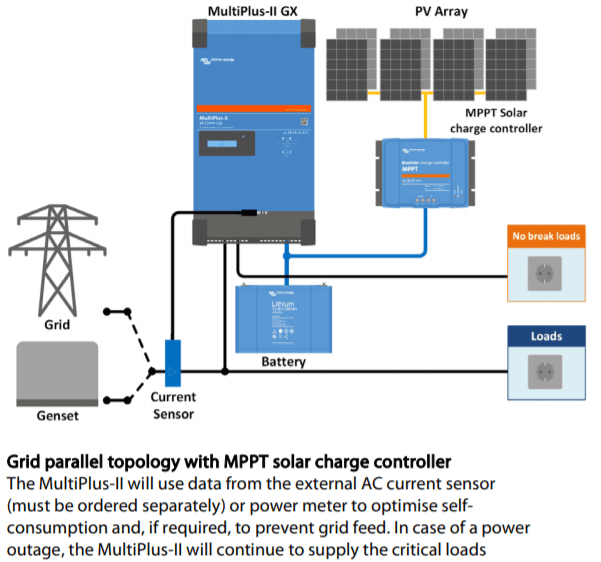

  • Solar PV integration and energy storage systems
  • Professional backup and critical load support

Upgrade your energy system with the Victron MultiPlus 48/20k/250-100 230V for high-capacity, intelligent energy management and uninterrupted AC power in demanding off-grid and professional installations!


SKU: VIC-PMC483200400

SPECIFICATIONS

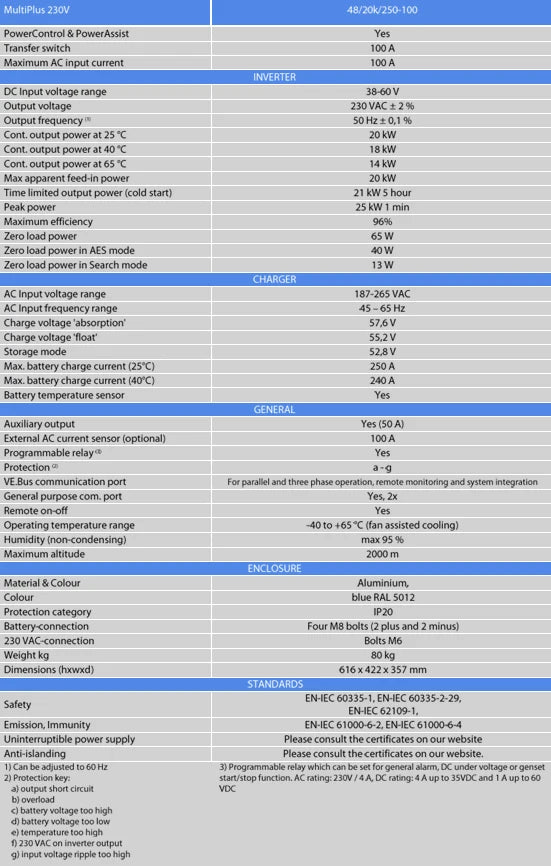

Specifications

Model MultiPlus 230V 48/20k/250-100
PowerControl & PowerAssist Yes
Transfer switch 100 A
Maximum AC input current 100 A
INVERTER
DC input voltage range 38 – 60 V
Output voltage 230 VAC ± 2%
Output frequency 50 Hz ± 0.1% (adjustable to 60 Hz)
Continuous output power @ 25°C 20 kW
Continuous output power @ 40°C 18 kW
Continuous output power @ 65°C 14 kW
Max apparent feed-in power 20 kW
Time limited output power (cold start) 21 kW (5 hours)
Peak power 25 kW (1 min)
Maximum efficiency 96%
Zero load power 65 W
Zero load power in AES mode 40 W
Zero load power in Search mode 13 W
CHARGER
AC input voltage range 187 – 265 VAC
AC input frequency range 45 – 65 Hz
Charge voltage (absorption) 57.6 V
Charge voltage (float) 55.2 V
Storage mode 52.8 V
Max battery charge current @ 25°C 250 A
Max battery charge current @ 40°C 240 A
Battery temperature sensor Yes
GENERAL
Auxiliary output Yes (50 A)
External AC current sensor (optional) 100 A
Programmable relay Yes
Protection a - g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port Yes, 2x
Remote on-off Yes

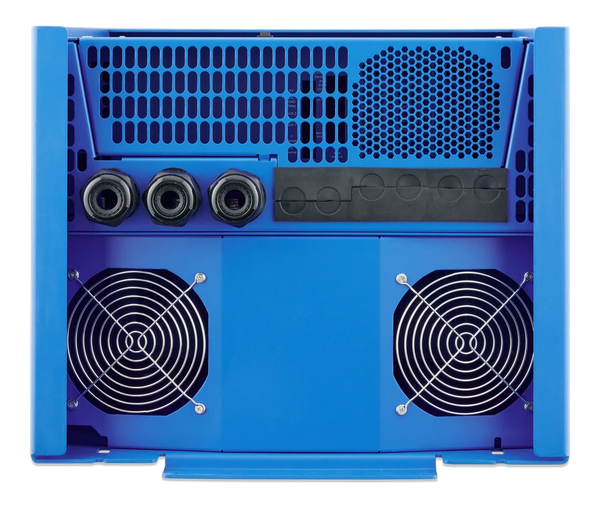

Operating temperature range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing) max 95%
Maximum altitude 2000 m
ENCLOSURE
Material Aluminium
Colour Blue RAL 5012
Protection category IP20
Battery connection Four M8 bolts (2 plus and 2 minus)
230 VAC connection Bolts M6
Weight 80 kg

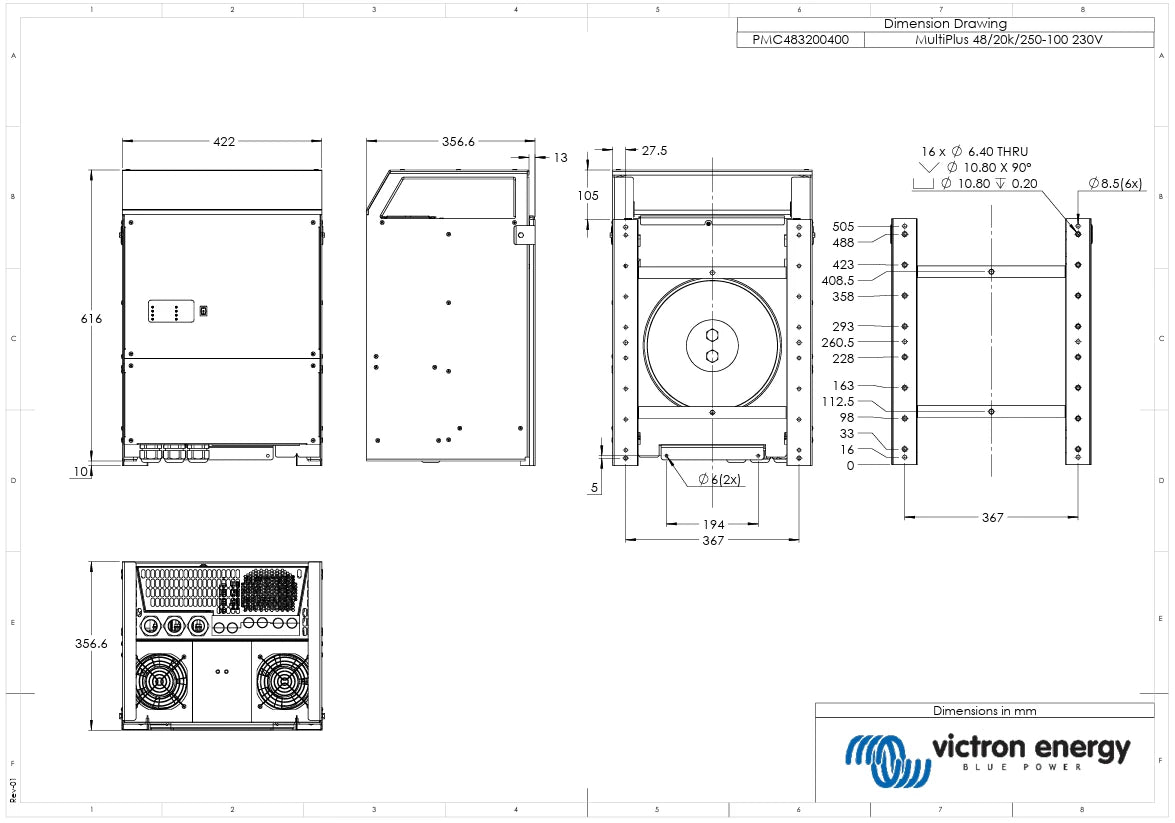

Dimensions (h x w x d) mm 616 x 422 x 357
STANDARDS
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN-IEC 61000-6-2, EN-IEC 61000-6-4
Uninterruptible power supply Please consult the certificates on our website
Anti-islanding Please consult the certificates on our website

SKU: VIC-PMC483200400
Barcode: 8719076068358
Model #: PMC483200400
MPN: PMC483200400
