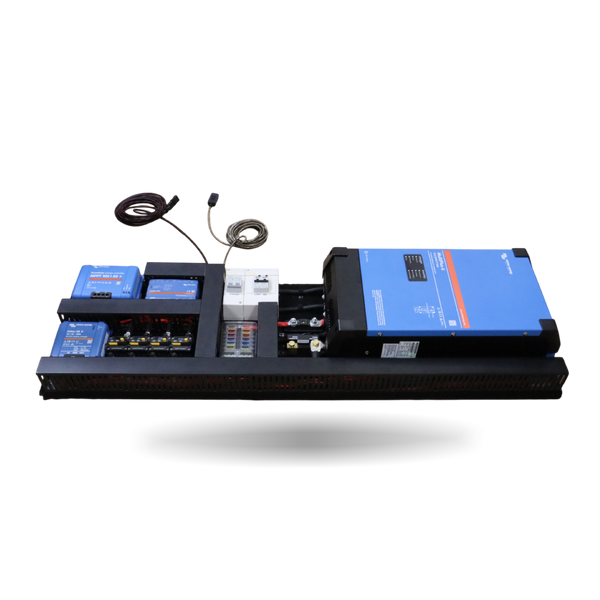

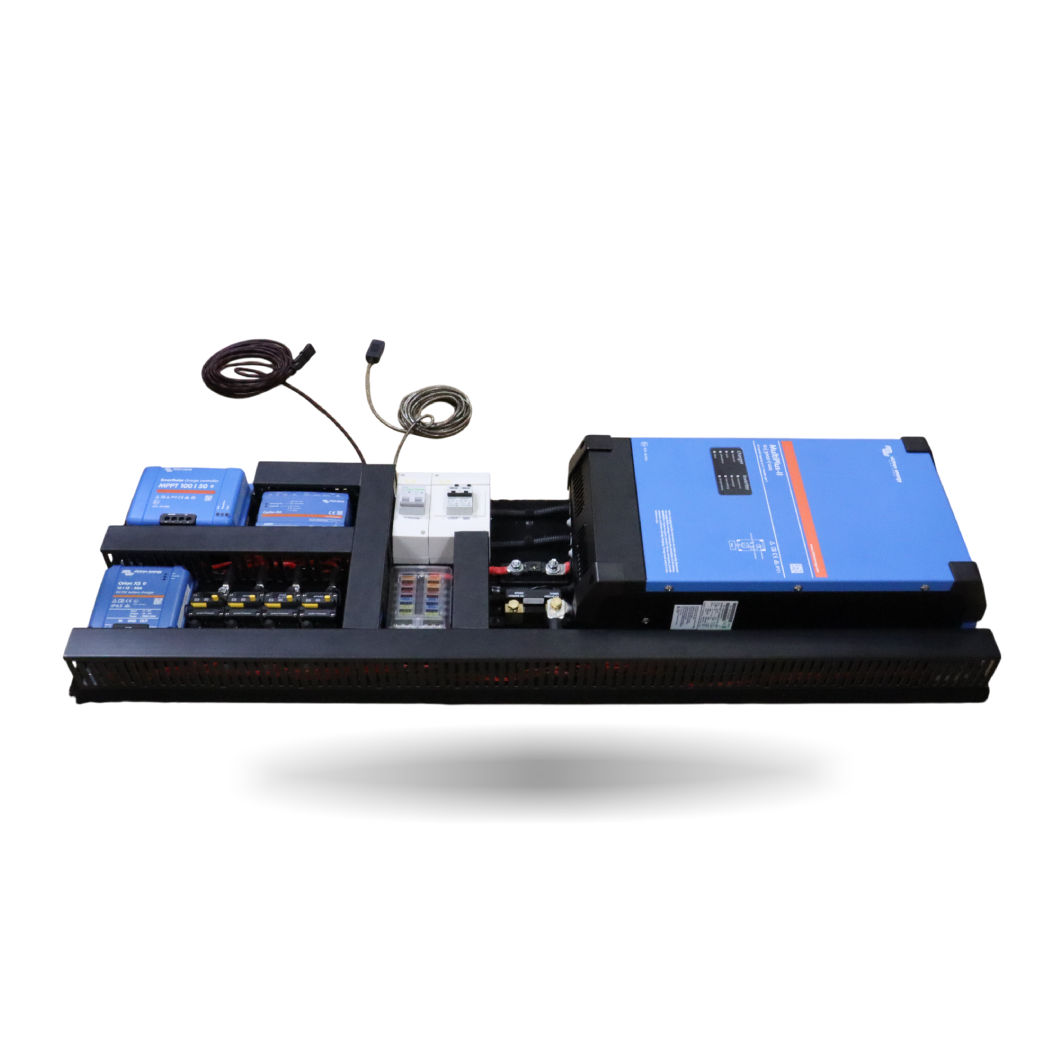

Exotronic Karijini Series Pre-wired Victron Board - Landscape
3000VA Inverter + 50A MPPT + 50A DC-DC + Cerbo GX - 1200x355x170mm
DESCRIPTION
Exotronic Karijini Series Pre-Wired Victron Board (Landscape Layout) for Van Conversions
Professional-Grade, Pre-Assembled Power Solution for Off-Grid Vehicles
Inspired by the rugged landscapes of Karijini National Park, the Karijini Series Pre-Wired Victron Energy Power Board delivers a complete, factory-assembled electrical system for van conversions, caravans, RVs, and marine applications. By integrating premium Victron components into a single, pre-tested board, this solution eliminates the complexity and risk of DIY wiring, reducing installation time and potential faults. Whether you are a professional installer or a dedicated DIY enthusiast, this board provides a reliable, space-efficient power hub that is ready to connect to your batteries, solar array, and AC input.
Unlike piecing together individual components, the Karijini Series offers a cohesive system where every element is matched and wired to professional standards. This reduces the risk of incorrect cable sizing, poor connections, and component incompatibility—common pitfalls in custom builds. The result is a safer, more dependable power system that performs consistently in demanding off-grid environments.
Key Features at a Glance

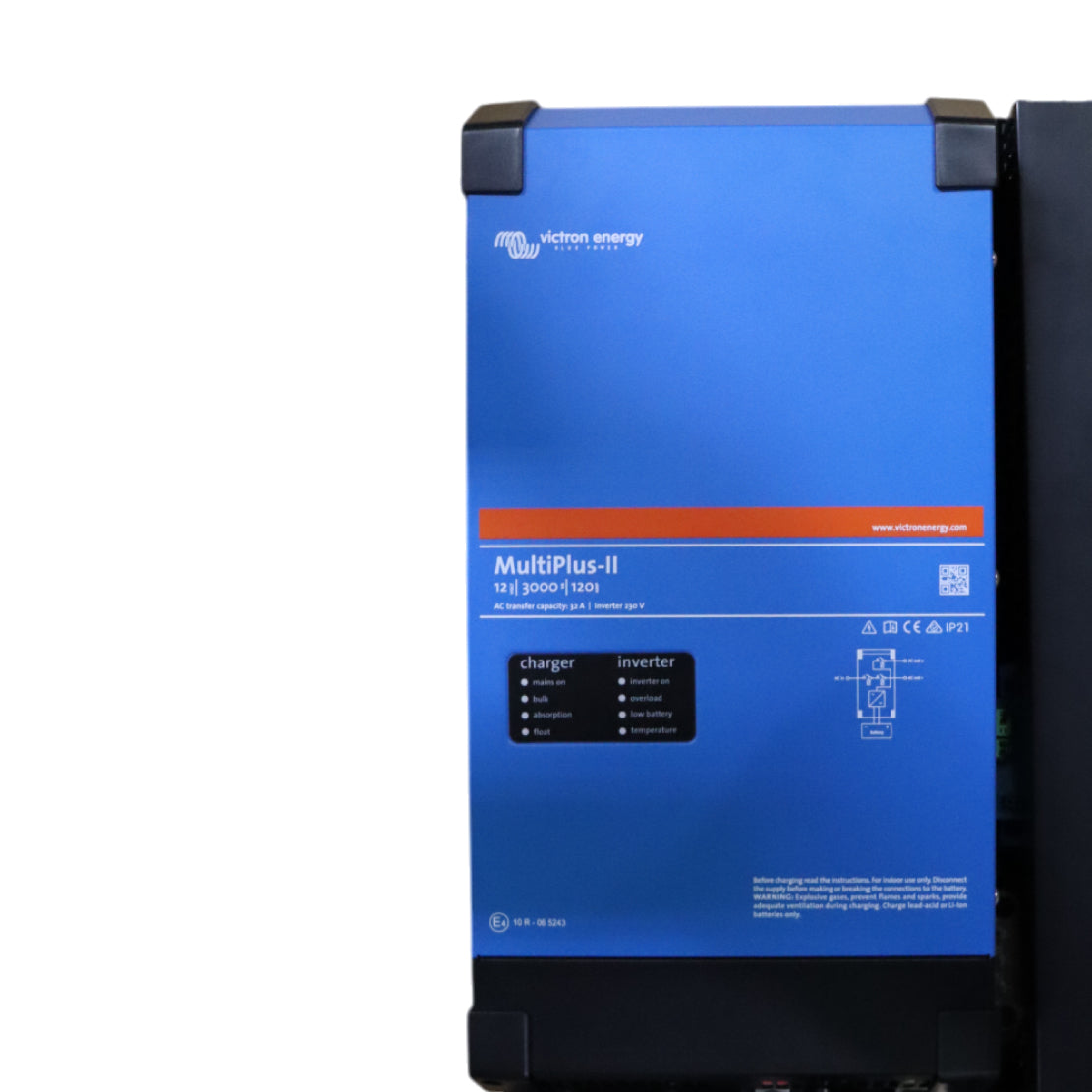

- Victron 3000VA MultiPlus-II Inverter/Charger – Pure sine wave inverter capable of running most 10A appliances, combined with a 120A mains charger and automatic transfer switch for seamless grid-to-battery transitions.

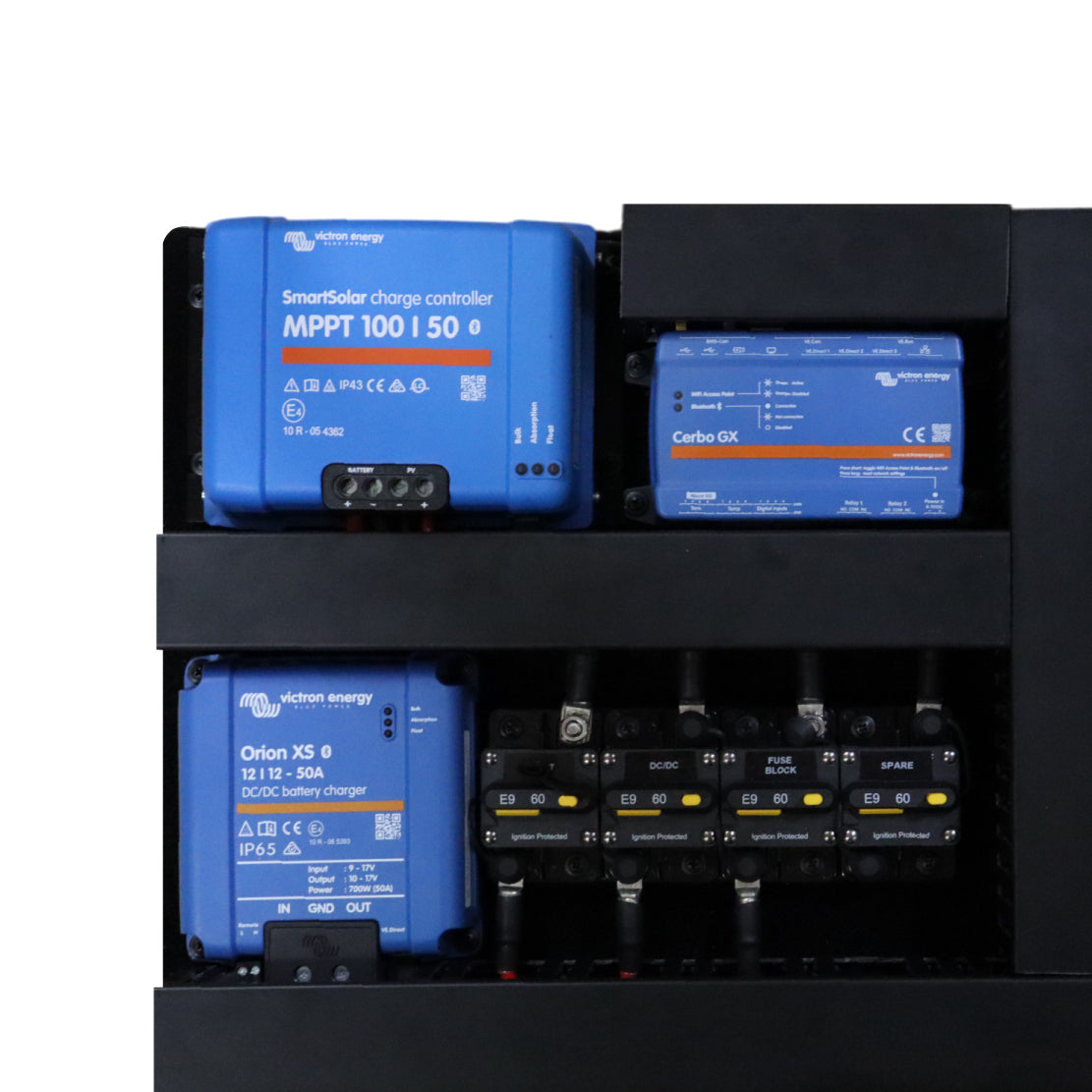

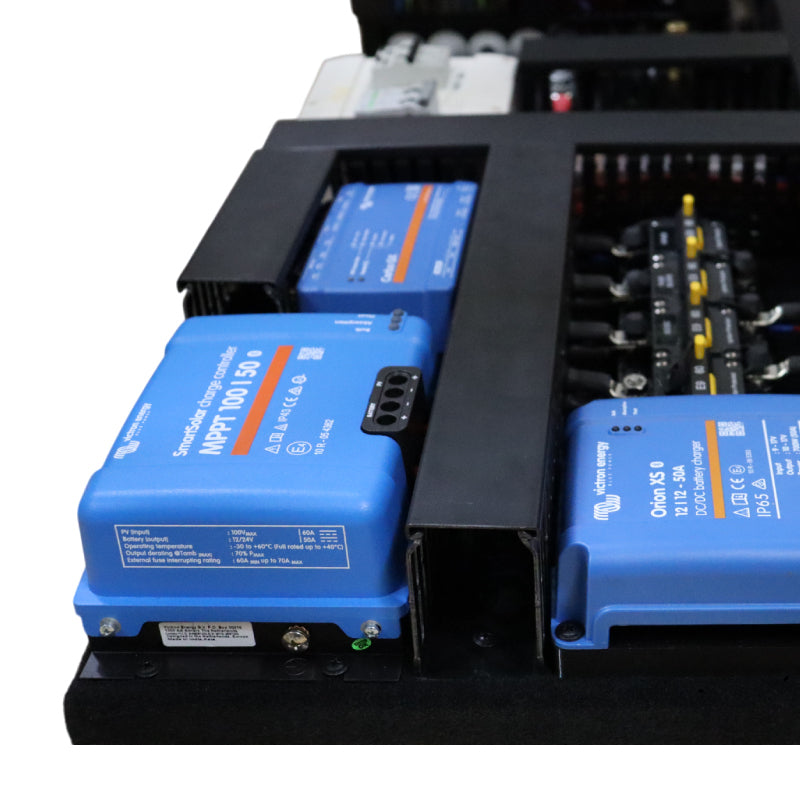

- Victron 50A MPPT SmartSolar Controller – Maximises solar harvest with Bluetooth monitoring via the VictronConnect app; pre-fitted with a red Anderson connector for quick solar panel connection.
- Victron Orion XS 50A DC-DC Charger – Adaptive three-step charging from the vehicle alternator, with intelligent recovery function and Bluetooth remote monitoring to protect and extend battery life.
- Victron 300A SmartShunt Battery Monitor – Provides real-time state of charge, voltage, and current data, with programmable alarms to prevent deep discharge.
- Victron Cerbo GX Communication Centre – Central hub for system monitoring and control, compatible with Ruuvi temperature sensors and Mopeka tank level sensors (sold separately) for complete oversight of your off-grid resources.
- Integrated Circuit Protection – 12-blade fuse block with Exotronic circuit breakers for accessory loads, plus a 400A MEGA fuse on 70mm² (approx. 2/0 AWG) insulated power cable for safe high-current handling.
- Pre-Wired and Tested – Every board is professionally assembled and tested, reducing installation time and eliminating guesswork. Detailed wiring diagrams are included for straightforward integration.
Designed for Flexible Installation

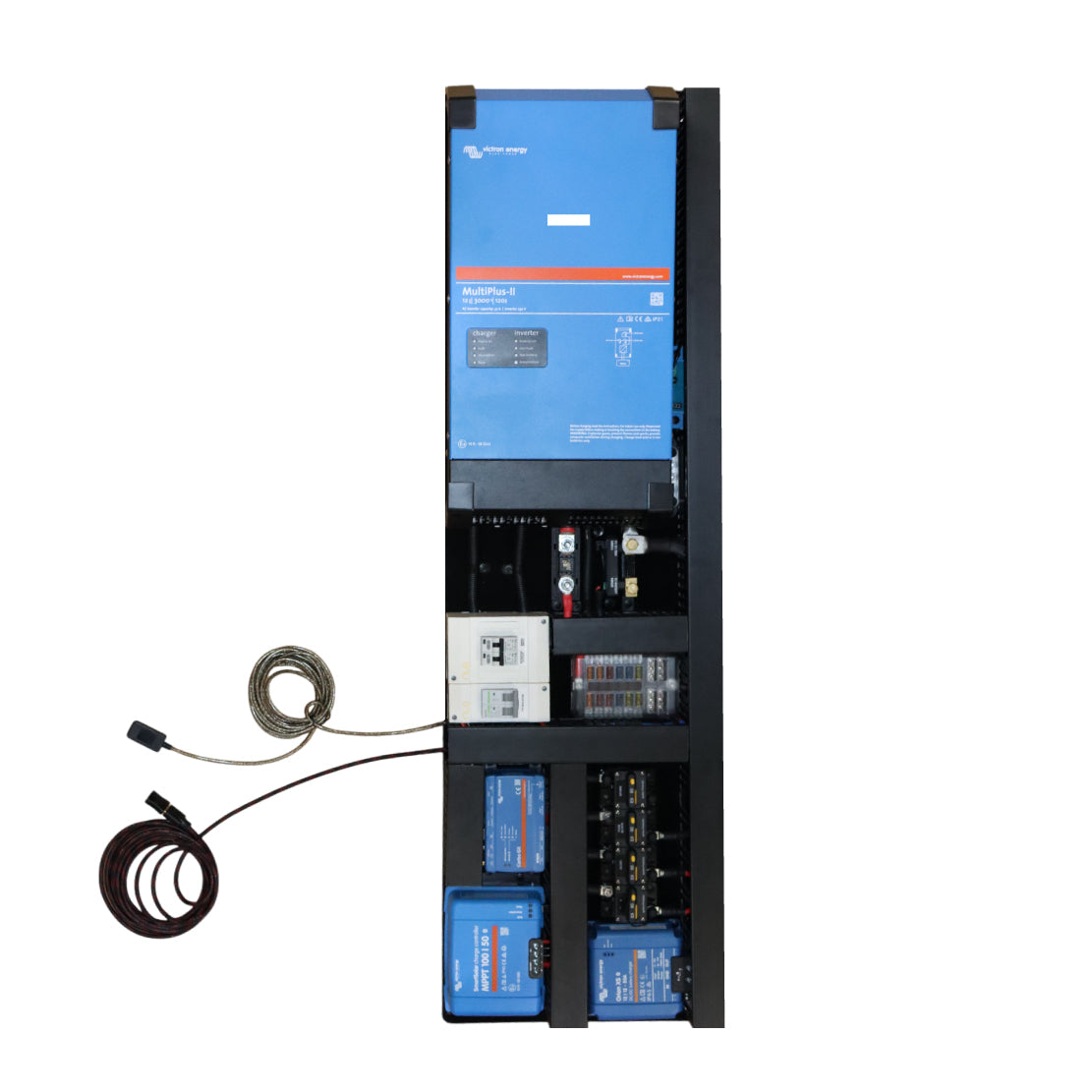

The landscape layout is optimised for wall or floor mounting, fitting neatly under a van bed or seat to maximise usable space. With dimensions of 1200 x 355 x 170 mm and a weight of 33 kg, the board is compact enough for most conversion projects while housing a full suite of high-performance Victron equipment. The pre-wired design means you spend less time on electrical work and more time on the road.
Why a Pre-Wired Board Reduces Risk
Custom electrical installations in mobile environments are subject to vibration, temperature extremes, and moisture. A pre-wired board built with correctly torqued connections, proper cable management, and matched protection devices significantly reduces the risk of loose connections, voltage drop, and electrical fires. The Karijini Series uses high-quality components and wiring practices that meet the demands of Australian conditions, giving you confidence in your power system’s long-term reliability.
Applications
- Van conversions and campervans
- Caravans and RVs
- Off-grid cabins and tiny homes
- Marine and coastal installations
- Mobile workshops and expedition vehicles
Take the Next Step in Your Build
Equip your vehicle with a power system that is engineered for performance and ease of installation. Order the Exotronic Karijini Series Pre-Wired Victron Board today and power your adventures with confidence.
SKU: PWB-Vic-A50X-KL-01
SPECIFICATIONS
Specifications
| Configuration | 3000VA + Mains 120A + Solar 50A + DC-DC 50A + Cerbo GX |
|---|---|
| Layout | Landscape |
| Inverter | Victron 3000VA MultiPlus-II Inverter |
| Mains Charger | 120 A mains charger |
| Transfer Switch | Automatic transfer switch |
| Solar Charge Controller | Victron 50A MPPT SmartSolar Controller |
| Solar Connector | Red Anderson connector |
| Solar Monitoring | Bluetooth-enabled for real-time solar monitoring via the VictronConnect app |
| DC-DC Charger | Victron Orion XS 50A DC-DC Charger |
| DC-DC Features | Adaptive Three-Step Charging, intelligent Recovery Function, remote monitoring and control via Bluetooth |
| Battery Monitor | Victron 300A SmartShunt Battery Monitor |
| Communication Centre | Victron Cerbo GX |
| Sensor Compatibility | Ready for Ruuvi temperature sensors and Mopeka water and LPG tank levels |
| Fuse Block | 12 Blade Fuse Block with Exotronic circuit breakers |
| Main Fuse | 400 A MEGA Fuse |
| Power Cable | 70 mm² insulated power cable |
| Mounting | Wall or floor mounting |
| Weight | 33 kg |
| Dimensions | 1200 x 355 x 170 mm |
| SKU | PWB-Vic-A50X-KL-01 |
| Barcode | 9361784000190 |
| SKU: | PWB-Vic-A50X-KL-01 |
| Barcode: | 9361784000190 |
| Model #: | PWB-Vic-A50X-KL-01 |
| MPN: | PWB-Vic-A50X-KL-01 |
