Exotronic 0.3m Axion RS485 Communications Cable

Reliable Communication for Exotronic Axion Batteries

Facilitate stable data transfer and optimal parallel operation across the energy storage system with the Exotronic 0.3m Axion Communications Cable. Designed specifically for the Axion lithium battery range, this specialised RS485 networking cable handles precise parallel connections between individual battery units. This allows the battery management system to maintain accurate cell balancing, charge control, and overall system monitoring without communication dropouts.

Robust IP66-Rated Construction

Built to withstand demanding off-grid, marine, and mobile environments, the cable features conventional Cat5e wiring protected by durable, IP66-rated waterproof connectors. This ensures moisture, dust, and environmental contaminants are kept out of the sensitive communication ports, providing a highly reliable connection even in challenging conditions where standard networking cables may degrade.

Key Features and Specifications

• Optimised Length: The 0.3-metre cable provides a neat, clutter-free connection between adjacent batteries without excessive slack.
• Waterproof Connectors: IP66-rated glands secure the terminals against water ingress and harsh environmental conditions.
• RS485 Protocol: Utilises stable RS485 communication for robust, interference-free data transfer across the battery bank.
• Durable Wiring: Built with high-quality Cat5e cable, delivering excellent signal integrity for critical battery management data.

Important Wiring Instructions

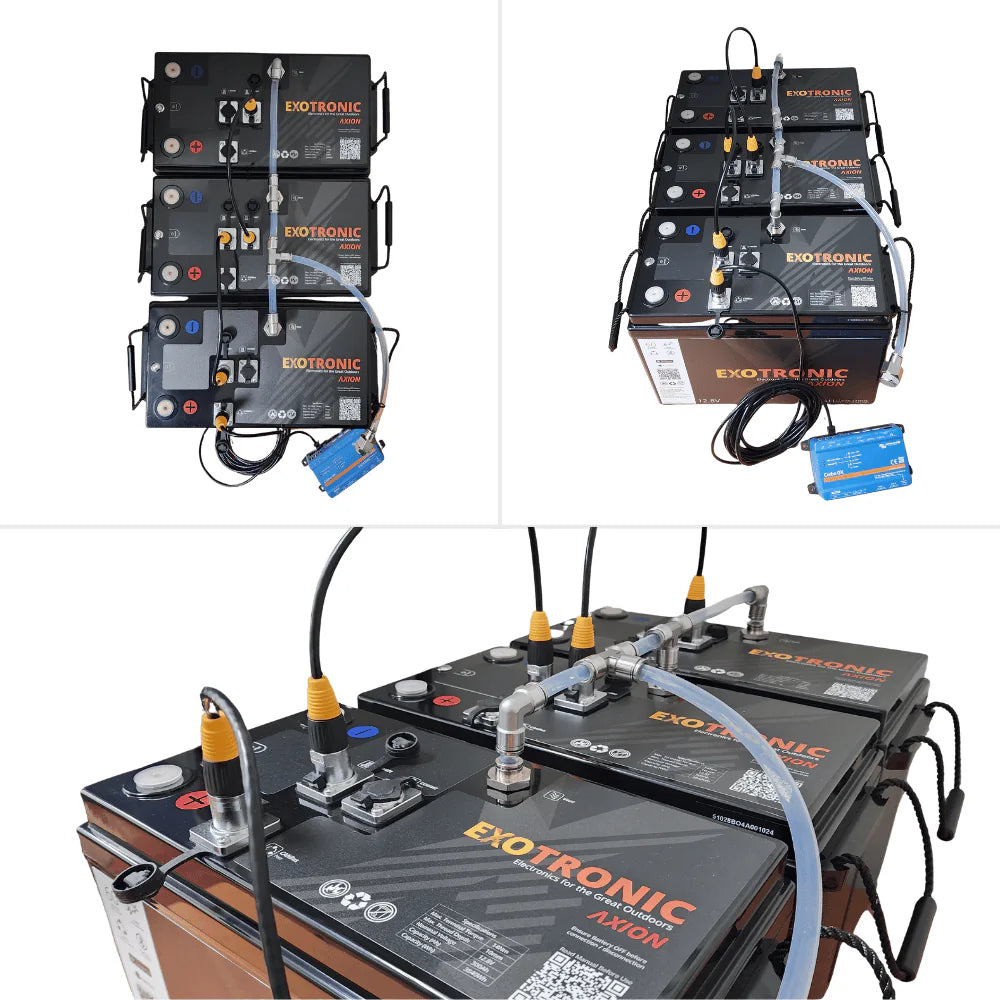

When connecting multiple Exotronic Axion batteries in parallel, strict adherence to the specific port sequencing is required for successful communication. To link the batteries correctly and establish the RS485 network:

• Connect Battery 1 (Comm 1 port) to Battery 2 (Comm 1 port).
• Connect Battery 2 (Comm 2 port) to Battery 3 (Comm 2 port).
• Continue this alternating pattern for any additional batteries in the bank.

Please be aware that connecting a Comm 1 port directly to a Comm 2 port on the subsequent battery will result in a communication failure. Always match the port numbers exactly between adjacent units.

Maximise the stability and efficiency of the power system with purpose-built networking hardware designed specifically for Exotronic energy storage solutions.
