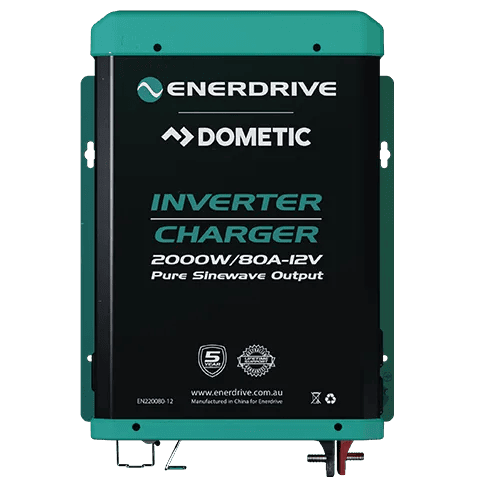

Enerdrive 12V 2000W/80A Inverter/Charger

Seamless Off-Grid Power Management with the Enerdrive 12V 2000W Inverter Charger

Designing a reliable off-grid electrical system requires high-quality components that work together flawlessly. This all-in-one unit combines a powerful 2000W True Sinewave inverter with an intelligent 80A multi-stage battery charger, delivering an integrated solution for RVs, caravans, marine vessels, and remote power setups. By housing both critical functions in a single chassis, it significantly reduces wiring complexity, saves valuable installation space, and improves overall system reliability compared to standalone components.

Clean True Sinewave AC Power

Not all alternating current is created equal. This unit delivers True Sinewave AC power with less than 3 percent total harmonic distortion, replicating the quality of standard household grid power. This ultra-clean output is essential for running sensitive modern electronics, including laptops, induction cooktops, microwaves, and medical devices. It eliminates the electrical noise, overheating, and potential equipment damage often associated with lower-grade modified sine wave inverters.

High-Capacity 80A Multi-Stage Charging

When connected to a 240V AC shore power source or generator, the system automatically transitions into charging mode. The integrated 80A charger utilises multi-stage charging profiles suitable for Lithium, AGM, Gel, and Flooded batteries. This intelligent charging capability ensures batteries are replenished rapidly and safely according to manufacturer recommendations, preventing overcharging and extending the overall lifespan of your battery bank.

Automatic Power Transfer and UPS Functionality

One of the most significant advantages of this combined system is the built-in 16A AC transfer switch. When shore power or a generator is connected, the switch routes that power directly to your appliances while simultaneously charging the batteries. If the external power source is disconnected, the system automatically transfers the load back to the battery bank via the inverter. With a transfer time of under 30 milliseconds, this transition is virtually seamless, ensuring continuous operation of your critical devices without requiring manual intervention.

Uncompromising Safety Features

Working with 240V AC power in mobile environments requires stringent safety measures. This unit is equipped with a built-in Residual Current Device (RCD) safety switch. The RCD constantly monitors the electrical flow and will instantly cut power within 0.03 seconds if a fault or leakage is detected, offering robust protection against electric shock. Furthermore, integrated under-voltage and over-voltage shutdown mechanisms protect your 12V battery bank from damaging deep discharges or dangerous voltage spikes.

Key Features

• Combined 2000W True Sinewave inverter and 80A battery charger for simplified installation
• Multi-stage charging profiles compatible with Lithium, AGM, Gel, and Flooded battery chemistries
• Integrated 16A automatic transfer switch for uninterrupted appliance operation
• Built-in RCD safety switch provides critical protection for personnel and equipment
• Under-voltage protection safeguards batteries from excessive discharge

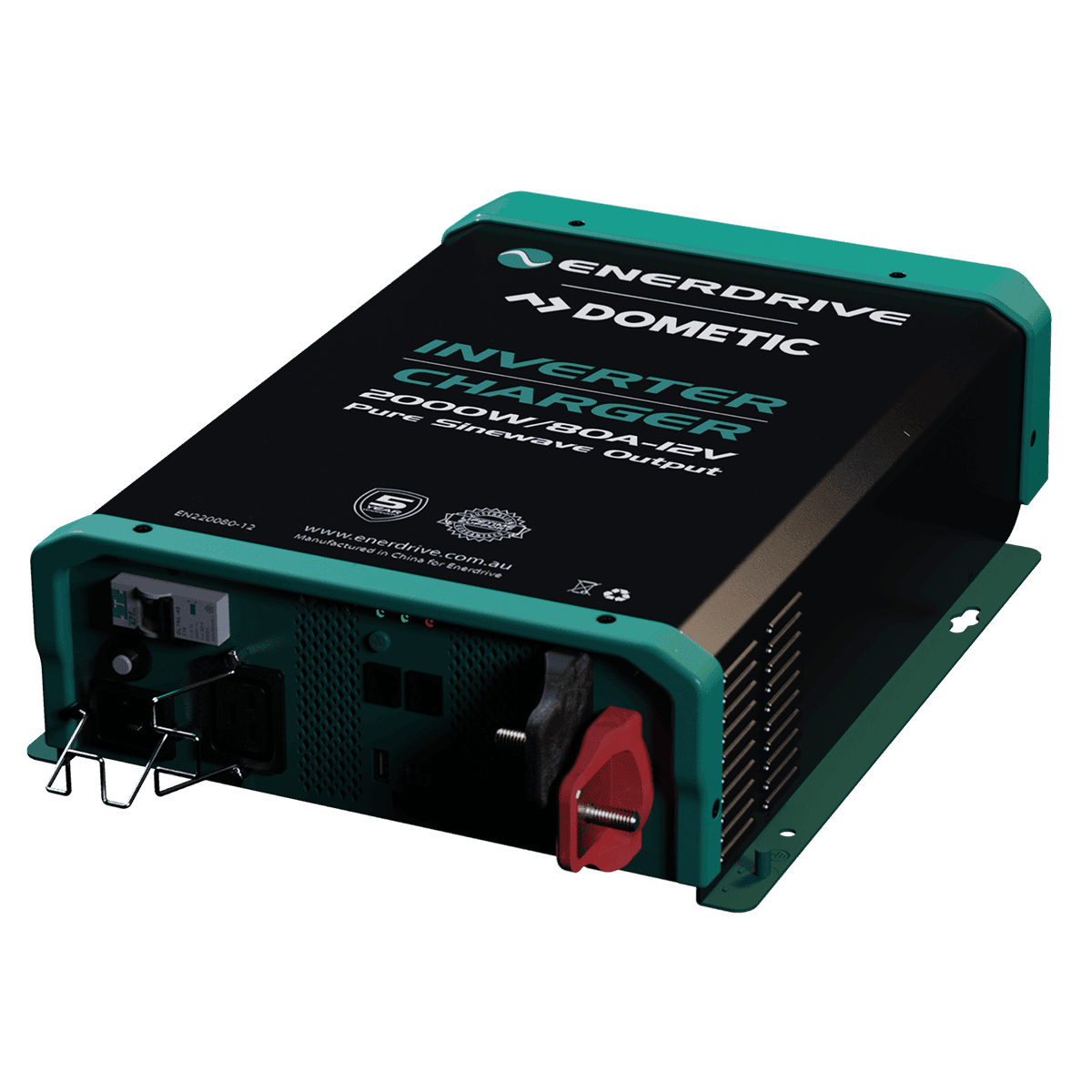

• Heavy-duty IEC C20 input and C19 output connectors for secure electrical connections
• Built-in load sensing technology minimises battery drain during periods of low activity

Engineered for Demanding Environments

Mobile electrical systems face challenging conditions, including vibration, temperature fluctuations, and limited ventilation. This unit is built to manage internal thermals effectively with strategically placed cooling vents, ensuring consistent performance even under heavy loads. The inclusion of a remote control display panel allows users to monitor system status and control functions from a convenient location, making it highly practical for confined marine or caravan installations.

Invest in a reliable, unified power system that streamlines your installation and protects your valuable equipment. Order the Enerdrive 2000W Inverter Charger today to ensure dependable off-grid power for your next project.
