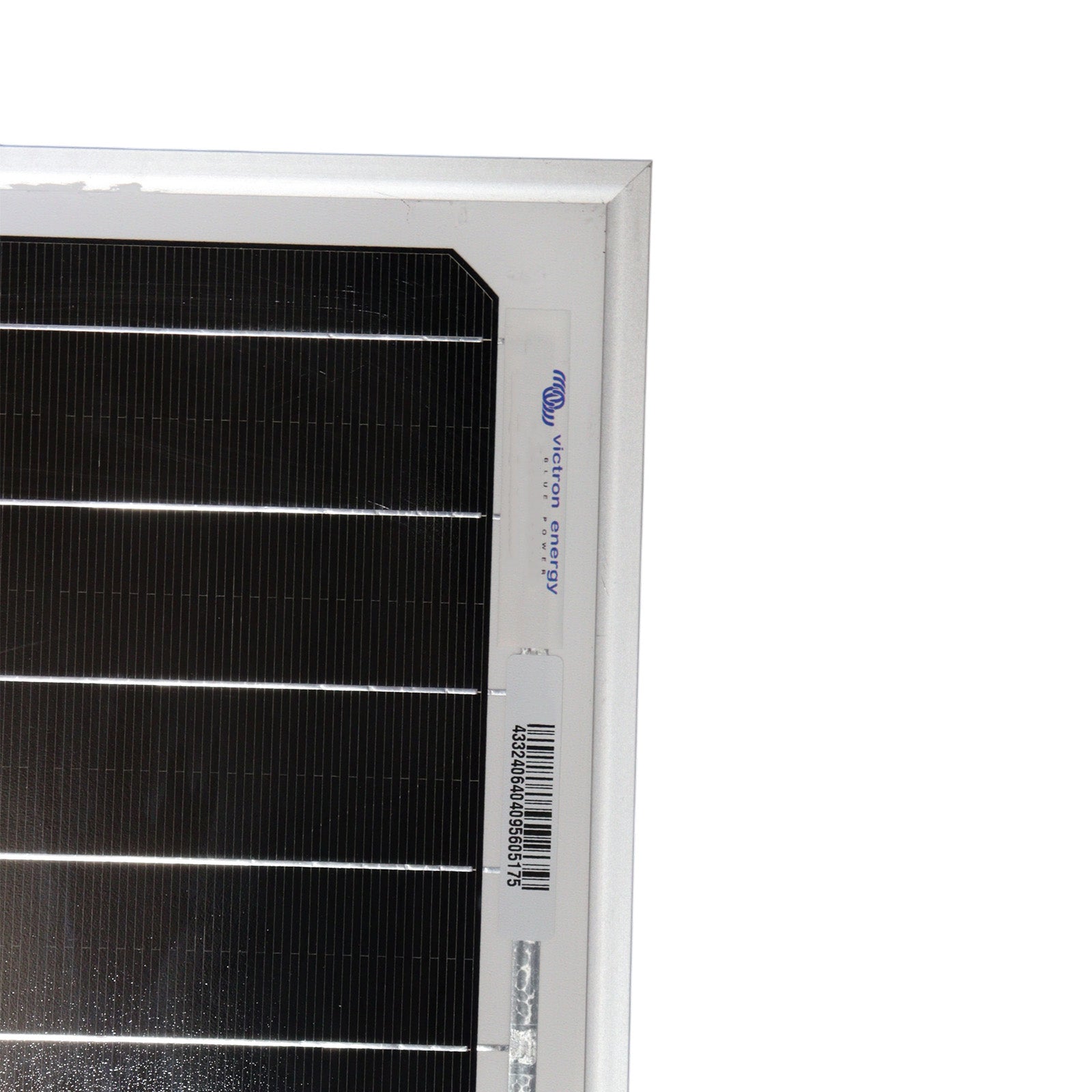

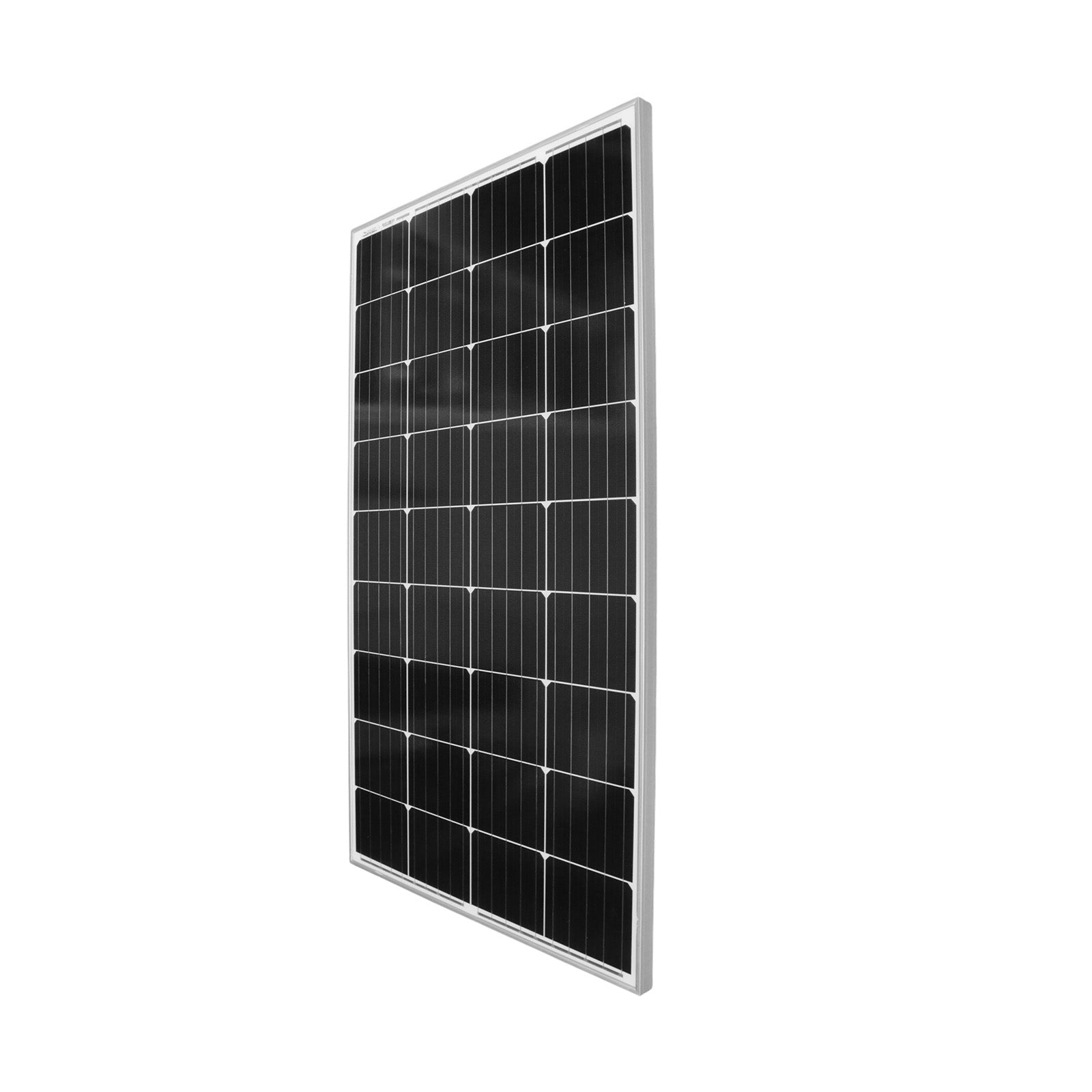

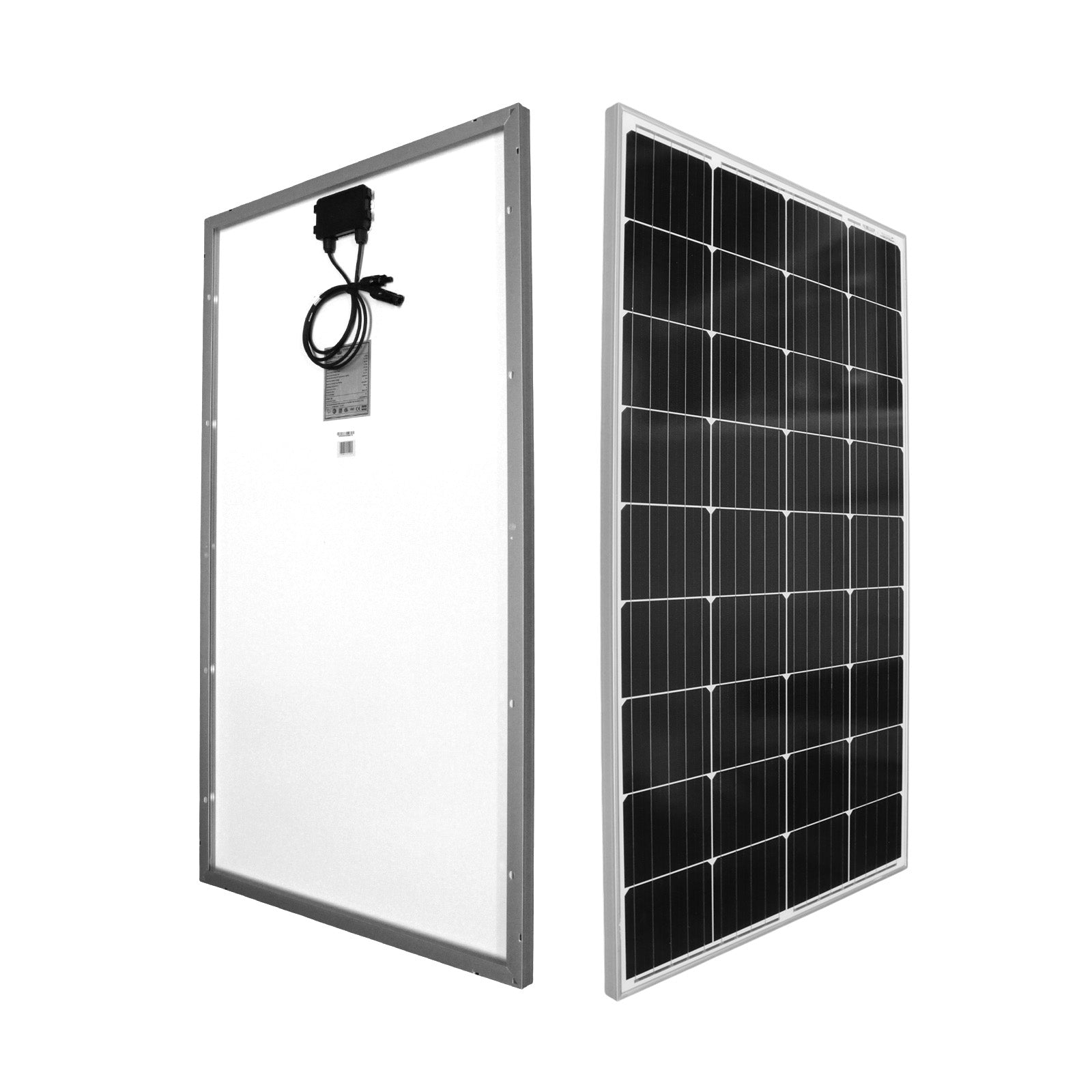

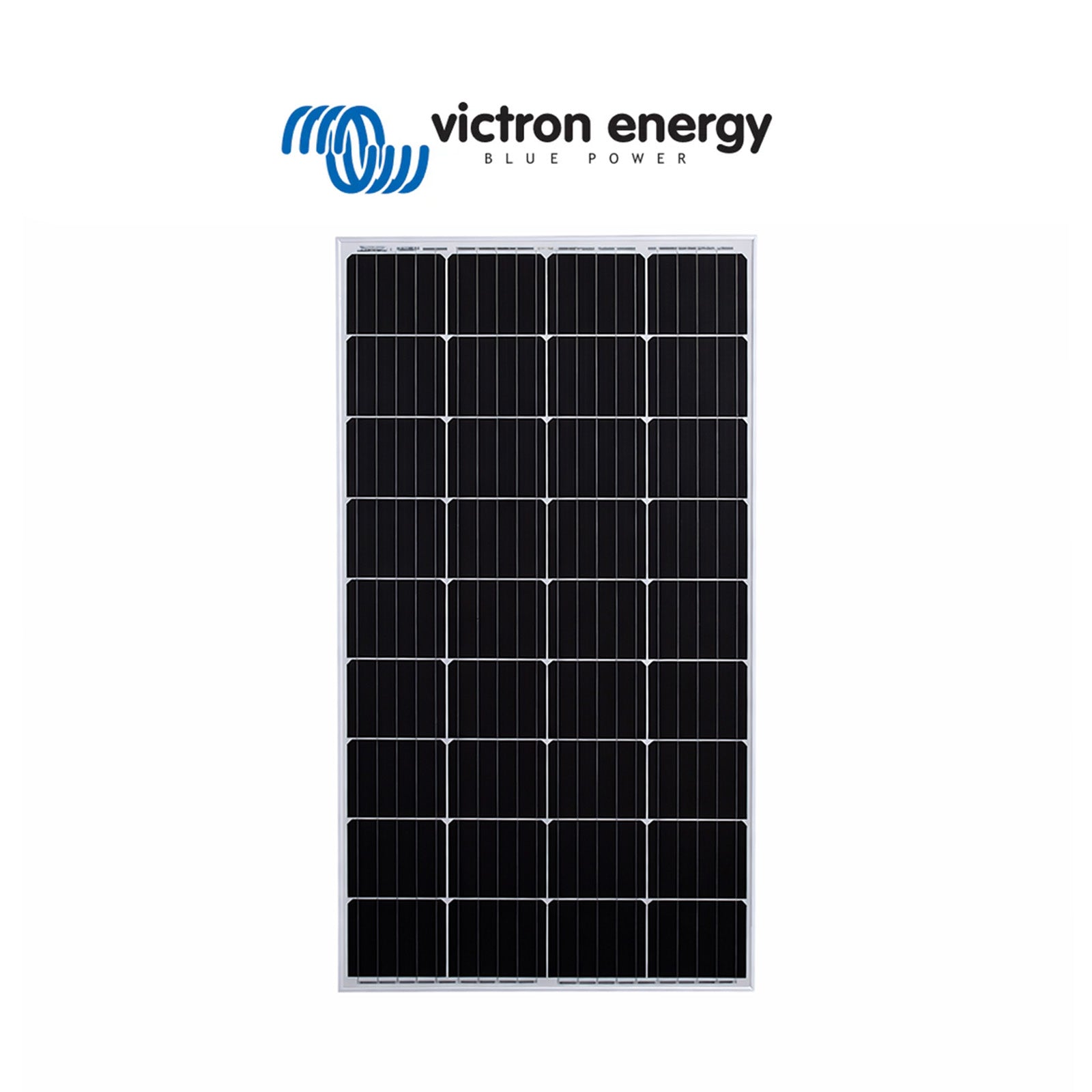

Victron 130W Monocrystalline Solar Panel

High-efficiency 130W monocrystalline panel built with a robust anodised aluminium frame for reliable off-grid power - 1200 x 668 x 30mm


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Victron 130W Monocrystalline Solar Panel: Superior Efficiency for Off-Grid Power

The Victron 130W Monocrystalline Solar Panel delivers premium energy harvesting technology, making it the perfect solution for off-grid living, mobile power setups, and marine adventures. Engineered by industry leaders, this 130W monocrystalline solar panel offers exceptional performance in a highly compact footprint. By utilizing high-purity silicon cells, it significantly outperforms generic-grade alternatives, providing a highly reliable power source for your 12V battery bank even when mounting space is limited.

With a peak power output of 130W, this solar panel is specifically designed to rapidly replenish your deep cycle batteries. This ensures your essential appliances, refrigeration, and lighting systems stay powered for longer, giving you complete energy independence during extended off-grid trips.

Advanced Performance in Harsh Climates

Australia's demanding environment requires robust energy solutions. One of the most significant advantages of this panel is its exceptionally low voltage-temperature coefficient. While traditional solar modules experience severe voltage drops as surface temperatures rise, this Victron monocrystalline panel maintains a higher voltage output. This means it continues to push maximum power into your solar charge controller during scorching midday heat, exactly when you need it most.

In addition to high-temperature stability, the panel features exceptional low-light sensitivity. Whether you are dealing with overcast skies, early morning light, or late afternoon shading, the highly responsive monocrystalline cells maintain an active charge. High-performance integrated bypass diodes further protect your daily energy yield by effectively routing current around partially shaded cells, minimizing power loss caused by overhanging trees or roof fixtures.

Built for Marine and Outback Durability

Durability is paramount for caravan solar panels and marine power setups. The Victron 130W Monocrystalline Solar Panel features a rugged, anodised aluminium frame that provides immense structural stability, making roof or bracket mounting simple and secure. The solar cells are protected by high-transmission, low-iron tempered glass. This specially engineered surface enhances light capture while offering superior stiffness and impact resistance against heavy hail, debris, and extreme wind loads.

To prevent the risk of moisture ingress and delamination, the internal circuitry is protected by an advanced EVA (Ethylene Vinyl Acetate) encapsulation system, finished with a rugged triple-layer backsheet. This eliminates the common failures seen in lower-grade alternatives and ensures stringent safety requirements for high-voltage operation are met. Combined with a fully sealed, waterproof junction box, the internal electrical components remain completely protected against heavy rain, salt spray, and harsh coastal environments.

For quick and secure installation, this panel comes pre-wired with high-quality 900mm cables and industry-standard MC4 connectors, allowing for a seamless, weather-tight connection to your broader solar array.

Key Features

  • 130W peak power output optimized for efficient 12V battery charging
  • High-efficiency monocrystalline solar cells with superior low-light sensitivity
  • Low voltage-temperature coefficient maintains excellent performance in extremely hot environments
  • Rigid anodised aluminium frame designed for secure vehicle and marine mounting
  • High-transmission tempered glass provides exceptional stiffness and impact resistance
  • Advanced EVA encapsulation with a triple-layer backsheet prevents delamination and moisture ingress
  • Sealed, waterproof junction box protects against harsh weather conditions
  • High-performance bypass diodes drastically reduce power loss from partial shading
  • Supplied with pre-wired 900mm cables and reliable MC4 connectors for quick plug-and-play installation

Ready to Power Your Next Adventure

Whether you are building an off-grid cabin, upgrading a caravan solar setup, or fitting out a marine vessel, the Victron 130W Monocrystalline Solar Panel delivers long-lasting, highly efficient energy generation. Backed by industry-renowned engineering, it reduces the risk of unexpected power shortages and provides true peace of mind on the road or water.

Order the Victron 130W Monocrystalline Solar Panel today and secure a reliable, high-yield power solution for your off-grid applications.


SKU: VIC-SPM041301200

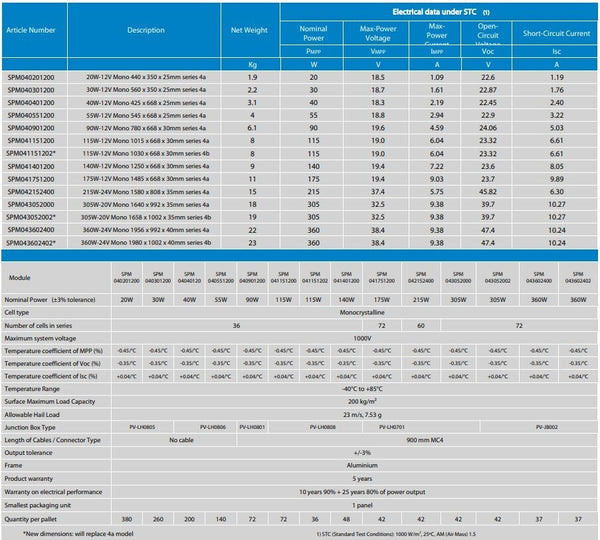

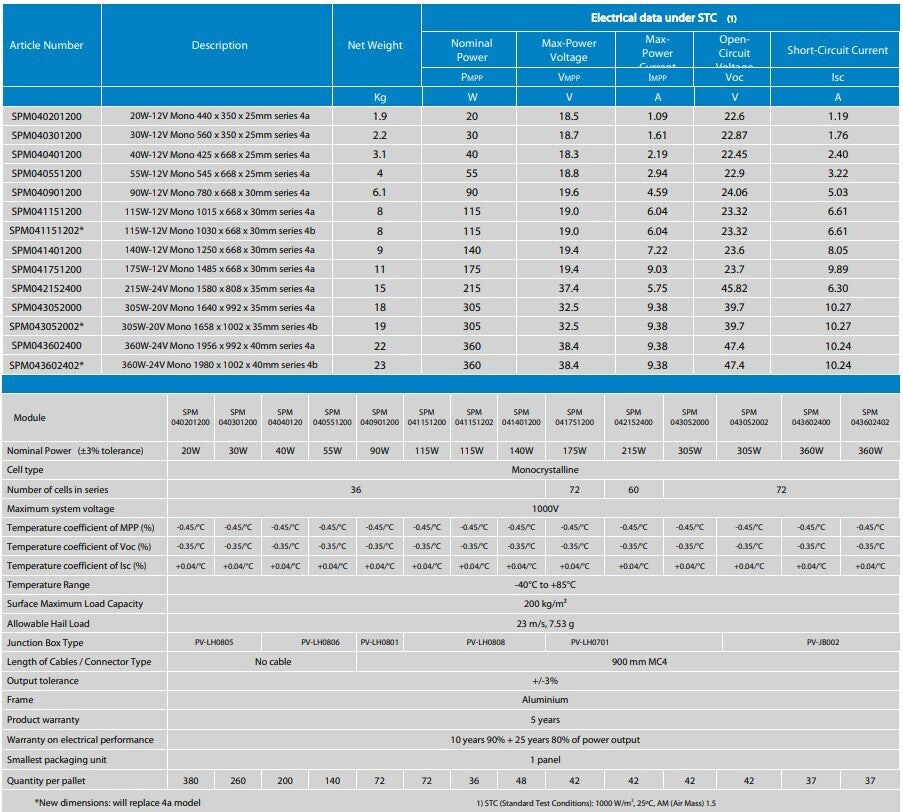

SPECIFICATIONS




























































































































































Article Number Description Net Weight (Kg) Nominal Power PMPP (W) Max-Power Voltage VMPP (V) Max-Power Current (A) Open-Circuit Voltage VOC (V) Short-Circuit Current ISC (A)
SPM040201200 20W-12V Mono 440 x 350 x 25mm series 4a 1.9 20 18.5 1.09 22.6 1.19
SPM040301200 30W-12V Mono 560 x 350 x 25mm series 4a 2.2 30 18.7 1.61 22.87 1.76
SPM040401200 40W-12V Mono 425 x 668 x 25mm series 4a 3.1 40 18.3 2.19 22.45 2.40
SPM040551200 55W-12V Mono 545 x 668 x 25mm series 4a 4 55 18.8 2.94 22.9 3.22
SPM040901200 90W-12V Mono 780 x 668 x 30mm series 4a 6.1 90 19.6 4.59 24.06 5.03
SPM041151200 115W-12V Mono 1015 x 668 x 30mm series 4a 8 115 19.0 6.04 23.32 6.61
SPM041151202* 115W-12V Mono 1030 x 668 x 30mm series 4b 8 115 19.0 6.04 23.32 6.61
SPM041401200 140W-12V Mono 1250 x 668 x 30mm series 4a 9 140 19.4 7.22 23.6 8.05
SPM041751200 175W-12V Mono 1485 x 668 x 30mm series 4a 11 175 19.4 9.03 23.7 9.89
SPM042152400 215W-24V Mono 1580 x 808 x 35mm series 4a 15 215 37.4 5.75 45.82 6.30
SPM043052000 305W-26V Mono 1640 x 992 x 35mm series 4a 18 305 32.5 9.38 39.7 10.27
SPM043052002* 305W-26V Mono 1956 x 1002 x 35mm series 4b 19 305 32.5 9.38 39.7 10.27
SPM043602400 360W-24V Mono 1956 x 992 x 40mm series 4a 22 360 38.4 9.38 47.4 10.24
SPM043602402* 360W-24V Mono 1980 x 1002 x 40mm series 4b 23 360 38.4 9.38 47.4 10.24














































































































































































Module SPM 040201200 SPM 040301200 SPM 040401200 SPM 040551200 SPM 040901200 SPM 041151200 SPM 041151202 SPM 041401200 SPM 041751200 SPM 042152400 SPM 043052000 SPM 043052002 SPM 043602400 SPM 043602402
Nominal Power (±3% tolerance) 20W 30W 40W 55W 90W 115W 115W 140W 175W 215W 305W 305W 360W 360W
Cell type Monocrystalline
Number of cells in series 36 72 60 72
Maximum system voltage 1000V
Temperature coefficient of MPP (%) -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C
Temperature coefficient of Voc (%) -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C
Temperature coefficient of Isc (%) +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C
Temperature Range -40°C to +85°C
Surface Maximum Load Capacity 200 kg/m²
Allowable Hail Load 23 m/s, 7.53 g
Junction Box Type PV-LH0805 PV-LH0806 PV-LH0801 PV-LH0808 PV-LH0701 PV-JB002
Length of Cables / Connector Type No cable 900 mm MC4
Output tolerance +/-3%
Frame Aluminium
Product warranty 5 years
Warranty on electrical performance 10 years 90% + 25 years 80% of power output
Smallest packaging unit 1 panel
Quantity per pallet 380 260 200 140 72 72 36 48 42 42 42 42 37 37


*New dimensions: will replace 4a model



1) STC (Standard Test Conditions): 1000 W/m², 25°C, AM (Air Mass) 1.5



SKU: VIC-SPM041301200
Barcode: 8719076064213
Model #: SPM041301200
MPN: SPM041301200

WARRANTY

Victron Energy Limited Warranty Policy





Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.





During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.





This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.





Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.





Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.





Life Support Policy

As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.





As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.





Warranty on Repairs

The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.





Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.





Severability

If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.





For Australia only

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
