Exotronic 24V 200W Portable Folding Solar Panel - No Controller

Exotronic 24V 200W Portable Folding Solar Panel: High-Efficiency Off-Grid Power

Compact, Foldable 24V Solar Panel for Camping, Caravans, and Remote Energy

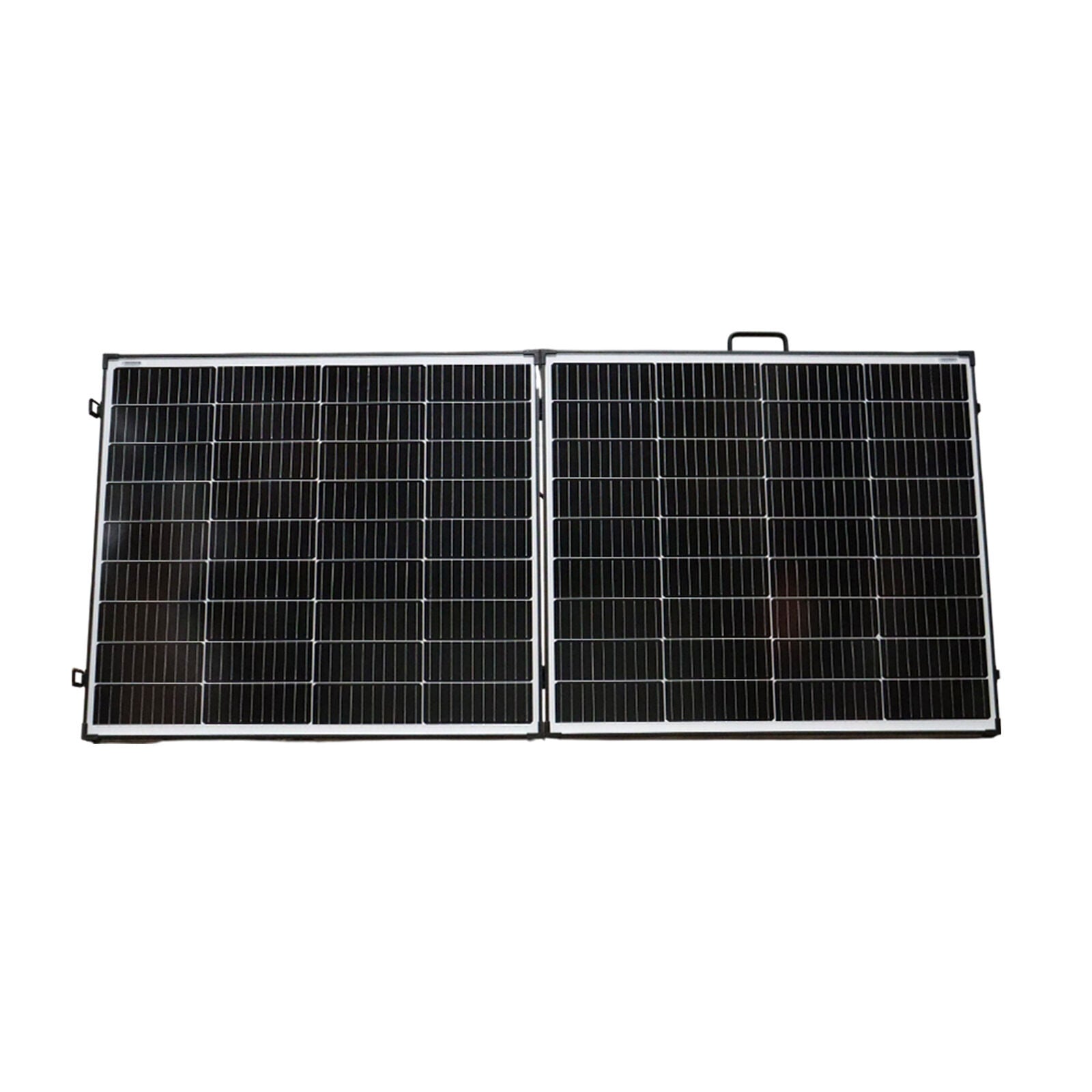

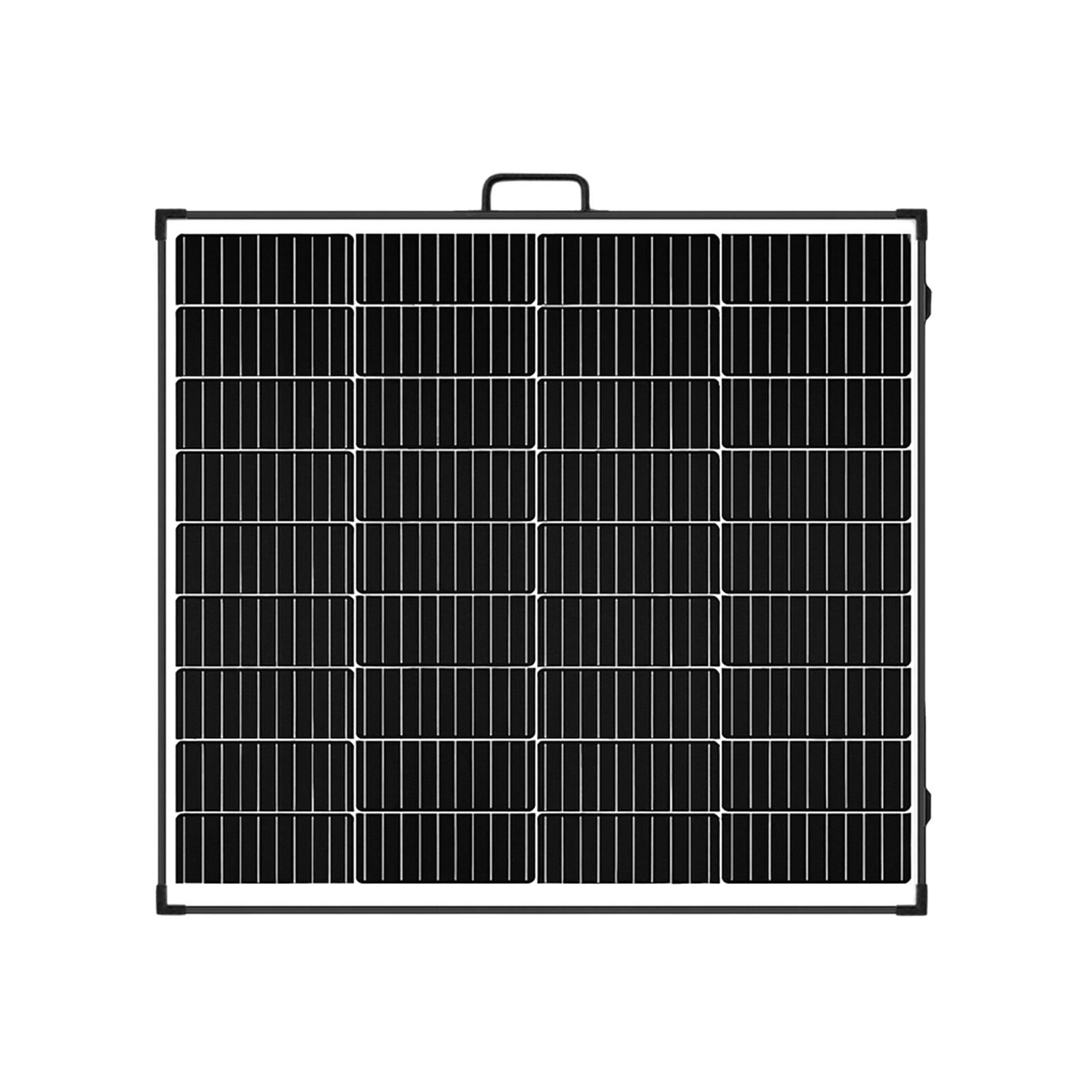

The Exotronic 24V 200W Portable Folding Solar Panel delivers robust, reliable power in a lightweight, foldable design. Built around two 100W modules with Trina half-cut 23% PERC monocrystalline solar cells and a 9-wire busbar layout, this panel achieves high module efficiency and consistent output, even in challenging conditions. Whether you are topping up a 24V battery system at a campsite or running essential equipment off-grid, this panel provides a practical energy solution without permanent mounting.

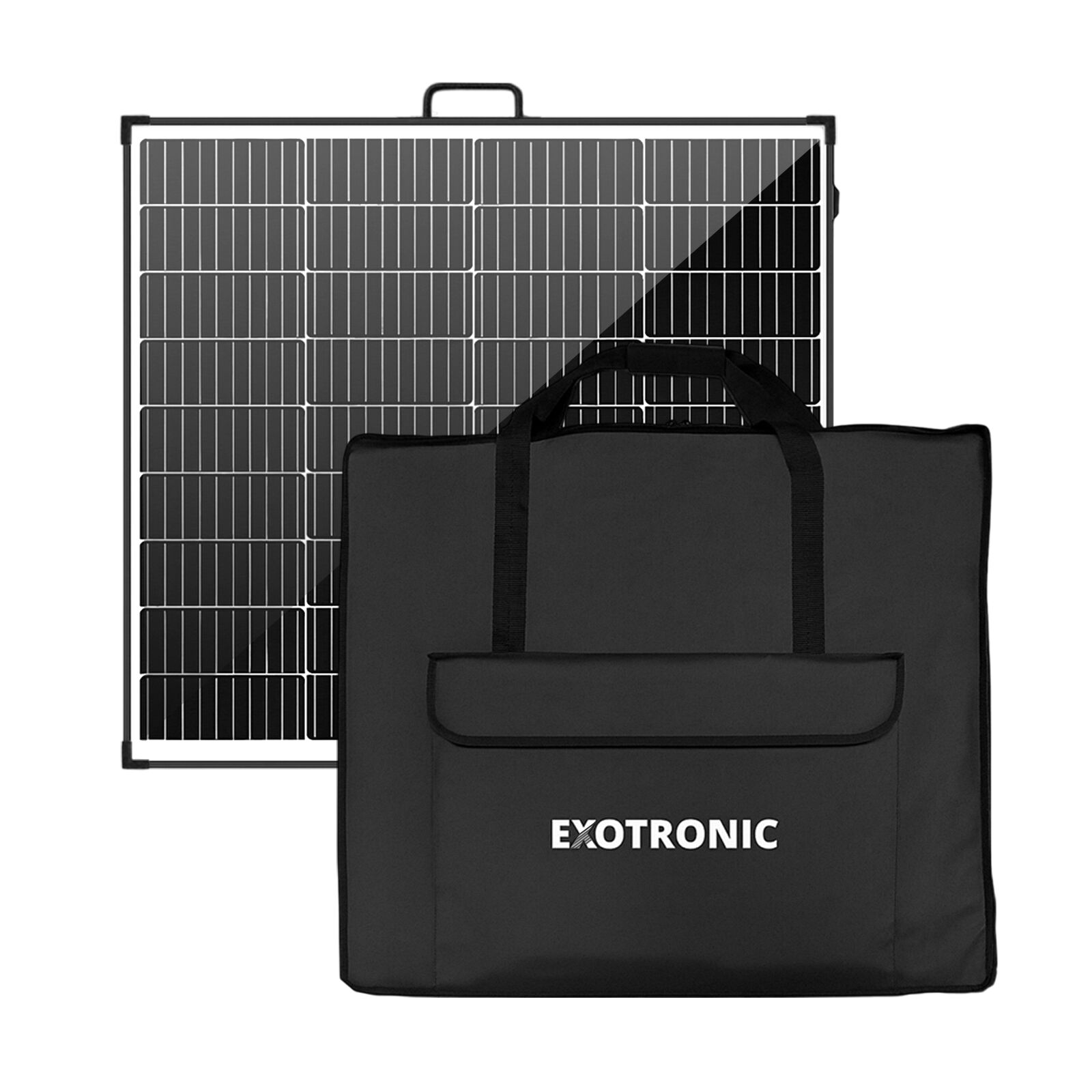

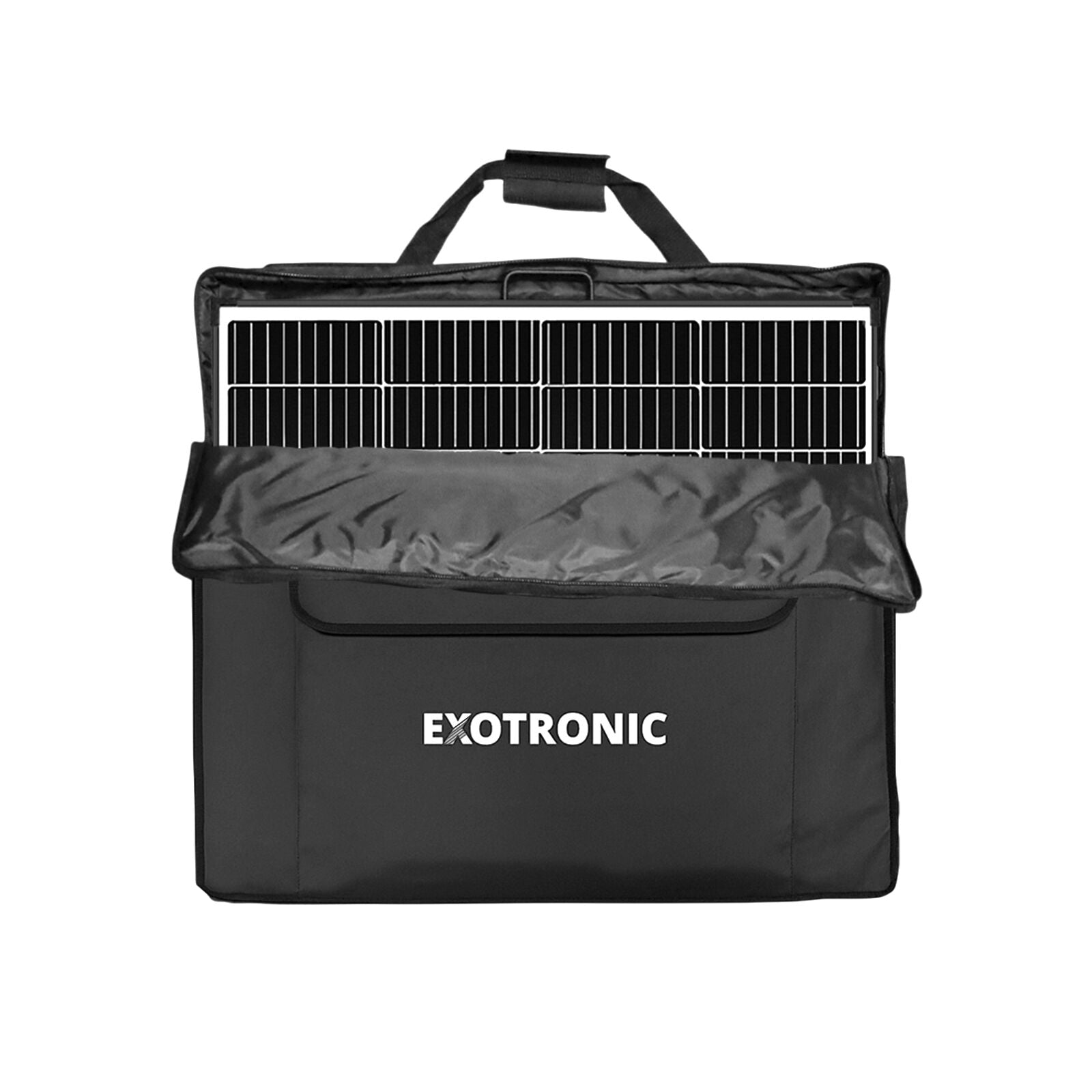

Weighing just 11.2 kg and folding to 775 x 675 x 40 mm, it is easy to store and transport. The included padded canvas carry bag with a handle and accessory pocket keeps the panel protected and your cables organised. Integrated corner bumpers and fold-away legs allow quick setup on uneven ground, while the 3.2 mm tempered glass and black anodised aluminium frame withstand typical outdoor handling.

Advanced PERC Cell Technology for Superior Low-Light Performance

Unlike standard monocrystalline cells, the PERC (Passivated Emitter Rear Contact) structure reflects unabsorbed light back into the cell for a second conversion pass. This boosts energy yield in overcast skies, early mornings, and shaded environments, common in Australian bush camping and coastal conditions. Combined with a 9-wire busbar design, resistive losses are minimised and current spreads evenly across each cell, reducing hot spots and improving long-term reliability.

Premium Cable Kit for Versatile Connections

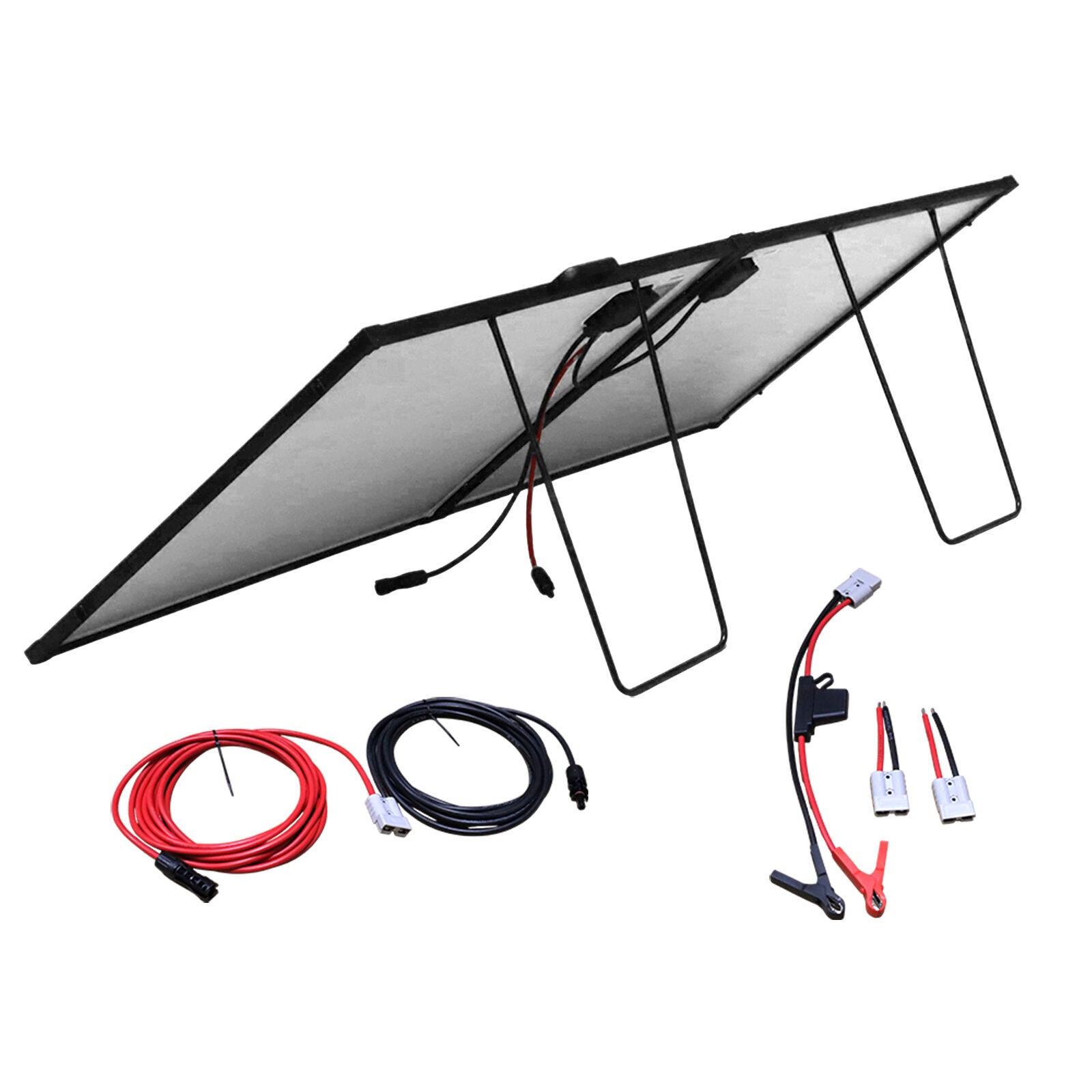

Every Exotronic 24V 200W Portable Panel includes a comprehensive cable set to suit most off-grid setups:

• 5 m 4 mm² PV1-F tinned copper marine-grade cable with MC4 to 50 A grey Anderson connector, resistant to corrosion in damp or salty air.
• Two 50 A grey Anderson tails for direct connection to your existing MPPT or PWM solar charge controller.
• Alligator clips to 50 A grey Anderson with a 30 A fuse, useful for jump-starting a lithium battery BMS or charging a starter battery in an emergency.

Note: Always use a suitably rated solar charge controller between the panel and your battery. The panel’s Voc of 48.2 V requires a controller with an adequate voltage limit, especially in cold conditions where voltage can rise.

Key Features at a Glance

• 200 W total output from two 100 W modules, ideal for 24 V battery banks.
• 23% efficient Trina PERC half-cut cells with 9-wire busbars for low-loss performance.

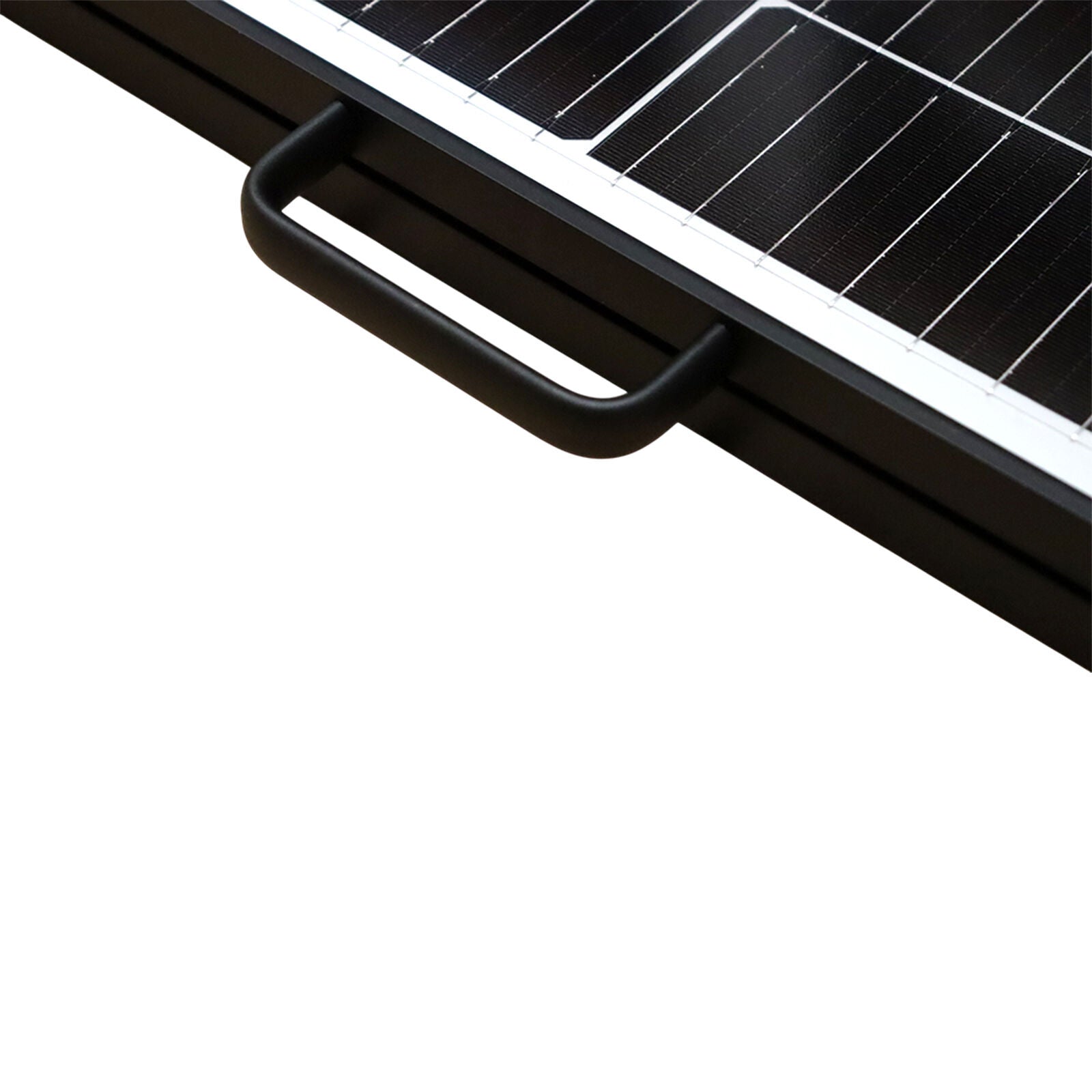

• Foldable design (775 x 675 x 40 mm folded) with a carry handle and padded canvas bag.

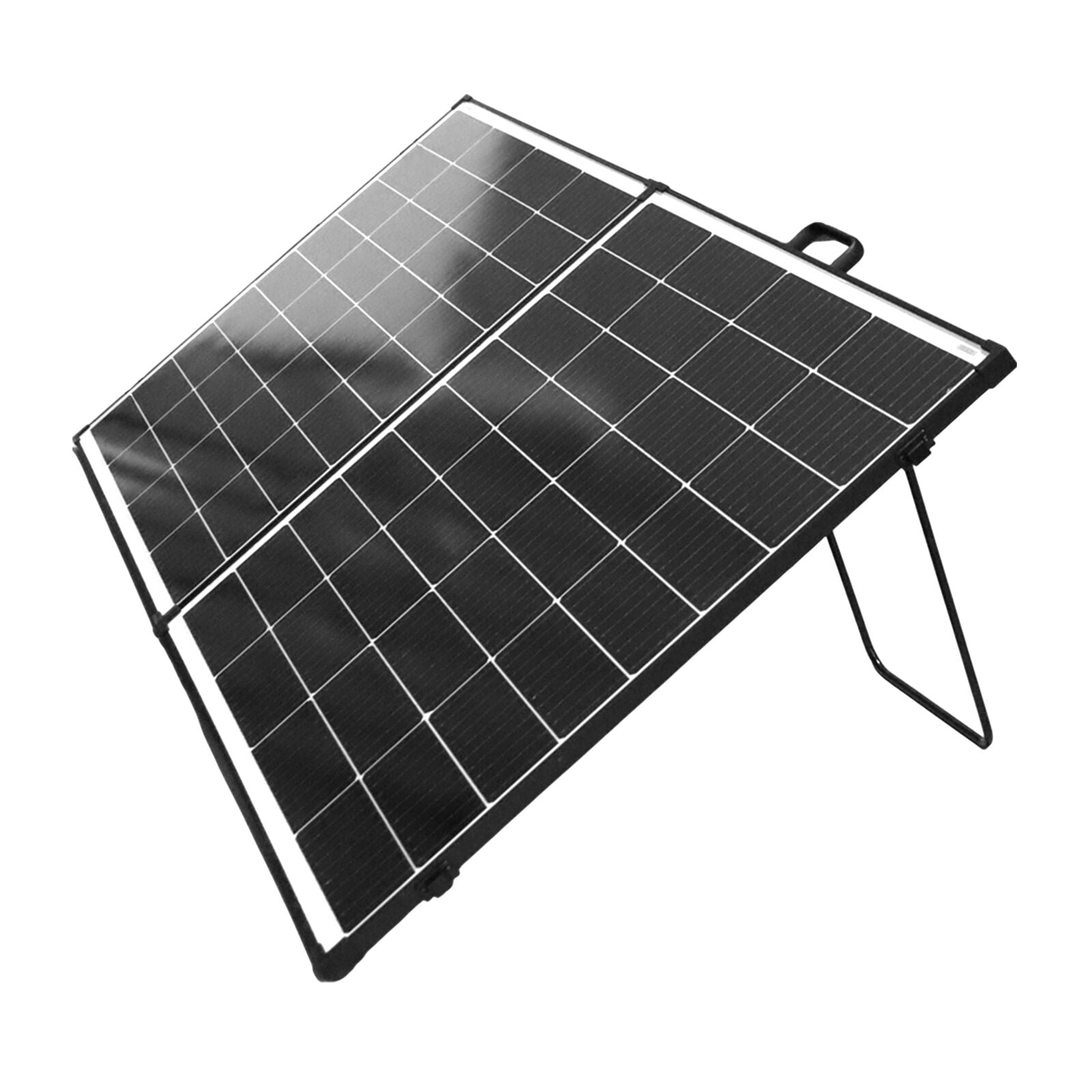

• Integrated fold-away legs and corner bumpers for stable positioning on varied terrain.
• IP65/IP67 junction box and MC4-compatible connectors for weather-resistant connections.
• Marine-grade tinned copper cable and fused alligator clips included.

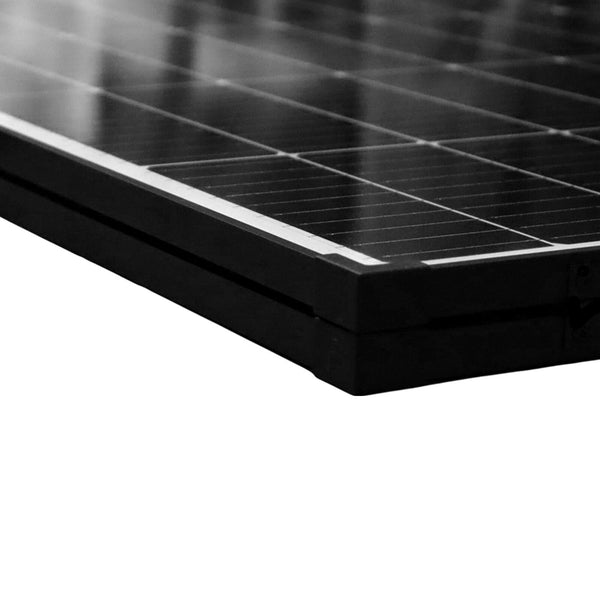

• 3.2 mm tempered glass and anodised aluminium frame for durability.

Compatibility and System Design

This panel is optimised for 24 V battery systems when paired with an MPPT or PWM solar charge controller. It can also charge 12 V batteries efficiently using an MPPT controller that steps down the higher panel voltage. Always check your charge controller’s maximum PV input voltage against the panel’s open-circuit voltage (Voc) of 48.2 V, and allow for temperature-related voltage increases in cold weather.

Built for Australian Conditions

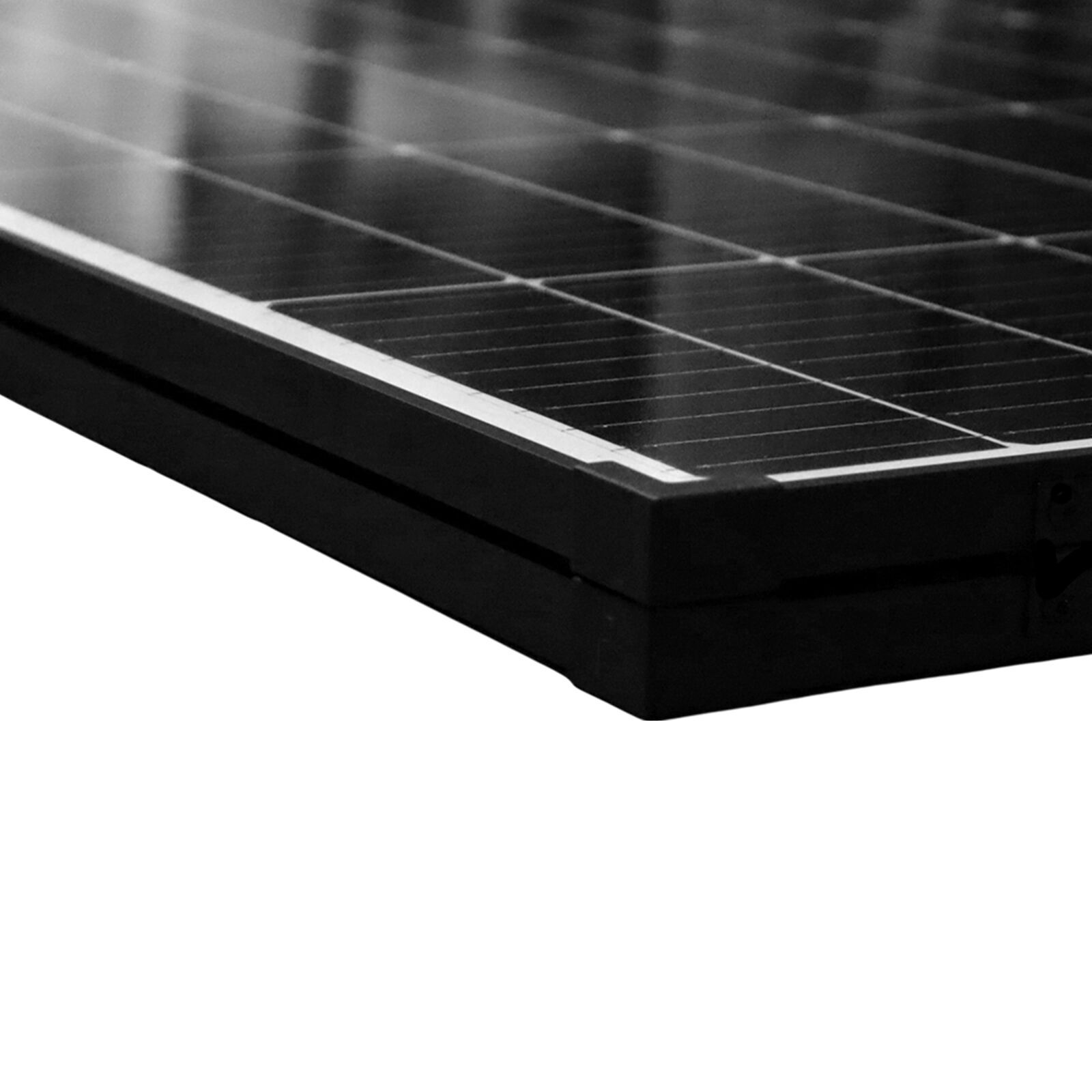

From the red centre to coastal campsites, the Exotronic 24V 200W Portable Panel is engineered to handle real-world use. The anodised frame resists corrosion, the tempered glass withstands impacts, and the potted junction box prevents moisture ingress. With an operating temperature range of -40 °C to +85 °C, it performs reliably across Australia’s climate extremes.

Power Your Next Adventure

Add the Exotronic 24V 200W Portable Folding Solar Panel to your off-grid kit today and enjoy dependable, high-efficiency solar charging wherever you go. Whether you are running a camp fridge, charging a battery bank, or keeping communications gear online, this panel delivers the performance you need in a portable package.
