Exotronic Coorong Series Pre-wired Victron Board - Landscape

Pre-wired Victron system with inverter, solar, DC-DC, and monitor


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
-6

DESCRIPTION

Exotronic Coorong Series Pre-Wired Victron Board: Complete Off-Grid Power System for Van Conversions

Premium, Pre-Wired Victron Energy Power Board — Landscape Layout for Space-Efficient Installation

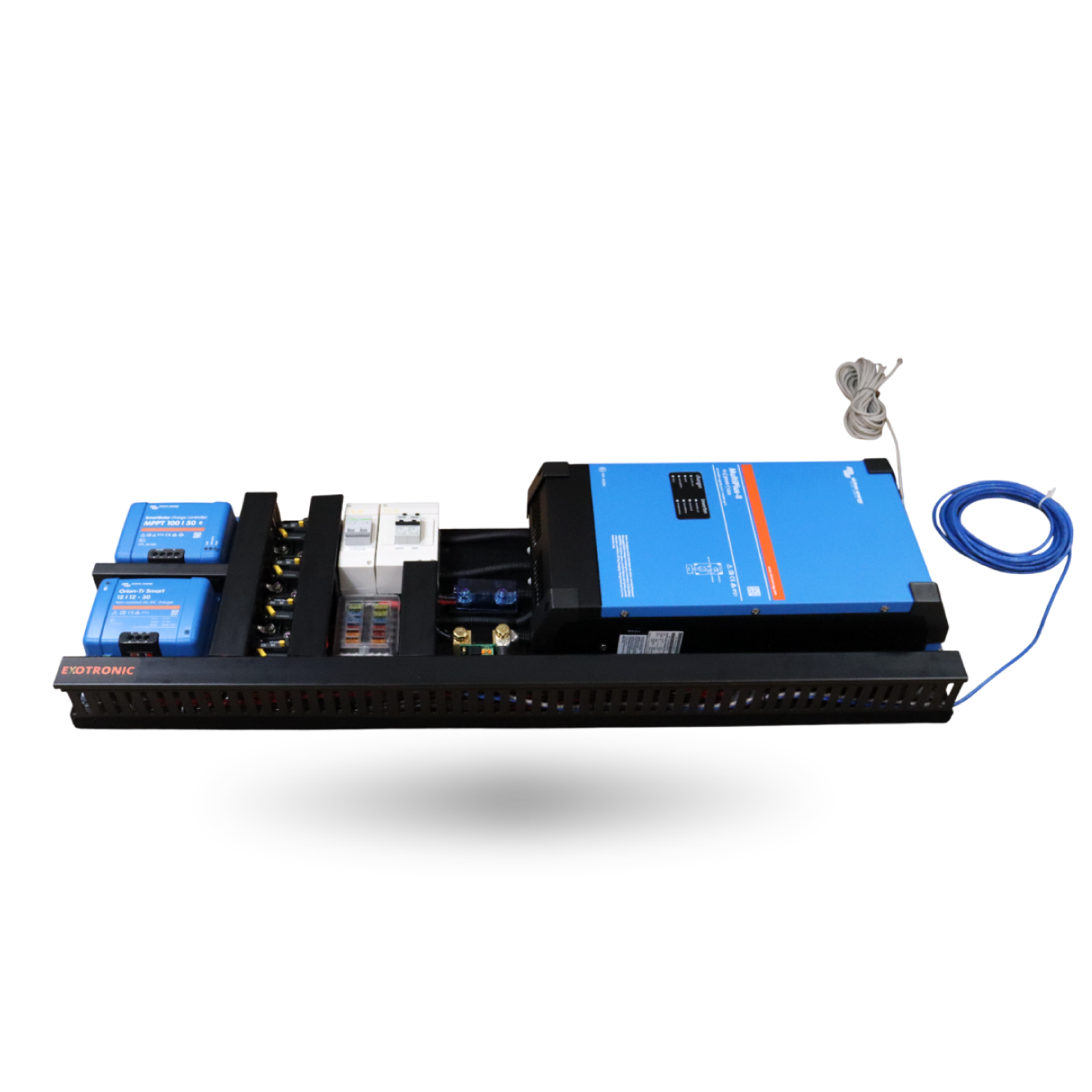

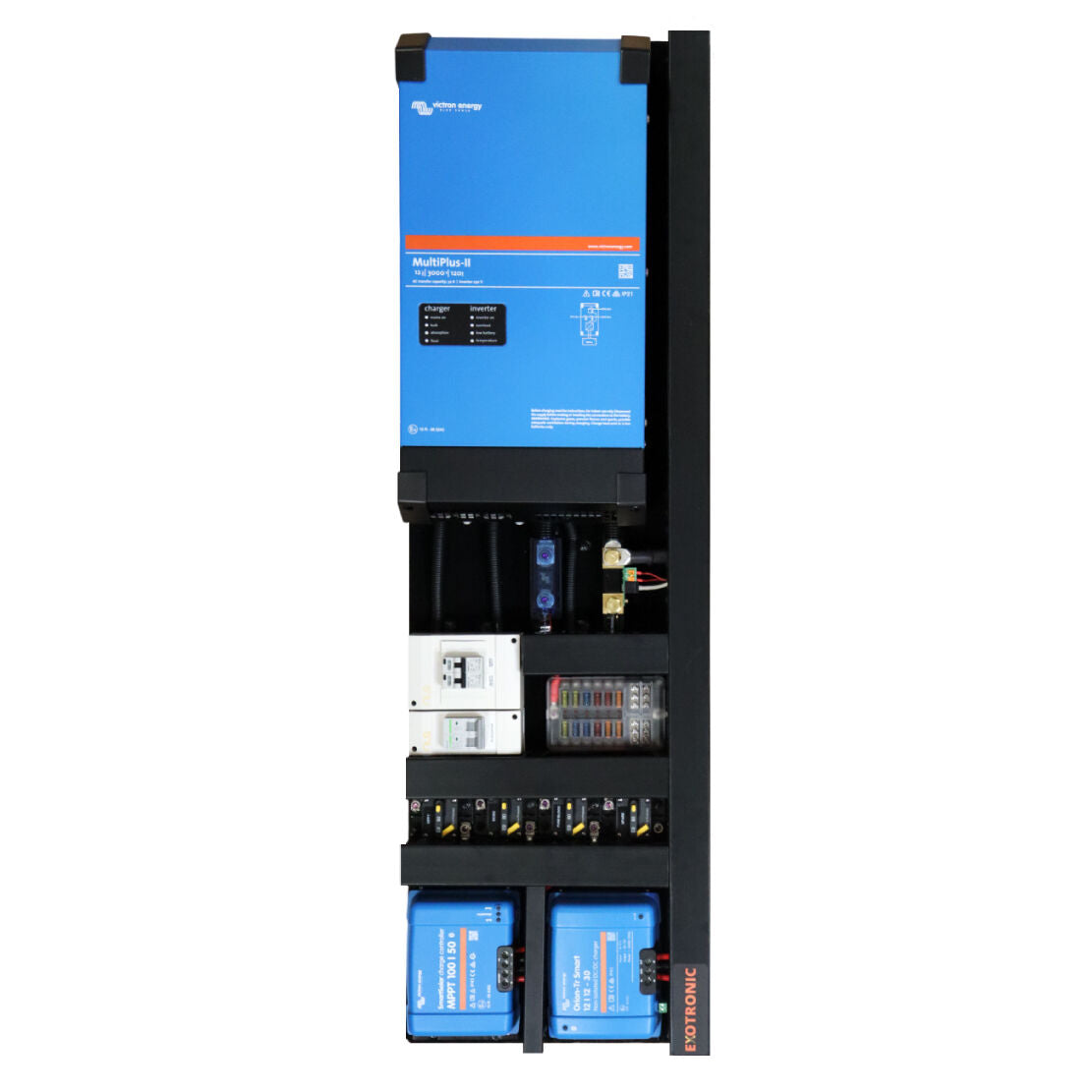

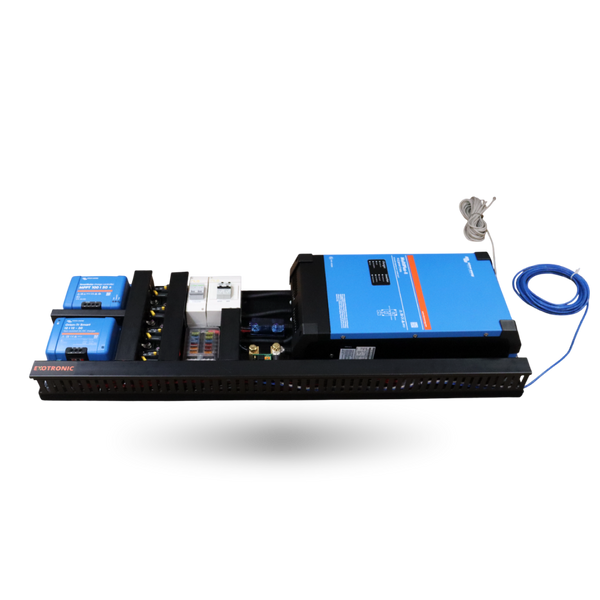

The Exotronic Coorong Series Pre-Wired Victron Board delivers a fully integrated, professionally assembled power solution for campervans, motorhomes, and expedition vehicles. By combining a Victron 3000VA MultiPlus-II inverter/charger, 50A MPPT SmartSolar controller, 30A Orion-Tr Smart DC-DC charger, and BMV-712 battery monitor on a single powder-coated aluminium chassis, this board eliminates the complexity, time, and risk of a custom electrical build. Every component is pre-wired, tested, and documented, allowing you to focus on your conversion rather than fault-finding.

Engineered for 12V lithium battery systems, the Coorong Series is ideal for van lifers who demand reliable, high-capacity power for induction cooking, air conditioning, and off-grid workstations. The landscape orientation (1150 x 355 x 170 mm) fits neatly under beds or bench seats, maximising usable living space.

Why a Pre-Wired Board Reduces Risk and Saves Time

Custom wiring a multi-component power system requires advanced electrical knowledge, specialised tools, and hours of labour. Mistakes in cable sizing, fuse selection, or termination can lead to voltage drop, overheating, or even fire. The Coorong Series mitigates these risks with professionally crimped, oversized cables, correctly rated circuit protection, and a validated layout. Each board undergoes functional testing before dispatch, giving you confidence that your system will perform from day one.

Key Components and Benefits

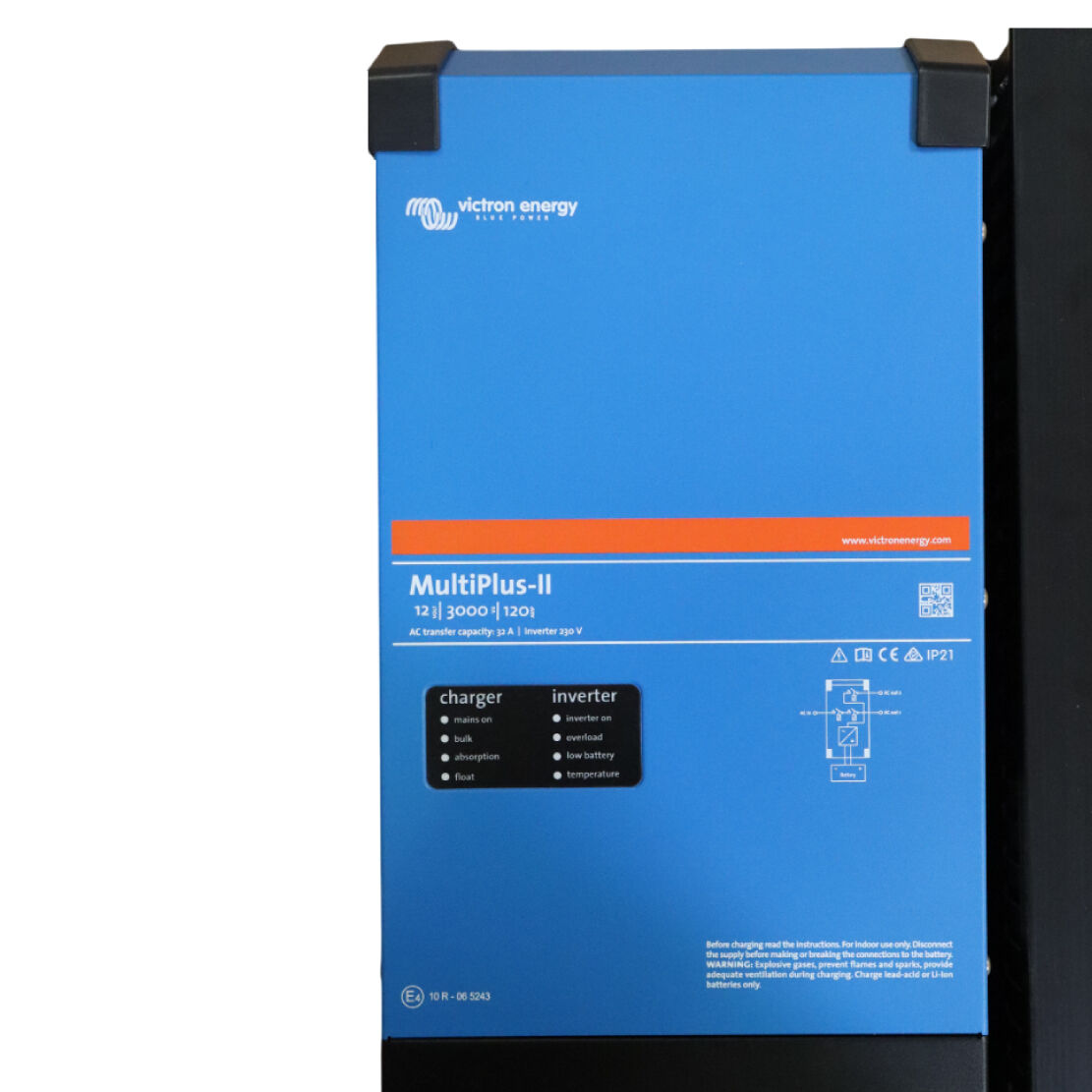

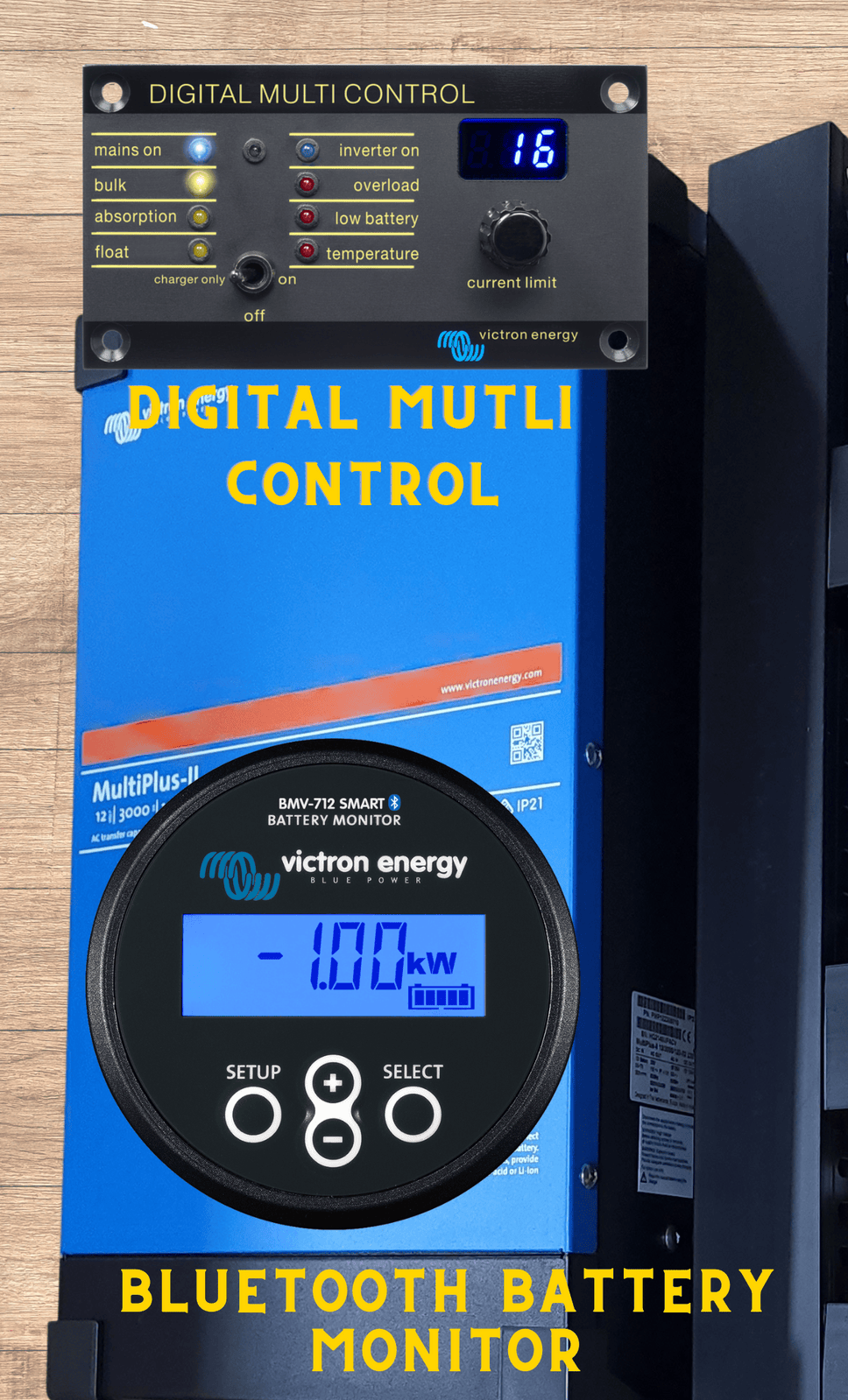

  • Victron MultiPlus-II 3000VA Inverter/Charger: Powers 230V appliances up to 2400W continuous, with a 120A mains charger for rapid shore-power top-ups. The automatic transfer switch ensures uninterrupted power when connecting to or disconnecting from the grid. Includes a Digital Multi Control panel with 9m cable for remote on/off and charger-only operation.

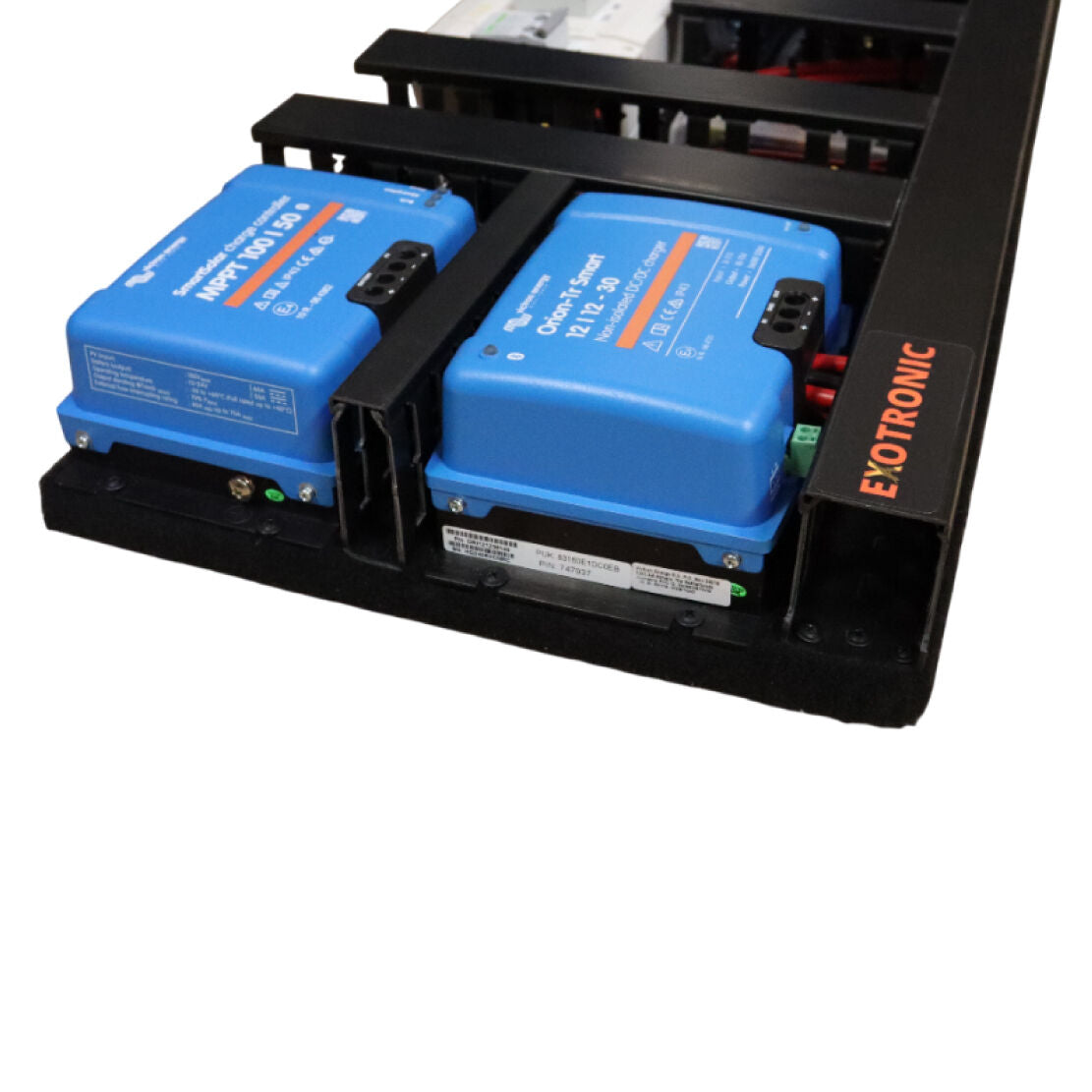

  • Victron SmartSolar MPPT 100/50: Bluetooth-enabled solar charge controller with ultra-fast Maximum Power Point Tracking, maximising harvest from your rooftop panels. Pre-terminated with a genuine red Anderson connector for plug-and-play solar input.
  • Victron Orion-Tr Smart 30A DC-DC Charger: Non-isolated, Bluetooth-enabled charger compatible with smart alternators. Charges your house battery while driving, with a grey Anderson connector for straightforward starter battery connection.
  • Victron BMV-712 Smart Battery Monitor: Provides precise state-of-charge, voltage, current, and time-to-go data via Bluetooth. Set audible alarms for low battery levels. Includes 9m cable to the remote display.
  • Integrated Protection and Distribution: A 12-blade fuse block with Exotronic circuit breakers manages DC loads safely. A 400A MEGA fuse and 70mm² double-insulated power cable handle high inverter currents. Safety switch circuit protection is fitted on both incoming and outgoing AC circuits.

Designed for Australian Conditions

The board’s components are selected for durability in demanding mobile environments. The Victron MultiPlus-II features a robust toroidal transformer and conformal-coated electronics, resisting vibration and humidity. The MPPT and DC-DC chargers are rated for high-temperature operation, essential for Australian summers. The aluminium chassis is powder-coated for corrosion resistance, and all connections use tinned copper lugs to prevent oxidation.

Simplified Installation and Documentation

Each Coorong Series board ships with a detailed wiring diagram, including example external connections for solar panels, starter battery, and AC loads. This documentation reduces guesswork and speeds up installation, whether you’re a professional converter or a skilled DIYer. The board is designed for wall or floor mounting, with pre-drilled holes and manageable weight (33 kg).

Shipping and Handling

Available for delivery Australia-wide. The unit is supplied on a pallet; please note the driver will not unload. A business address or depot is recommended, or a home address if someone is available to assist with unloading.

Power Your Adventure with Confidence

Choose the Exotronic Coorong Series Pre-Wired Victron Board for a turnkey, high-performance electrical system that lets you hit the road sooner. Backed by dedicated customer support, this board is the smart investment for your van conversion.


SKU: PWB-Vic-AL-01

SPECIFICATIONS

Specifications

LayoutLandscape
Configured Capacities3000 VA + Mains 120 A + Solar 50 A + DC-DC 30 A
InverterVictron 3000VA MultiPlus-II Inverter
Mains Charger120 A
Solar ControllerVictron 50 A MPPT SmartSolar Controller (Bluetooth Enabled)
DC-DC ChargerVictron 30 A DC-DC Charger (Bluetooth Enabled, Non-Isolated)
Battery MonitorVictron BMV-712 Battery Monitor (Bluetooth)
Remote Inverter ControlVictron Digital Multi Control (Remote On/Off/Charger Only Switch) Included
Remote Inverter Control Cable Length9 m
Battery Monitor Cable Length9 m
Solar Input ConnectorRed Anderson Connector
Starter Battery ConnectorGrey Anderson Connector
Fuse Block12 Blade Fuse Block
Circuit ProtectionSafety Switch Circuit Protection In Both Incoming And Outgoing Inverter Circuits
Main Fuse400 A MEGA Fuse
Power Cable70 mm² Double Insulated Power Cable
MountingWall Or Floor Mounting
DocumentationDetailed Board Wiring Diagram Including Example External Wiring
Weight33 kg
Dimensions1150 x 355 x 170 mm
SKUPWB-Vic-AL-01
Barcode9361784000213

SKU: PWB-Vic-AL-01
Barcode: 9361784000213
Model #: PWB-Vic-AL-01
MPN: PWB-Vic-AL-01

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
