Exotronic 2x 250w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
25.2% Efficient TOPCon Panels + Victron 100/50 MPPT | 1715x670x25mm
Exotronic 3x 250w Solar Panel & Victron SmartSo...DESCRIPTION

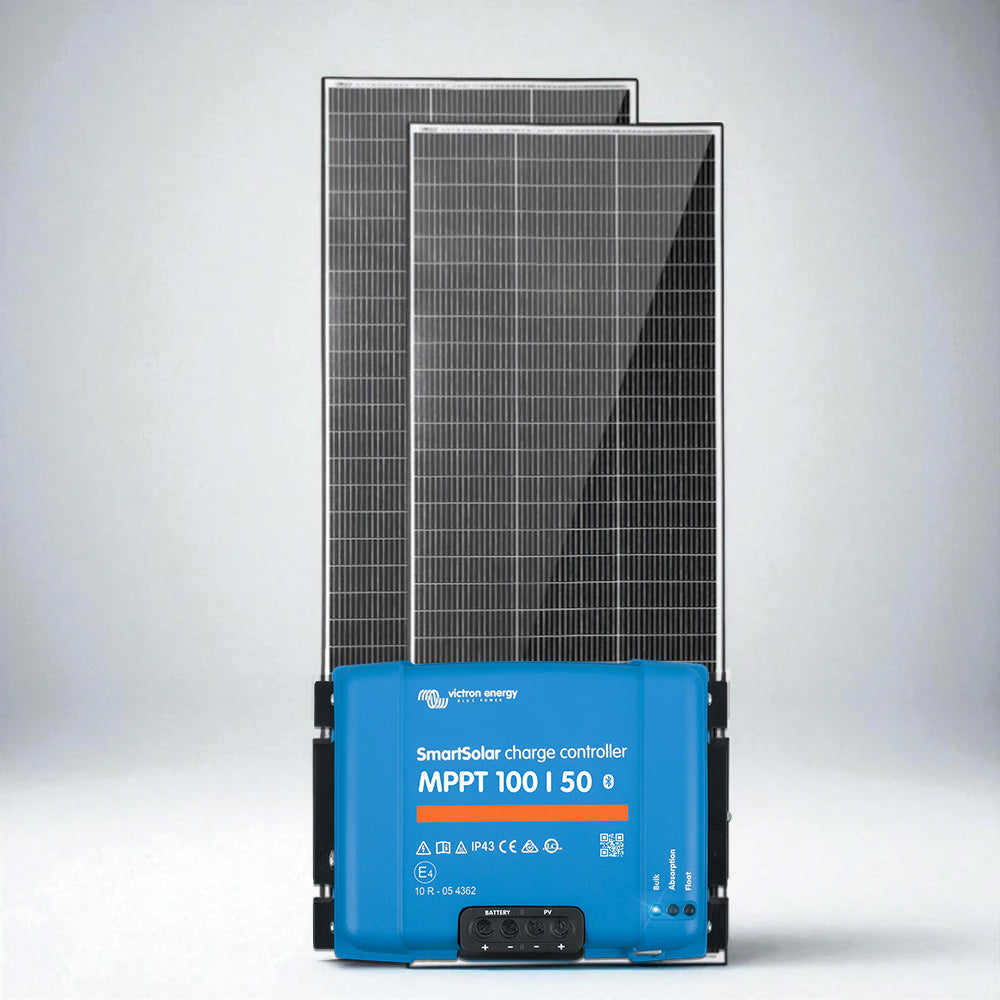

Exotronic 2x 250W Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
Complete Off-Grid Solar Kit for Caravans, RVs, Marine, and Remote Power
The Exotronic 2x 250W Fusion Series Bundle combines two high-efficiency N-Type TOPCon solar panels with the advanced Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller, delivering a complete, high-performance charging solution for demanding off-grid and mobile applications. Engineered for Australian conditions, this bundle provides reliable energy for caravan solar systems, marine solar panels, tiny homes, and industrial remote installations, ensuring maximum power harvest even in challenging environments.
Unlike generic solar kits that often pair panels with basic PWM controllers, this bundle integrates Victron's ultra-fast MPPT technology, which can increase energy yield by up to 30% compared to traditional controllers. The result is faster battery charging, extended battery life, and more usable power from the same sunlight—critical when space and weight are limited.
Exotronic 250W Fusion Series TOPCon Solar Panels (2 Panels Included)

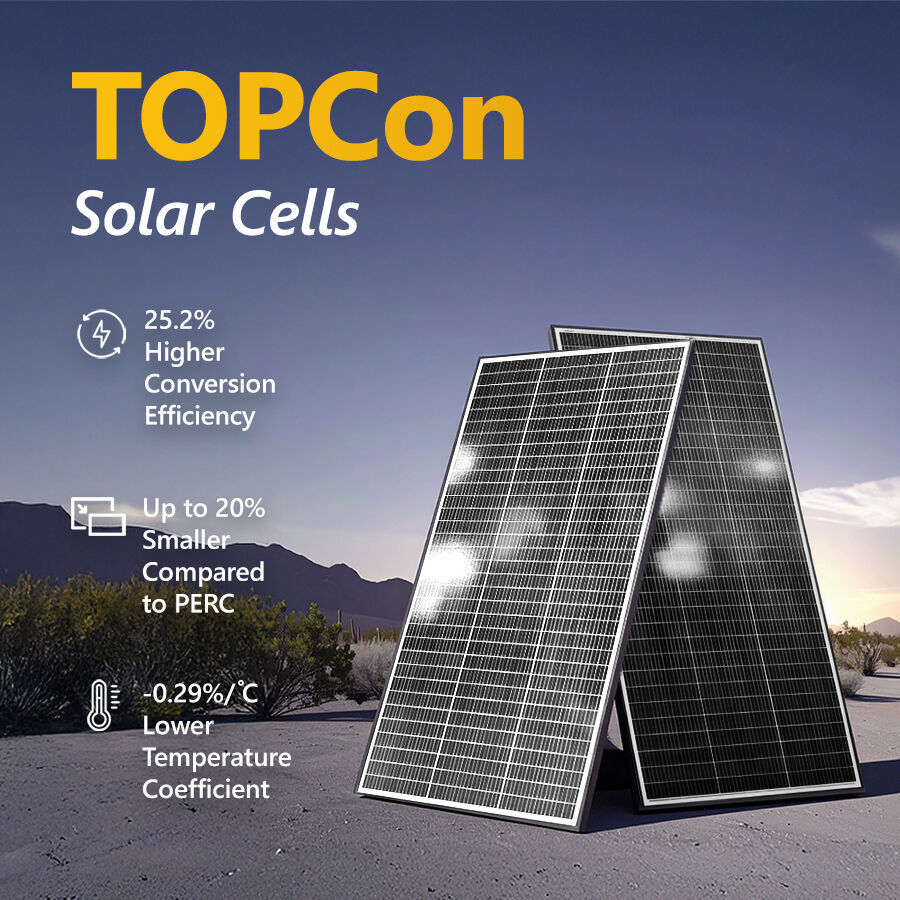

Each panel features next-generation N-Type TOPCon cells with a cell efficiency of 25.2%, outperforming conventional monocrystalline and PERC modules. This advanced cell architecture reduces degradation over time and maintains strong performance in low-light and partial shading conditions—common in mobile setups where shadows from roof vents, antennas, or trees can impact output.
The panels are built on a lightweight yet robust black anodised aluminium frame with 3.2 mm tempered glass, rated for wind loads up to 2400 Pa and snow loads up to 5400 Pa. An IP65 junction box and MC4-compatible connectors ensure reliable, weather-resistant connections. Each panel measures 1715 x 670 x 25 mm and weighs just 11.2 kg, making installation on vehicle roofs or compact structures straightforward.
- 25.2% cell efficiency maximises power density in a compact footprint
- N-Type TOPCon technology for lower degradation and better low-light response
- Lightweight and durable — ideal for mobile and weight-sensitive installations
- IP65 junction box and MC4 connectors for secure, weatherproof wiring

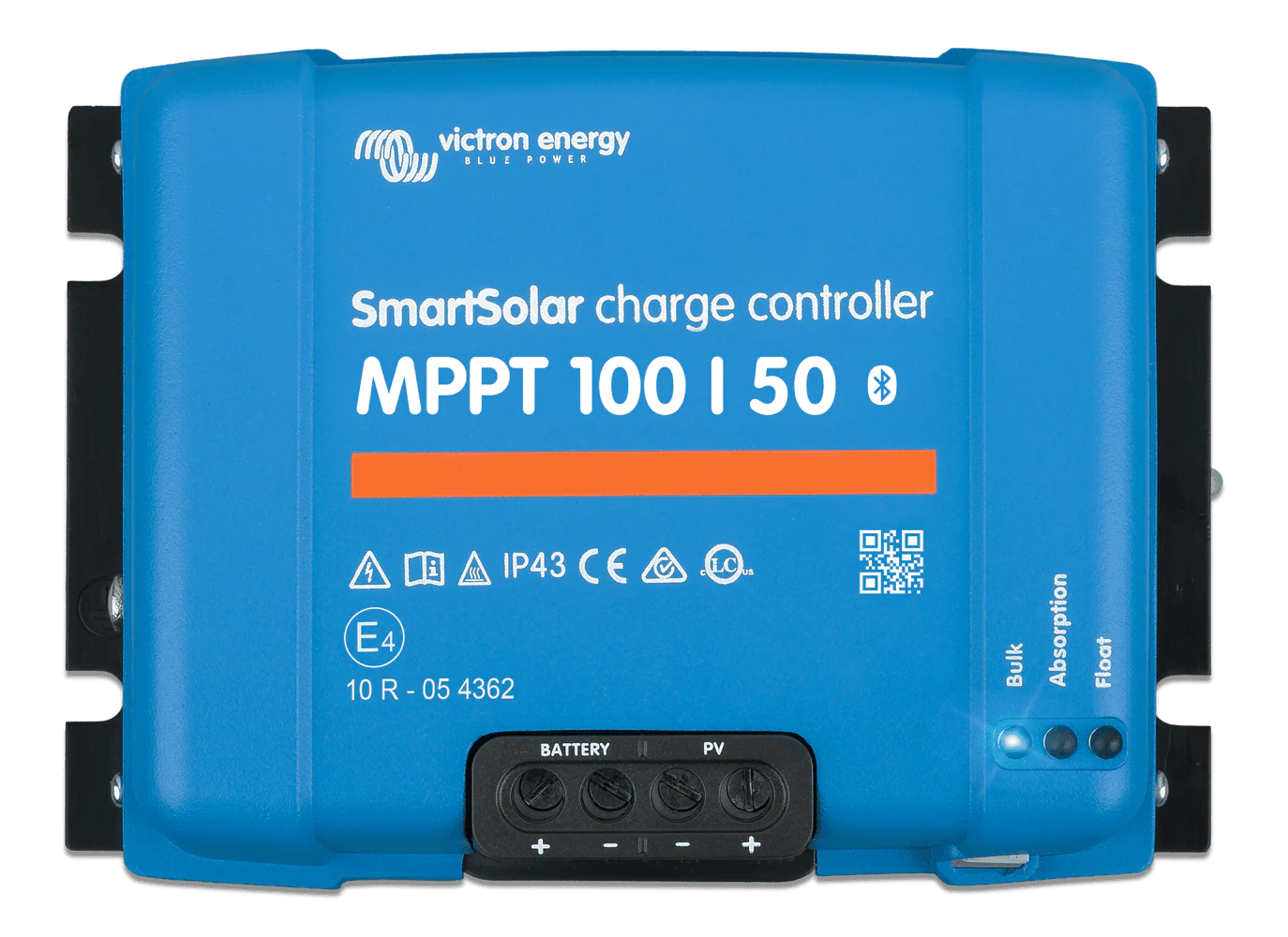

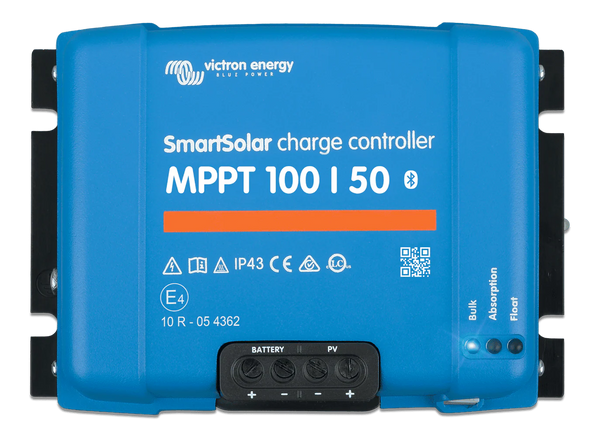

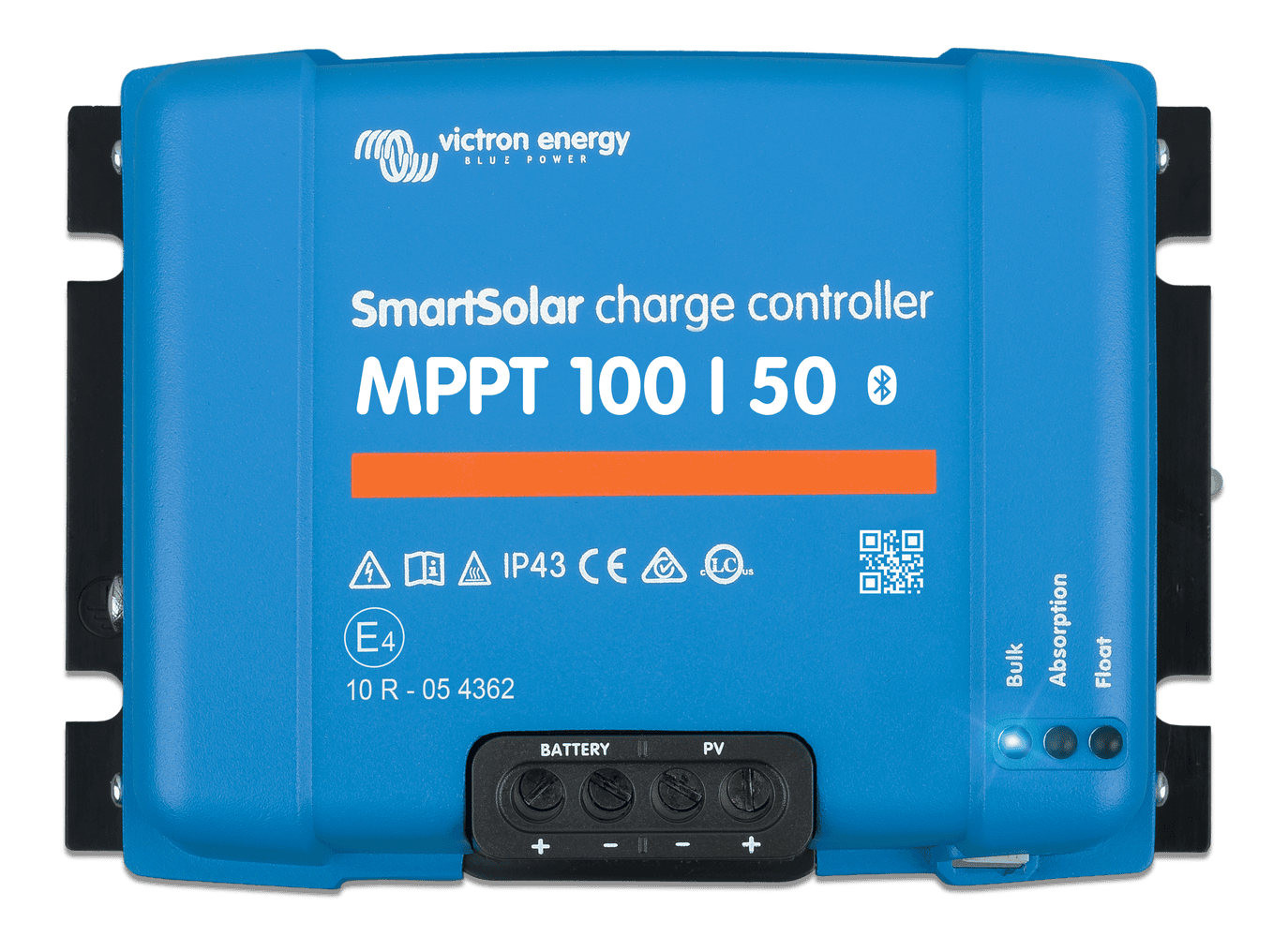

Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller
The Victron SmartSolar MPPT 100/50 is a premium 12/24V auto-sensing charge controller that uses ultra-fast Maximum Power Point Tracking to optimise energy capture. With a peak efficiency exceeding 98%, it ensures minimal losses between the panels and your battery bank. The integrated Bluetooth interface allows wireless monitoring and configuration via the VictronConnect app, giving you real-time insight into solar yield, battery status, and historical trends—without additional displays or cables.
This controller supports up to 700 W of solar on 12V systems or 1400 W on 24V systems, with a maximum PV open-circuit voltage of 100 V. It includes comprehensive electronic protections against reverse polarity, short circuits, and over-temperature, safeguarding both the controller and connected equipment. The multi-stage adaptive charge algorithm can be customised to suit lithium, AGM, gel, or flooded batteries, promoting longer service life and reliable performance.
- Ultra-fast MPPT for up to 30% more energy than PWM controllers
- Built-in Bluetooth for smartphone monitoring and programming
- 98% peak efficiency reduces heat and power loss
- Comprehensive electronic protection against common installation faults
- VE.Direct port for optional wired connectivity to GX devices
What's Included in the Bundle
- 2x Exotronic 250W Fusion Series TOPCon Solar Panels
- Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller
- 3x Mounting Bracket Kits
- 1x Fix15 Adhesive Sealant (White)
Designed for Australian Off-Grid Demands
This bundle addresses common pain points in mobile solar installations: inconsistent charging from shade, controller inefficiency, and complex wiring. By pairing high-efficiency panels with a smart MPPT controller, you reduce the risk of undercharged batteries during cloudy weather or partial shading. The included mounting brackets and adhesive sealant simplify installation on various roof types, while the controller's Bluetooth connectivity eliminates the need for a separate battery monitor in many setups.

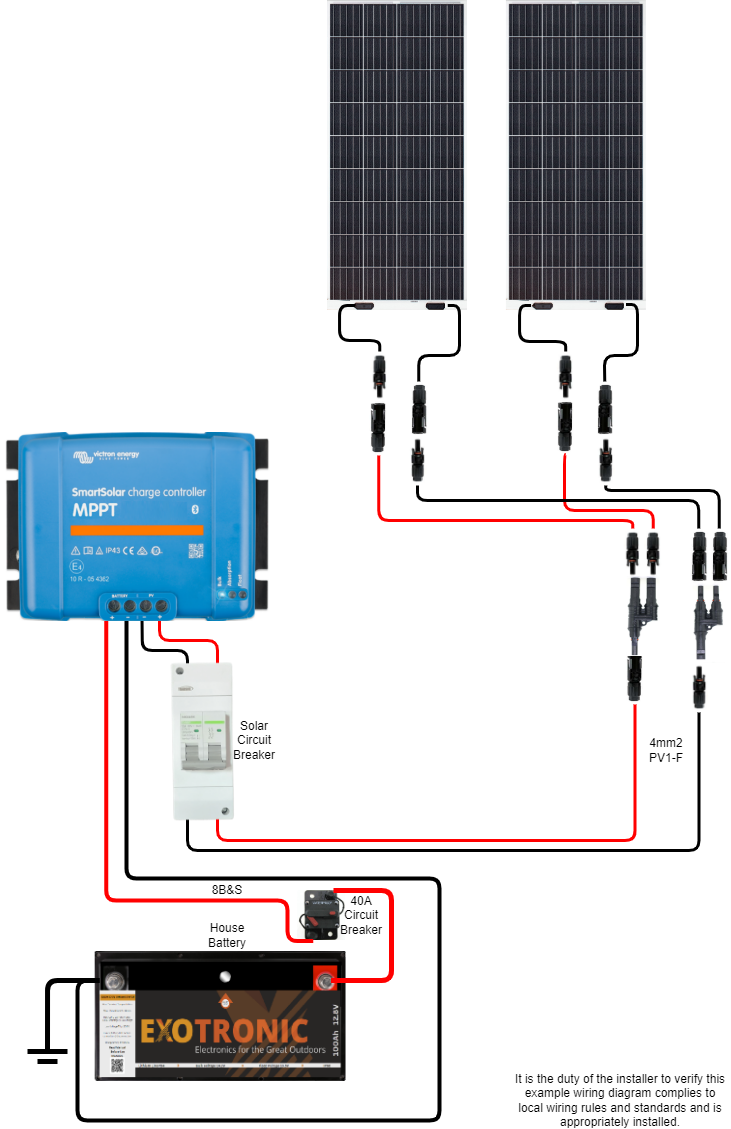

Whether you're powering a caravan for extended touring, a boat for weekend trips, or a remote shed for tools and lighting, this bundle offers a scalable foundation. The panels can be wired in series or parallel to suit 12V, 24V, or 48V battery banks, and the controller's 50 A output provides ample headroom for future expansion.
Take Control of Your Off-Grid Power
Equip your next adventure or remote project with the Exotronic 2x 250W Fusion Series Bundle. Order today and experience the difference that premium solar technology and intelligent charge control can make—reliable energy, wherever you need it.
SKU: Exo-Vic-2x250-100-50-00
SPECIFICATIONS
Specifications
Exotronic 250W Fusion TOPCon Solar Panel
Electrical Characteristics |
|||||||||
| Model | Power (W) | Dimensions (mm) | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | ||
| Exo-SP-TCN-250 | 250 | 1715x670x25 | 11.2 | 18.6 | 13.44 | 21.7 | 14.7 | ||
Temperature Ratings |
|
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Isc | 0.05%/C |
Maximum Ratings |
|
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
Mechanical Characteristics |
|
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65 |
| Connectors | MC4 Compatible |
Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller
| SmartSolar Charge Controller | MPPT 100/50 |
|---|---|
| Battery voltage | 12/24 V Auto Select |
| Rated charge current | 50 A |
| Nominal PV power, 12 V (1a,b) | 700 W |
| Nominal PV power, 24 V (1a,b) | 1400 W |
| Maximum PV open circuit voltage | 100 V |
| Max. PV short circuit current (2) | 60 A |
| Maximum efficiency | 98 % |
| Self-consumption | 12 V: 30 mA, 24 V: 20 mA |
| Charge voltage 'absorption' | Default setting: 14,4 V / 28,8 V (adjustable) |
| Charge voltage 'float' | Default setting: 13,8 V / 27,6 V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV / °C resp. - 32 mV / °C |
| Protection | PV reverse polarity, Output short circuit, Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Data communication port | VE.Direct |
| Enclosure Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1,3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Safety Standards | EN/IEC 62109- 1, UL 1741, CSA C22.2 |
| Stored Trends Data | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored | 46 |
Notes:
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2A PV array with a higher short circuit current may damage the controller.
| SKU: | Exo-Vic-2x250-100-50-00 |
WARRANTY
Exotronic Panel - 5 year warranty - please read full warranty statement for details
Victron - 5 year warranty - please read full warranty statement for details
Wiring kit and accessories - 1 year warranty
