Exotronic 2x 200w Solar Panel & Victron SmartSolar MPPT 100/30 Bundle
Off-Grid TOPCon Solar Power Bundle
DESCRIPTION

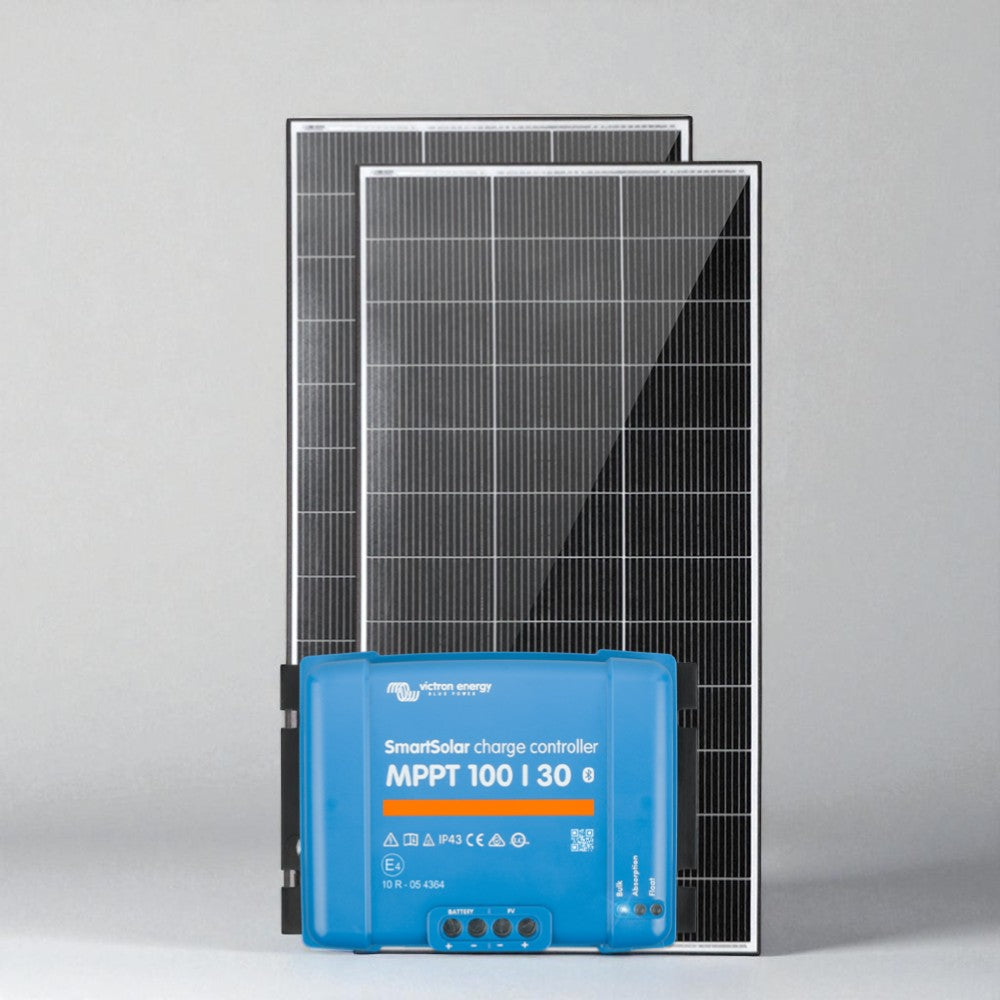

Exotronic 2x 200W Solar Panel & Victron SmartSolar MPPT 100/30 Bundle
Bundle Pack Includes:
- 2x Exotronic 200W Fusion Series TOPCon Solar Panels
- Victron SmartSolar MPPT 100/30 Bluetooth Charge Controller
- 2x Mounting Bracket Kits
- 1x Fix15 Adhesive Sealant (White)
High-Efficiency, Reliable Solar Power for Off-Grid & Mobile Applications
The Exotronic 2x 200W Fusion Series Bundle combines advanced N-Type TOPCon solar technology with the intelligent Victron SmartSolar MPPT 100/30 Bluetooth Charge Controller, creating the ultimate off-grid solution for caravans, RVs, marine vessels, tiny homes, and industrial applications. Experience exceptional efficiency, durability, and easy installation specifically designed for Australia’s challenging conditions.

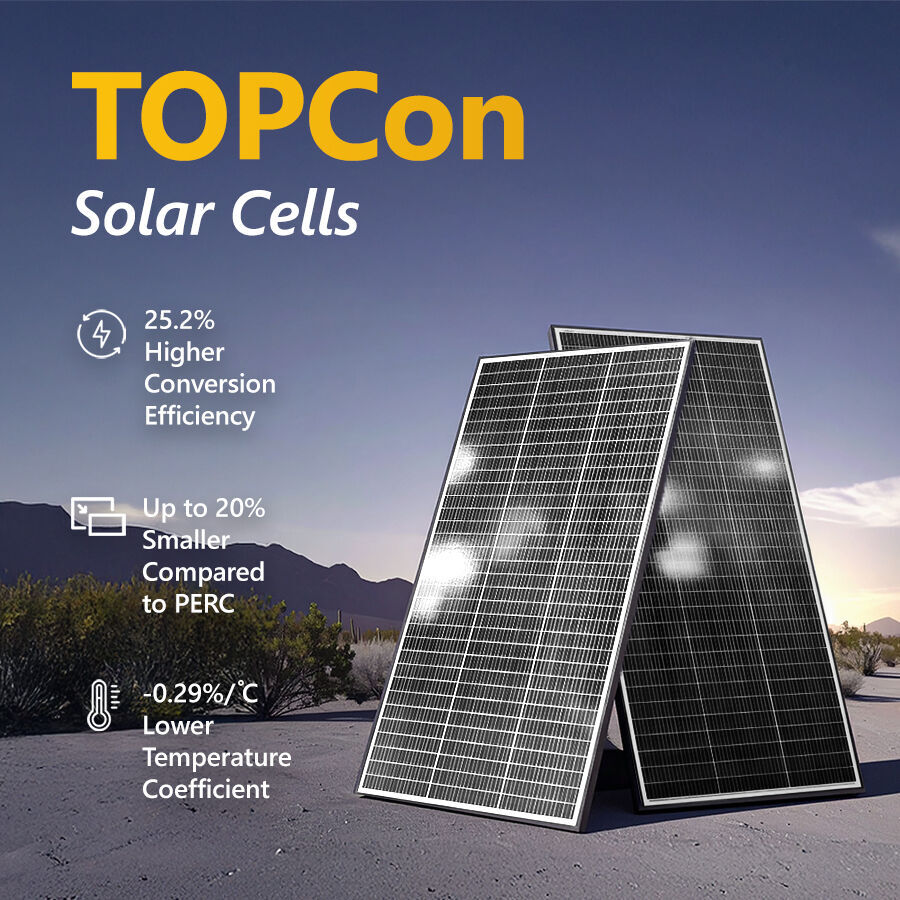

Exotronic 200W Fusion Series TOPCon Solar Panels (2 Panels Included)
These advanced solar panels incorporate next-generation N-Type TOPCon cells, delivering a remarkable 25.2% efficiency. Outperforming standard monocrystalline and PERC solar panels, they excel in low-light and shaded environments. Their lightweight and robust design simplifies installation on mobile setups while ensuring consistent, dependable energy output in all conditions.
Key Features of Exotronic Fusion Panels:
- High cell efficiency of 25.2%, maximizing energy output
- Built to withstand high wind loads.
- Compact and lightweight for easy installation in mobile or tight spaces

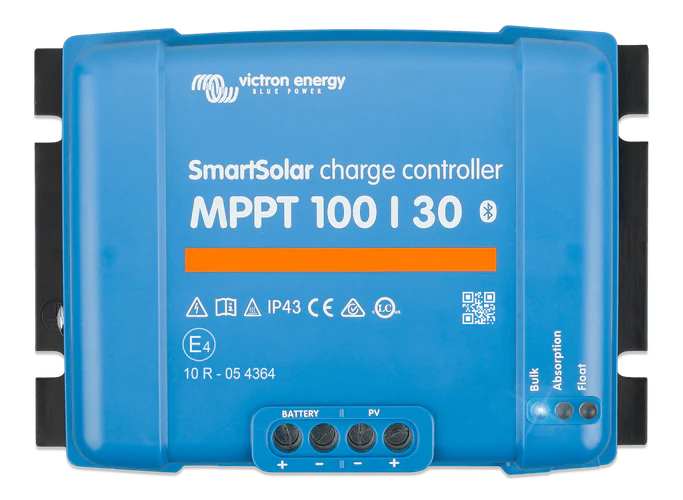

Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Charge Controller
The included Victron SmartSolar MPPT 100/30 Controller maximizes energy efficiency, capturing up to 30% more energy than traditional PWM controllers. Featuring integrated Bluetooth connectivity, it offers seamless real-time monitoring and precise battery management directly from your smartphone.
Key Features of Victron SmartSolar Controller:
- Ultra-fast MPPT tracking for superior solar energy capture
- Built-in Bluetooth connectivity for effortless monitoring and control
- Outstanding efficiency exceeding 98%, even in variable weather
- Fully programmable charge profiles to optimize battery lifespan
- Robust electronic protections against overheating, short circuits, and reverse polarity
Ready to Upgrade Your Solar Setup?
Choose the Exotronic 2x 200W Fusion Series bundle and enjoy powerful, reliable, and efficient solar energy wherever your journey takes you. Ideal for caravans, marine use, tiny homes, and more—experience true off-grid freedom today.
SKU: S4RV-2x200-100-30-00
SPECIFICATIONS
Specifications
Exotronic Fusion 200w TOPCon Solar Panel
Electrical Characteristics |
|||||||||
| Model | Power (W) | Dimensions (mm) | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | ||
| Exo-SP-TCN-200 | 200 | 1320x670x25 | 8.9 | 18.0 | 11.11 | 21.0 | 12.1 | ||
Temperature Ratings |
|
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Isc | 0.05%/C |
Maximum Ratings |
|
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
Mechanical Characteristics |
|
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP65 |
| Connectors | MC4 Compatible |
Victron 12/24V 30A SmartSolar MPPT 100/30 Bluetooth Solar Charge Controller
| SmartSolar Charge Controller | MPPT 100/30 |
|---|---|
| Battery voltage | 12/24V Auto Select |
| Rated charge current | 30A |
| Nominal PV power, 12V | 440W |
| Nominal PV power, 24V | 880W |
| Maximum PV open circuit voltage | 100V |
| Max. PV short circuit current | 35A |
| Maximum efficiency | 98% |
| Self-consumption | 12V: 30 mA 24V: 20 mA |
| Charge voltage 'absorption' | Default setting: 14.4V / 28.8V (adjustable) |
| Charge voltage 'float' | Default setting: 13.8V / 27.6V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV/°C resp. -32 mV/°C |
| Protection | PV reverse polarity Output short circuit Over temperature |
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Data communication port | VE.Direct |
| Enclosure | |
| Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1.3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Standards | |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.
| SKU: | S4RV-2x200-100-30-00 |
WARRANTY
Exotronic Panel - 5 year warranty - please read full warranty statement for details
Victron - 5 year warranty - please read full warranty statement for details
Wiring kit and accessories - 1 year warranty
Exotronic provides high-quality products and solutions tailored for B2B and commercial customers, including commercial businesses, caravan manufacturers, marine electricians, OEMs, as well as emergency services, and more.
