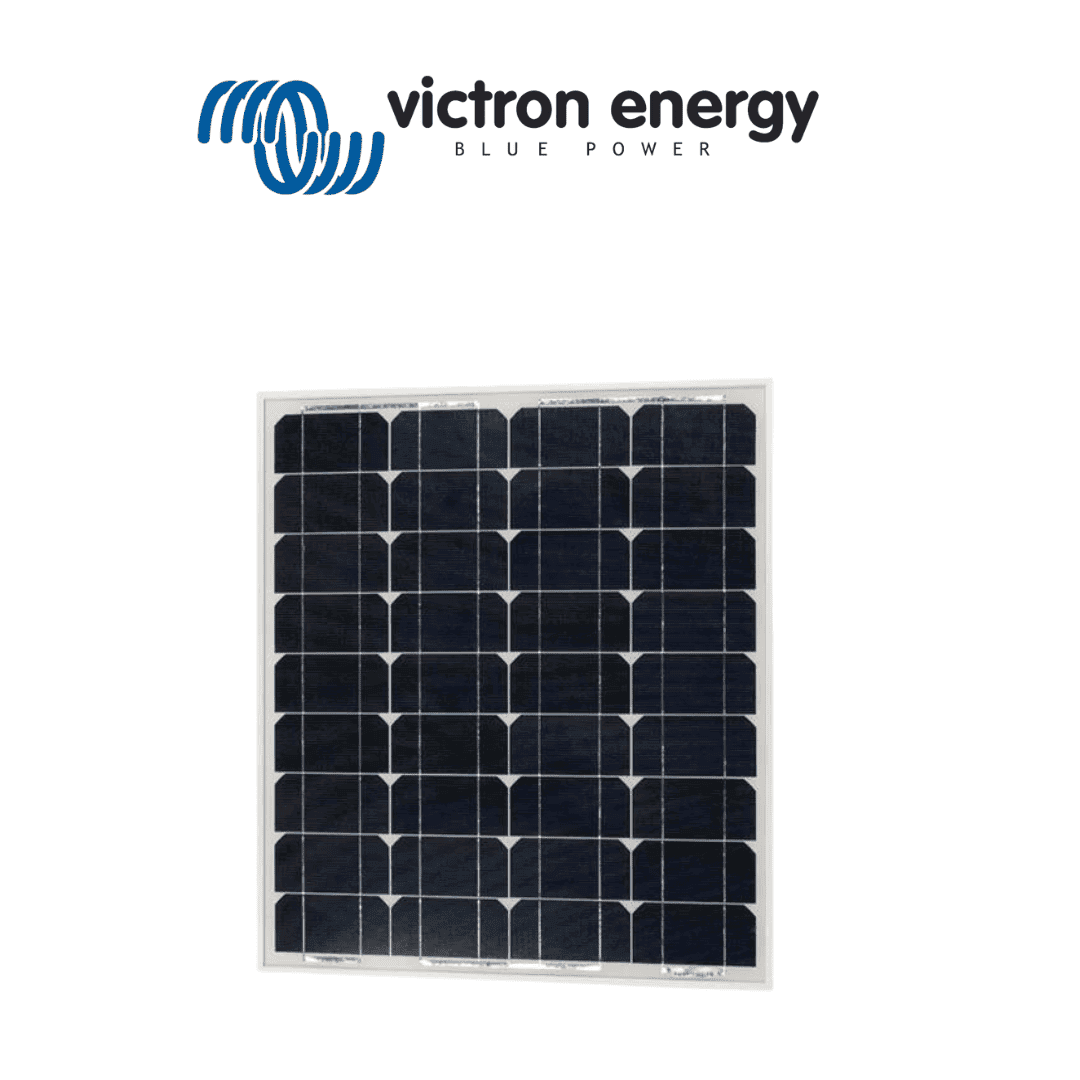

Victron 45W Polycrystalline Solar Panel

45W Polycrystalline Panel with High-Performance Bypass Diodes - 425x668x25mm


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Victron BlueSolar Polycrystalline Solar Panel for Reliable Off-Grid Energy

Durable 12V Solar Panels Engineered for Australian Conditions

The Victron BlueSolar 45W polycrystalline solar panel delivers consistent, efficient power for 12V battery charging in caravans, RVs, boats, and remote off-grid systems. Built with a robust anodised aluminium frame and high-transmission tempered glass, this panel withstands harsh environments while maintaining strong performance. Its polycrystalline cell technology offers an excellent balance of cost-effectiveness and reliability, making it a practical choice for those seeking solar panels for caravans, sheds, or backup power.

Unlike generic panels, Victron BlueSolar modules feature high-performance bypass diodes that minimise power loss from partial shading—a critical advantage when shadows from trees, antennas, or clouds fall across the array. Combined with a low voltage-temperature coefficient, these panels maintain higher output during Australia’s hot summers, reducing the risk of undercharging your batteries when you need them most.

Why Choose Victron Polycrystalline Solar Panels?

Victron Energy is known for reliable off-grid power solutions, and these polycrystalline panels uphold that reputation. The advanced EVA encapsulation system with a triple-layer back sheet meets stringent safety standards for high-voltage operation, while the sealed, waterproof junction box protects connections from moisture and dust. Every panel is backed by a 25-year limited warranty on power output and a 5-year limited warranty on materials and workmanship, giving you confidence in your investment.

  • High-performance bypass diodes reduce shade-induced power drops, keeping your system productive even in partially shaded conditions
  • Low voltage-temperature coefficient enhances energy yield in high temperatures, ideal for Australian summers
  • Exceptional low-light performance captures more energy at dawn, dusk, and overcast days
  • Sturdy anodised aluminium frame resists corrosion and simplifies mounting with standard systems
  • High-transmission tempered glass improves light capture and provides impact resistance
  • Sealed, waterproof junction box ensures long-term electrical safety and reliability
  • 25-year power output warranty and 5-year materials warranty for peace of mind

Built for Tough Environments

Designed to operate in temperatures from -40°C to +85°C, these panels handle everything from frosty mornings to scorching afternoons. The surface maximum load capacity of 200 kg/m² and hail resistance up to 23 m/s (7.53 g) mean they stand up to severe weather, reducing the risk of damage compared to lighter-built alternatives. Whether mounted on a caravan roof, boat deck, or ground frame, the corrosion-resistant aluminium frame and robust glass ensure longevity.

Versatile Applications for 12V Systems

These panels are ideal for a wide range of 12V off-grid applications:

  • Charging batteries in caravans, camper trailers, and motorhomes
  • Maintaining marine battery banks on boats and yachts
  • Powering remote sheds, tiny homes, and cabins
  • Supporting agricultural equipment like electric fences and water pumps
  • Backup power for security systems and lighting

With MC4 connectors on select models, installation is quick and compatible with most charge controllers and combiner boxes. The panels can be wired in series for 24V or 48V systems, offering flexibility as your energy needs grow.

Reliable Power, Wherever You Need It

Invest in a Victron BlueSolar 45W polycrystalline solar panel and experience the difference that quality engineering makes. Whether you're upgrading your caravan setup or building a new off-grid system, these panels deliver dependable performance backed by decades of Victron expertise. Add to your system today and keep your batteries charged through every season.


SKU: VIC-SPP040451200

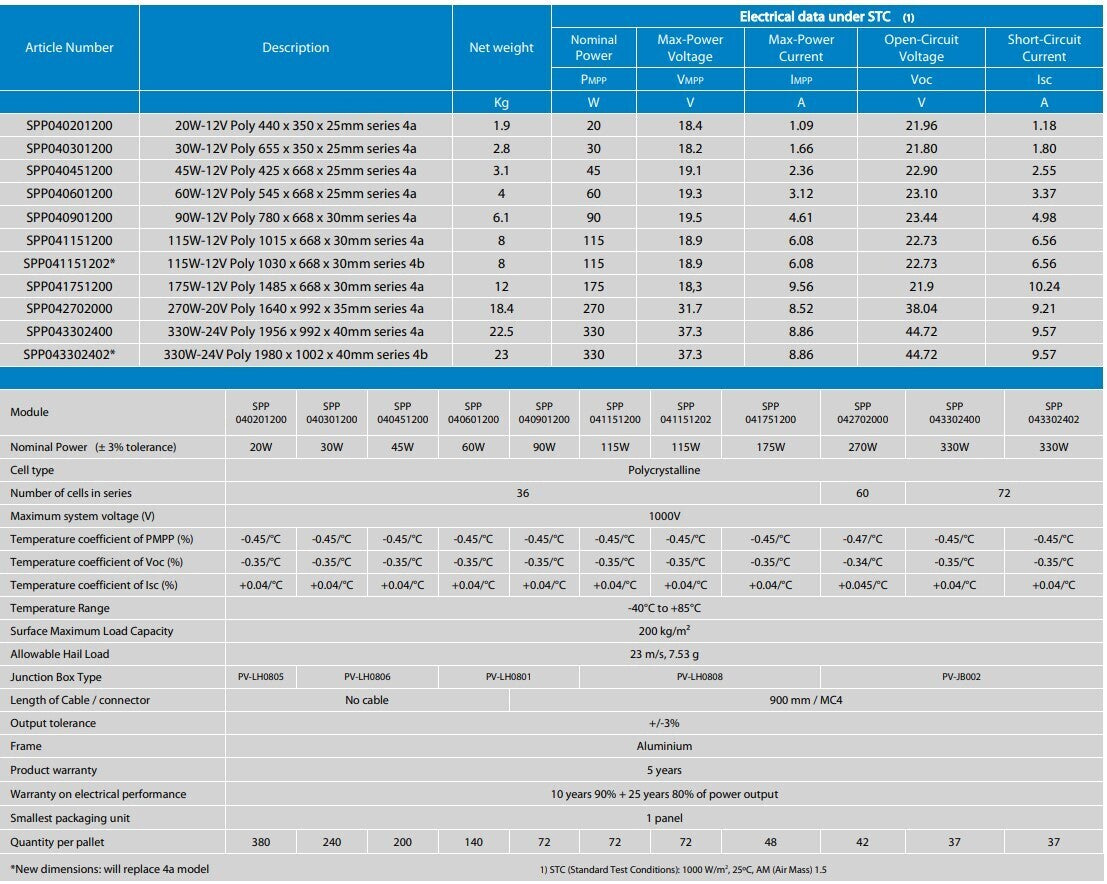

SPECIFICATIONS

Specifications

Article NumberSPP040451200
Description45W-12V Poly 425 x 668 x 25 mm Series 4a
Net Weight3.1 kg
Nominal Power (± 3% Tolerance)45 W
Max-Power Voltage19.1 V
Max-Power Current2.36 A
Open-Circuit Voltage22.90 V
Short-Circuit Current2.55 A
Cell TypePolycrystalline
Maximum System Voltage1000 V
Temperature Coefficient Of PMPP-0.45/°C
Temperature Coefficient Of Voc-0.35/°C
Temperature Coefficient Of Isc+0.04/°C
Temperature Range-40°C to +85°C
Surface Maximum Load Capacity200 kg/m²
Allowable Hail Load23 m/s, 7.53 g
Junction Box TypePV-LH0801
Length Of Cable / ConnectorNo Cable
FrameAluminium
STC1000 W/m², 25°C, AM (Air Mass) 1.5

SKU: VIC-SPP040451200
Barcode: 8719076046356
Model #: VIC-SPP040451200
MPN: VIC-SPP040451200

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
