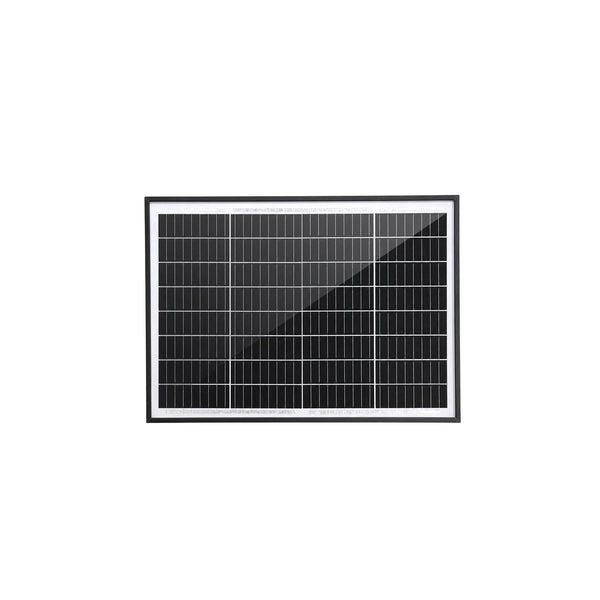

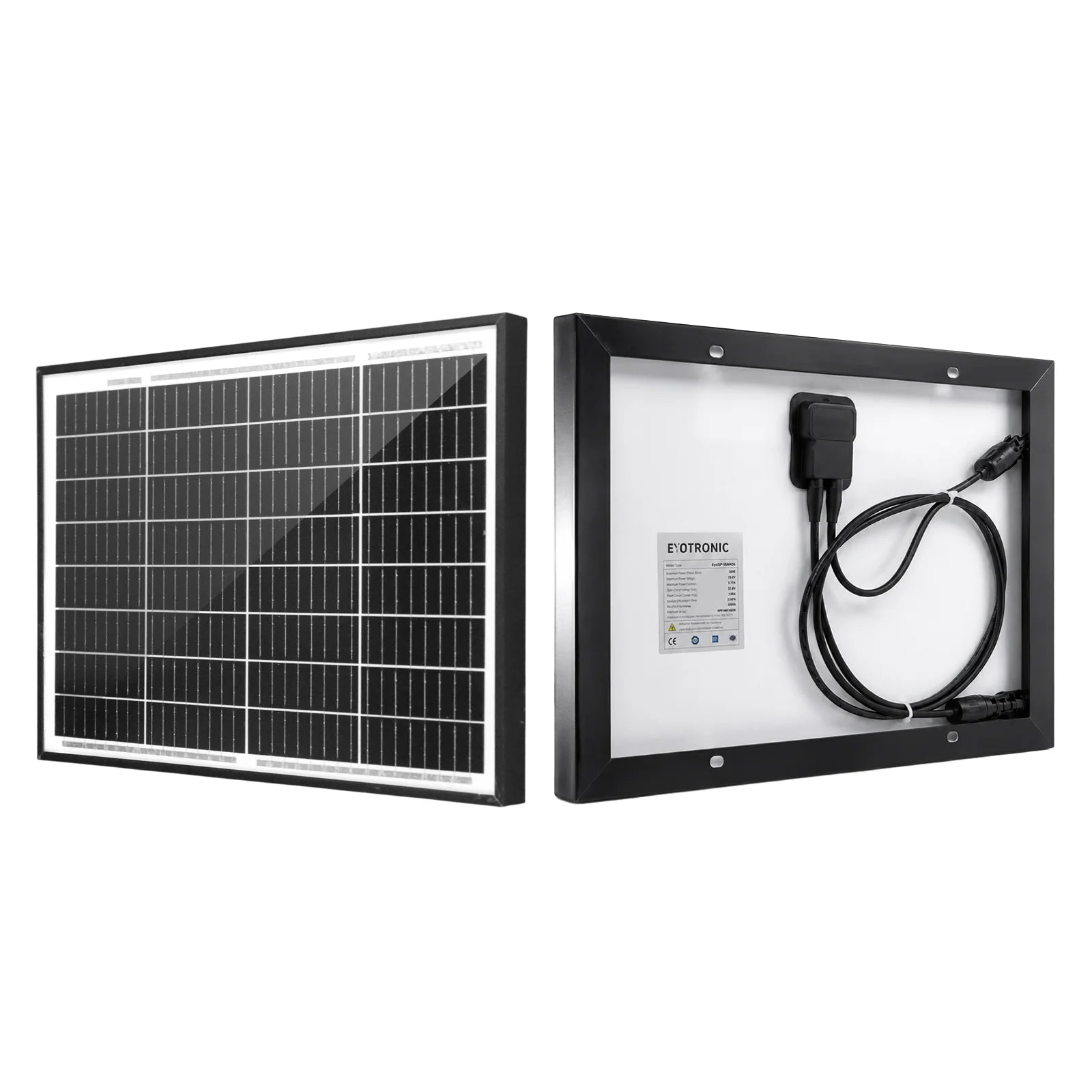

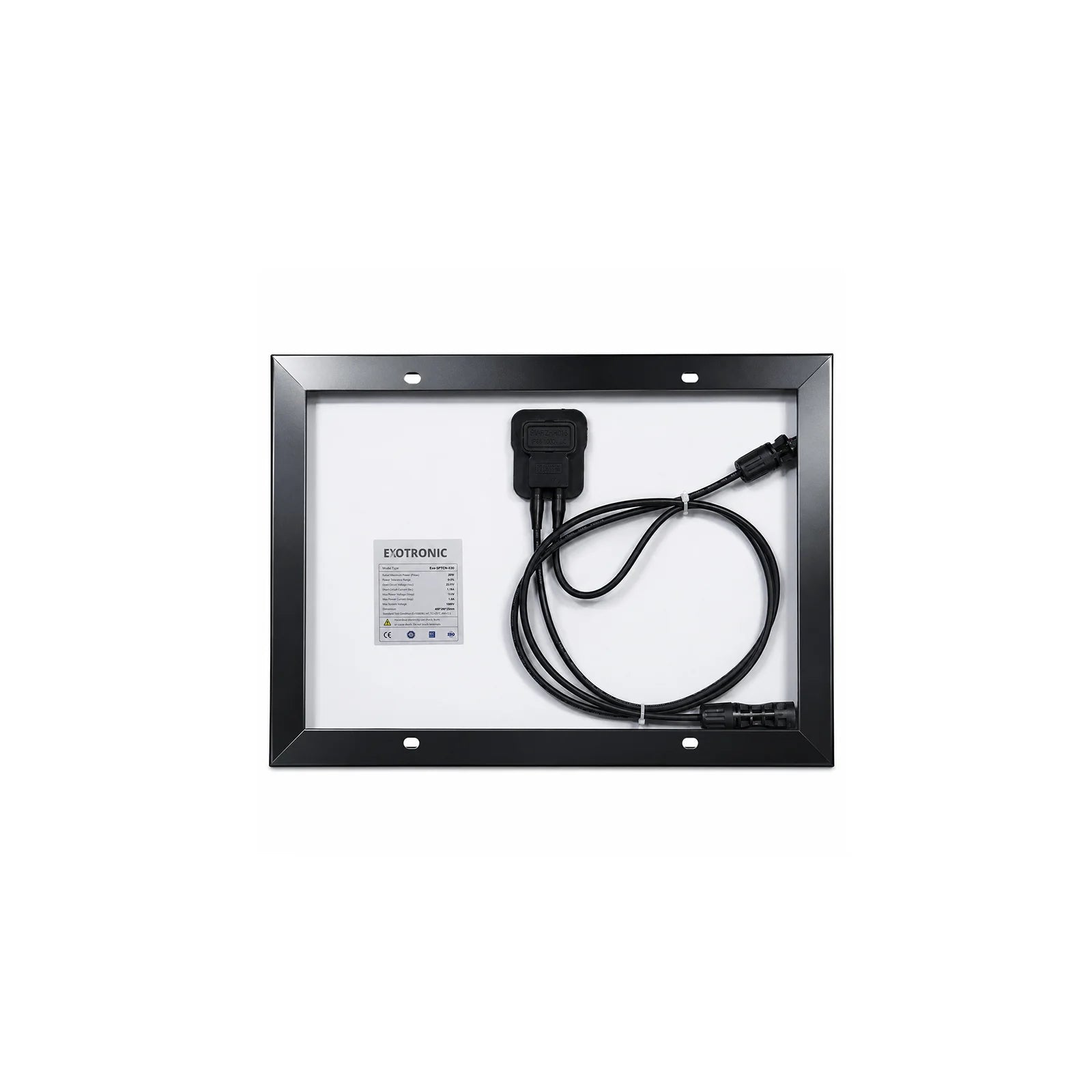

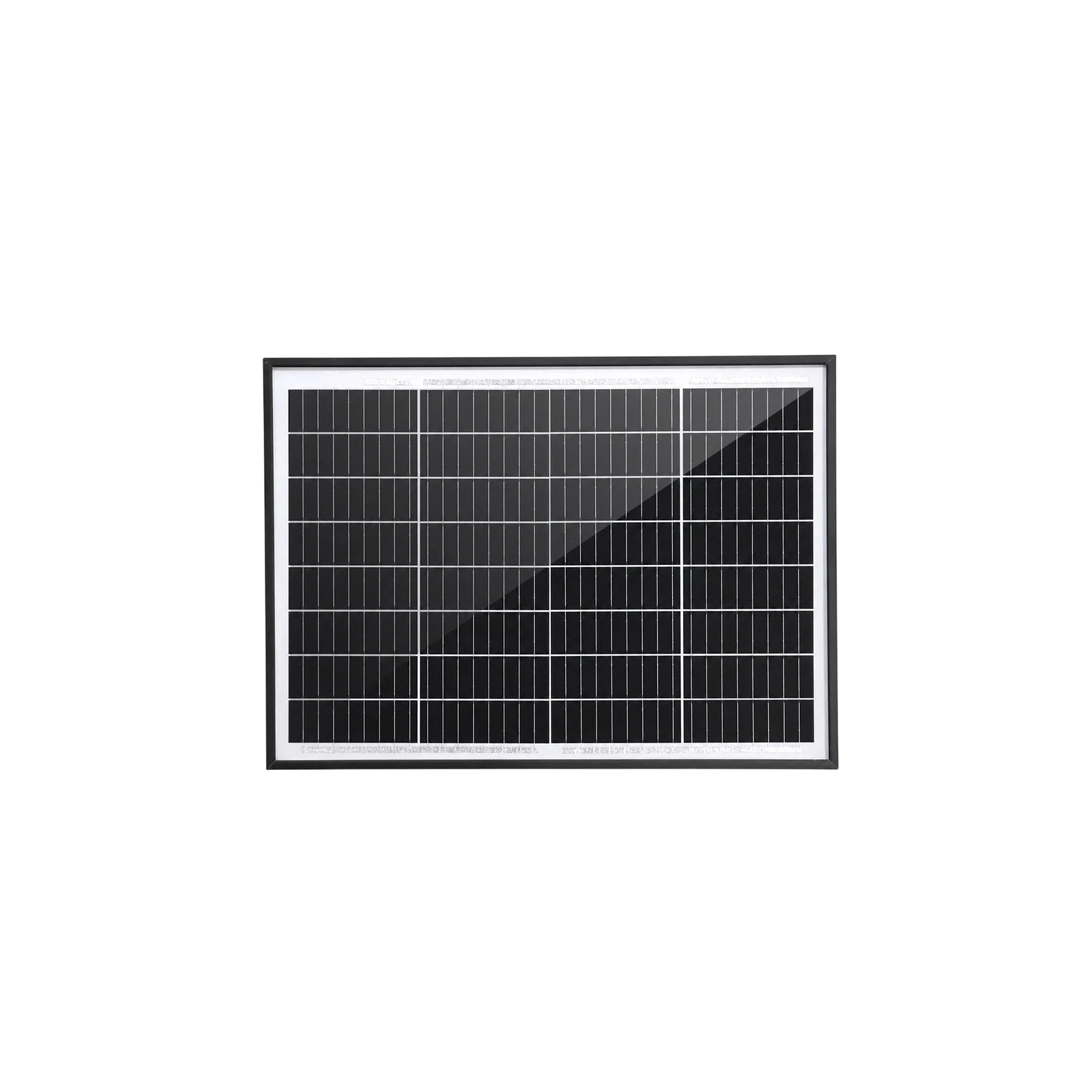

Exotronic 20W Fusion Fixed Solar Panel

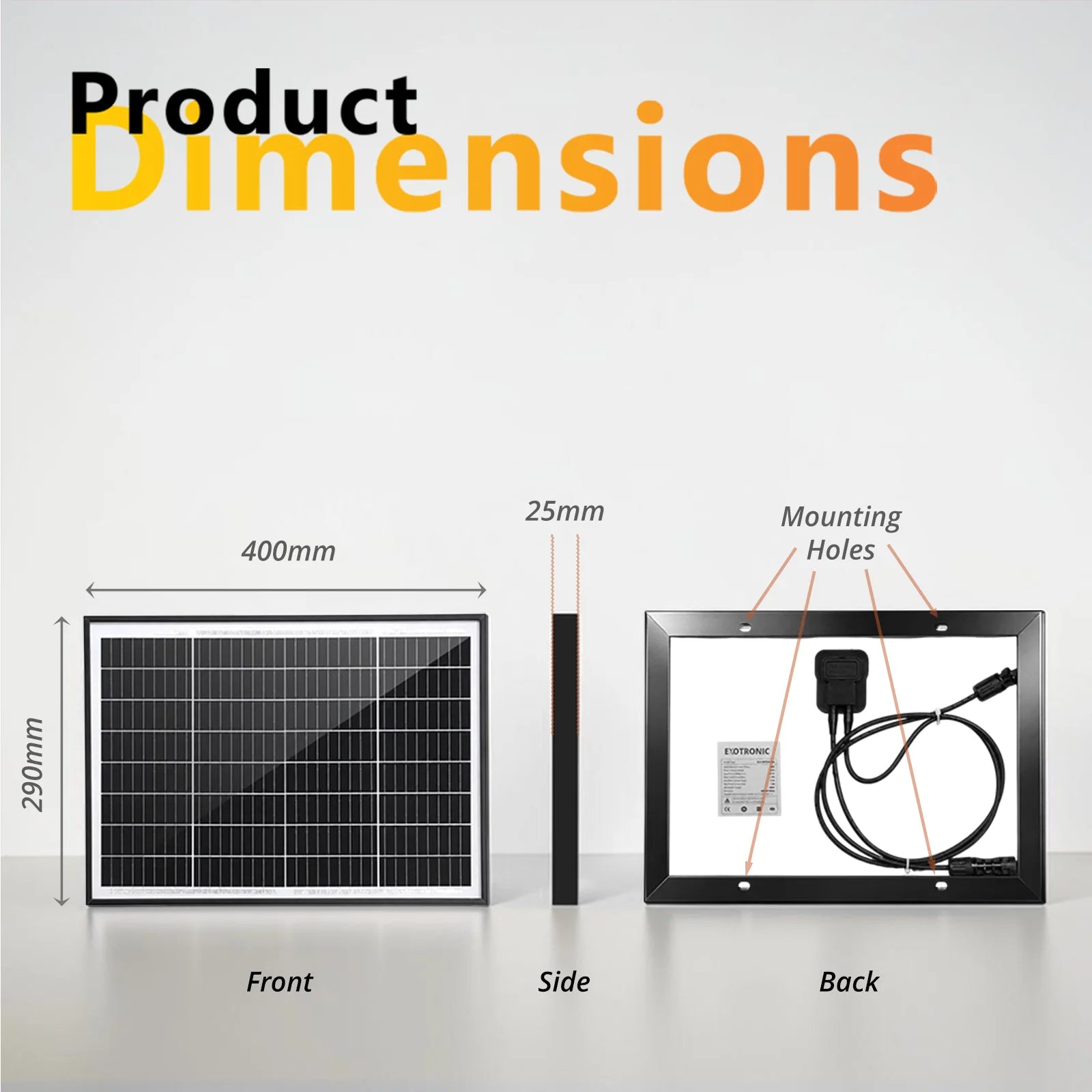

25.2% Efficient TOPCon Cells - 400x290x25mm Black Frame
DESCRIPTION
Exotronic 20W Fusion Series: Compact N-Type TOPCon Solar Panel for Off-Grid and Mobile Energy
The Exotronic 20W Fusion Fixed Solar Panel represents a significant advancement in mobile energy harvesting, utilising N-Type TOPCon (Tunnel Oxide Passivated Contact) cell technology to deliver 25.2% cell efficiency. This allows for a significantly smaller footprint compared to traditional monocrystalline or PERC modules, making it an ideal solution for vehicles and vessels where roof space is at a premium.
Advanced TOPCon Technology for Australian Conditions
Unlike standard P-type cells, the N-type base used in this product offers superior resistance to Light-Induced Degradation (LID). This ensures the Exotronic 20W Fusion Fixed Solar Panel maintains high output over its lifespan. The 18-wire busbar design further optimises performance by reducing resistive losses and improving current collection, even under the intense Australian sun.
Compact and Lightweight Engineering
Space on a caravan or boat is a finite resource. This product solves the problem of limited real estate by providing up to 20% more power density than generic grade products. The compact frame benefits from a reduced weight profile, lowering the centre of gravity on vehicles and making installation simpler for DIY enthusiasts and professional installers alike.
-
25.2% cell efficiency for maximum energy density in a compact footprint
- N-Type Stability: Lower degradation rates and better performance in high-temperature environments
- Low-Light Response: Improved spectral response ensures charging begins earlier in the morning and lasts later into the evening
- Low-Iron Tempered Glass: 3.2mm high-transmissivity glass provides excellent impact resistance and light capture

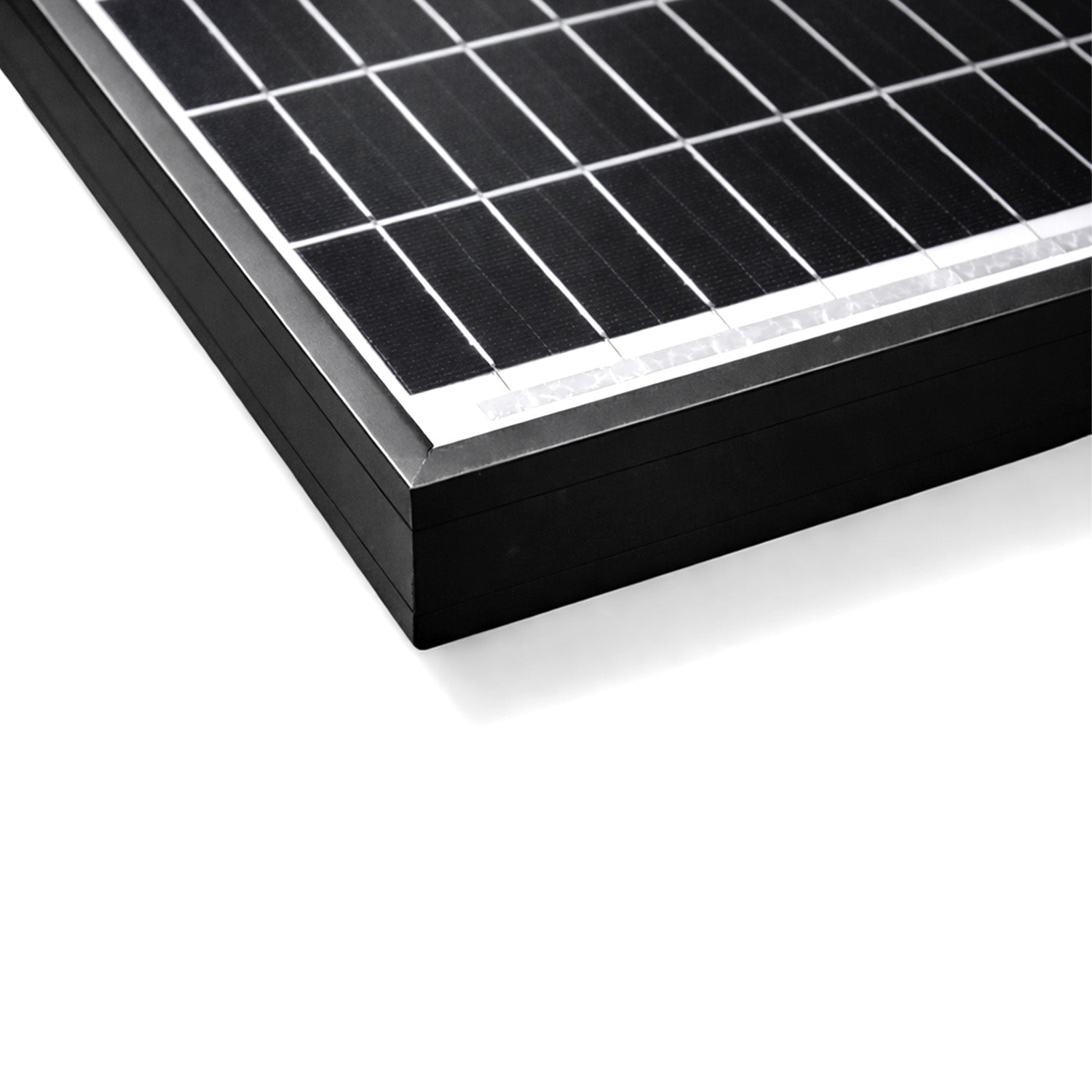

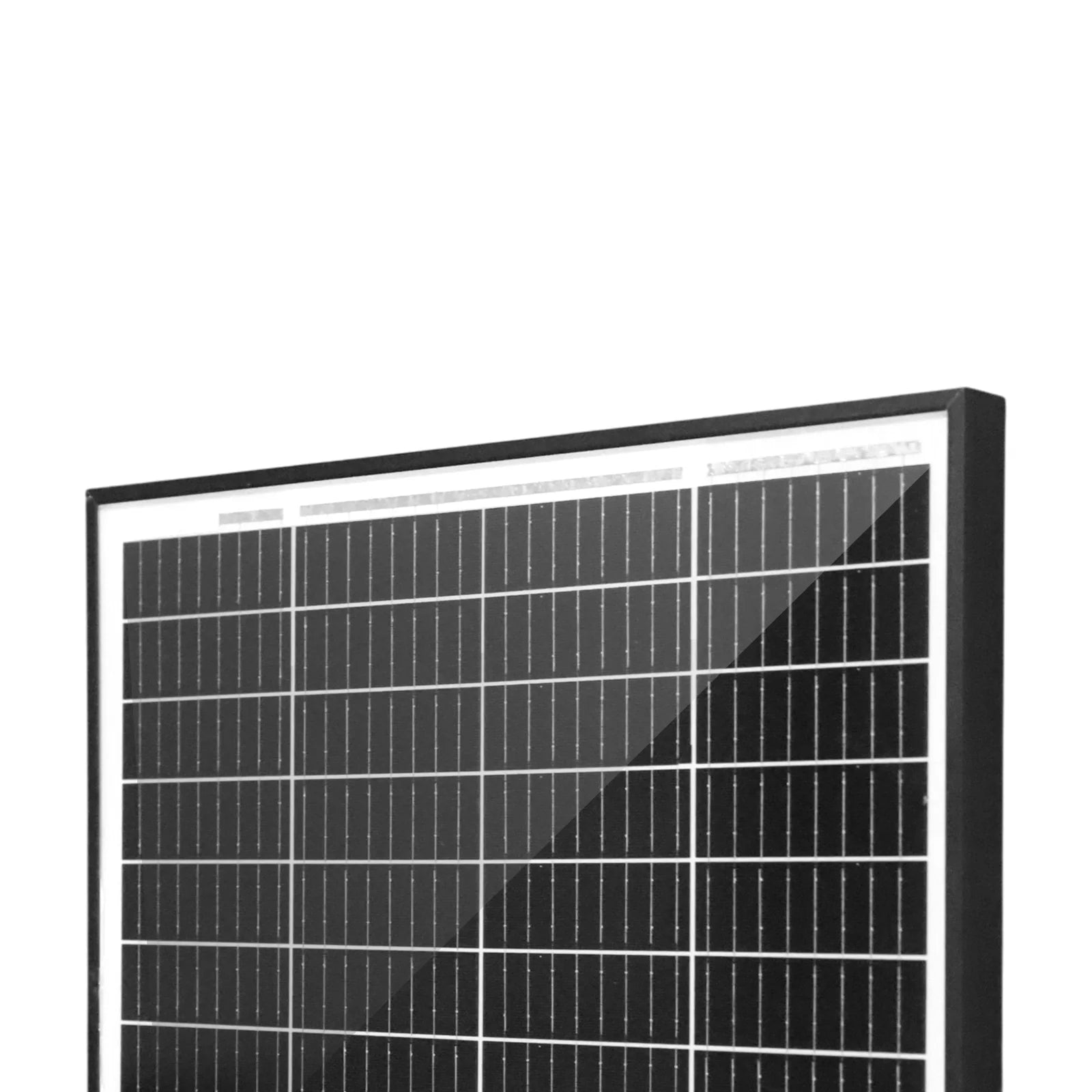

- Black Anodised Frame: 25mm aluminium alloy construction provides structural rigidity and corrosion resistance
Reliability in Harsh Environments
Mobile solar systems face constant vibration, salt spray, and extreme temperature fluctuations. The Exotronic 20W Fusion Fixed Solar Panel is engineered to mitigate these risks. Its junction box is designed to prevent moisture ingress, protecting the critical electrical terminations from corrosion.

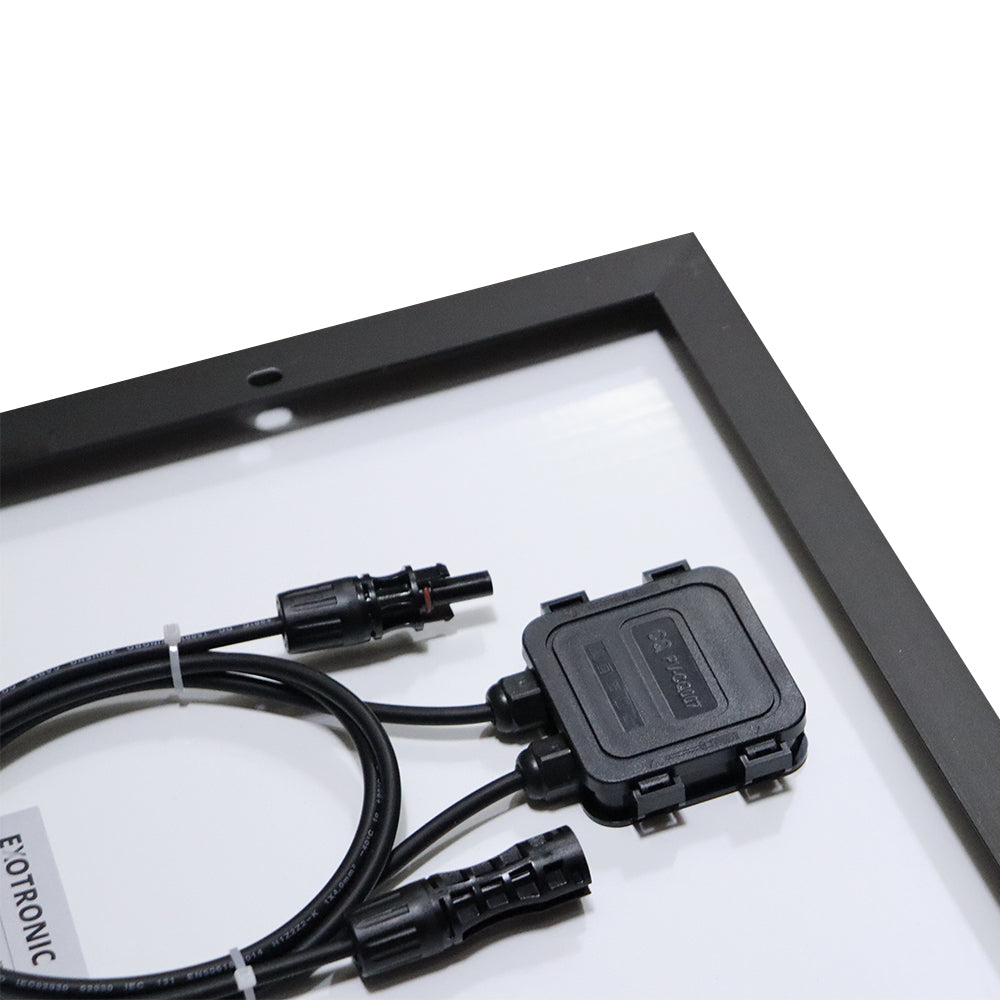

Features a fully potted IP68 rated junction box, providing maximum protection against moisture ingress and ensuring longevity in marine or heavy-duty coastal applications.
Versatile Integration
Whether you are building a 12V system for a weekend camper or a high-voltage array for a remote off-grid cabin, this product provides the necessary flexibility. The MC4 compatible connectors ensure it can be integrated into various mounting systems with ease.
Secure Your Energy Independence
Equip your setup with the Exotronic Fusion Series to ensure reliable power wherever your journey leads. Reach out to our technical team for assistance with array sizing or order the Exotronic 20W Fusion Fixed Solar Panel today to upgrade your off-grid capabilities.
SKU: Exo-SP-TCN-020
SPECIFICATIONS
Specifications
Electrical Characteristics |
|||||||||
| Model | Power (W) | Dimensions (mm) | Weight (kg) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | ||
| Exo-SP-TCN-020 | 20 | 400x290x25 | 1.5 | 18.9 | 1.06 | 22.1 | 1.2 | ||
Temperature Ratings |
|
| NMOT | 41C +/-3C |
| Temperature Coefficient of Pmax | -0.37%/C |
| Temperature Coefficient of Voc | -0.29%/C |
| Temperature Coefficient of Isc | 0.05%/C |
Maximum Ratings |
|
| Operating Temperature | -40 - +85C |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Rated Current | 15A |
Mechanical Characteristics |
|
| Front | 3.2mm Tempered Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP68 |
| Connectors | MC4 Compatible |
| SKU: | Exo-SP-TCN-020 |
| Barcode: | 9361784004334 |
| Model #: | Exo-SP-TCN-020 |
| MPN: | Exo-SP-TCN-020 |
WARRANTY
Warranty Statement
Exotronic warrants its solar panels to be free of defects in workmanship and materials for a period of 60 months from the date of the authorised dealer's invoice to the original purchaser. This warranty is applicable for mobile and marine applications. The 60 months is extended to 120 months when used on a fixed installation. provided that:
- The product is correctly installed and used under normal operating conditions for which it was intended.
- All warranty claims are received by an authorised Exotronic Dealer and approved by Exotronic.
Exotronic reserves the right to repair, replace, refund, or compensate for any decrease in value due to a defect.
