Scanstrut Ventura XT60 Solar Input Socket

Scanstrut Ventura XT60 Solar Input Socket: Reliable Outdoor Power Integration

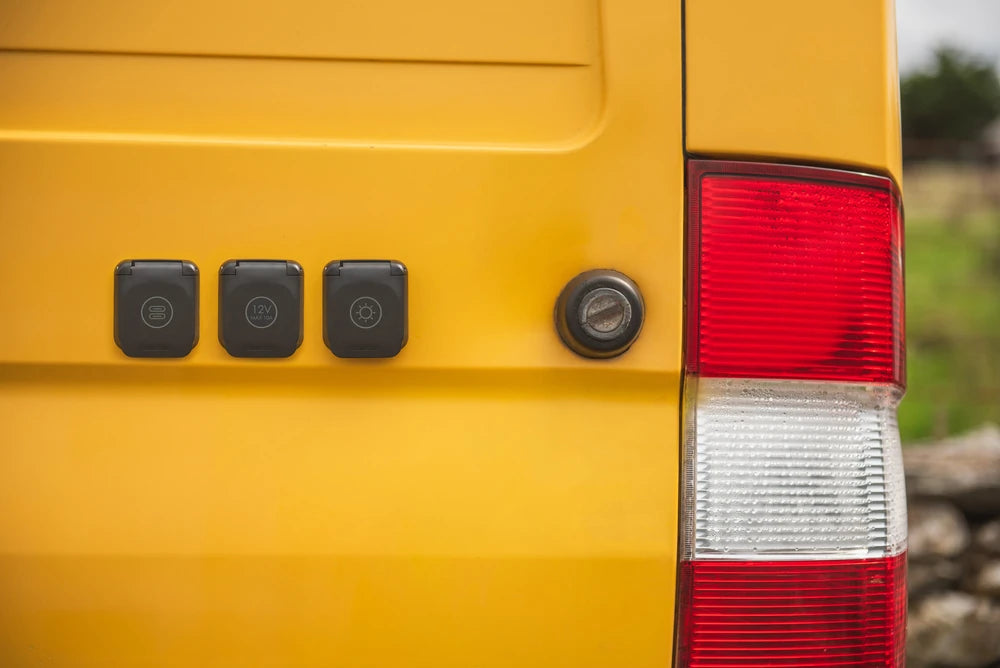

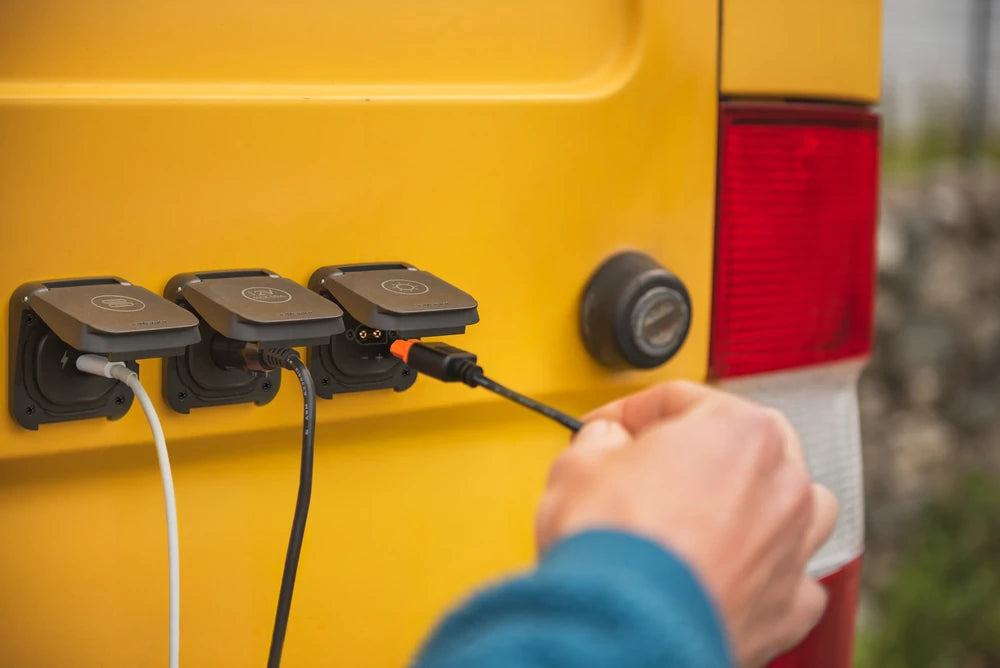

Need a secure, permanent connection for your portable solar panels? Routing cables through windows or doors is a common hassle that risks cable chafing and moisture ingress. The Scanstrut Ventura Series XT60 Solar Connection provides a robust, flush-mounted bulkhead interface for life off the beaten track. Whether you are charging a secondary battery bank at a remote campsite, powering a portable fridge in the back of your 4x4, or running auxiliary gear from an overland camper trailer, this socket delivers exceptional reliability. Built specifically for exterior applications, its low-profile design stays secure regardless of the terrain, while the optimised cable fit supports higher voltages and heavy electrical loads with ease.

High-Capacity Power Delivery for 12V, 24V, and 48V Systems

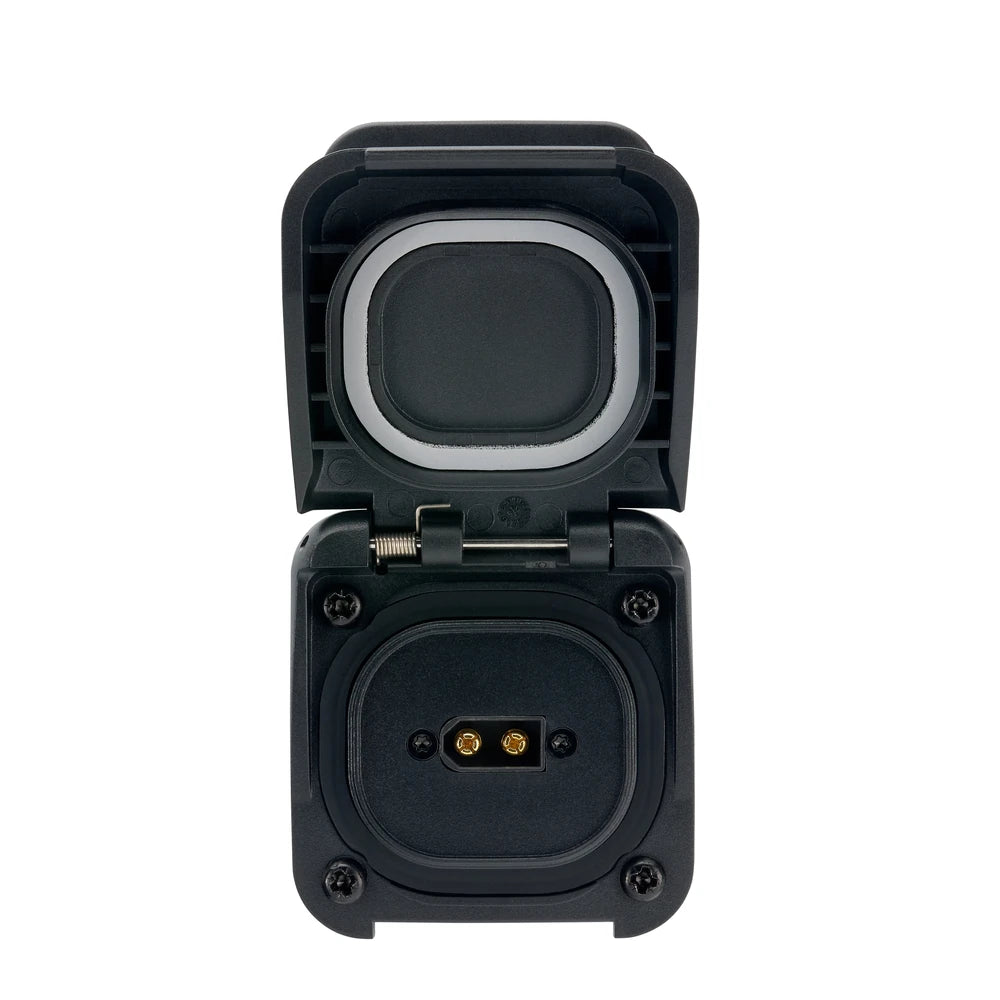

At the core of the assembly is a premium Amass XT60EW-M male waterproof connector. Designed for high-current applications, it boasts a 30A continuous current rating and a 60A instantaneous rating, allowing for maximum power delivery across various system voltages. It seamlessly handles up to 360W on a 12V input, 720W on a 24V input, and an impressive 1440W on a 48V input. The socket is compatible with standard XT60-F female connectors as well as XT60W-F waterproof female connectors, ensuring IP65 protection while actively plugged in.

*Note typical de-rating factors apply.

Marine-Grade Durability and Weather Protection

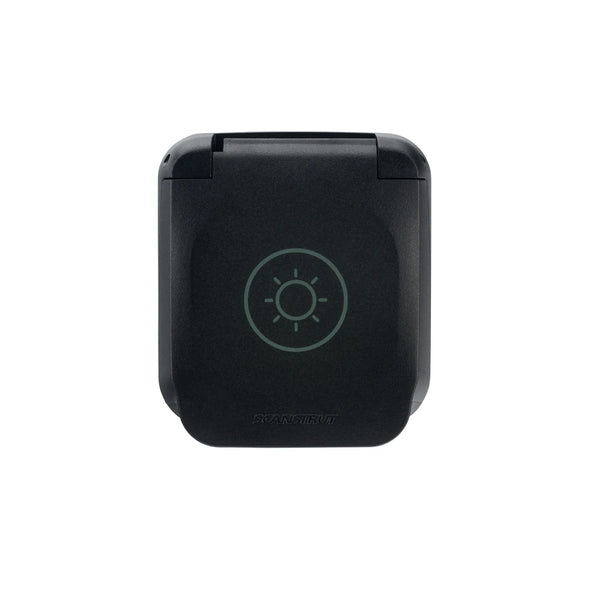

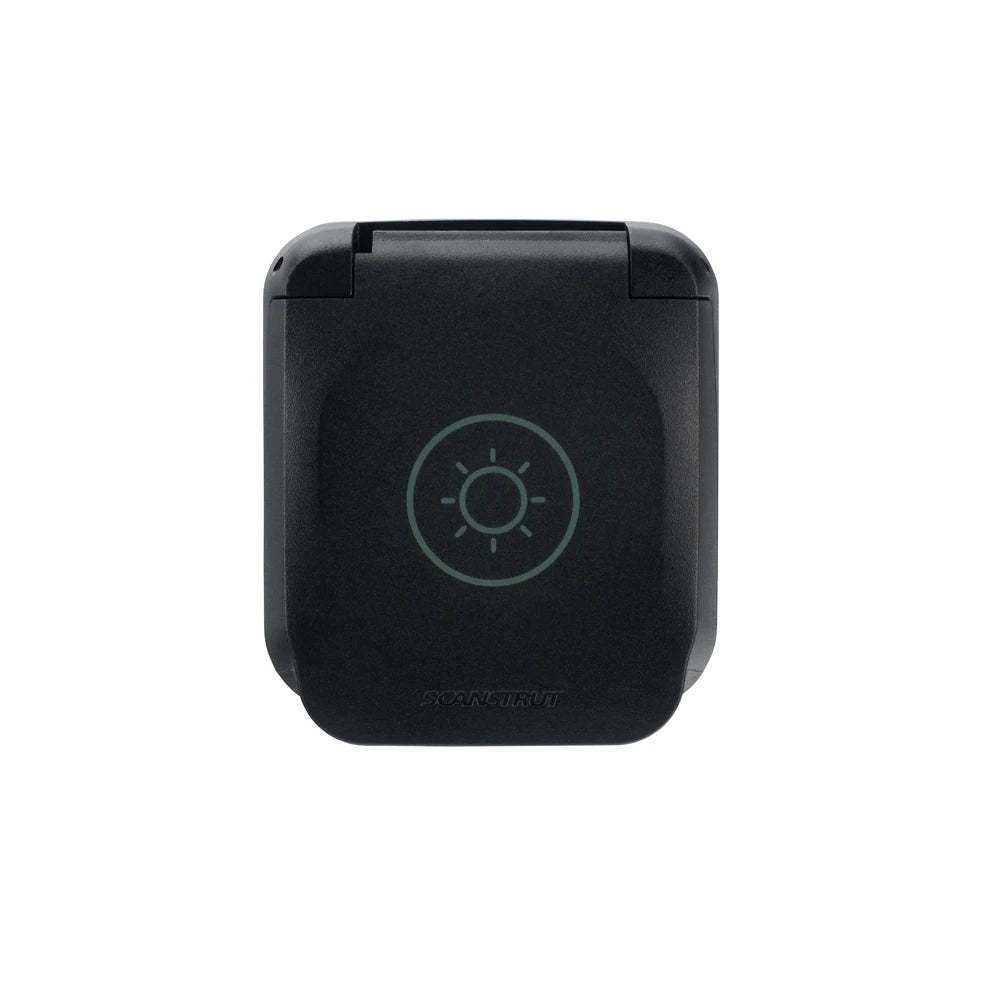

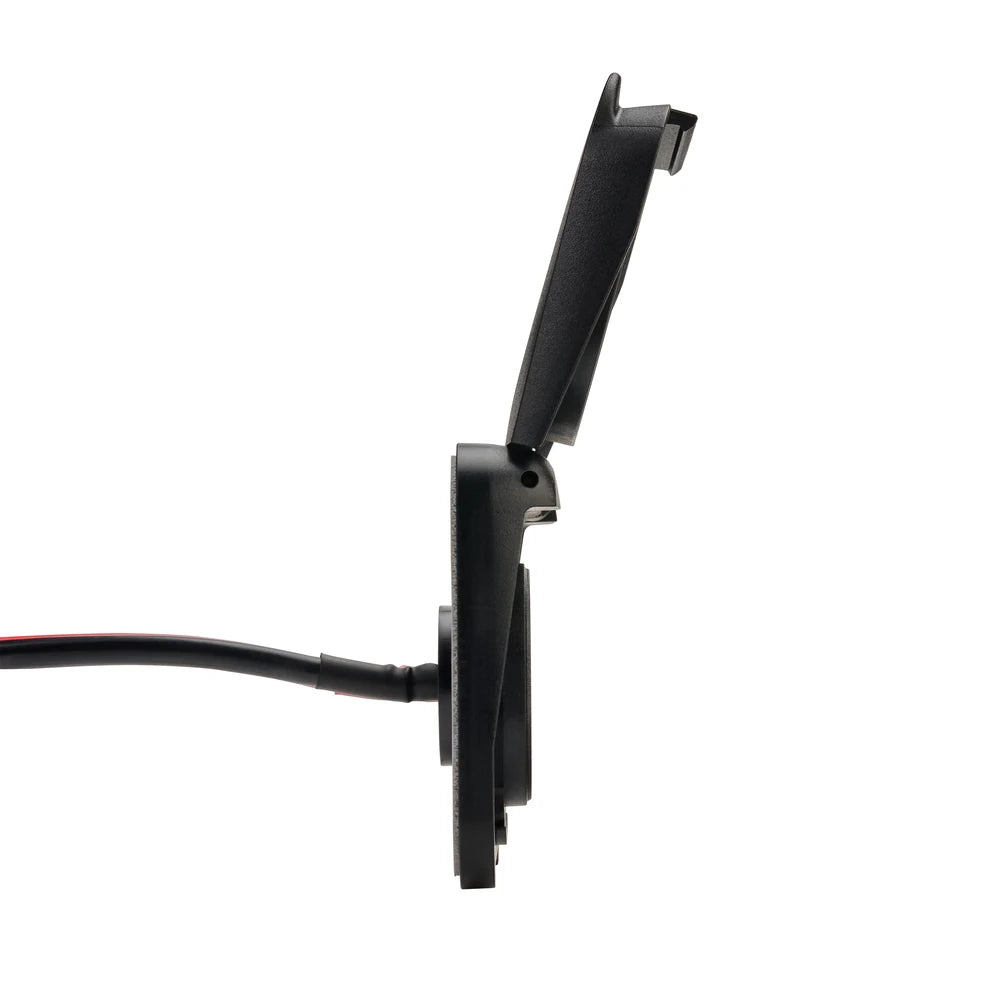

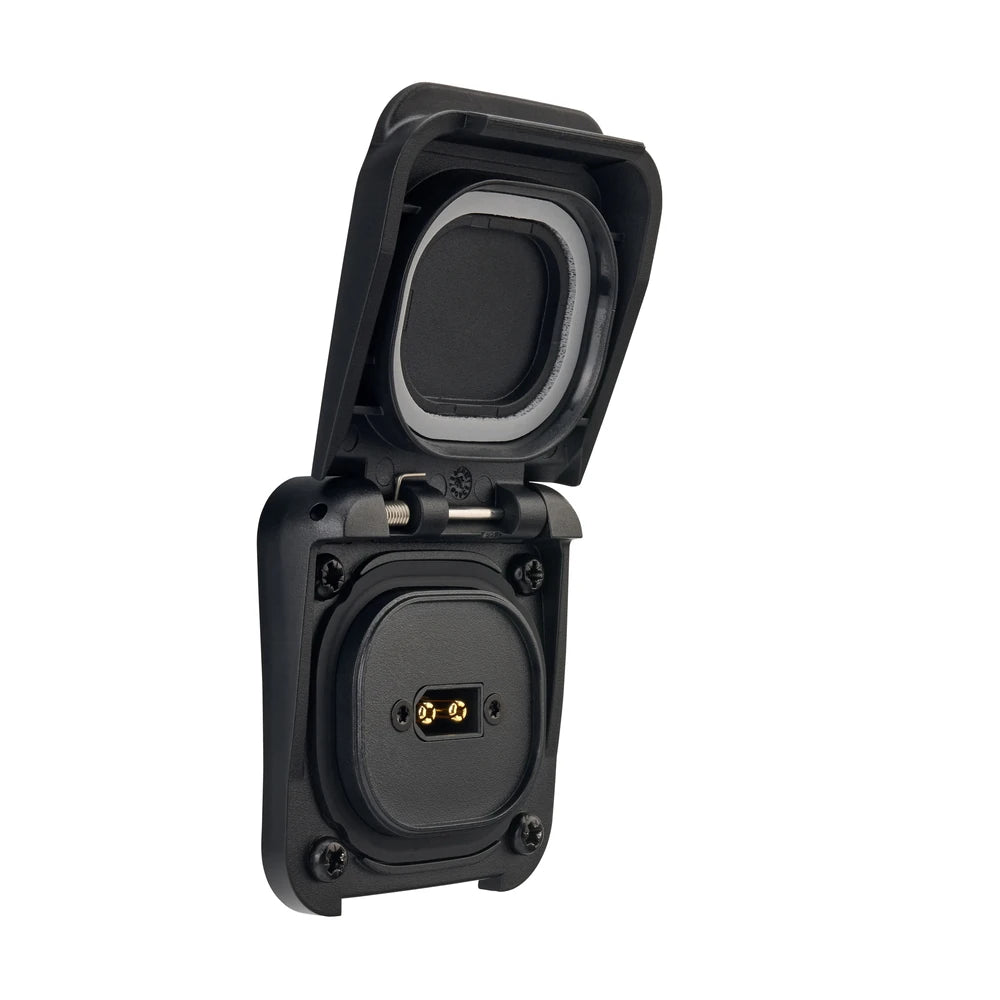

Engineered with Scanstrut's renowned marine-grade innovation, this solar input socket is built to withstand Australia's harshest coastal and outback conditions. When the protective spring-loaded cover is closed, the unit achieves an outstanding IP68 and IP69K waterproof rating, completely sealing out dust, high-pressure water, and moisture. The housing is constructed from UV-resistant materials to prevent degradation under intense sunlight, while all external hardware, including the internal spring and supplied mounting screws, is manufactured from highly corrosion-resistant 316 stainless steel. A 90-degree holding bump-feature keeps the lid fully open at 180 degrees during use, making plug insertion straightforward and hassle-free.

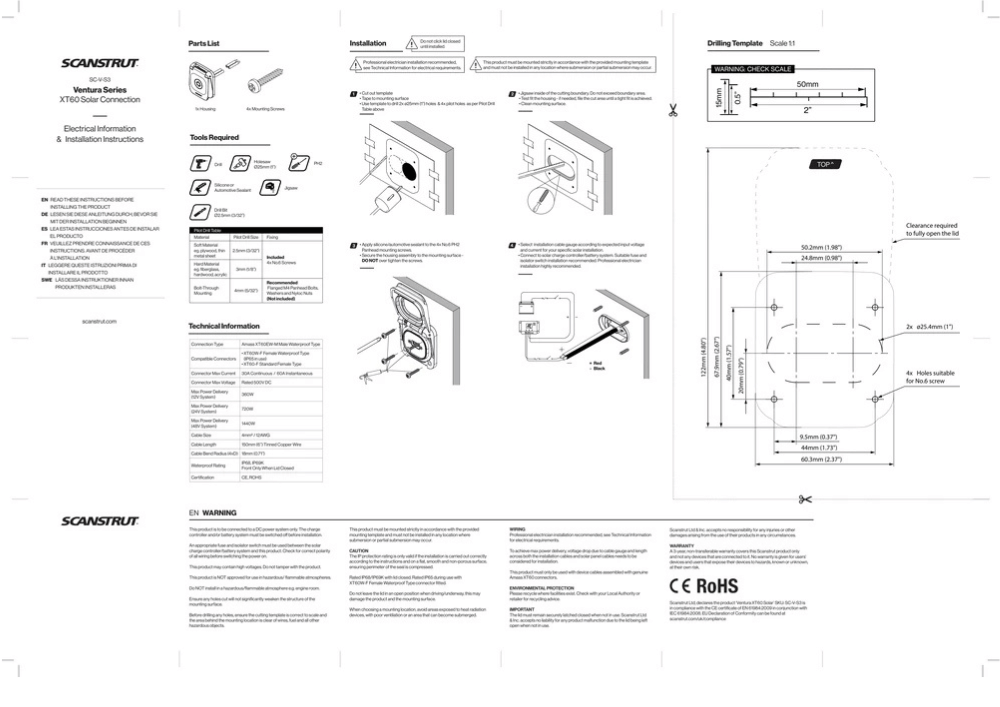

Streamlined and Professional Installation

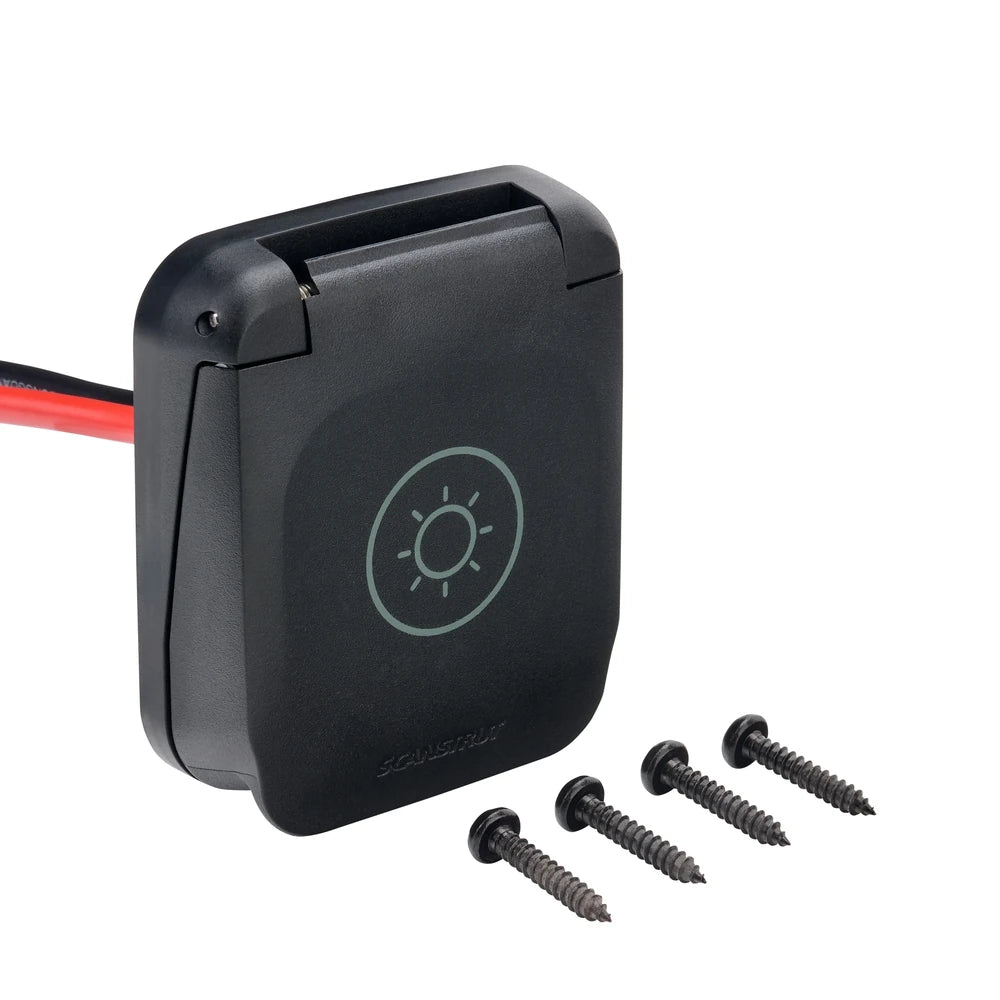

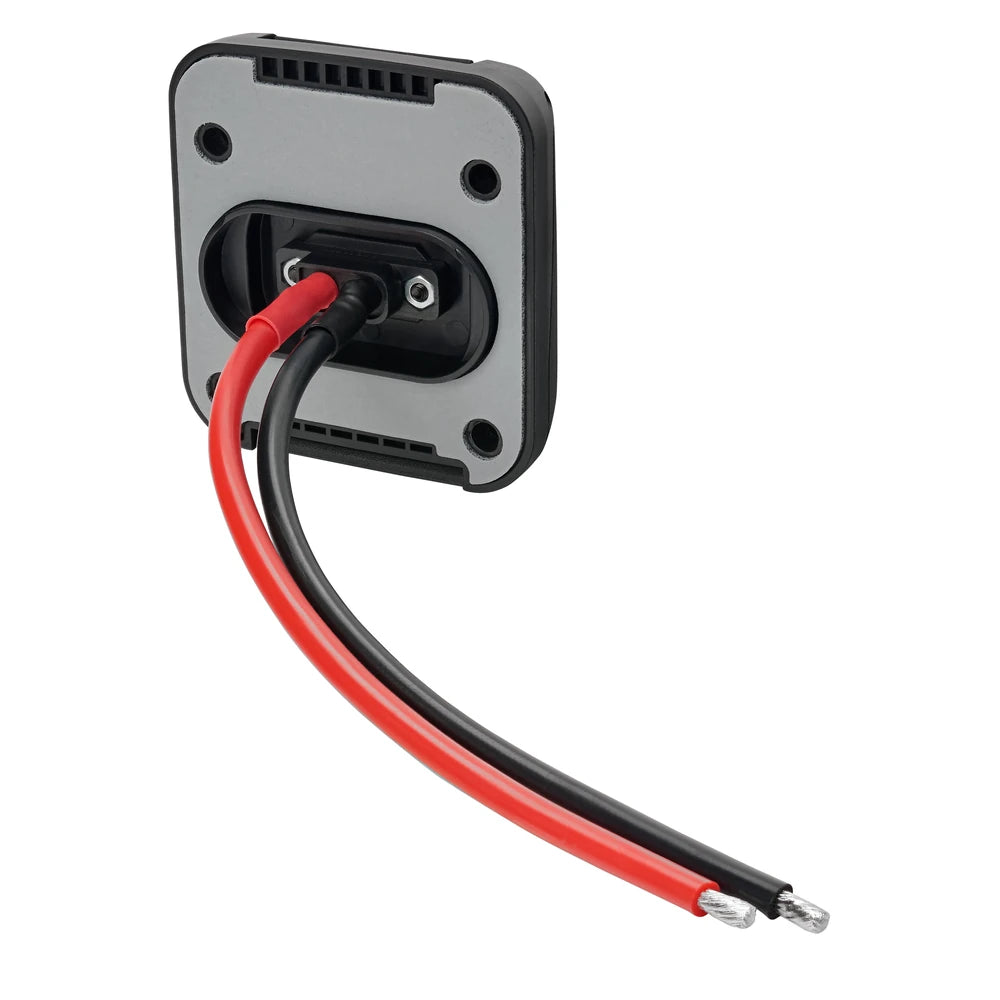

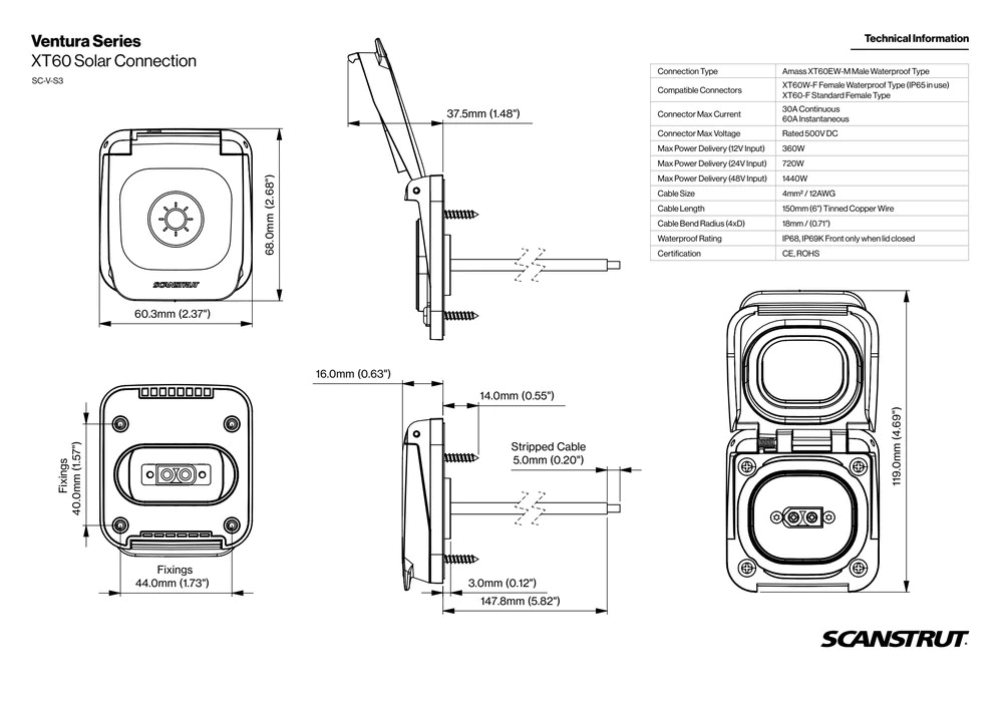

Integrating this socket into your caravan, boat, or 4x4 canopy is incredibly simple. It requires a standard 25mm hole saw installation, eliminating the need for complex cutouts. The rear of the unit is pre-wired with a 150mm length of 4mm2 (12AWG) tinned copper wire, offering excellent conductivity and preventing internal wire corrosion over time. A thick mounting gasket is included to ensure a perfect watertight seal against the exterior mounting surface.

Key Features

• 30A continuous and 60A instantaneous current rating for high-demand applications
• IP68 and IP69K waterproof protection (when lid is securely closed)
• Pre-wired with 150mm of 4mm2 (12AWG) tinned copper cable for excellent conductivity
• UV-resistant housing with 316 stainless steel components for maximum longevity
• Compatible with 12V, 24V, and 48V DC auxiliary power systems
• Simple flush-mount installation requiring only a standard 25mm hole saw

Ready to streamline your mobile solar setup?

Upgrade your 4x4, caravan, or marine vessel with the Scanstrut Ventura XT60 Solar Input Socket today and experience secure, weather-resistant power connectivity on every adventure.
