Victron Skylla-i Control GX: Precision Remote Management for Skylla-i Chargers
Centralised Monitoring and Control for Marine, Industrial, and Off-Grid Power Systems
The Victron Skylla-i Control GX is a dedicated remote panel engineered to provide comprehensive oversight of your Skylla-i battery charger. Designed for seamless integration via the VE.Can communication bus, this panel delivers real-time data and intuitive control, making it an essential component for professional installations where reliable battery management is critical.
Whether you are managing a single charger or a synchronised parallel bank, the Skylla-i Control GX consolidates key parameters into one accessible interface. It is particularly suited to marine electrical systems, industrial backup power, and off-grid energy setups where precise charging data and remote on/off capability enhance operational efficiency.
Real-Time System Visibility

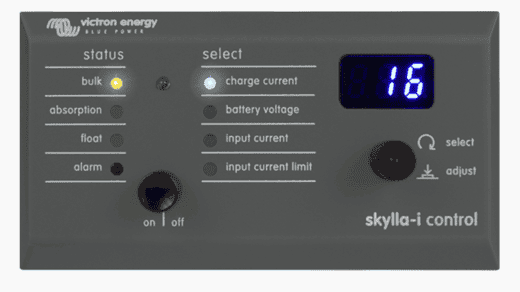

Stay informed with a clear three-digit LED display that cycles through essential metrics: charge current, battery voltage, input current, and input current limit. All readings are presented in SI units (Amperes or Volts) with one decimal digit for accuracy, automatically adjusting when the charger operates at or above 100 A. This level of detail allows operators to verify charging performance at a glance, reducing the need for manual inspections in hard-to-reach installations.
Intelligent Design for Demanding Environments
The panel features an automatic LED brightness adjustment via an integrated light sensor, ensuring optimal visibility in both bright engine rooms and dimly lit control cabins. The status LEDs clearly indicate charging stages—bulk, absorption, and float—so you can monitor progress without navigating menus. A rotary select/adjust knob and dedicated on/off button provide tactile, straightforward control, even when wearing gloves.
Installation is simplified with a metal mounting frame and included screws, while the right-angle RJ45 connector minimises cable strain in tight spaces. The panel connects using standard UTP (Unshielded Twisted Pair) cable with RJ45 connectors, and two internally linked RJ45 sockets support daisy-chaining or bus termination with the supplied terminators.
Key Features
- VE.Can communication for reliable data exchange with all Skylla-i chargers
- Real-time display of charge current, battery voltage, input current, and input current limit
- Automatic LED brightness control via light sensor for varied lighting conditions
- Master on/off control for connected chargers with a single button press
- Multi-panel support – connect several panels to one charger or a synchronised parallel group
- Right-angle RJ45 connector for space-constrained installations
- Supplied with bus terminators and metal mounting frame for straightforward setup
Seamless Integration with Victron Skylla-i Chargers
Compatible with both 1-output and 3-output Skylla-i models, this control panel extends the functionality of your charging system without complex configuration. The VE.Can bus ensures robust, noise-immune communication over standard network cable, a proven solution in professional marine and industrial environments. Multiple panels can be connected to a single charger or a set of synchronised parallel chargers, allowing monitoring from different locations—ideal for large vessels or multi-room facilities.
Built for Professional Applications
The Skylla-i Control GX addresses common challenges in remote charger management: inaccessible charger locations, the need for consolidated data, and the risk of incorrect settings. By providing a dedicated interface, it reduces the likelihood of battery damage from improper charging and simplifies troubleshooting. The compact dimensions (65 x 120 x 40 mm) allow flush mounting in standard panels, while the robust metal frame withstands vibration and temperature fluctuations typical of engine rooms and industrial sites.
Take Command of Your Charging System
Enhance the control and visibility of your Victron Skylla-i charger with the Skylla-i Control GX. Whether you are outfitting a new build or retrofitting an existing installation, this remote panel delivers the precision and reliability expected from Victron Energy. Add the Skylla-i Control GX to your system today and experience centralised power management at your fingertips.
SKU: VIC-REC000300010R
SPECIFICATIONS
Specifications
| Model | Skylla-i Control GX (90º RJ45) |
|---|---|
| Part Number | REC000300010R |
| Product Type | Remote Panel |
| Compatible Chargers | All Skylla-i chargers |
| Communication Bus | VE.CAN bus |
| Connection Cable | Regular UTP (Unshielded Twisted Pair) cable with two RJ45 connectors |
| RJ45 Sockets | Two RJ45 sockets which are internally connected |
| RJ45 Bus Terminators | Comes complete with both RJ45 bus terminators |
| Display Parameters | Charge current; battery voltage; input current; input current limit |
| Display Units | SI units (Ampere or Volts) with one decimal digit |
| Decimal Display Behaviour | The decimal digit disappears when the charger operates at or above 100 A |
| LED Brightness Control | Controlled automatically using a light sensor |
| Charger On/Off Control | Switched on and off by briefly pressing the on|off button |
| Multi-Panel Support | Several Skylla-i control panels can be connected to one charger or to a set of synchronized and parallel connected chargers |
| Default Device Instance | Zero |
| Dimensions (H x W x D) | 65 x 120 x 40 mm |
| SKU: | VIC-REC000300010R |
| Barcode: | 8719076024316 |
| Model #: | REC000300010R |
| MPN: | REC000300010R |
