Victron GX Touch 50 Adapter for CCGX Cut-Out

Victron GX Touch 50 Adapter for CCGX Cut-Out: Seamless Display Upgrade

Modernise Your Victron Energy Monitoring System

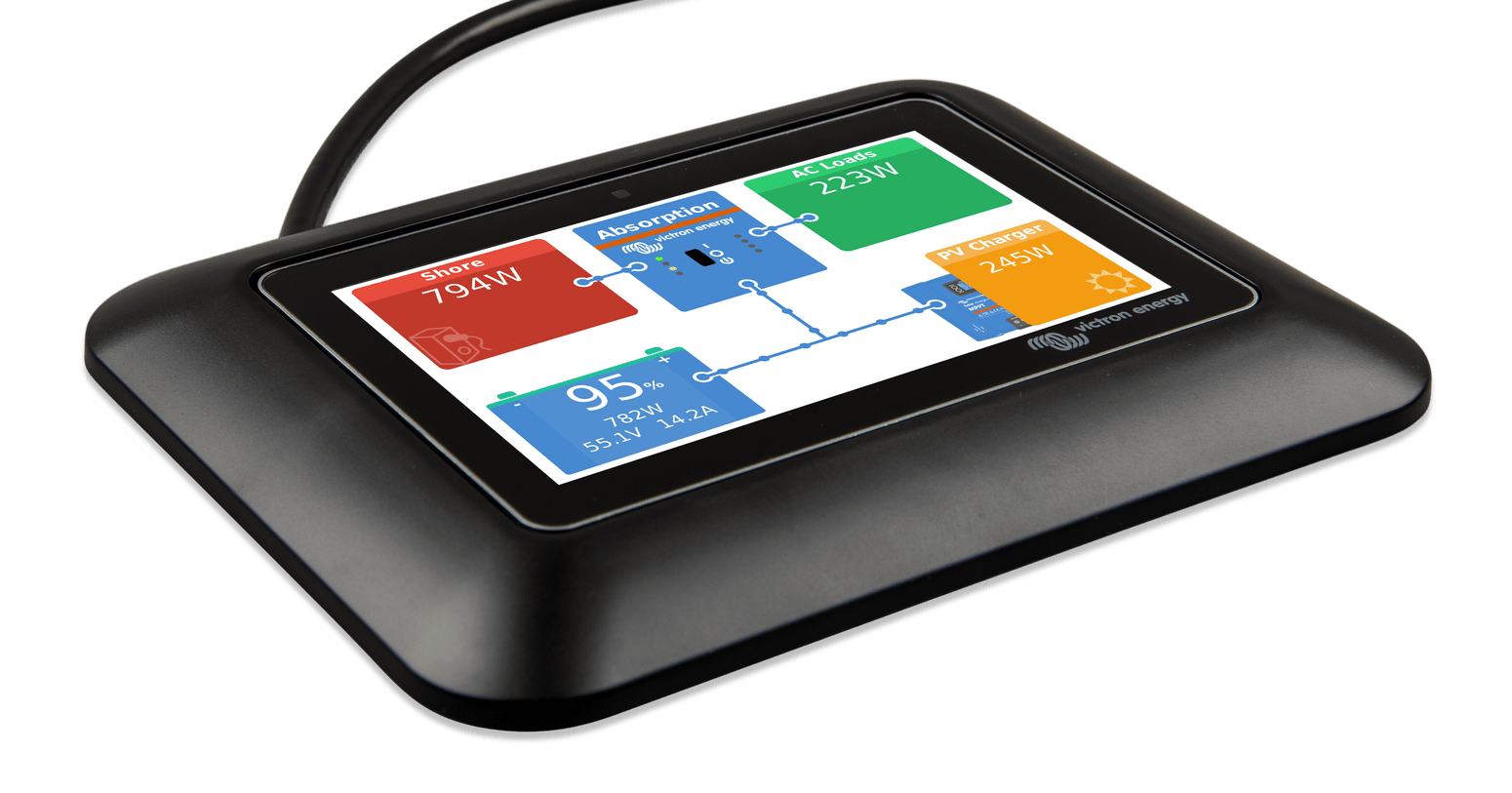

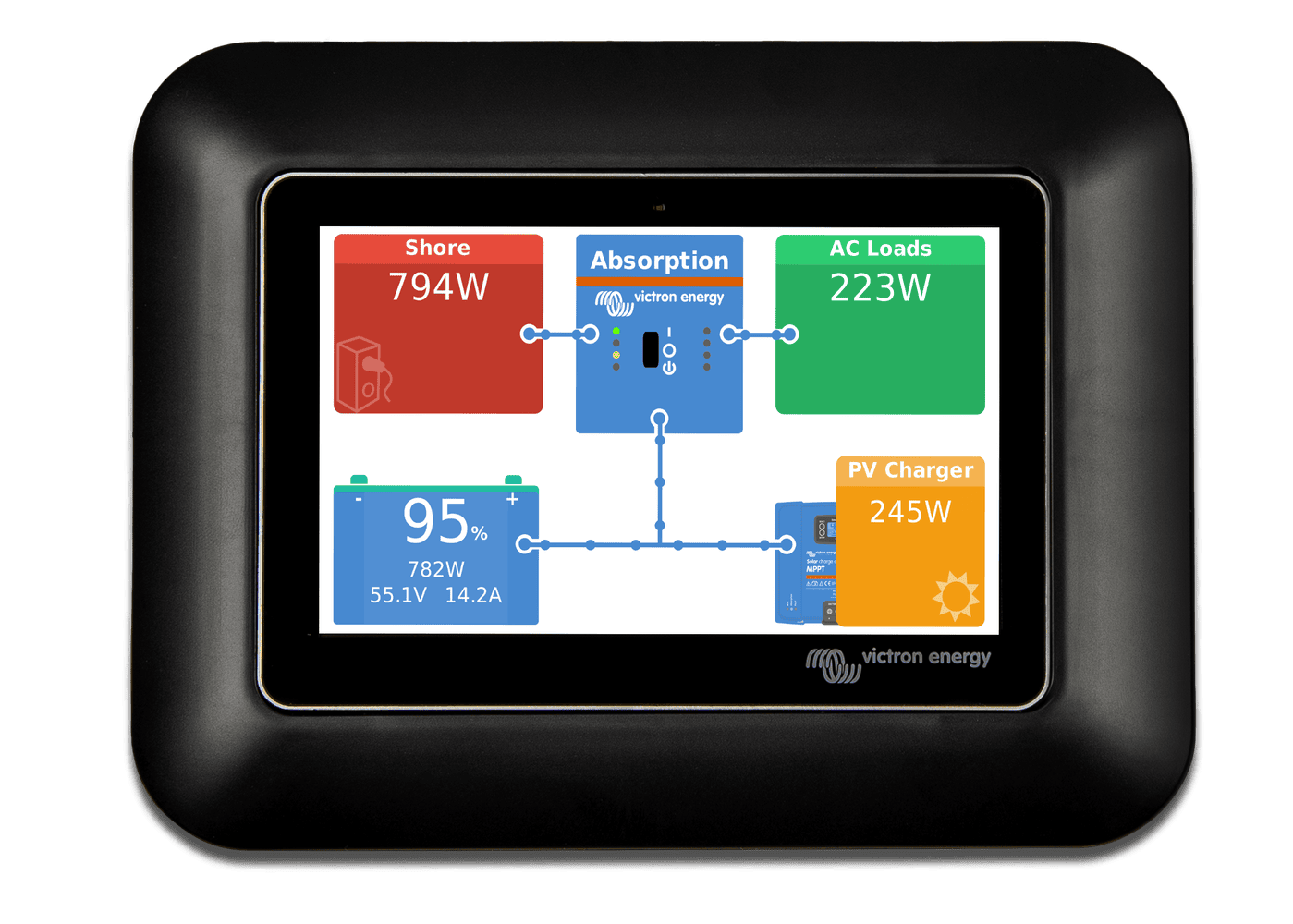

Upgrading from the legacy Color Control GX (CCGX) to the advanced GX Touch 50 display is now straightforward with this purpose-built adapter. Designed to fit the existing CCGX cut-out, it eliminates the need for custom fabrication or panel modifications, saving installation time and preserving the integrity of your dashboard or mounting surface.

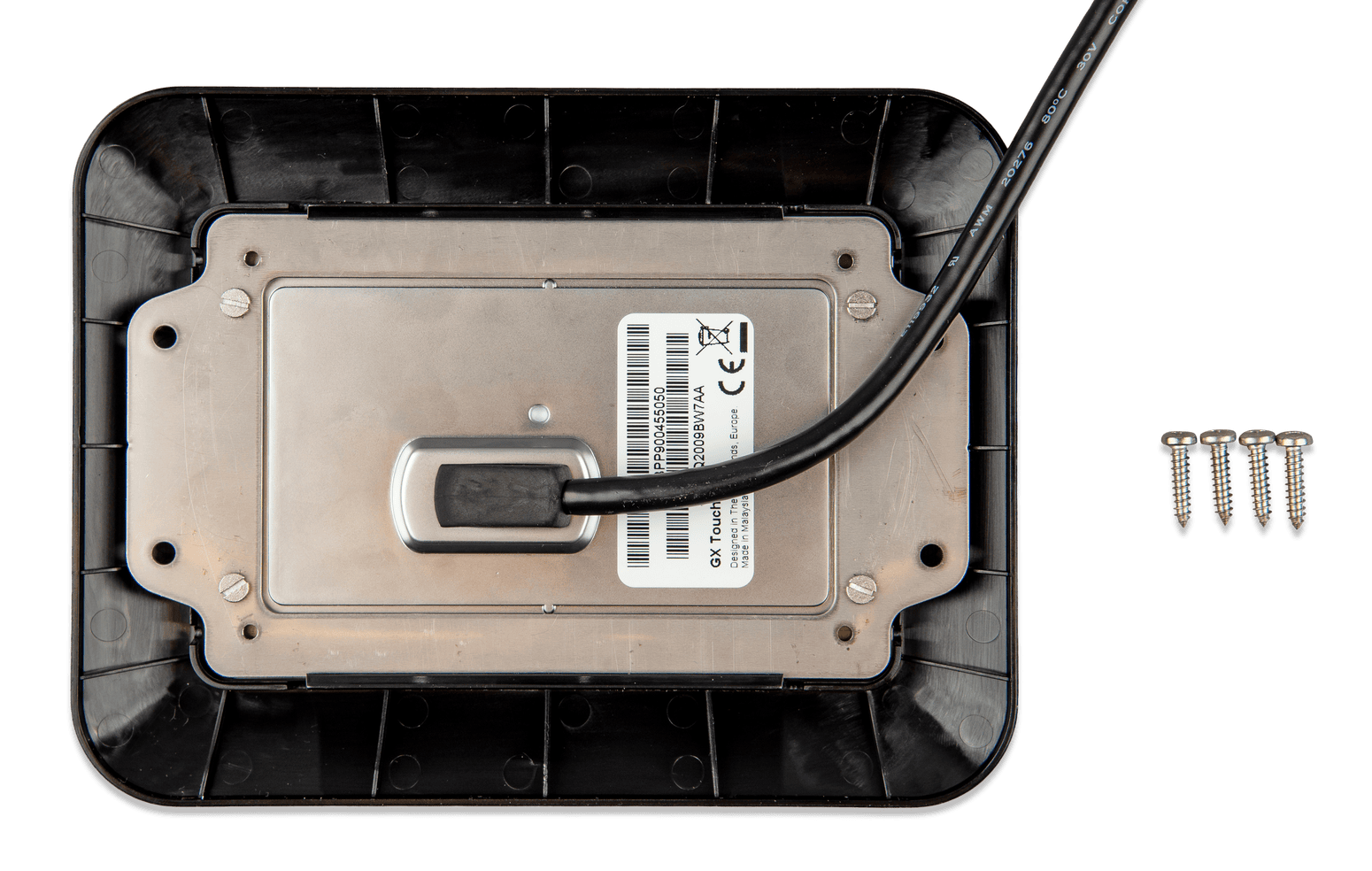

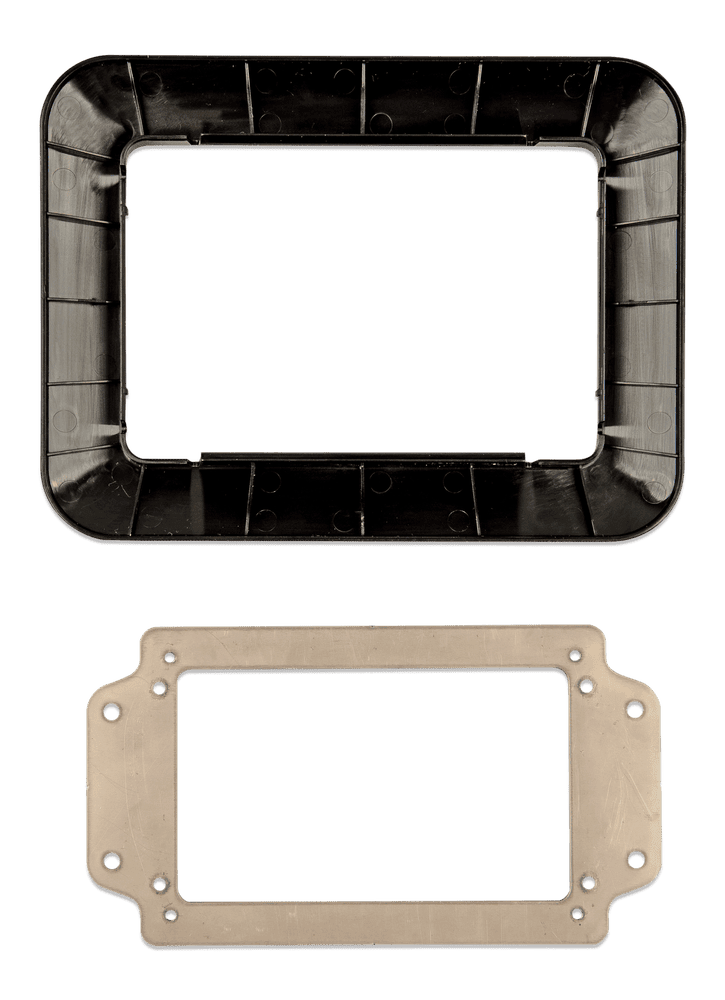

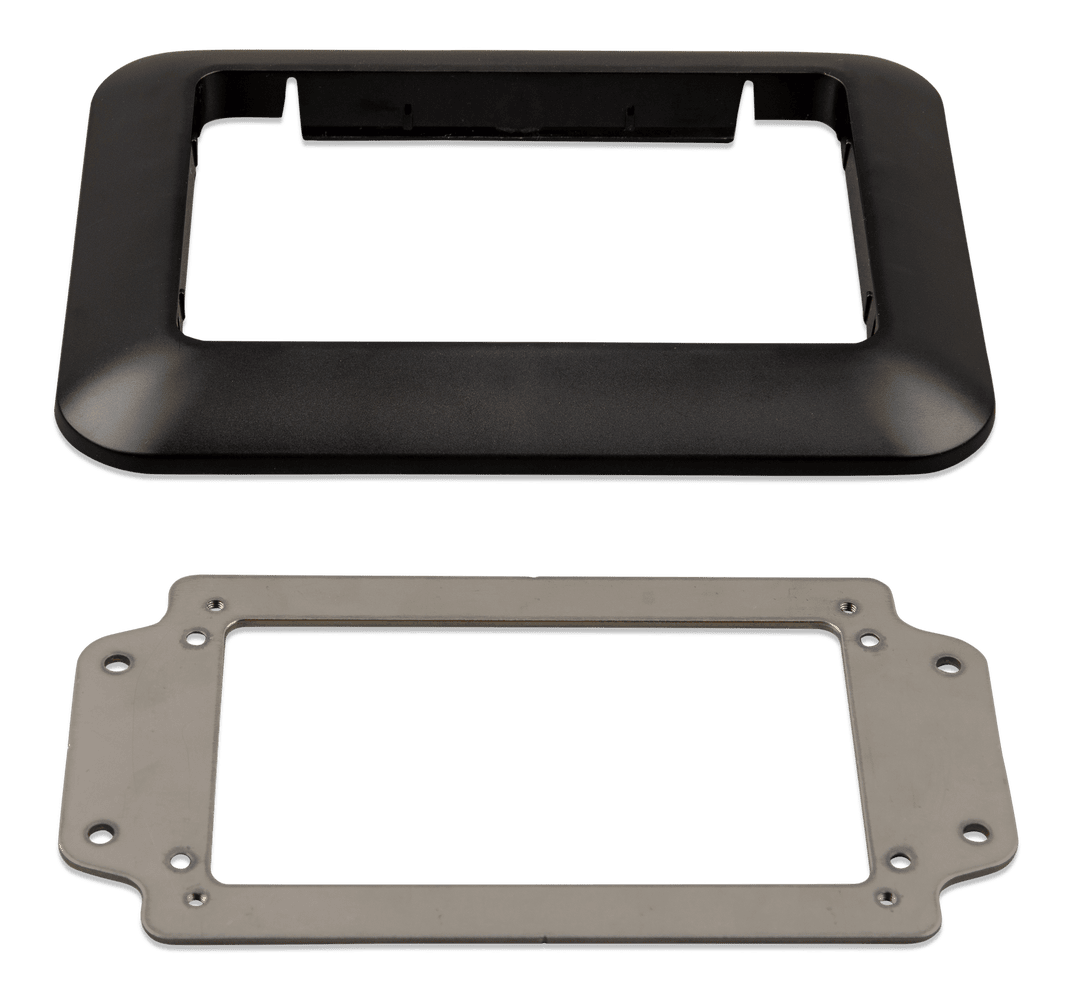

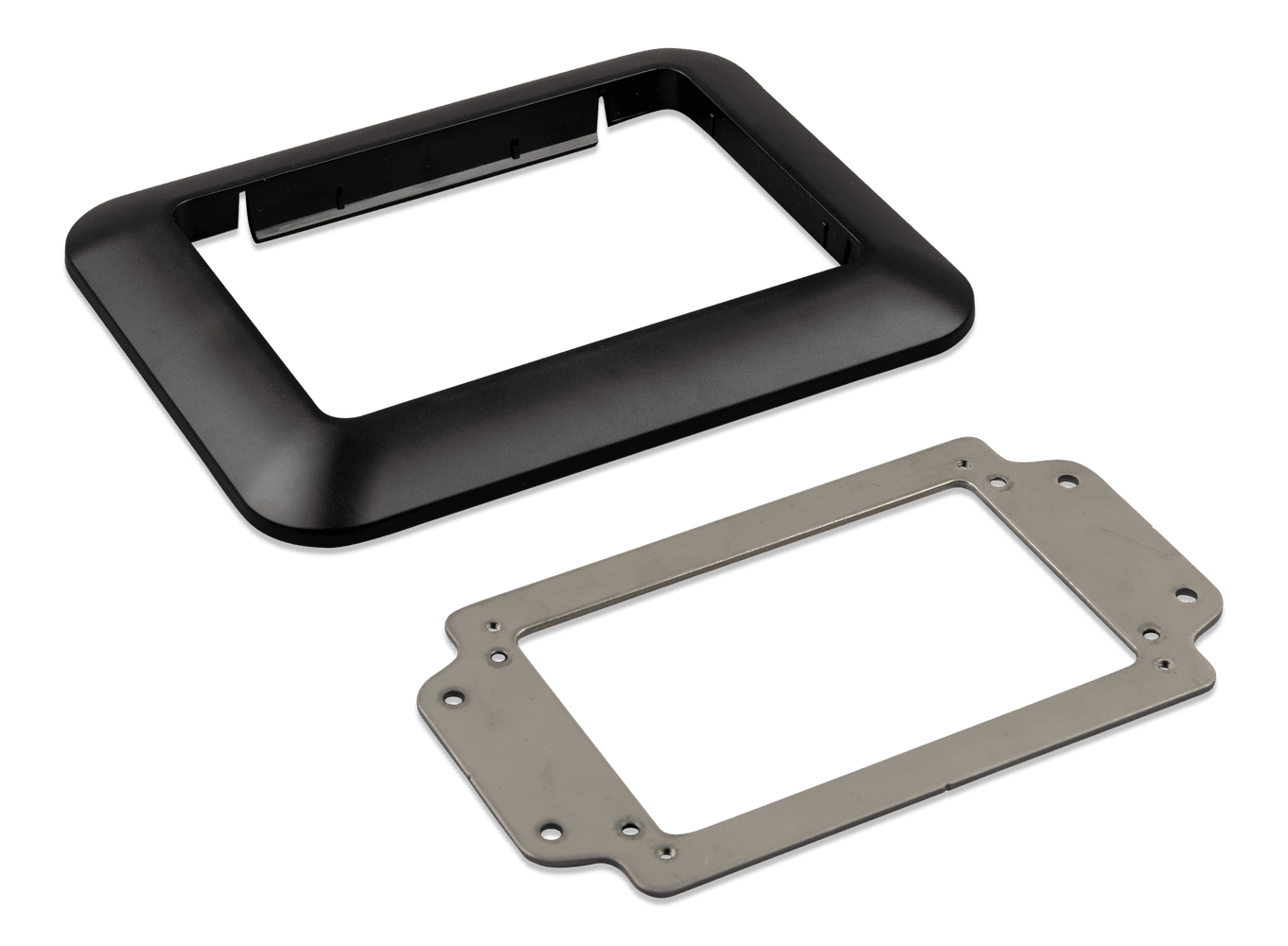

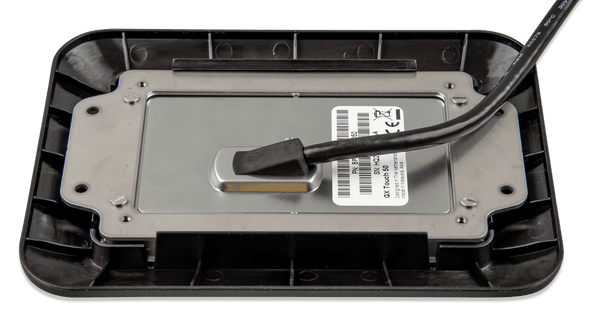

This adapter kit includes a precision-engineered metal bracket and a durable black plastic bezel, along with four mounting screws. The bezel provides a clean, professional finish that integrates seamlessly with the GX Touch 50, while the metal bracket ensures a secure and stable mount. Whether you're upgrading a marine navigation station, an RV control panel, or an off-grid energy management setup, this adapter delivers a reliable and aesthetically pleasing solution.

Flexible Installation Options

The adapter supports two mounting methods to suit different installation preferences:

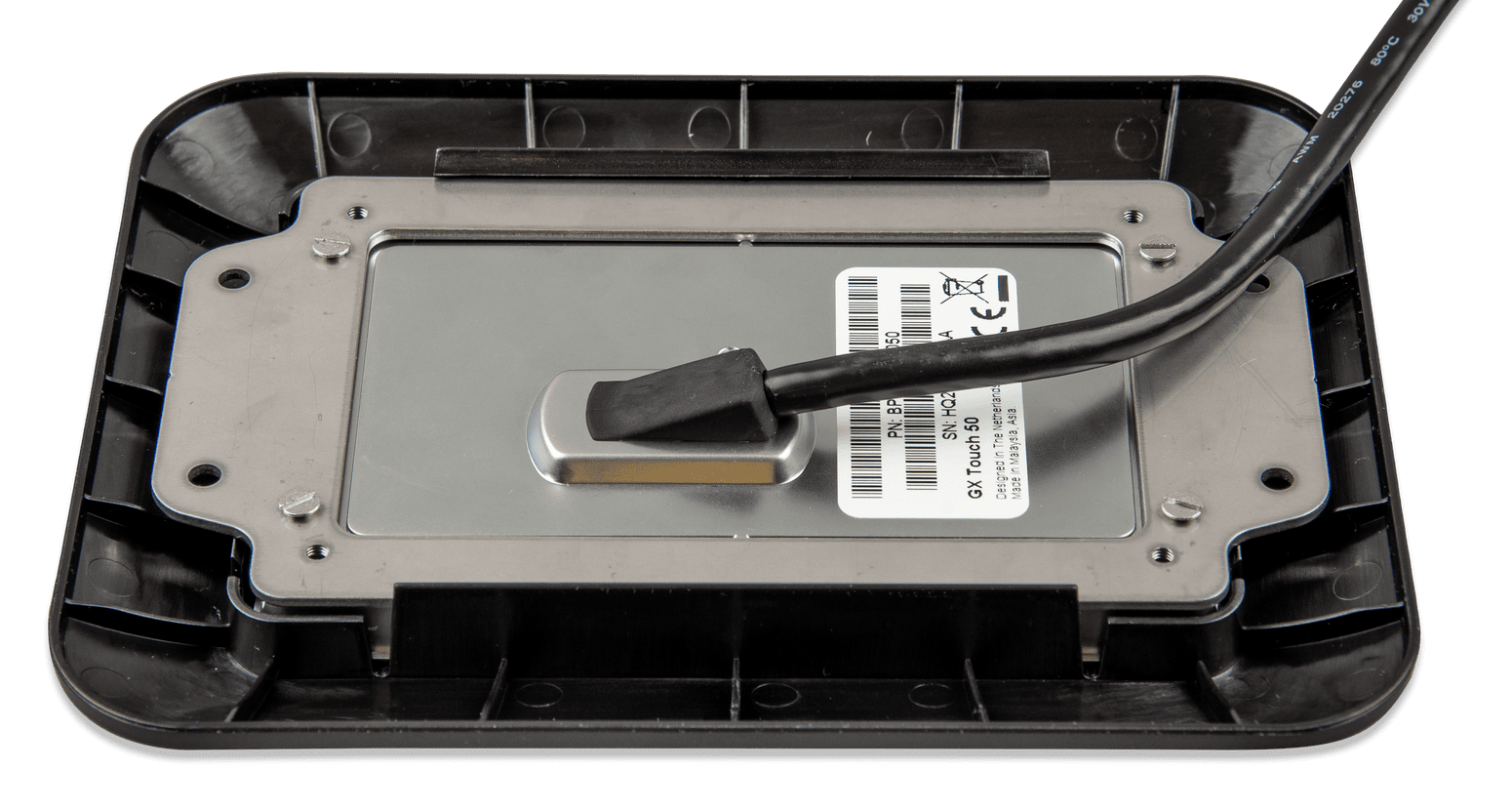

• Install including screen: The most secure method, where the GX Touch 50 is firmly attached to the adapter before mounting. Ideal for permanent installations where the display will not need frequent removal.
• Install excluding screen: Allows the adapter to be mounted first, with the display easily attached or removed later. This is particularly useful when wiring needs to be completed before final display installation, or when occasional access behind the panel is required.

Refer to the Quick Installation Guide for step-by-step instructions. The adapter's thoughtful design accommodates both approaches, giving installers flexibility without compromising on stability.

Engineered for a Perfect Fit

The adapter's outer dimensions of 174 x 133 mm and R20 corner radius match the original CCGX cut-out precisely. Multiple countersunk mounting holes (Ø 2.7 mm, Ø 3.2 mm, and Ø 4.2 mm) provide compatibility with various screw sizes, ensuring a secure attachment to different panel thicknesses. This attention to detail reduces the risk of misalignment and simplifies the retrofit process.

By reusing the existing cut-out, this adapter minimises installation complexity and avoids the need for additional cutting or drilling. It is an efficient way to bring the benefits of the GX Touch 50's 5-inch touchscreen interface to systems previously reliant on the CCGX.

Key Features

• Direct replacement for CCGX display using existing cut-out
• Includes metal bracket, plastic bezel, and four mounting screws
• Two mounting methods for secure or flexible installation
• Precision dimensions (174 x 133 mm, R20 corners) for a flush fit
• Durable construction suitable for mobile and marine environments
• Professional black finish complements the GX Touch 50 design

Upgrade with Confidence

This adapter is an essential component for anyone looking to enhance their Victron Energy system with the GX Touch 50. It bridges the gap between older and newer hardware, allowing you to take advantage of the improved user interface and faster response times of the GX Touch 50 without replacing the entire mounting infrastructure.

Please note: the GX Touch 50 display is sold separately. Ensure you have the display before beginning installation.

Ready to modernise your energy monitoring? Add the Victron GX Touch 50 Adapter to your order and complete your upgrade with a clean, professional installation.
