Victron Energy Meter EM540 - 3 phase - max 65A/phase

Victron EM540: Precision Three-Phase Energy Meter for Advanced System Monitoring

Accurate Energy Data for ESS, Solar, and Generator Applications

The Victron EM540 Energy Meter is a high-performance three-phase energy analyser engineered for seamless integration with Victron Energy systems. Designed as the direct replacement for the EM24 model, it delivers precise, real-time measurements of consumption and generation, making it an essential component for Energy Storage Systems (ESS), solar PV monitoring, and AC generator output tracking. With its direct connection capability up to 65 A per phase, the EM540 eliminates the need for external current transformers in many residential and light commercial installations, simplifying setup and reducing potential points of failure.

Whether you are commissioning a new Victron ESS or upgrading an existing installation, the EM540 provides the critical grid and production data required for intelligent energy management. Its TRMS measurement method ensures accurate readings even with distorted waveforms, a common occurrence in modern electrical environments with non-linear loads. This level of precision supports optimal system performance, helping you maximise self-consumption, reduce energy costs, and maintain grid compliance.

Seamless Victron Ecosystem Integration

The EM540 communicates via RS485 using the Modbus RTU protocol, connecting directly to a Victron Color Control GX (CCGX) or other GX devices. This wired connection, using the Victron RS485 to USB interface, can be extended up to 100 metres when using a twisted pair for the Data+ and Data- conductors, offering flexibility in meter placement. For installations where cabling is challenging, wireless connectivity is also supported via Zigbee, providing a clean and adaptable solution.

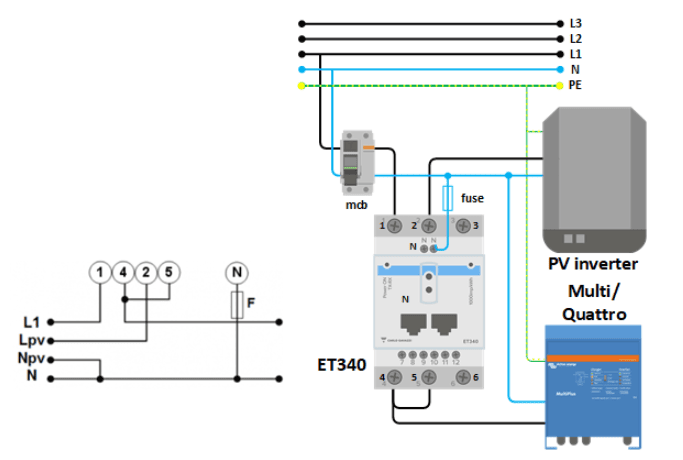

Once connected, the EM540 becomes the control input for your ESS, enabling functions such as grid set point management, feed-in limiting, and detailed energy visualisation on the VRM portal. It can also be configured to measure the output of a single-phase PV inverter on a second phase, allowing a single meter to serve dual purposes and reducing hardware costs. This versatility makes the EM540 a smart choice for both new builds and retrofits.

Key Features at a Glance

• Direct connection up to 65 A per phase, no external CTs required for most applications
• TRMS measurement for accurate readings on distorted waveforms
• RS485 Modbus RTU communication with wired and wireless (Zigbee) options
• Backlit LCD display for local monitoring of voltage, current, power, and energy
• Compact 3-DIN module design for standard DIN rail mounting
• Measures both consumption and generation with 0.001 kWh resolution
• Wide voltage input range covering common three-phase configurations worldwide

Built for Reliable, Long-Term Operation

Victron has designed the EM540 to withstand demanding environments. With an operating temperature range from -25 to +55 °C and an overvoltage category of Cat. III, it is suitable for installation in distribution boards and equipment rooms where conditions can vary. The front panel carries an IP40 protection rating, while the terminals are rated IP20, ensuring safe operation when properly installed within an enclosure. The meter is self-powered from the measured voltage, drawing less than 1.3 W, which contributes to overall system efficiency.

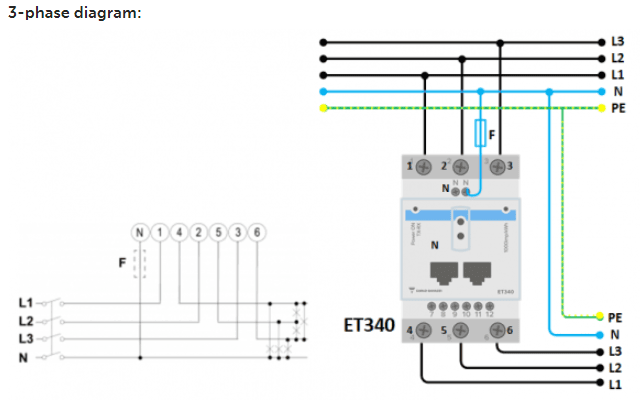

Installation is straightforward thanks to the standard 3-DIN module form factor and spring-loaded DIN rail release. The large screw terminals accommodate conductors suitable for 65 A circuits, and the dual RJ45 ports simplify RS485 daisy-chaining for multi-meter setups. Clear labelling and a comprehensive manual reduce commissioning time, allowing installers to complete jobs efficiently.

Applications Across Residential and Commercial Projects

The EM540 is ideally suited for a range of energy monitoring tasks:

• Grid meter for Victron ESS in homes and small businesses
• PV inverter output measurement for performance tracking
• AC generator monitoring in off-grid or backup systems
• Sub-metering for tenant billing or energy cost allocation
• Industrial energy audits and power quality analysis

By providing granular data on energy flows, the EM540 empowers system owners and installers to make informed decisions, troubleshoot issues, and verify that renewable energy systems are performing as expected. Its compatibility with the broader Victron ecosystem ensures future-proofing, as firmware updates and new features continue to be released for GX devices.

Upgrade Your Energy Monitoring Today

Equip your Victron installation with the precision and reliability of the EM540 Energy Meter. Whether you are managing a residential ESS, monitoring a commercial solar array, or integrating a backup generator, this meter delivers the data you need to optimise performance and take control of your energy. Add the Victron EM540 to your system now and experience the difference accurate metering makes.
