Victron Small DIN35 Adapters for Cerbo
For Cerbo GX - Spring Clip, Adjustable Slot, M4 Screws Included
Victron Grey BMV-700 Battery MonitorDESCRIPTION

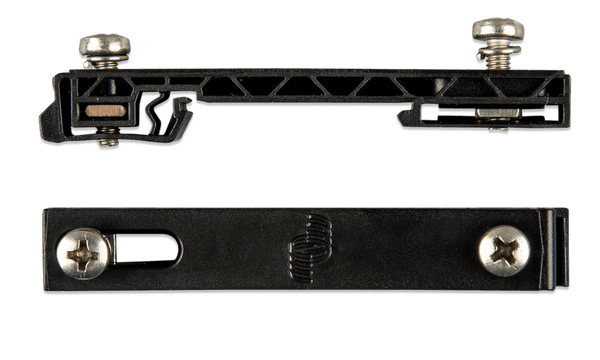

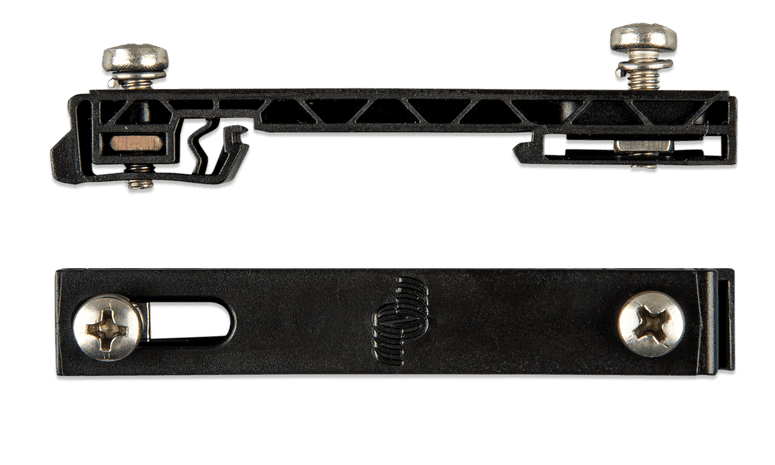

Victron DIN35 Adapter Small: Secure DIN Rail Mounting for Cerbo GX and Compact Devices
Streamlined Installation for Professional Energy Management Systems
The Victron DIN35 adapter small provides a reliable, space-efficient solution for mounting compatible Victron devices onto standard 35 mm DIN rails. Supplied as a pack of two, these adapters are purpose-built for the Cerbo GX, enabling tidy integration within electrical enclosures, switchboards, and control panels. By using a DIN rail mounting system, installers can achieve a clean, modular layout that simplifies maintenance and future system expansion.
Unlike generic brackets or improvised mounting methods, this adapter ensures correct alignment, secure fastening, and optimal positioning of your Victron equipment. The design reduces installation time and minimises the risk of loose connections or vibration-related wear, which is critical in mobile, marine, and off-grid applications.
Key Features
- Purpose-designed for Cerbo GX – ensures perfect fit and reliable attachment
- Pack of two adapters – value for multi-device or spare requirements
- Spring-loaded clip mechanism – fast, tool-free engagement with 35 mm DIN rail
- Adjustable mounting slot – accommodates variable screw spacing for flexible device positioning
- Compact 80 mm length – ideal for space-constrained enclosures
- Includes M4 x 14 mm screws – ready for immediate installation
- Lightweight, reinforced polymer construction – durable yet non-corrosive
Engineered for Reliable, Long-Term Mounting
Constructed from high-grade polymer with internal support ribs, the adapter balances strength with minimal weight. The spring-loaded clip provides positive retention on the rail, while the sliding screw slot allows fine adjustment during device attachment. This flexibility is particularly useful when aligning multiple DIN-mounted components within a single enclosure.
The adapter's low 11 mm profile keeps the mounted device close to the rail, reducing leverage and strain on connections. This is an important consideration in environments subject to movement or vibration, such as vehicle installations or marine engine rooms.

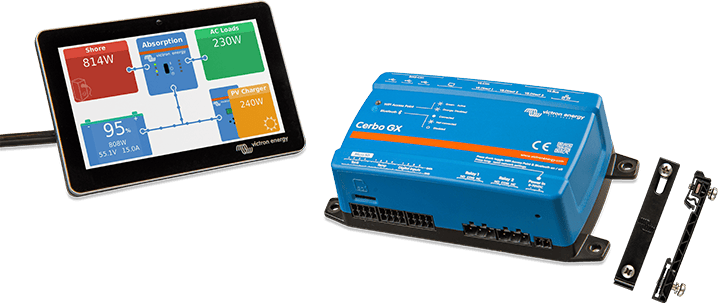

Applications Beyond the Cerbo GX
While optimised for the Cerbo GX, this adapter may also suit other small Victron devices with compatible mounting hole patterns. Always verify mechanical compatibility before installation. Typical use cases include:
- Centralised monitoring and control panels in off-grid power systems
- Marine electrical cabinets requiring secure, corrosion-resistant mounting
- RV and caravan energy management upgrades
- Industrial automation and IoT enclosures using DIN rail standards
Professional Integration for Victron Ecosystems
Using genuine Victron mounting accessories helps maintain system integrity and warranty compliance. The DIN35 adapter small is part of a coordinated range that includes medium and large sizes, allowing consistent mounting across different device form factors. This modular approach supports scalable system design and future-proofing.
For installers and system integrators, the adapter reduces callbacks by providing a dependable, factory-approved mounting method. End users benefit from a neat installation that is easier to inspect, troubleshoot, and upgrade over time.
Add the Victron DIN35 Adapter Small to Your System Today
Enhance your next installation with a mounting solution designed for the demands of modern energy systems. Order the Victron DIN35 adapter small (2 pcs) and experience the difference that purpose-built accessories make in reliability and ease of use.
SKU: VIC-ADA500100100
SPECIFICATIONS
Specifications
| Part Number | ADA500100100 |
|---|---|
| Model | DIN 35 adapter small |
| Pack Quantity | 2 pcs |
| Application | DIN-Rail adapter to easily mount a device on a DIN-Rail. |
| Suitable For | Cerbo GX |

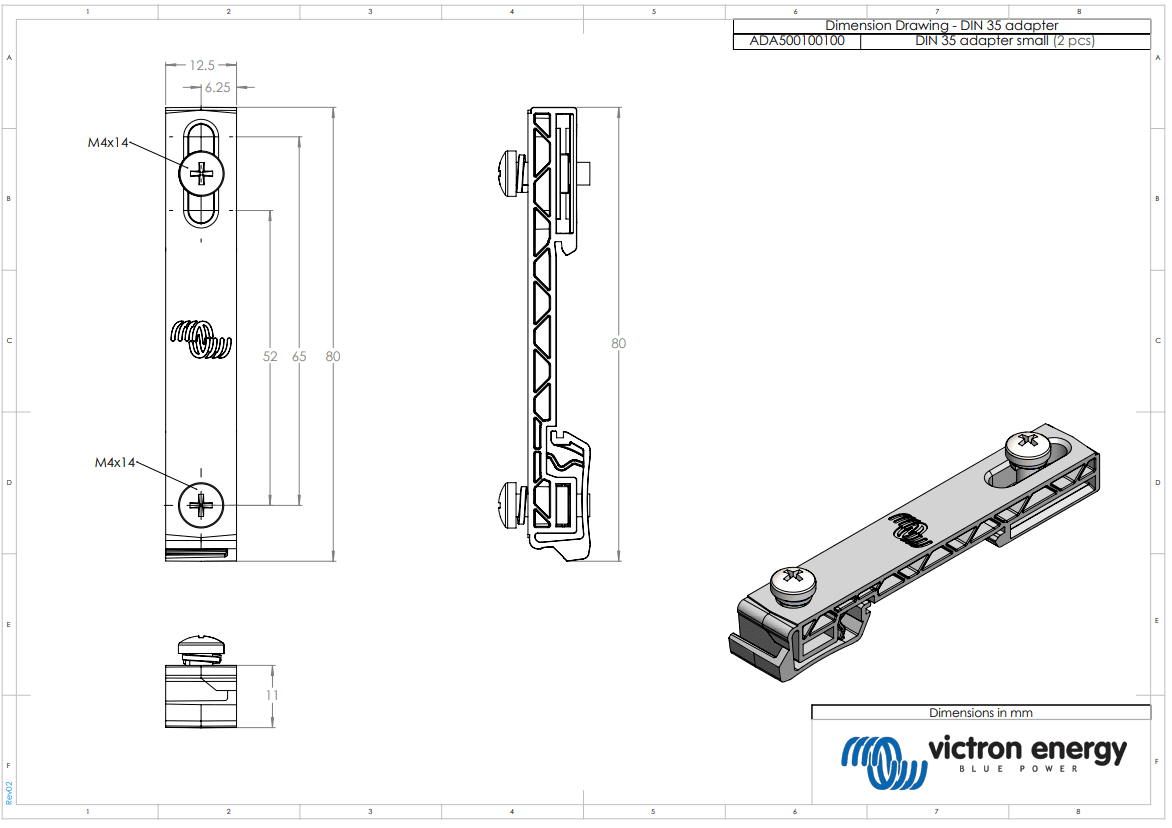

| Dimensions | 80 x 12.5 x 11 mm |
| Fastener Size | M4x14 |
| SKU: | VIC-ADA500100100 |
| Barcode: | 8719076048640 |
| Model #: | ADA500100100 |
| MPN: | ADA500100100 |
