Victron Large DIN35 Adapters for Cerbo & 10-15A MPPTs
For Cerbo GX, MPPT 75/10-100/15 & Orion 110/120W - 105x12.5x11mm
Victron Medium DIN35 Adapters for Cerbo, Orion ...DESCRIPTION

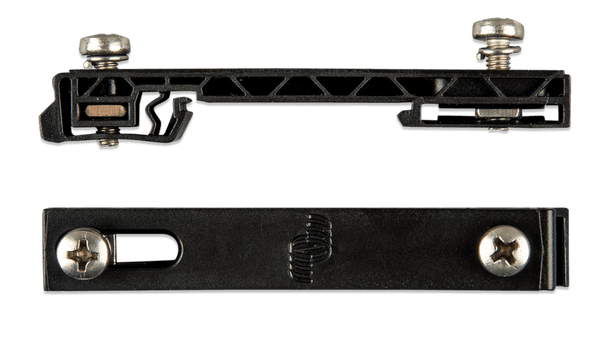

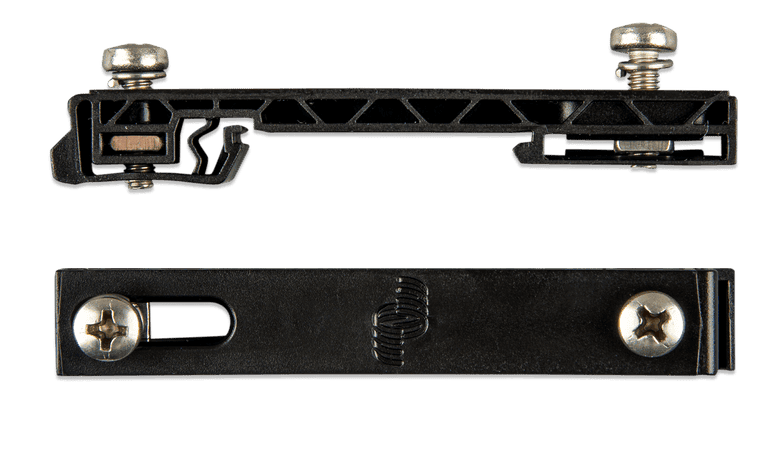

Victron DIN35 Adapter Large: Secure DIN Rail Mounting for MPPT and Orion DC-DC Chargers
Professional-Grade Mounting Solution for Victron Energy Devices
The Victron DIN35 Adapter Large (2 pcs) provides a robust and efficient method for installing compatible Victron devices onto standard 35 mm DIN rails. Engineered for industrial and mobile applications, this adapter ensures a stable, vibration-resistant connection, simplifying system integration in control cabinets, vehicle installations, and off-grid power setups.
Designed specifically for the Victron Cerbo GX, as well as MPPT 75/10, 75/15, 100/15 solar charge controllers and Orion 110 W and 120 W DC-DC converters, this adapter eliminates the need for custom brackets or unreliable mounting methods. Its reinforced plastic construction with internal ribbing delivers long-term durability without adding unnecessary weight.
Key Features
- Compatible with standard 35 mm DIN rails for quick, tool-free clipping
- Includes two adapters and M4x14 mounting screws for complete installation
- Slotted mounting holes allow precise device alignment during setup
- Reinforced black plastic body resists deformation under mechanical stress
- Compact 105 mm length supports larger devices while maintaining a slim 12.5 mm profile
Reliable Integration for Critical Systems
In environments where electrical connections must withstand vibration, temperature fluctuations, and continuous operation, a secure physical mount is essential. The Victron DIN35 Adapter Large addresses common installation challenges by providing a dedicated, manufacturer-approved mounting interface. This reduces the risk of loose connections, cable strain, and potential equipment damage compared to generic or improvised mounting solutions.
The spring-loaded DIN rail clip ensures a firm grip on the rail, while the dual mounting points—one fixed and one slotted—accommodate slight variations in device footprint, making installation straightforward even in tight enclosures.
Applications

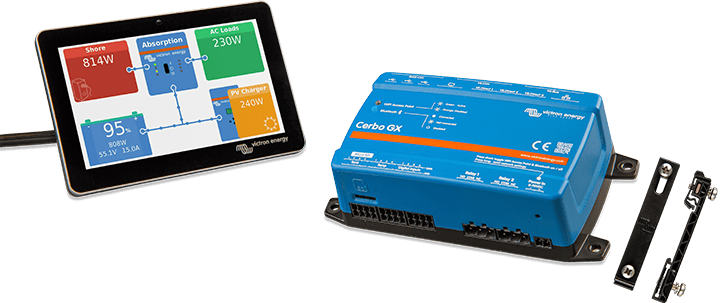

- Mounting Cerbo GX communication centres in RV and marine electrical panels
- Securing MPPT solar charge controllers in off-grid power cabinets
- Installing Orion DC-DC converters in vehicle-based dual-battery systems
- Organising industrial control panels with standardised DIN rail layouts
Designed for Australian Conditions
Whether you are building a remote solar installation, upgrading a 4WD electrical system, or maintaining a commercial switchboard, the Victron DIN35 Adapter Large offers a dependable mounting method. Its corrosion-resistant materials and secure fastening design help maintain system integrity in coastal, outback, and mobile environments.
Upgrade your Victron installation with a mounting solution that matches the quality of your power electronics. Add the Victron DIN35 Adapter Large (2 pcs) to your system today for a cleaner, more professional setup.
SKU: VIC-ADA500180100

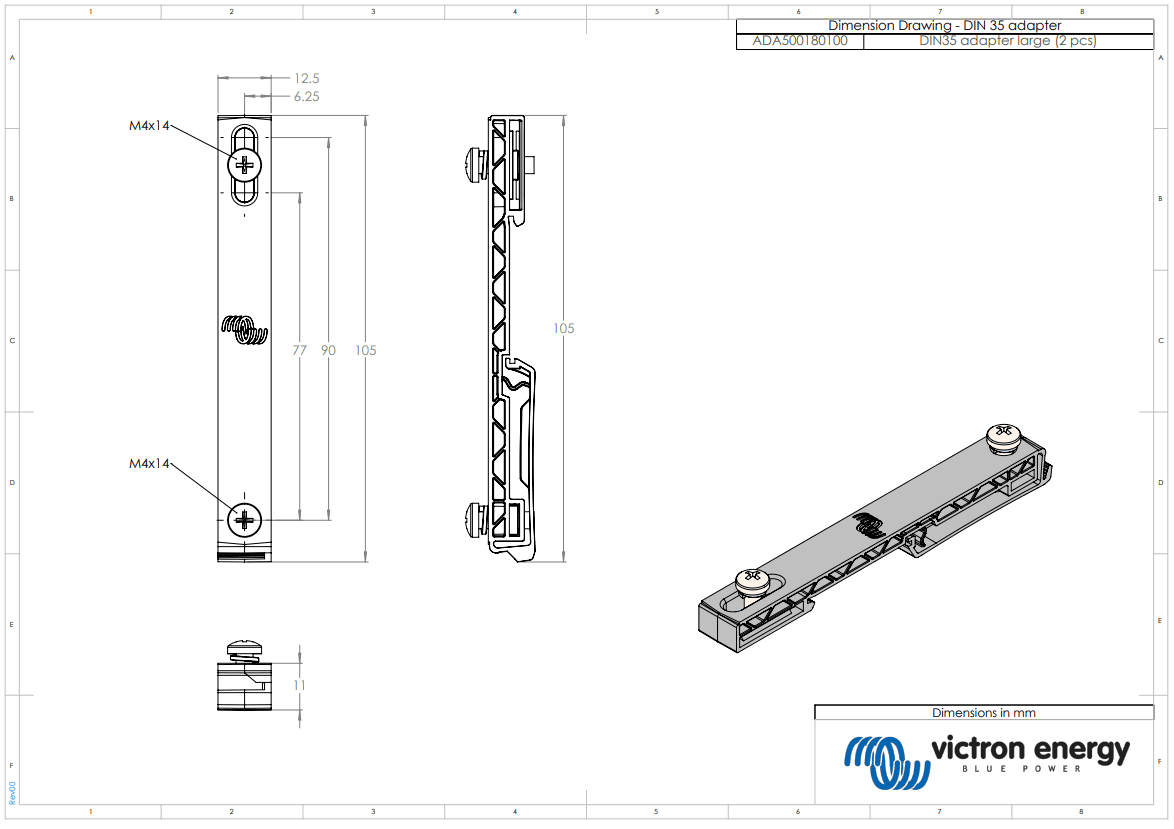

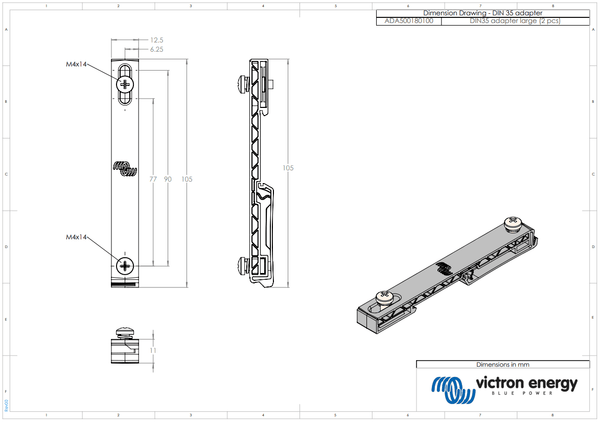

SPECIFICATIONS
Specifications
| Part Number | ADA500180100 |
|---|---|
| Product | DIN35 Adapter Large |
| Pack Quantity | 2 pcs |
| Compatible With | MPPT 75/10-15 & 100/15 & Orion 110/120W |
| Overall Length | 105 mm |
| Overall Width | 12.5 mm |
| Overall Depth | 11 mm |
| Screw Size | M4x14 |
| SKU: | VIC-ADA500180100 |
| Barcode: | 8719076054511 |
| Model #: | ADA500180100 |
| MPN: | ADA500180100 |
