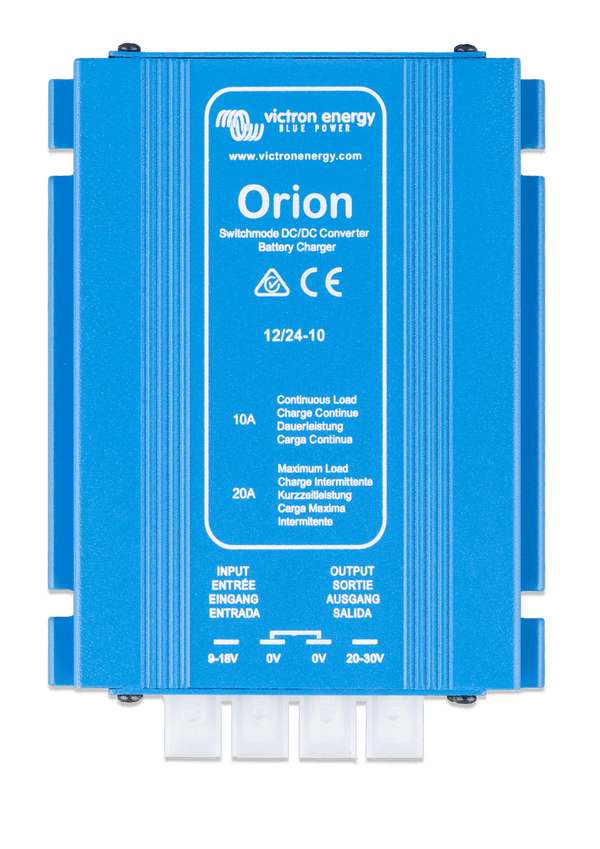

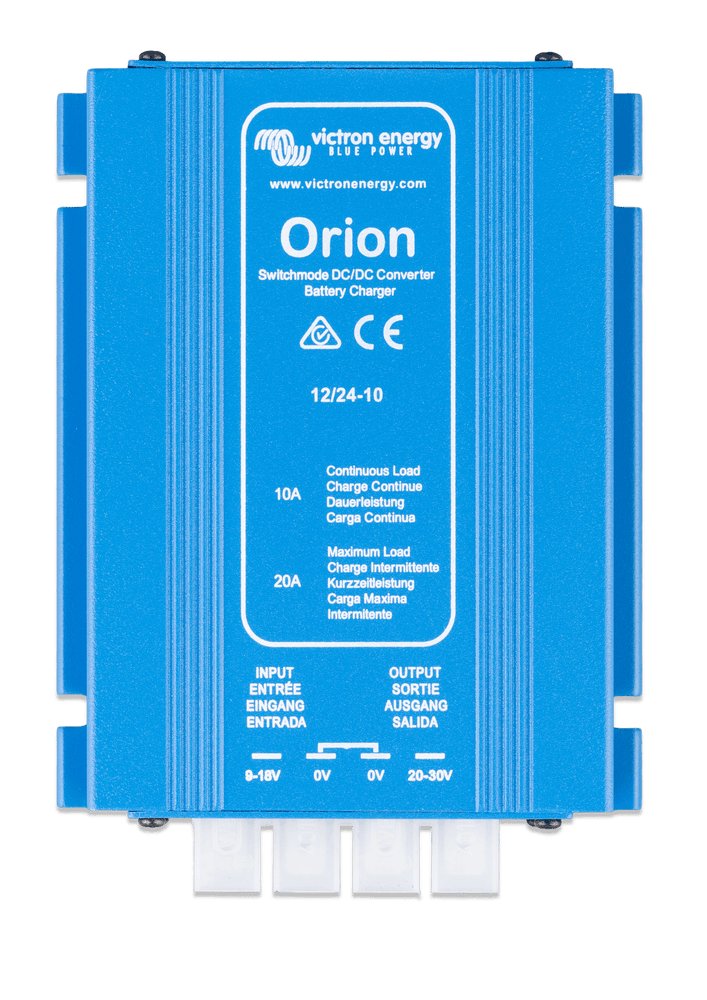

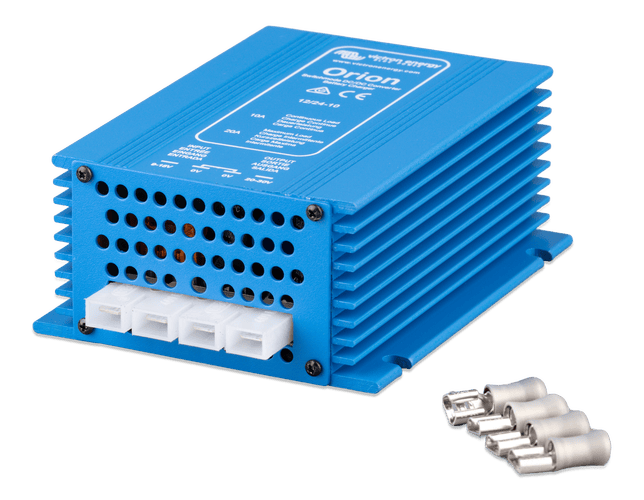

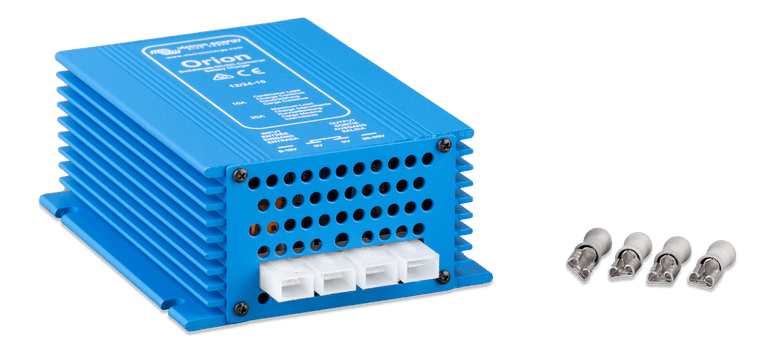

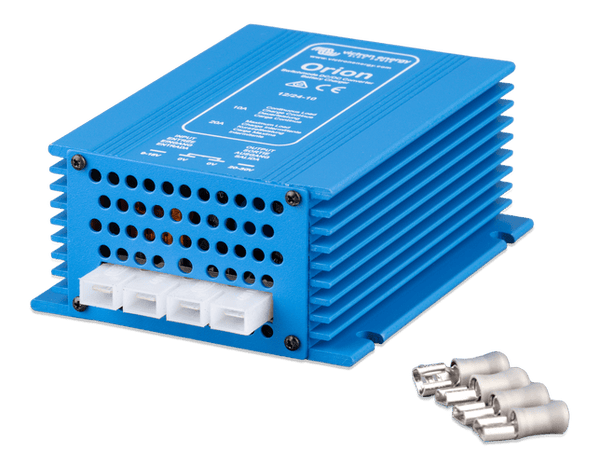

Victron 12V to 24V Orion 12/24-10A Non-Isolated IP20 DC-DC Converter

95% Efficient DC-DC Conversion | 10A Continuous, 20A Peak | Adjustable Output


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
6

DESCRIPTION

Victron 12V to 24V Orion 12/24-10A Non-Isolated IP20 DC-DC Converter

Professional-Grade DC-DC Conversion for Demanding Mobile and Off-Grid Systems

Engineered for reliability in the toughest environments, the Victron Orion 12/24-10A DC-DC converter delivers clean, stable power conversion with industry-leading efficiency. Whether you're stepping voltage up or down, this non-isolated converter ensures your sensitive electronics and battery banks receive precisely regulated power, reducing the risk of voltage drop and equipment malfunction common with lower-grade alternatives.

Unlike generic converters that struggle with fluctuating input voltages, the Orion maintains consistent output even under variable loads, making it the preferred choice for professional installers and system integrators across Australia. Its robust design and advanced protection features safeguard your investment, providing peace of mind for critical applications where power stability is non-negotiable.

Advanced Power Conversion Technology

At the core of the Orion is a high-frequency switchmode design that achieves up to 95% conversion efficiency, minimising wasted energy and heat generation. This not only reduces thermal stress on the unit but also preserves precious battery capacity in off-grid setups. The result is cooler operation, longer service life, and more usable power for your loads.

With an input voltage range of 9-18V, the converter handles the wide voltage swings typical of alternator charging and battery discharge cycles without interruption. An intelligent under-voltage shutdown protects your source battery from deep discharge, automatically restarting when voltage recovers to a safe level.

Key Features

  • High Efficiency up to 95% – reduces energy loss and heat buildup for reliable long-term operation
  • Wide Input Voltage Range (9-18V) – accommodates real-world voltage fluctuations without performance drop
  • Continuous Output Current of 10A – powers demanding loads with headroom for surges

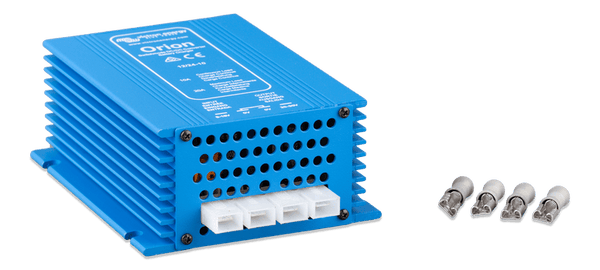

  • Compact IP20 Aluminium Enclosure – durable and lightweight, with integrated mounting points for secure installation
  • Protection Against Under-Voltage, Over-Temperature, and Short Circuit – safeguards both the converter and connected equipment
  • Parallel Connection Support – scale output current by linking multiple units for larger systems
  • Adjustable Output Voltage – fine-tune voltage to match specific battery chemistries or load requirements

Built for Australian Conditions

From the corrugations of the Outback to the corrosive salt air of coastal waters, the Orion is built to endure. Its anodised aluminium chassis resists corrosion while acting as an effective heat sink. The IP20 rating suits protected installations inside vehicles, vessels, and equipment enclosures, where it is shielded from direct weather but still benefits from passive or active cooling.

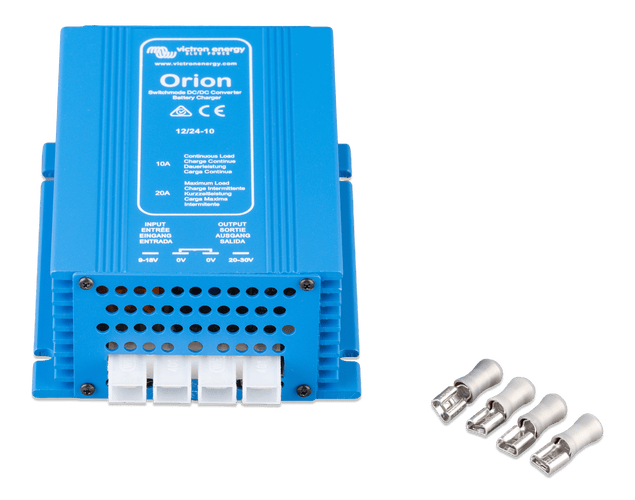

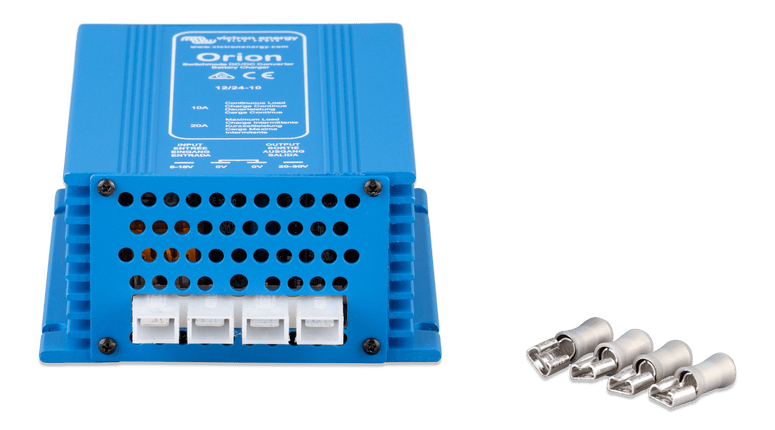

All DC connections are engineered for low resistance and high current handling, using Faston tabs 6.3 mm terminals that accept appropriately sized lugs for minimal voltage drop. This attention to detail ensures maximum power transfer and reduces the risk of hot connections that plague inferior products.

Applications

The Orion 12/24-10A converter excels wherever reliable DC voltage conversion is required:

  • Marine and Boating – power 12V electronics from a 24V house bank, or charge a 12V starter battery from a 24V alternator
  • Recreational Vehicles and Caravans – run 24V appliances from a 12V system, or maintain auxiliary batteries while driving
  • Off-Grid Solar Systems – interface between different battery voltages or power 24V equipment from a 12V battery bank
  • Industrial and Mobile Plant – provide stable voltage for control systems, communication gear, and monitoring equipment
  • Emergency Services and Fleet Vehicles – ensure critical 12V or 24V loads remain operational regardless of vehicle voltage

Why Professionals Choose Victron Orion

Generic DC-DC converters often fail prematurely due to inadequate cooling, poor voltage regulation, or lack of protection features. The Orion addresses these risks with a proven design backed by Victron's decades of power electronics expertise. Its conservative component ratings and comprehensive testing mean it performs reliably year after year, reducing downtime and replacement costs.

Installation is straightforward, with clear terminal markings and included accessories where applicable. The compact footprint allows mounting in tight spaces, while the lightweight construction minimises added weight to vehicles and vessels.

Power Your System with Confidence

Equip your setup with the Victron Orion 12/24-10A DC-DC converter and experience the difference professional-grade power conversion makes. Whether you're upgrading an existing system or building from scratch, this converter delivers the performance and durability needed for Australia's harshest environments. Add it to your power system today and ensure your critical loads always receive clean, stable voltage.


SKU: VIC-ORI122410020

SPECIFICATIONS

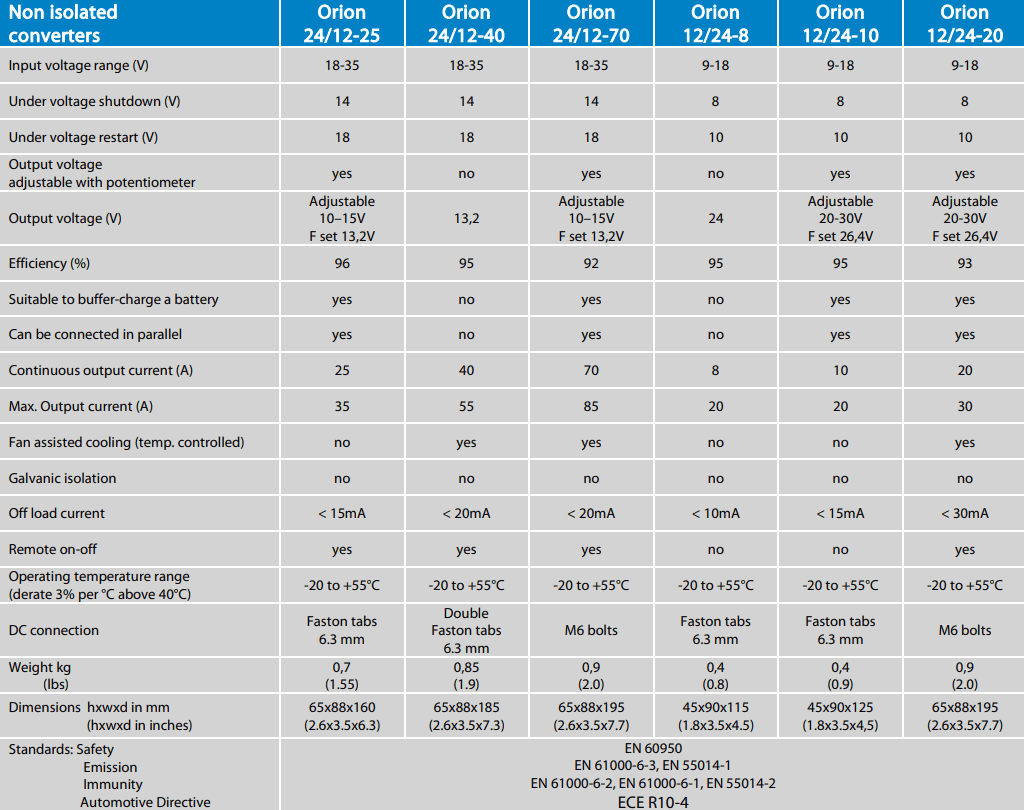

Specifications

Model Orion 12/24-10
Input voltage range (V) 9-18
Under voltage shutdown (V) 8
Under voltage restart (V) 10
Output voltage adjustable with potentiometer yes
Output voltage (V) Adjustable 20-30V F set 26.4V
Efficiency (%) 95
Suitable to buffer-charge a battery yes
Can be connected in parallel yes
Continuous output current (A) 10
Max. Output current (A) 20
Fan assisted cooling (temp. controlled) no
Galvanic isolation no
Off load current < 15mA
Remote on-off no
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection Faston tabs 6.3 mm
Weight kg (lbs) 0.4 (0.9)

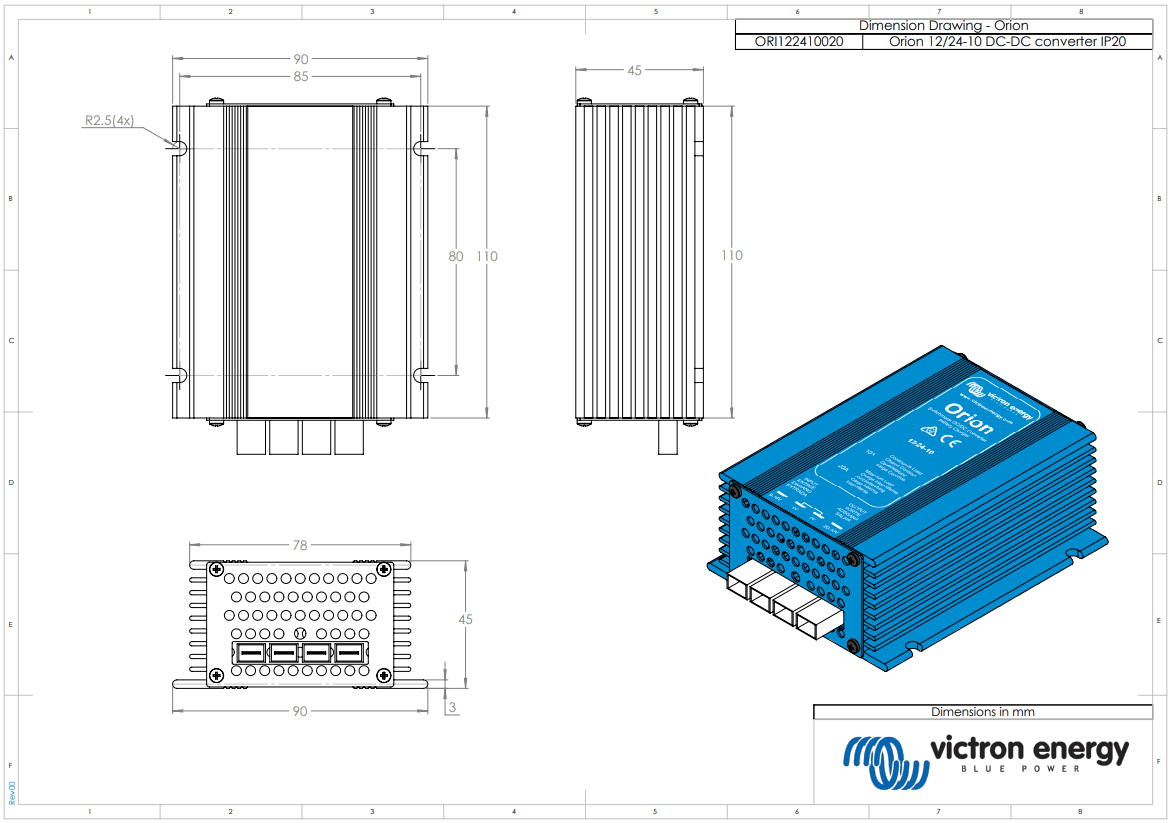

Dimensions hxwxd in mm (hxwxd in inches) 45x90x125 (1.8x3.5x4.9)
Standards: Safety Emission Immunity Automotive Directive EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-4

SKU: VIC-ORI122410020
Barcode: 8719076022749
Model #: ORI122410020
MPN: ORI122410020

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
