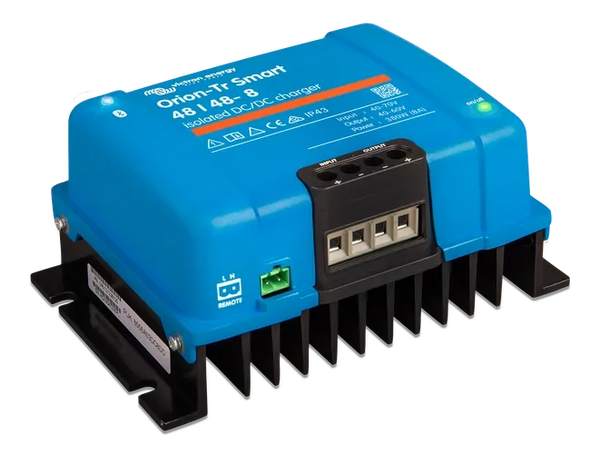

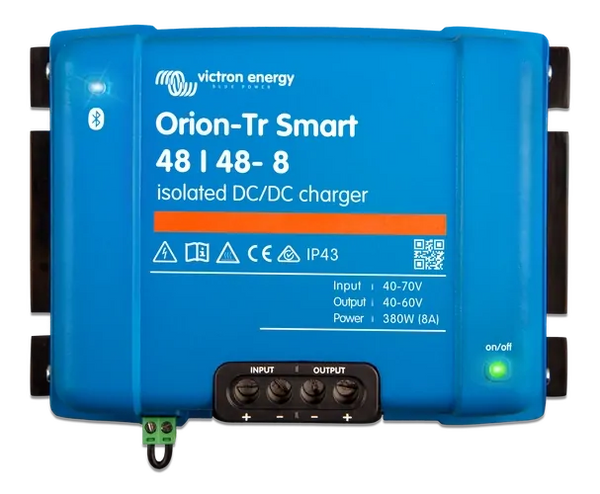

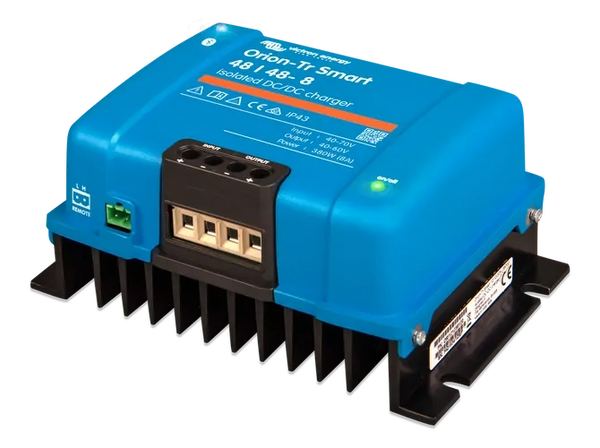

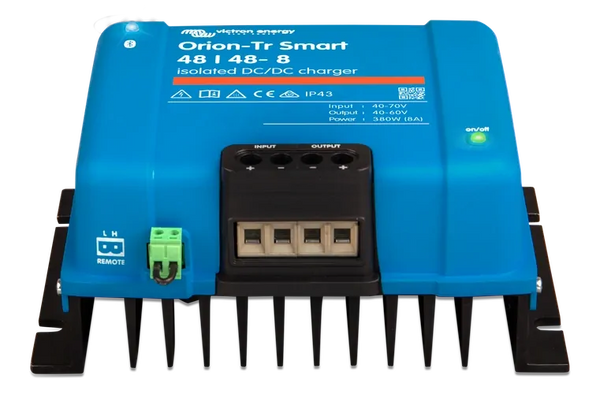

Victron 48V to 48V Orion-Tr 48/48-8A Isolated DC-DC Charger
48V to 48V isolated DC-DC charging with Bluetooth programming
Victron 48V to 24V Orion-Tr 48/24-16A Isolated ...DESCRIPTION

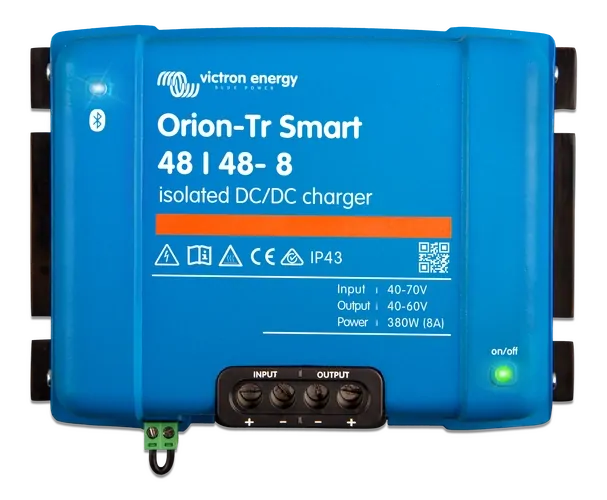

Victron 48V to 48V Orion-Tr 48/48-8A Isolated DC-DC Charger: Isolated DC-DC Charger for Reliable Voltage Conversion
The Victron 48V to 48V Orion-Tr 48/48-8A Isolated DC-DC Charger is a high-performance isolated DC-DC charger engineered to provide stable, efficient power conversion between 48V battery systems. Designed for demanding applications in vehicles, marine vessels, and off-grid installations, this charger ensures your auxiliary batteries receive a precise, multi-stage charge regardless of input voltage fluctuations. With galvanic isolation between input, output, and case, it protects sensitive electronics and eliminates ground loop issues, making it a safe choice for complex electrical systems.
Unlike generic DC-DC converters, the Orion-Tr Smart series uses a sophisticated three-stage charging algorithm (bulk, absorption, float) that adapts to battery condition, extending battery life and preventing overcharging. The fully programmable output voltage allows customisation for specific battery chemistries, including lithium, AGM, and gel. Integrated Bluetooth connectivity via the VictronConnect app provides real-time monitoring and configuration from your smartphone, eliminating the need for additional displays or wired connections.
Key Features
- Galvanic isolation (200V DC) between input, output, and case for enhanced safety and noise immunity
- Fully programmable three-stage charging algorithm with adaptive battery management
- Bluetooth Smart for wireless setup, monitoring, and firmware updates via VictronConnect
- Remote on/off terminal for integration with battery management systems or external switches
- Wide input voltage range (32-70V) with under-voltage protection to prevent battery drain
- Parallel operation supported for scalable current output in larger systems

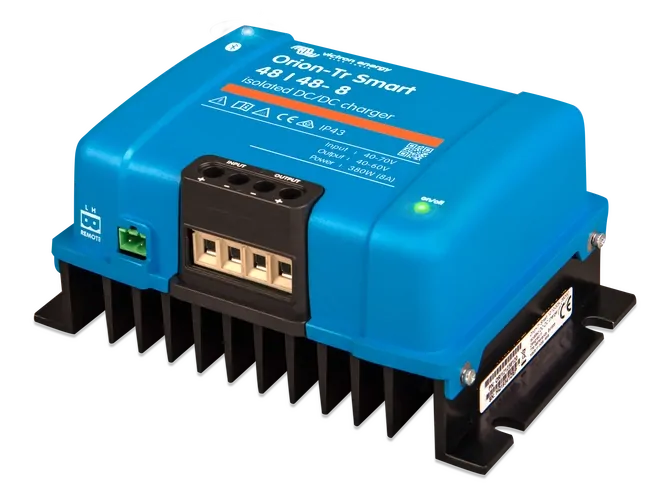

- Robust aluminium heat sink with passive cooling for reliable operation up to 55°C
- IP43 protection when mounted with terminals facing downwards, suitable for engine bays and marine environments

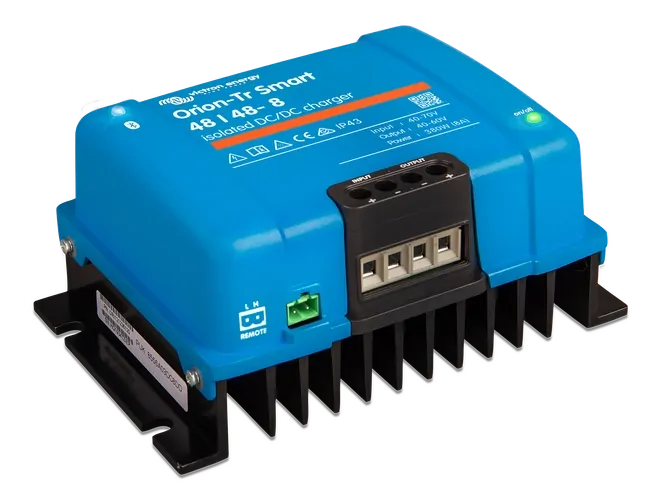

- Screw terminals accept up to 16mm² (AWG6) cable for low-resistance connections
Smart Charging for Modern Systems

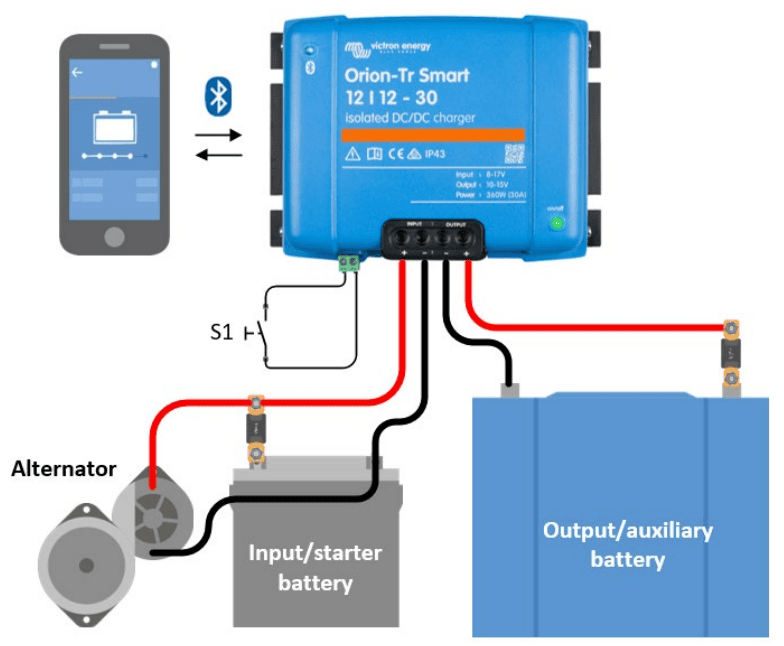

Compatibility with smart alternators (Euro 5/6) ensures seamless integration in modern vehicles where variable voltage output can confuse traditional chargers. The charger detects engine running status via voltage sensing or a dedicated trigger wire, preventing accidental battery drain when the engine is off. A configurable input voltage lock-out allows precise control over charging initiation, ideal for systems with solar or shore power inputs.
Built for Harsh Environments
The Orion-Tr Smart is built to withstand the rigours of mobile and off-grid use. The sealed electronics and conformal-coated circuit board resist moisture, dust, and vibration. The extruded aluminium heat sink dissipates heat efficiently without fans, ensuring silent, maintenance-free operation. With an operating temperature range of -20°C to +55°C and derating above 40°C, it performs reliably in Australian conditions from the outback to the coast.
Flexible Installation and Control

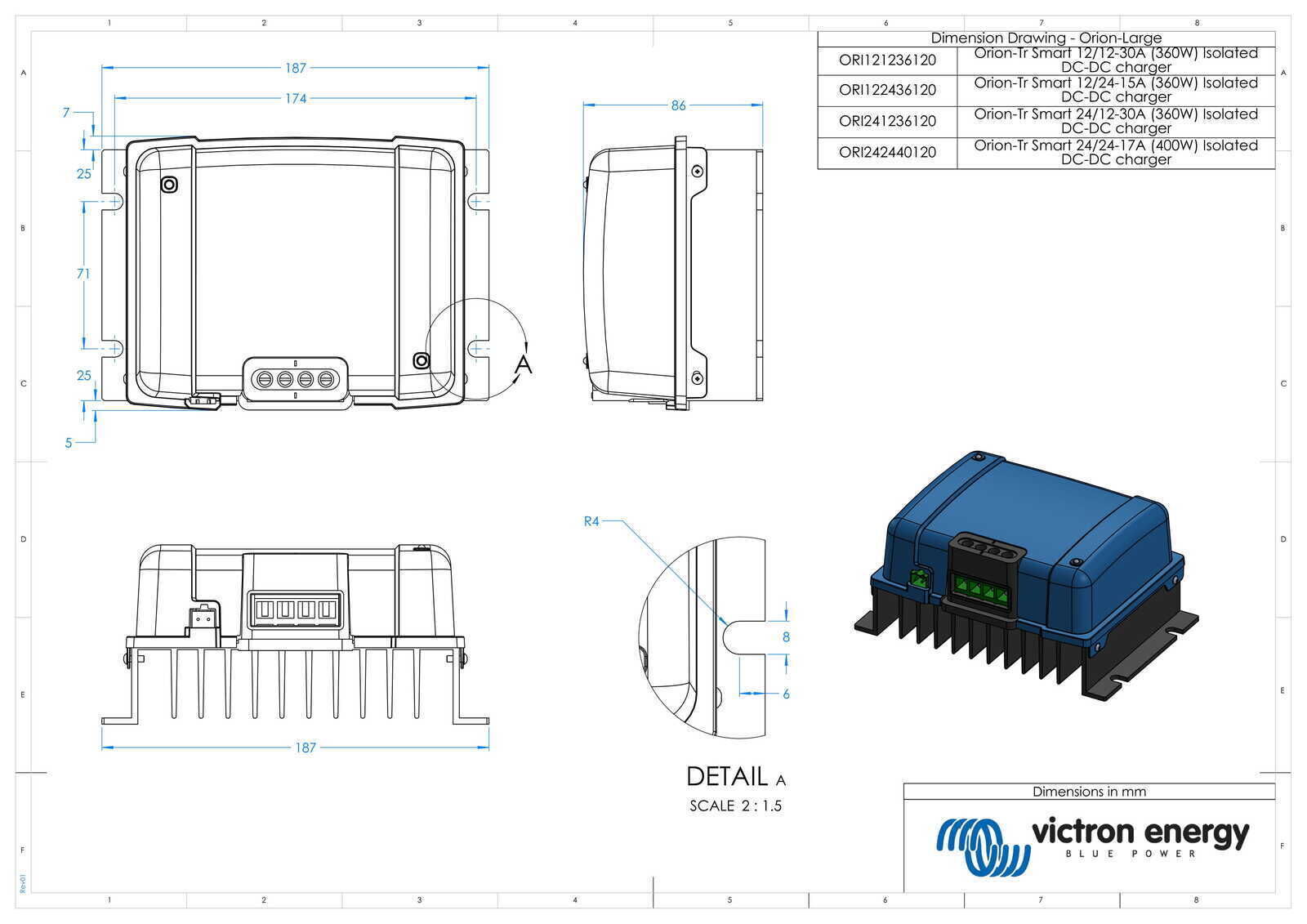

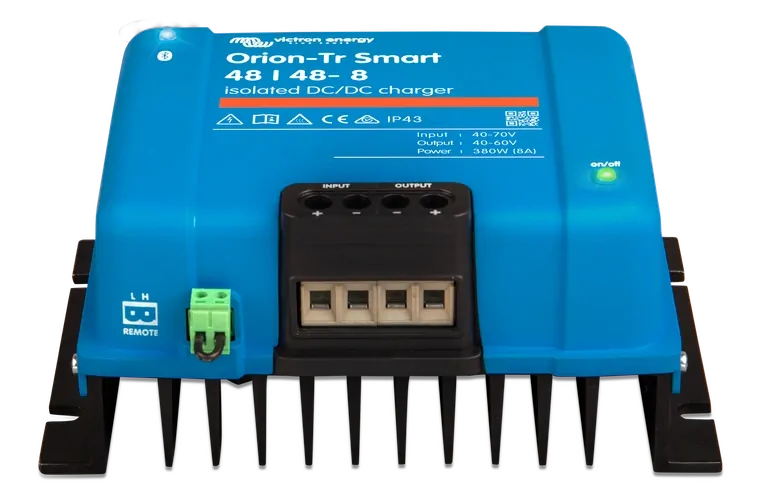

Compact dimensions (130 x 186 x 80 mm) and multiple mounting options allow installation in tight spaces. The remote on/off port accepts a low-current switch or relay, enabling control from a dashboard or central management system without heavy-gauge wiring. For systems requiring higher current, multiple units can be paralleled with automatic load sharing, providing a scalable solution for larger battery banks.
Applications
This isolated DC-DC charger is ideal for charging auxiliary batteries in caravans, motorhomes, 4WDs, boats, and off-grid cabins. It efficiently maintains a 48V battery from a 48V alternator or system. The galvanic isolation makes it particularly suitable for marine installations where corrosion and stray currents are a concern.
Whether you're upgrading an existing dual-battery setup or building a new off-grid power system, the Victron 48V to 48V Orion-Tr 48/48-8A Isolated DC-DC Charger delivers precise, reliable charging with the intelligence to protect your investment. Configure it once via the app, and it will automatically manage your battery charging for years to come.
Ready to optimise your DC-DC charging? Install the Victron 48V to 48V Orion-Tr 48/48-8A Isolated DC-DC Charger and experience the difference that smart, isolated conversion makes in your mobile or off-grid power system.
SKU: Vic-ORI484838120
SPECIFICATIONS

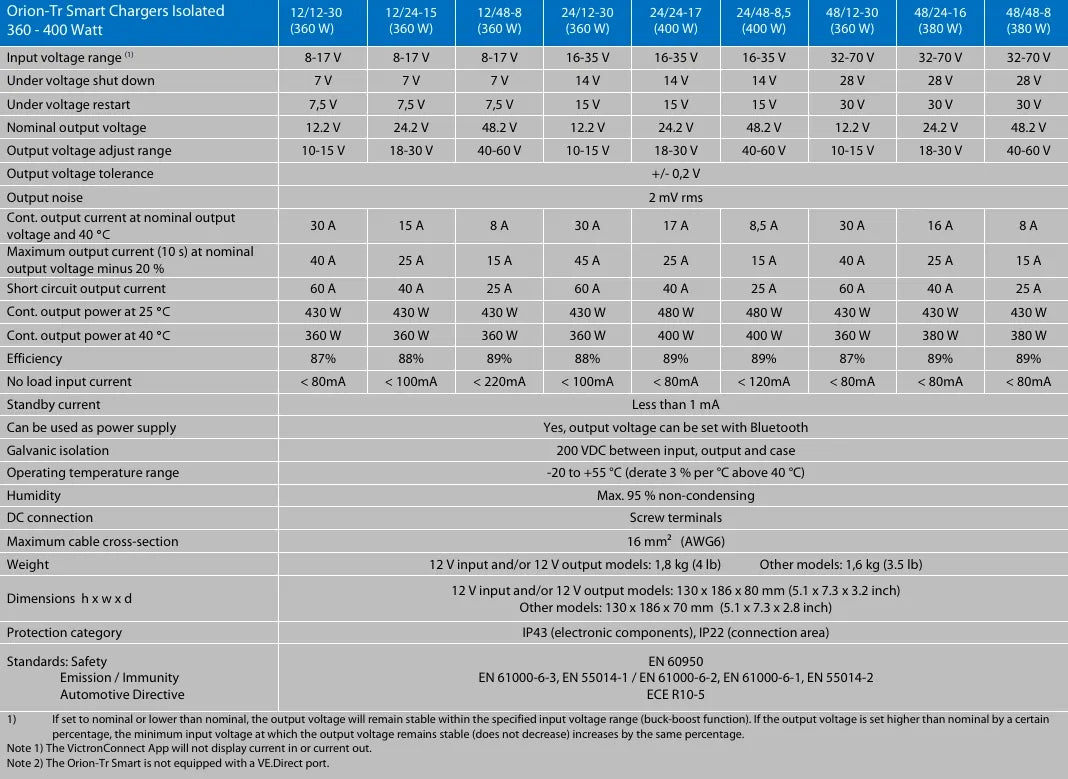

Specifications
| Model | 48/48-8 (380W) Orion-Tr Smart DC-DC Charger Isolated |
|---|---|
| Input voltage range (1) | 32-70V |
| Under voltage shut down | 28V |
| Under voltage restart | 30V |
| Nominal output voltage | 48.2V |
| Output voltage adjust range | 40-60V |
| Output voltage tolerance | +/- 0.2V |
| Output noise | 2mV rms |
| Cont. output current at nominal output voltage and 40°C | 8A |
| Maximum output current (10 s) at nominal output voltage minus 20% | 15A |
| Short circuit output current | 25A |
| Cont. output power at 25°C | 430W |
| Cont. output power at 40°C | 380W |
| Efficiency | 89% |
| Off load current | <80mA |
| Galvanic isolation | 200V dc between input, output and case |
| Operating temperature range | -20 to +55°C (derate 3% per °C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC connection | Screw terminals |
| Maximum cable cross-section | 16 mm² (AWG6) |
| Weight | 1.8 kg (3 lb) |
| Dimensions hxwxd | 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) |
| Standards: Safety, Emission, Immunity, Automotive Directive | EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5 |
- If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than the nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage.
Note 1) The VictronConnect App will not display current in or current out.
Note 2) The Orion-Tr Smart Charger is not equipped with a VE.Direct port.
| SKU: | Vic-ORI484838120 |
| Barcode: | 8719076065609 |
| Model #: | ORI484838120 |
| MPN: | ORI484838120 |
