Victron MIDI-fuse 50A/58V for 48V products
Superior Protection Efficiency / Compact Size
Victron MIDI-fuse 60A/58V for 48V productsDESCRIPTION

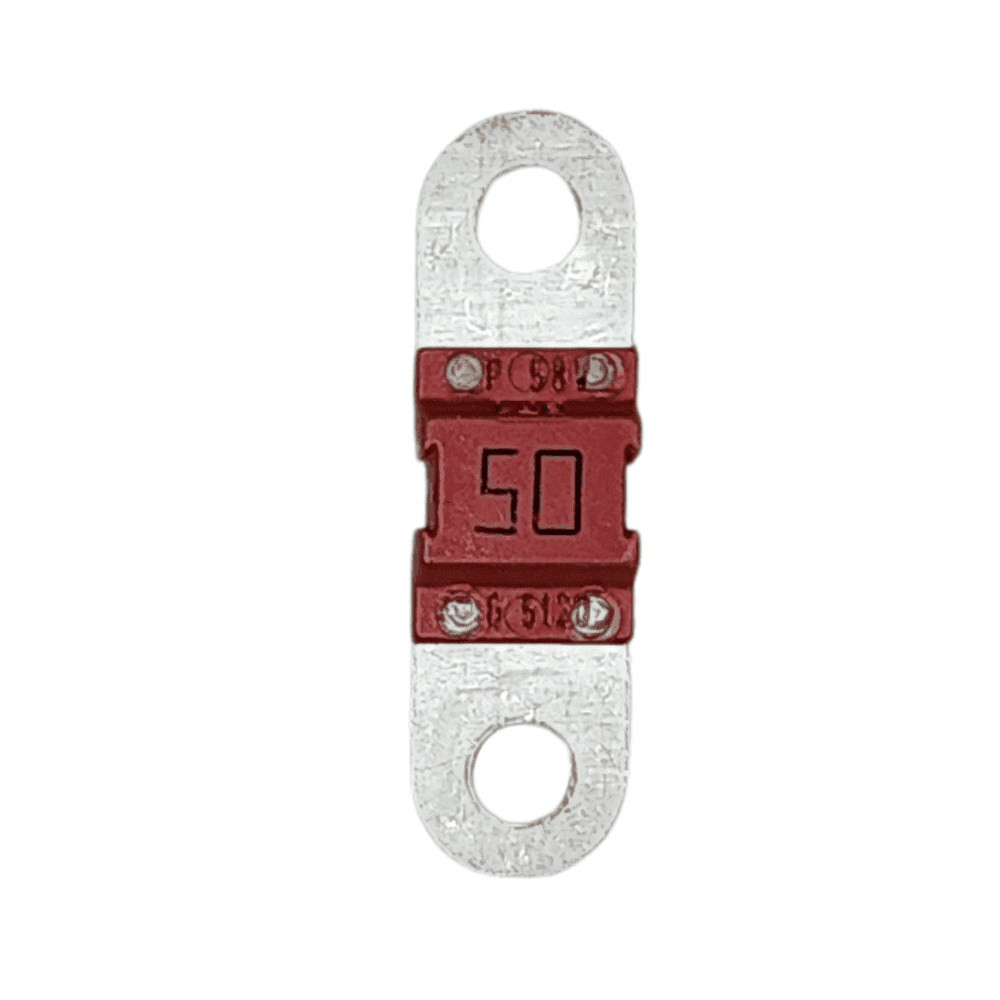

Victron 50A Midi/AMI Fuse: Precision Protection for Your Electrical Systems
Safeguard your electrical systems with Victron Midi/AMI fuses. These compact yet powerful devices are specifically designed to protect electrical circuits in 58V (48V) systems, providing reliable operation and efficient current limitation.
Versitile Range
Victron Midi/AMI fuses come in a range of amperages from 60A to 200A (32V) and 30A to 100A (58V), ensuring the right fit for various applications. Notable for their low voltage drop and cold resistance, these fuses ensure your system operates optimally while being protected from potential harm.
The fuses are engineered to withstand demanding conditions, maintaining stable operation and robust protection under various electrical stresses. Their compact size allows for easy integration into existing setups, making them a practical choice for diverse electrical applications.
Choose Victron Midi/AMI fuses for dependable protection of your electrical circuits. Experience the blend of precision, quality, and reliability that only Victron can deliver.
SKU: VIC-CIP133050010
SPECIFICATIONS
Specifications
32V Range
| Fuse Type | Approximate Voltage Drop | Cold Resistance |
|---|---|---|
| MIDI fuse 60A/32V | 50 mV | 0.55 mΩ |
| MIDI fuse 80A/32V | 55 mV | 0.40 mΩ |
| MIDI fuse 100A/32V | 60 mV | 0.45 mΩ |
| MIDI fuse 125A/32V | 60 mV | 0.30 mΩ |
| MIDI fuse 150A/32V | 80 mV | 0.30 mΩ |
| MIDI fuse 200A/32V | 80 mV | 0.25 mΩ |
58V Range
| Fuse Type | Approximate Voltage Drop | Cold Resistance |
|---|---|---|
| MIDI fuse 30A/58V | 65 mV | 1.35 mΩ |
| MIDI fuse 40A/58V | 68 mV | 1.10 mΩ |
| MIDI fuse 50A/58V | 70 mV | 0.90 mΩ |
| MIDI fuse 60A/58V | 70 mV | 0.9 mΩ |
| MIDI fuse 80A/58V | 72 mV | 0.60 mΩ |
| MIDI fuse 100A/58V | 70 mV | 0.45 mΩ |
| SKU: | VIC-CIP133050010 |
| Barcode: | 8719076045977 |
| Model #: | CIP133050010 |
| MPN: | CIP133050010 |
WARRANTY
1 year
