Victron Fuse Holder for MIDI Fuses with Cover
200A Rated, Modular Interlocking Design with Transparent Cover
5x Victron 40A 80V Mega FuseDESCRIPTION

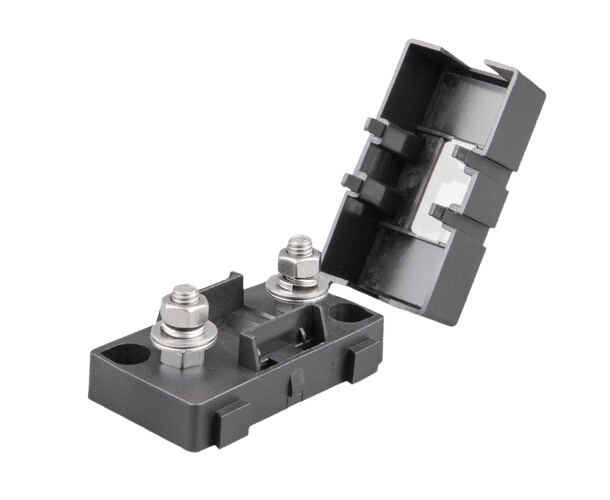

Victron MIDI/AMI Fuse Holder with Protective Cover
Secure, Modular Fuse Protection for High-Current DC Systems
The Victron MIDI Fuse Holder with Cover provides a robust and reliable mounting solution for MIDI/AMI fuses in demanding 12V, 24V, and 48V DC electrical systems. Engineered to meet IEC 60947-3 standards, this holder ensures consistent protection for critical circuits in marine, automotive, and off-grid energy applications. Its compact, modular design allows multiple units to be interlocked, creating organised fuse banks that save space and simplify wiring in tight enclosures.
Unlike generic open fuse holders, the integrated hinged cover shields connections from accidental contact, debris, and moisture, reducing the risk of short circuits and corrosion. The transparent window enables rapid visual inspection of fuse status without opening the cover, streamlining maintenance and minimising system downtime.
Key Features
- High-current capability rated up to 200 A at 58 V DC, suitable for battery banks, inverters, and DC distribution
- Modular interlocking design allows side-by-side stacking for neat, space-efficient fuse arrays
- Insulated flip-top cover with transparent window for safe, tool-free fuse inspection
- Threaded M5 stud terminals with included nuts and washers ensure secure, low-resistance connections
- Heat-resistant base and durable construction withstand high temperatures and vibration

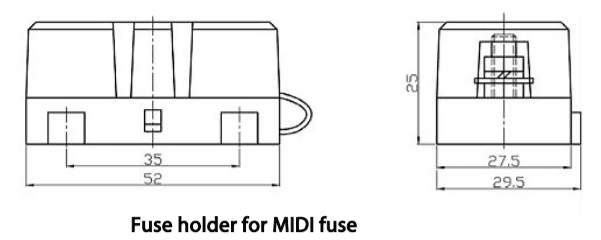

- Compact footprint (51.4 x 29.4 x 25.1 mm) fits easily into crowded electrical panels
Built for Demanding Environments
Whether you're wiring a marine switchboard, a 4WD auxiliary battery system, or a solar charge controller, this fuse holder delivers the reliability expected from Victron Energy. The enclosed design protects against accidental shorts, a common hazard in mobile and industrial installations. Its compliance with IEC 60947-3:1999 + A1:2001 + A2:2005 confirms suitability for low-voltage switchgear and control gear, giving installers confidence in safety and performance.
Applications
- Marine and boat electrical panels requiring compact, corrosion-resistant fuse holders
- Caravan and RV 12V systems for battery protection and DC distribution
- Off-grid solar installations using Victron inverters and charge controllers
- Automotive and heavy vehicle auxiliary circuits
- Industrial DC control panels where modular fuse banks are needed
Why Choose the Victron MIDI Fuse Holder?
Compared to basic open-style fuse blocks, this holder reduces the risk of electrical faults by fully enclosing the fuse and terminals. The modular stacking feature eliminates the need for multiple separate mounts, cutting installation time and clutter. Its transparent cover supports proactive maintenance, allowing technicians to spot a blown fuse instantly without disassembly.
Upgrade your system protection with a fuse holder designed for safety, efficiency, and long-term reliability. Add the Victron MIDI Fuse Holder with Cover to your electrical setup today and experience the difference that precision engineering makes.
SKU: VIC-CIP000050001
SPECIFICATIONS
Specifications
| Part Number | CIP000050001 |
|---|---|
| Product Type | Fuse Holder for MIDI-fuse |
| Compatible Fuse Type | MIDI-fuse |
| Max Voltage | 58 V |
| Max Current | 200 A |
| Dimensions | 51.36 × 29.36 × 25.12 mm |
| Standard | IEC 60947-3:1999 + A1:2001 + A2:2005 in conjunction with IEC 60947-1:2004 |
| SKU: | VIC-CIP000050001 |
| Barcode: | 8719076021681 |
| Model #: | CIP000050001 |
| MPN: | CIP000050001 |
