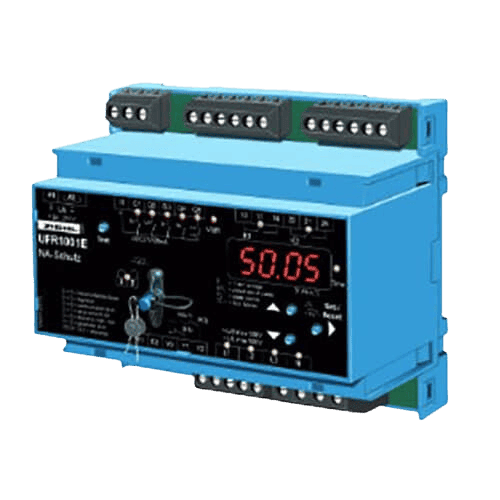

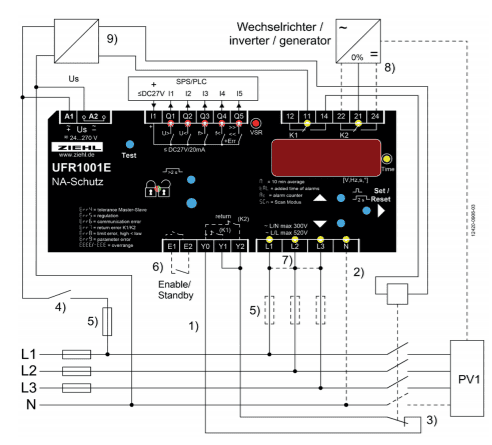

Ziehl UFR1001E Voltage and Frequency Relay for Grid-Connected Generation Systems
Reliable Anti-Islanding Protection for Solar PV and Distributed Energy Resources
The Ziehl UFR1001E is a precision voltage and frequency relay engineered to deliver anti-islanding protection for grid-connected generation systems. It continuously monitors voltage and frequency at the point of common coupling, ensuring immediate disconnection when grid parameters fall outside prescribed limits. This is essential for compliance with VDE-AR-N 4105:2018-11, VDE-AR-N 4110:2018-11, G98, G99, and ÖVE/ÖNORM E 8001-4-712:2009, making it a trusted component in solar PV installations, cogeneration plants, and other distributed energy resources across Australia and Europe.
Unlike generic monitoring relays, the UFR1001E uses true RMS measurement for accurate detection of over/under voltage, over/under frequency, vector shift, and rate of change of frequency (ROCOF). Its passive anti-islanding detection (per chapter 6.5.3 and appendix D2) reduces the risk of unintentional islanding, protecting both utility personnel and equipment from back-feed hazards. The wide auxiliary supply range of AC/DC 24-270V simplifies integration into diverse control circuits, while the two change-over relay contacts provide flexible interfacing with contactors or circuit breakers.
Key Features
- Comprehensive grid monitoring – voltage, frequency, vector shift, and ROCOF in one device
- True RMS measurement for high accuracy even with distorted waveforms
- Wide auxiliary supply – AC/DC 24-270V for versatile installation
- Adjustable setpoints and time delays to match local utility requirements
- Clear LCD display and LED indicators for real-time status and diagnostics
- Compact 6 TE DIN rail housing (90 x 105 x 69 mm) for space-efficient panel mounting
- IP30 / IP20 protection suitable for indoor control cabinets
Engineered for Compliance and Safety
Meeting stringent grid connection standards is non-negotiable for solar installers and system integrators. The UFR1001E is pre-certified to VDE-AR-N 4105 and G99, eliminating guesswork and reducing commissioning time. Its vector shift detection (<50 ms response) and ROCOF monitoring provide fast, reliable loss of mains detection, a critical requirement for embedded generation up to and beyond 30 kW. The adjustable hysteresis and switching delays allow fine-tuning to avoid nuisance tripping while maintaining grid stability.
For larger or three-phase systems, the UFR1001E can be paired with external contactors and a main circuit breaker. We also offer a pre-assembled Anti-Islanding Box 63A (single and three phase) that includes this relay, two in-line 63A contactors, and a main breaker—ready for immediate deployment.
Applications
- Solar PV systems – residential, commercial, and industrial grid-tied inverters
- Battery energy storage systems with grid export capability
- Cogeneration (CHP) plants and backup generators operating in parallel with the grid
- Wind and hydro turbines requiring grid synchronisation and protection
- EV charging infrastructure with vehicle-to-grid (V2G) functionality
Why Choose the Ziehl UFR1001E?
Selecting a certified anti-islanding relay reduces project risk by ensuring regulatory compliance from day one. The UFR1001E’s robust design and wide operating temperature range (-20°C to +55°C) make it suitable for Australian conditions, from coastal installations to inland heat. Its DIN rail mounting and clear terminal labelling speed up installation, while the digital display simplifies commissioning and fault finding.
With proven reliability in thousands of installations worldwide, the UFR1001E is a future-proof choice for grid-connected generation. Download the datasheet and certificates below for full technical details, or visit www.ziehl.de for additional documentation.
Add the Ziehl UFR1001E to your project today and ensure your grid-tied system meets the latest anti-islanding protection requirements with confidence.
SKU: VIC-REL100100000
SPECIFICATIONS
Specifications
| Voltage And Frequency Relay Type | UFR1001E |
|---|---|
| Part Number | S222296 |
| Complies With | VDE-AR-N 4105:2018-11, VDE-AR-N 4110:2018-11, G98, G99, ÖVE/ÖNORM E 8001-4-712:2009 and other standards for generators connected to the public grid |
| Rated Supply Voltage Us | AC/DC 24-270 V, 0/45...65 Hz, < 5 VA; DC: 20.4...297 V, AC: 20.4...297 V |
| Relay Output | 2 change-over contacts; see operating manual |
| Measurement Phase-Phase | AC 15...530 V (< 5 V display: 0) |
| Setting Range Phase-Phase | AC 15...520 V |
| Measuring Voltage Phase-Neutral | AC 10...310 V (< 5 V display: 0) |
| Setting Range Phase-Neutral | AC 15...300 V |
| Measurement Method | True RMS |
| Voltage Hysteresis | Adjustable 1.0...180 V |
| Voltage Measurement Accuracy | With neutral: ±0.6% of measured value; without neutral: ±0.8% of measured value |
| Frequency Measurement Range | 40...70 Hz |
| Frequency Setting Range | 45.00...65.00 Hz |
| Frequency Hysteresis | 0.05...10.00 Hz |
| Frequency Measurement Accuracy | ± 0.04 Hz ± 1 digit |
| Vector-Shift Setting Range | 2.0...65.0° |
| ROCOF (df/dt) Setting Range | 0.100...5.000 Hz/s, 4...50 cycles |
| Voltage Switching-Delay (dAL) | Adjustable 0.05 (± 15 ms)...300.0 s |
| Voltage Switching-Back-Delay (doF) | Adjustable 0 (approx. 200 ms)...6.000 s |
| Frequency Switching-Delay (dAL) | Adjustable 0.05 (± 15 ms)...300.0 s |
| Frequency Switching-Back-Delay (doF) | Adjustable 0 (>200 ms)...6.000 s |
| Vector-Shift Switching-Delay (dAL) | < 50 ms |
| Vector-Shift Switching-Back-Delay (doF) | Adjustable 3...240 s |
| Delay At Us On | Adjustable 2...20 s |
| Passive Anti-Islanding Protection | Acc. to ch. 6.5.3 and app. D2 |
| Operating Temperature | -20 °C...+55 °C |
| Storage Temperature | -25 °C...+70 °C |
| Design / Installation Frame | V6 / Front mounting kit type ER6, 6 TE |
| Dimensions (H x W x D) | 90 x 105 x 69 mm, mounting height 66 mm |
| Protection Housing | IP30 |
| Protection Terminals | IP20 |
| Attachment | DIN-rail 35 mm according to EN 60 715 or screws M4 |
| Weight | Approx. 250 g |
| SKU: | VIC-REL100100000 |
| Barcode: | 8719076024408 |
| Model #: | REL100100000 |
| MPN: | REL100100000 |
