Exotronic 150A High-Interrupt MEGA-Style Ceramic Fuse w/ Holder

Exotronic High-Interrupt MEGA-Style Ceramic Fuse with Holder: Engineered for Critical Circuit Protection

Advanced Ceramic Fuse Technology for High-Current Applications

The Exotronic 150A High-Interrupt MEGA-Style Ceramic Fuse with Holder provides a robust, ready-to-install solution for protecting high-current electrical circuits in demanding environments. Designed to meet High Rupturing Capacity (HRC) standards, this fuse-and-holder combination ensures rapid, safe disconnection during overloads and short circuits, reducing the risk of equipment damage and system downtime. Unlike generic blade fuses or lower-rated alternatives, the ceramic body offers superior thermal stability and dielectric strength, making it suitable for applications where high fault currents are possible.

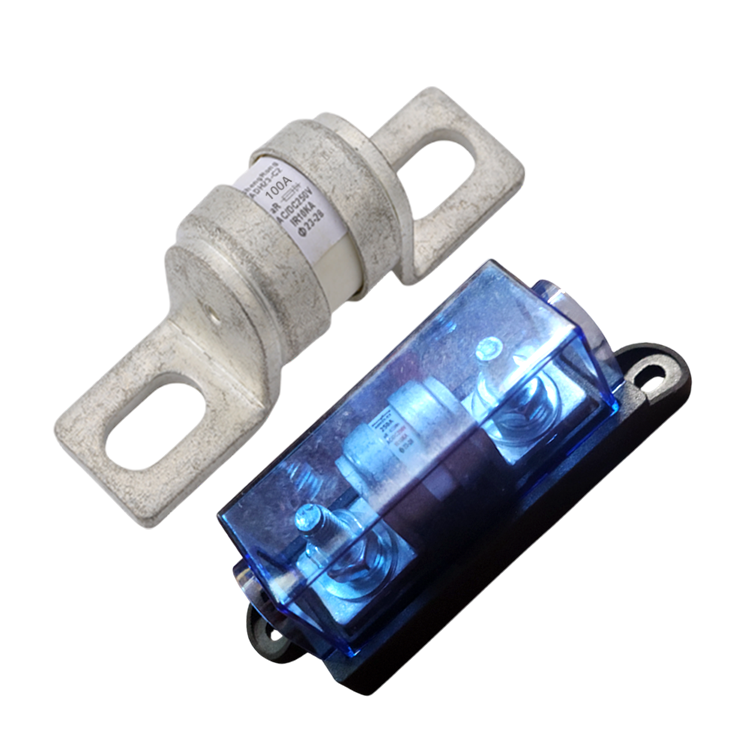

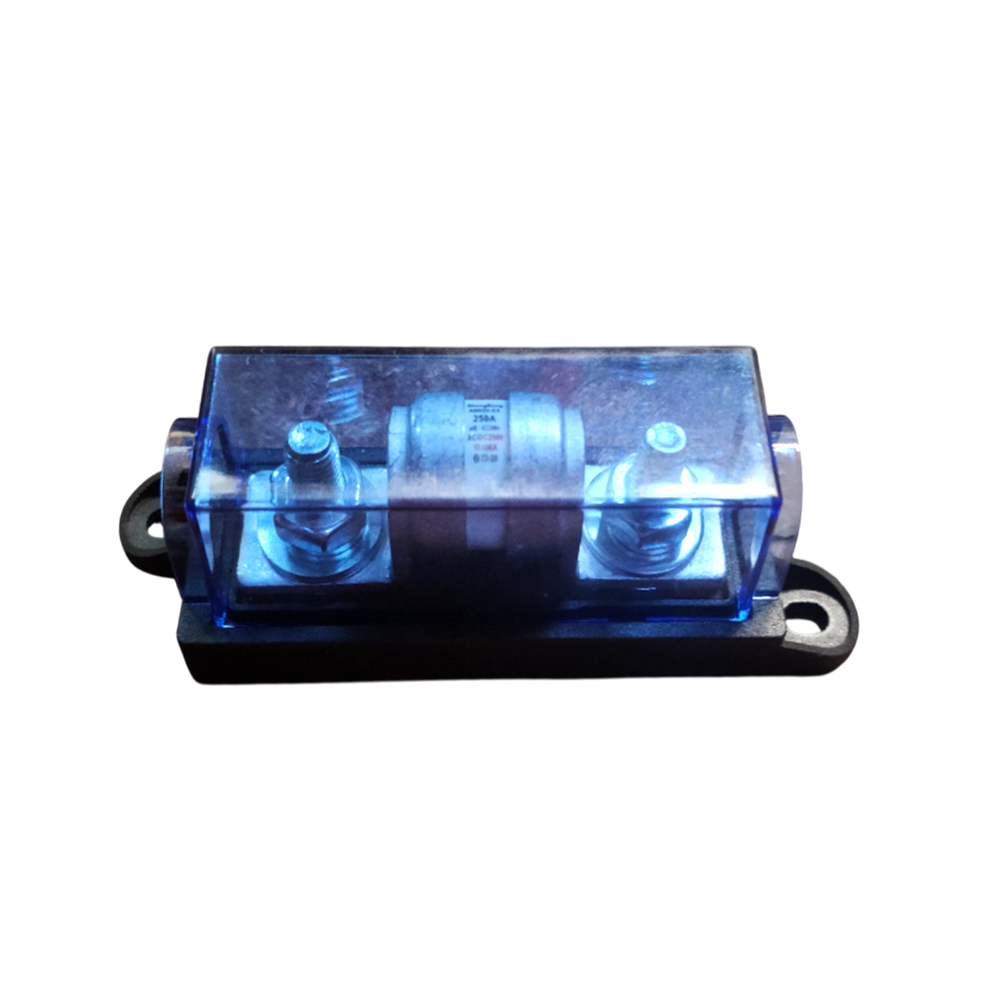

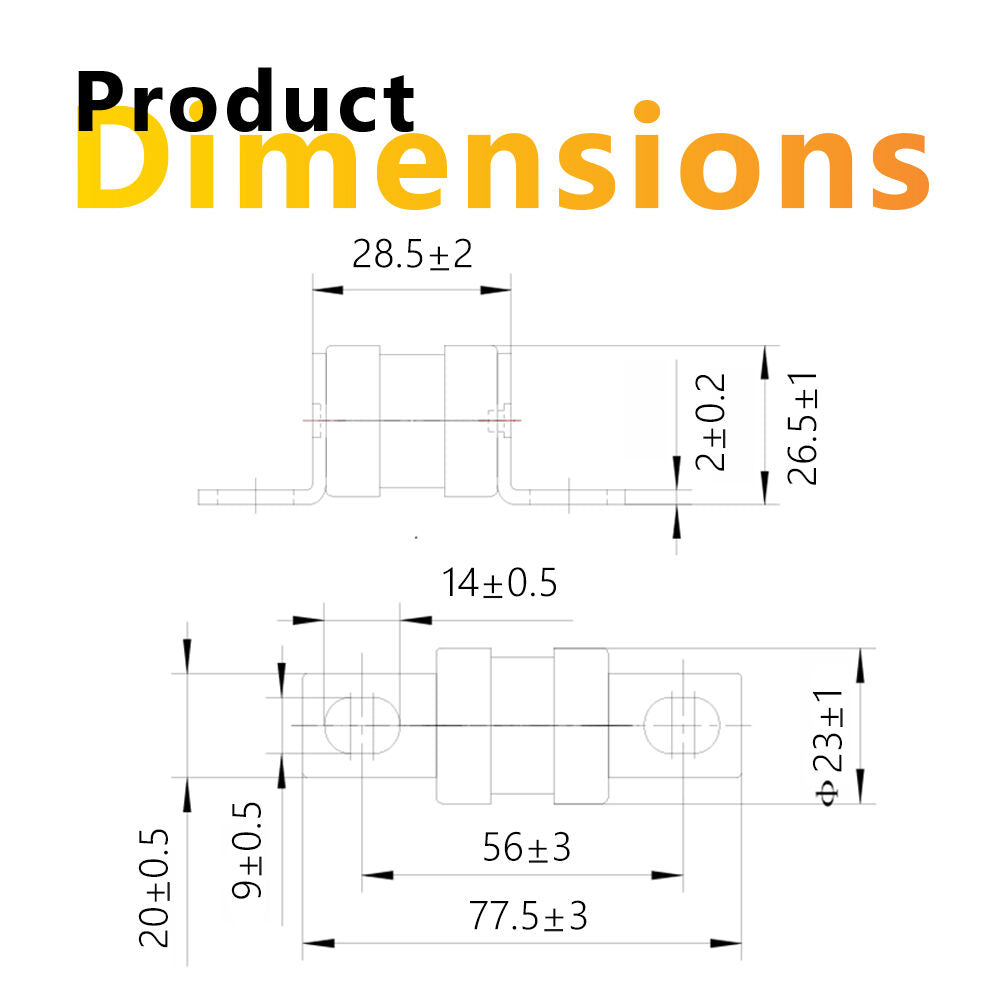

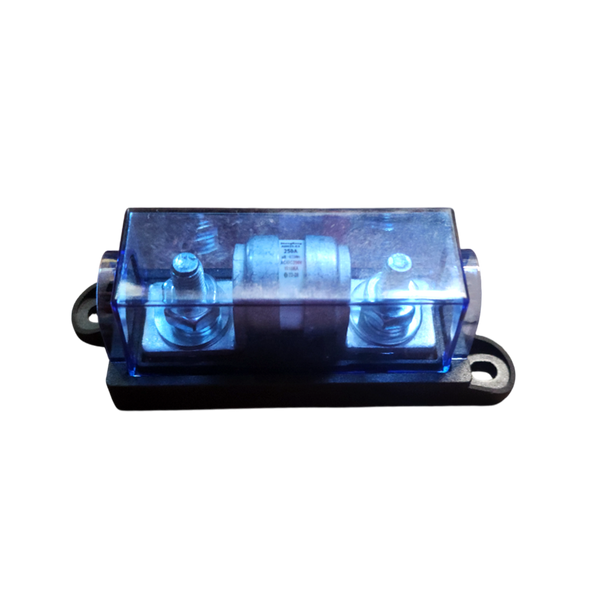

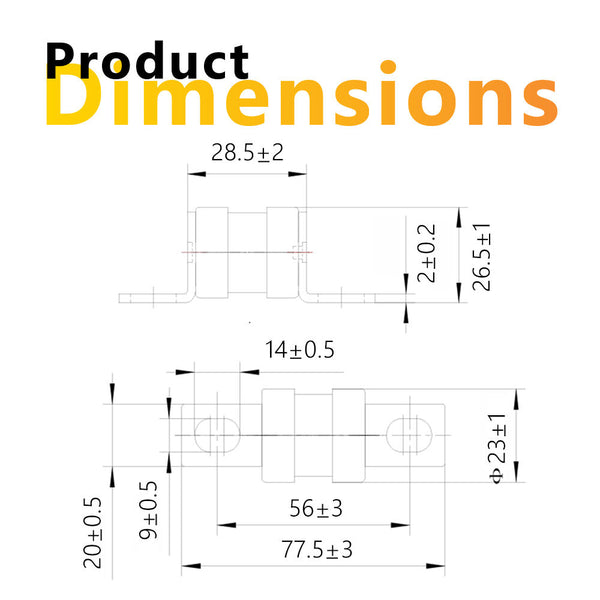

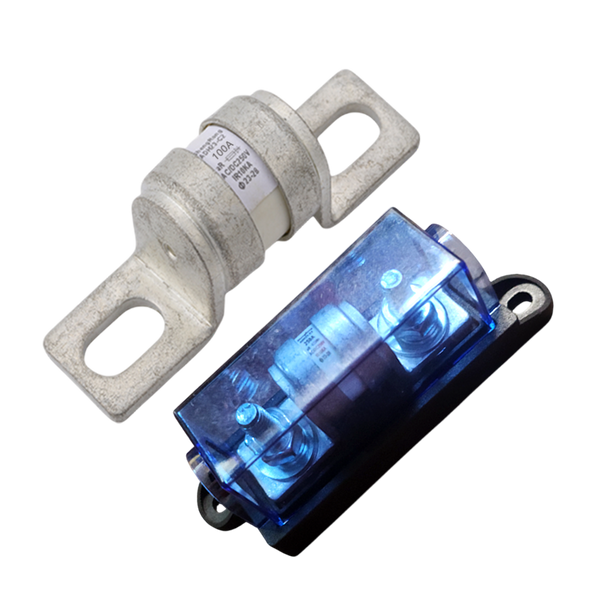

Each kit includes a purpose-built holder that secures the fuse with bolted terminals, minimising contact resistance and preventing loosening from vibration. The transparent blue cover allows visual inspection without disassembly, while the compact footprint (77.5 mm overall length with 56 mm mounting centres) fits easily into crowded electrical enclosures. Whether you are protecting a battery bank, inverter circuit, or industrial control panel, this fuse delivers consistent, predictable performance.

Why Ceramic Fuses Outperform Standard Options

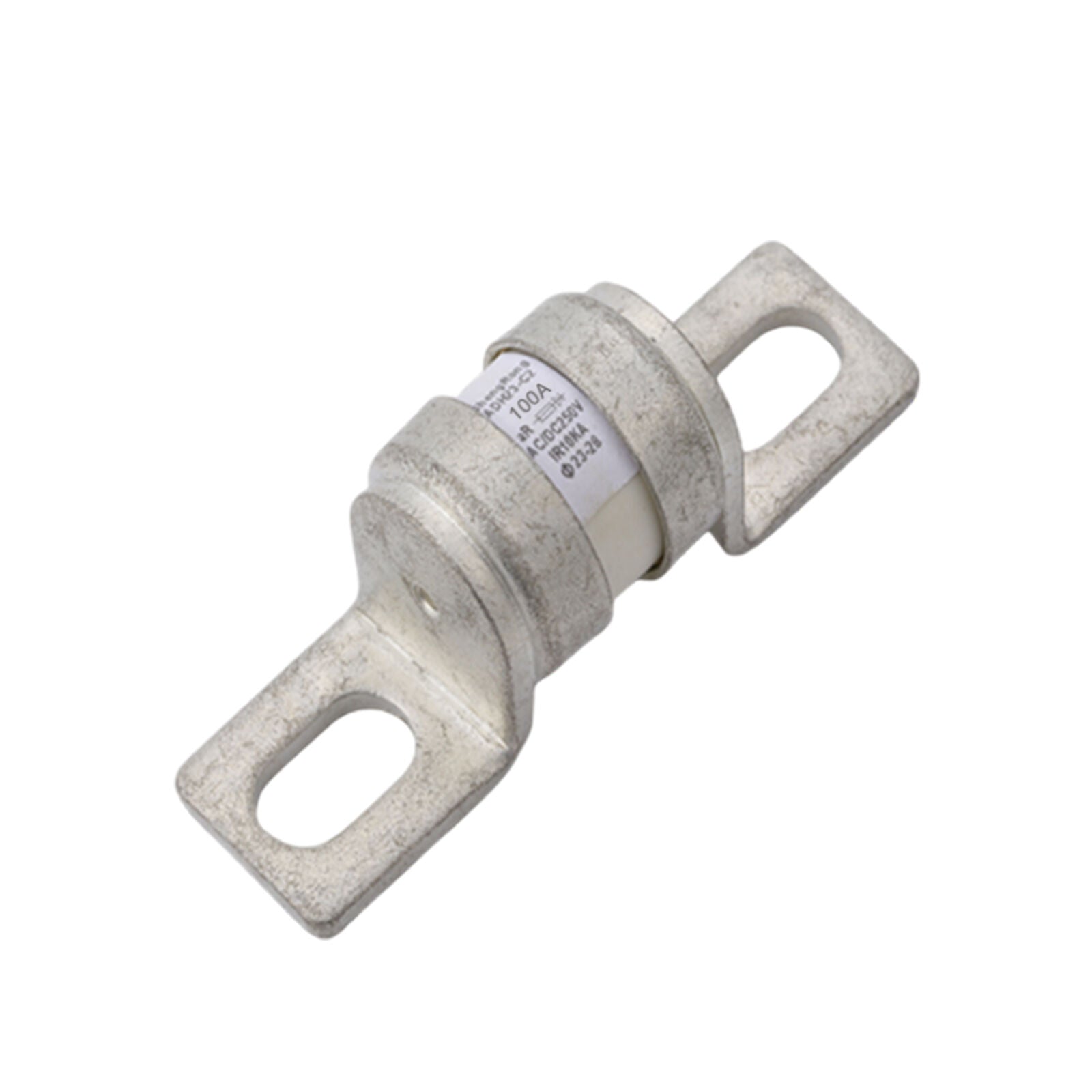

Ceramic fuses are preferred in high-interrupt applications because they can withstand the intense thermal and mechanical stresses of a short circuit. The Exotronic MEGA-style fuse uses a ceramic tube filled with arc-quenching material, which extinguishes the arc quickly and safely. This design achieves a 10 kA interrupting rating at 250 V AC/DC, far exceeding typical automotive or glass fuses. For systems with large battery banks or high-power inverters, this capability is critical to prevent catastrophic failure.

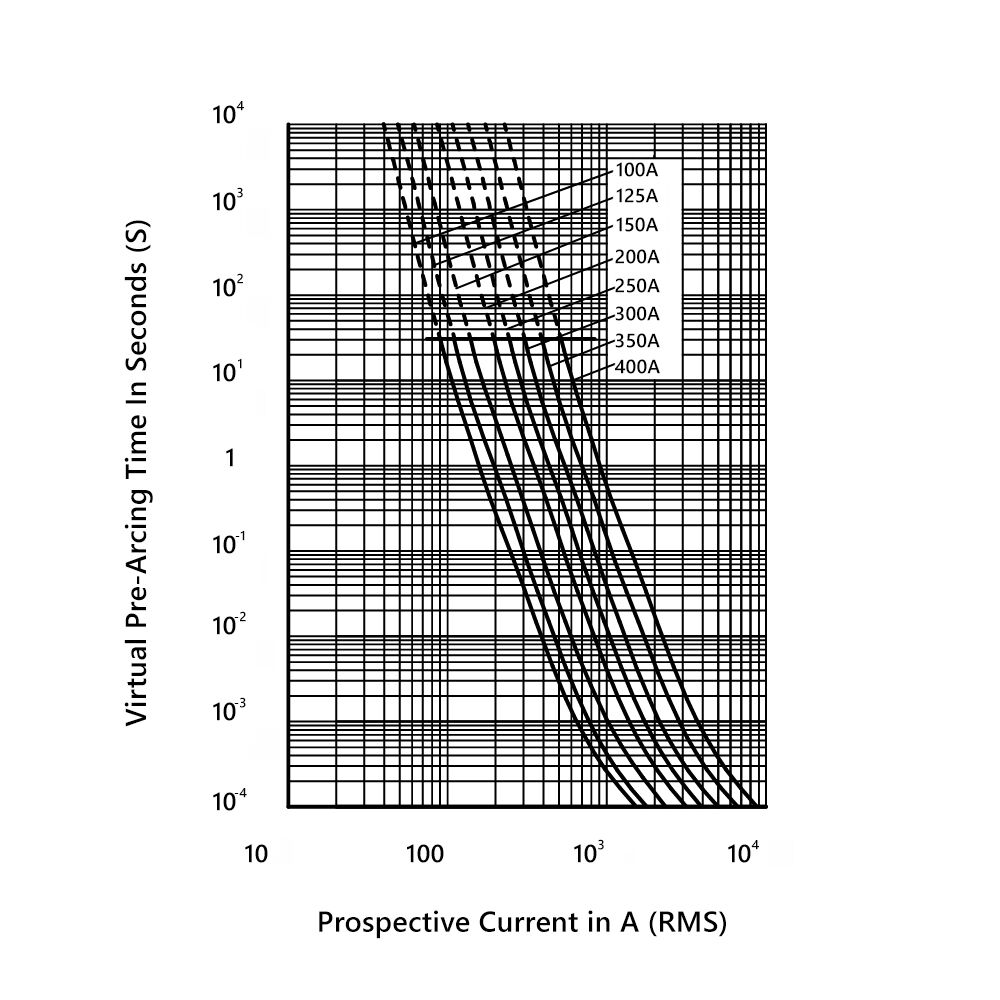

Additionally, the time-current characteristics are optimised for both overload and short-circuit protection. At moderate overloads (e.g., 135% of rated current), the fuse will open within one hour, while at high fault currents (e.g., 400% of rated current), it clears in milliseconds. This dual response protects cables and equipment from overheating while avoiding nuisance blows during normal surges.

Key Features

• High Interrupting Capacity: 10 kA at 250 V AC/DC safely clears severe faults
• Ceramic Body: Excellent heat resistance and arc suppression for longevity
• Bolt-Down Terminals: Secure, low-resistance connections that resist vibration
• Included Holder: Transparent cover for visual inspection, with mounting holes for fixed installation
• Wide Operating Range: Rated for 250 V AC/DC, suitable for 12V, 24V, and 48V systems
• Compliance: Designed to meet requirements of UL and GB 13539 “aR” standards for predictable performance

Applications Where Reliability Matters

This fuse is ideal for any high-current DC or AC circuit where a fault could cause significant damage. Common uses include:

• Battery bank main protection in off-grid solar systems
• Inverter/charger input and output circuits in caravans and RVs
• Marine electrical panels and trolling motor wiring
• Industrial machinery and motor control centres
• Mobile workshops and overland vehicles with auxiliary power

In each case, the Exotronic ceramic fuse acts as a critical safety barrier, isolating faults before they propagate. The included holder simplifies replacement and ensures the fuse is always correctly seated, reducing maintenance errors.

Installation and Maintenance Benefits

The fuse holder is designed for surface mounting with two screws (56 mm spacing), and the bolted terminals accept ring lugs for a professional finish. The transparent cover snaps securely but can be opened without tools for quick fuse changes. Because the fuse element is enclosed in ceramic, there is no risk of molten metal ejection during a fault, enhancing safety for nearby components and personnel.

For systems that experience frequent load cycling or high ambient temperatures, the ceramic construction maintains consistent resistance and blow characteristics over time, unlike plastic-bodied fuses that can degrade. This reliability reduces the need for periodic replacement and lowers total cost of ownership.

Protect Your Electrical Investment

Don't leave your high-current circuits vulnerable to inadequate protection. The Exotronic 150A High-Interrupt MEGA-Style Ceramic Fuse with Holder offers the interrupting capacity, thermal resilience, and ease of installation that professionals demand. Install with confidence and keep your power systems running safely.
