Victron 1000A Lynx Class-T Power In M10 Busbar

1000A Continuous Busbar with Dual Class-T Fuse Mounts - 290x170x80mm


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
2

DESCRIPTION

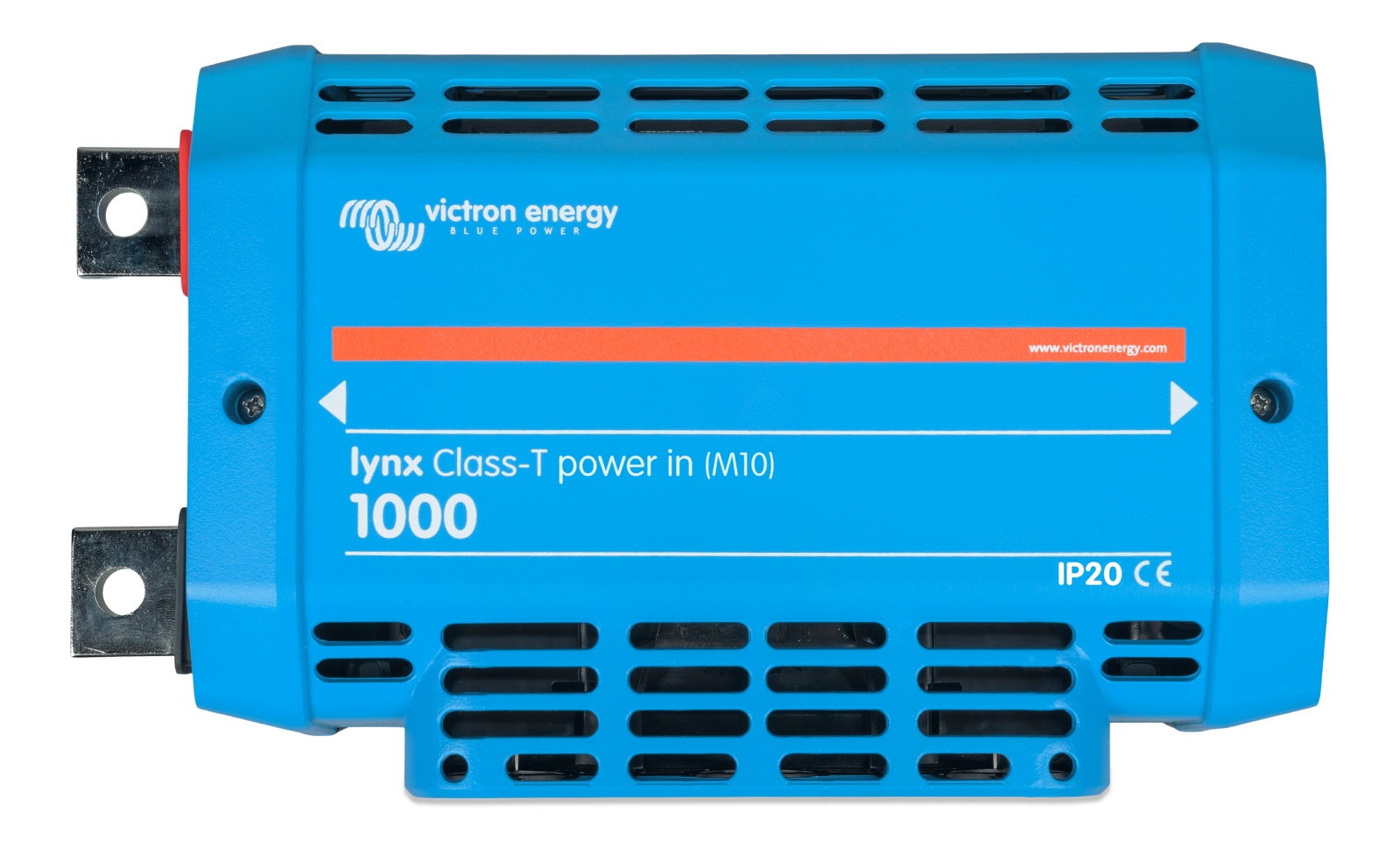

Victron Lynx Class-T Power In (M10): High-Current DC Busbar with Integrated Class-T Fuse Protection

Centralised Power Distribution for Multi-String Lithium Battery Systems

The Victron Lynx Class-T Power In (M10) is a purpose-built DC busbar module designed to connect and fuse up to two strings of Lithium batteries within the modular Lynx Distribution system. It combines a positive and negative tinned copper busbar with dedicated mounting for Class-T fuses, delivering a streamlined, space-efficient solution for high-current DC power distribution in demanding off-grid, marine, and vehicular installations.

Engineered for continuous 1000A DC operation across a 9-60V DC range, this module is ideally suited for large-scale 12V, 24V, and 48V battery banks. By integrating fuse holders directly into the busbar, the Lynx Class-T Power In eliminates the need for separate fuse blocks, reducing wiring complexity, voltage drop, and potential failure points. This integrated approach enhances system reliability and simplifies installation, making it a preferred choice for professional installers and serious DIY enthusiasts building robust lithium battery systems.

Why Class-T Fuses? Superior Protection for Lithium Batteries

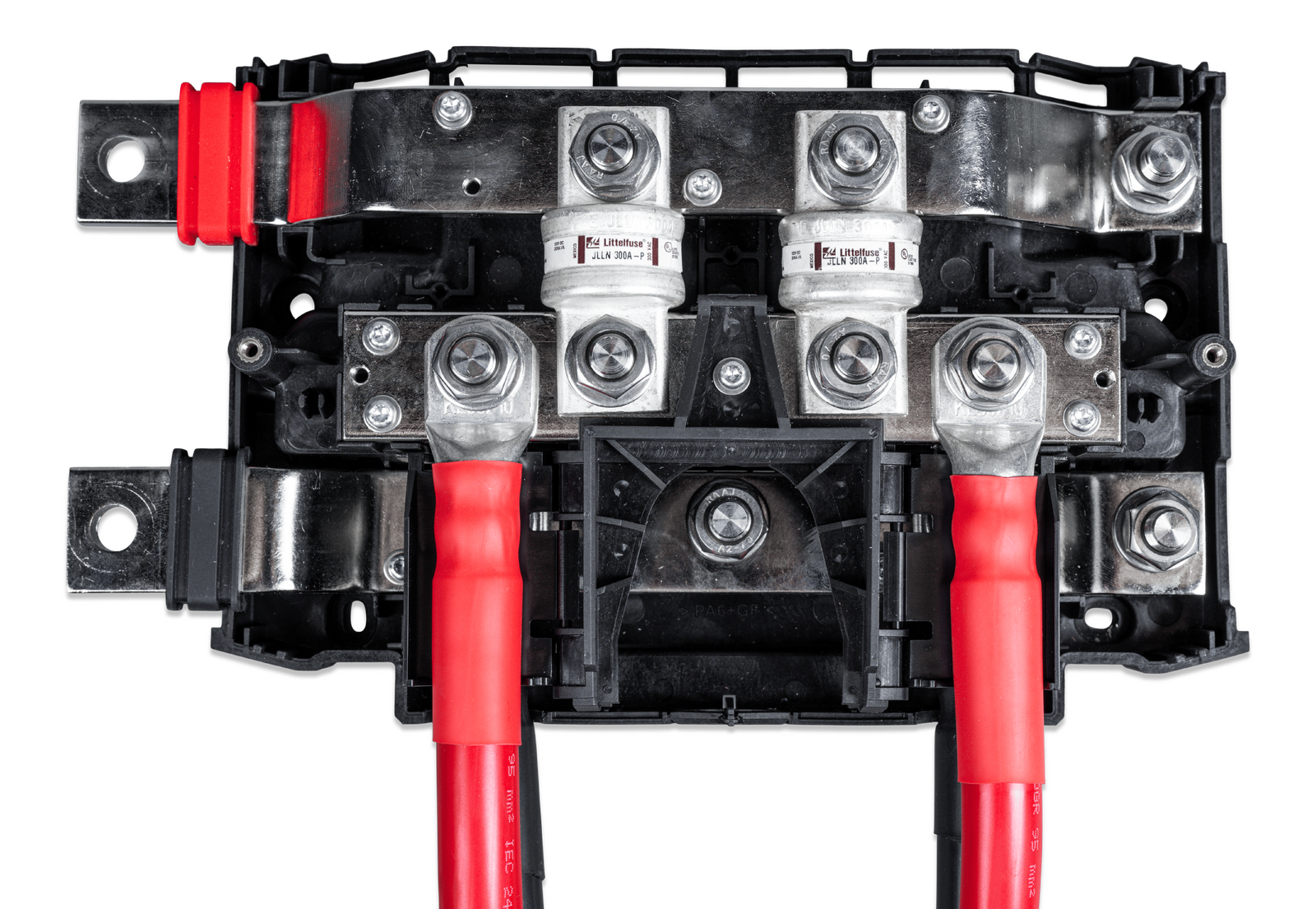

Class-T fuses are recognised for their high interrupting capacity and fast-acting response, essential for protecting sensitive Lithium Iron Phosphate (LiFePO4) and other lithium chemistries. Unlike slower-acting alternatives, Class-T fuses rapidly clear high fault currents, minimising the risk of damage to battery cells, busbars, and connected equipment. The Lynx Class-T Power In accepts widely available 225A, 250A, 350A, and 400A Class-T fuses (sold separately), allowing precise matching to your battery bank's short-circuit protection requirements.

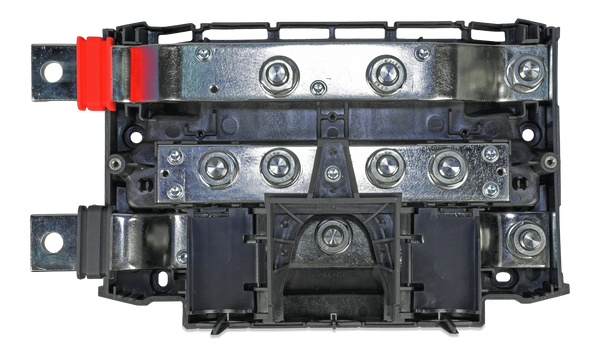

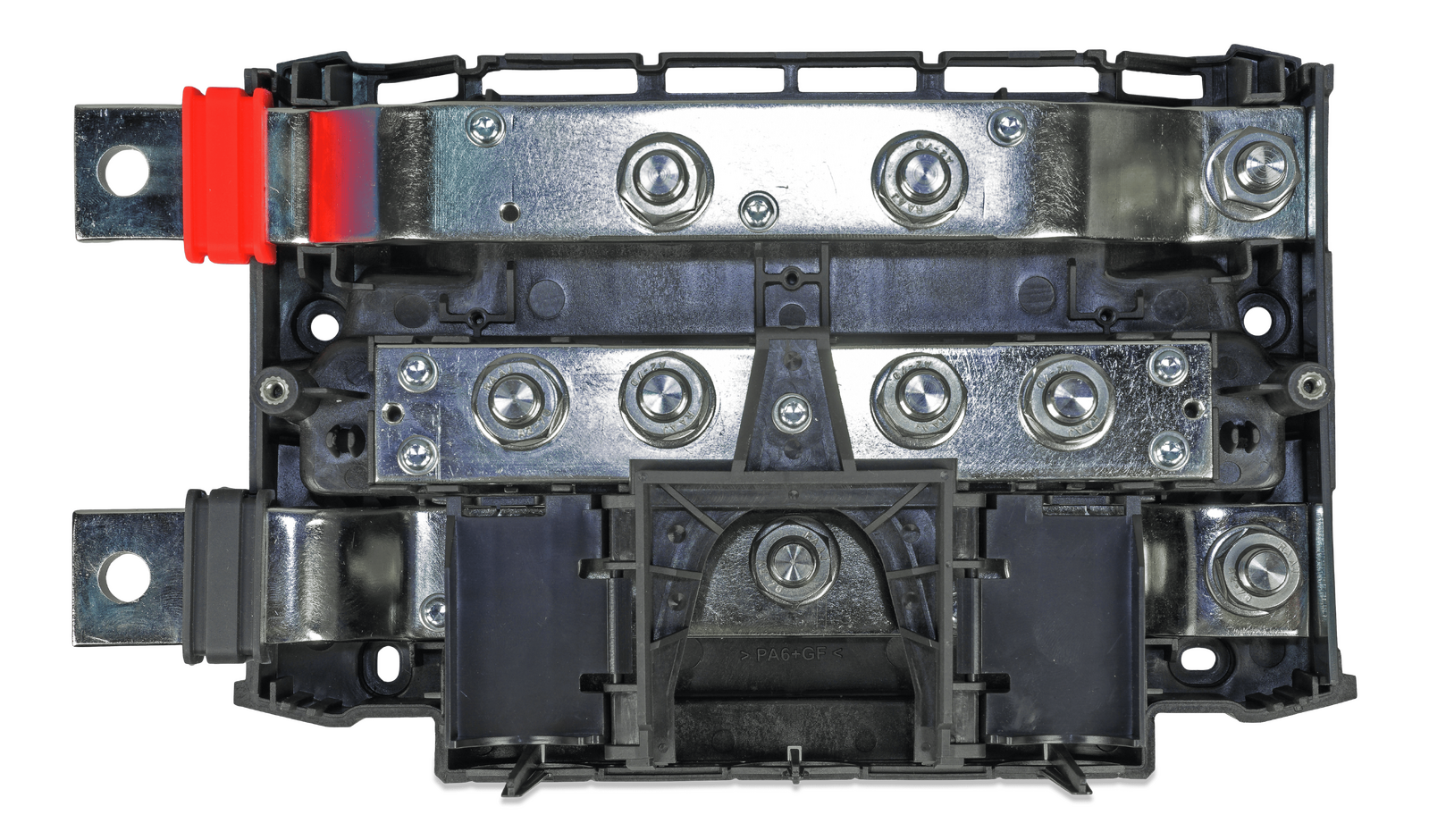

This level of protection is critical in systems where battery fault currents can exceed tens of thousands of amps. The integrated fuse mounting on the 8x30mm tinned copper busbar ensures a low-resistance, mechanically secure connection, maintaining system efficiency even under sustained high loads.

Seamless Integration with the Lynx M10 Ecosystem

As part of the Victron Lynx M10 family, this module connects directly to other Lynx components such as the Lynx Shunt VE.Can, Lynx Distributor, and Lynx Power In using the included M10 bolts and rubber couplers. This modular approach allows you to build a customised, scalable DC distribution system without custom busbar fabrication. For installations with three or more battery strings, simply add additional Lynx Class-T modules in series.

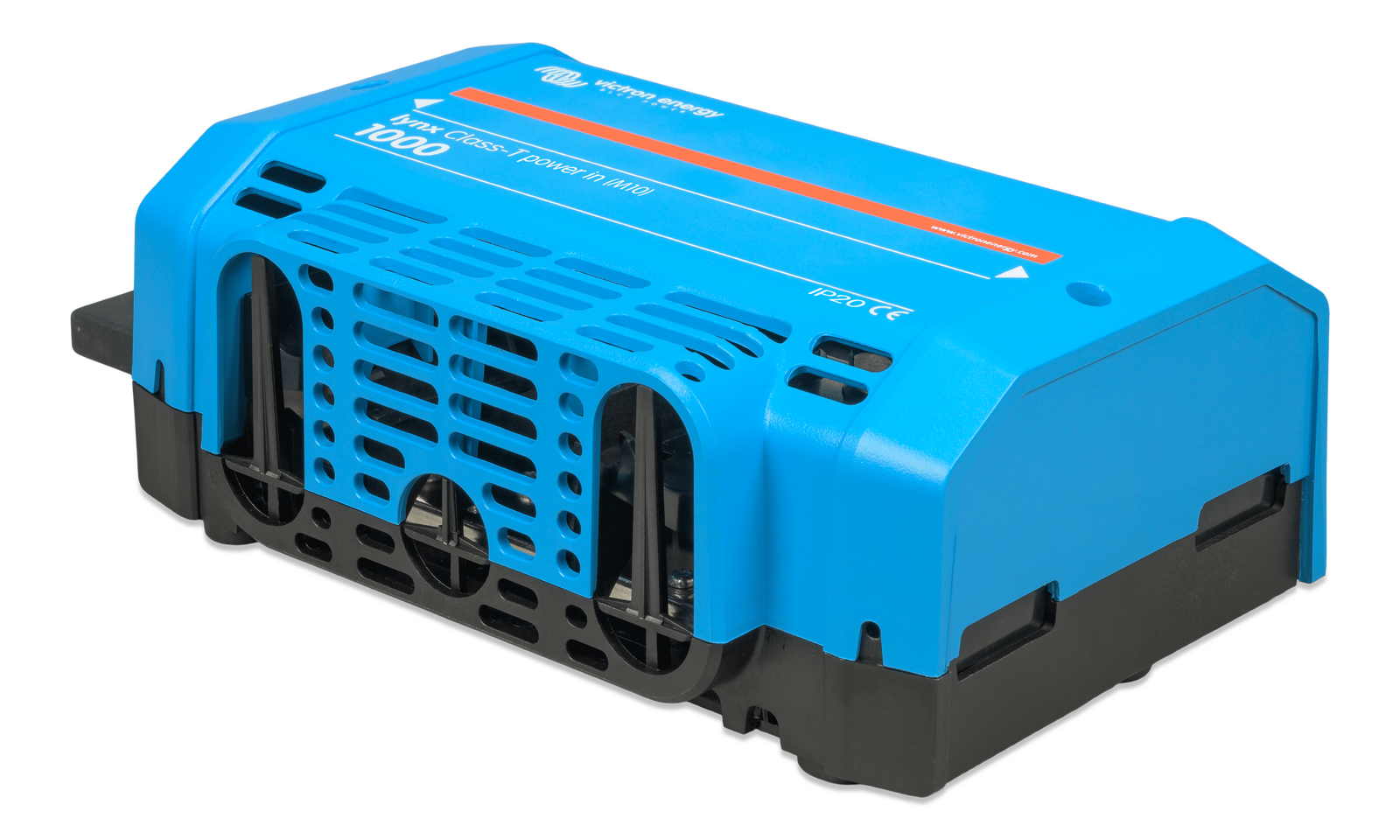

The ABS enclosure (IP22) provides basic protection against solid objects, while the compact footprint (290x170x80mm) fits neatly into standard electrical compartments. A dedicated ground connection point simplifies DC system earthing, enhancing safety and compliance with installation standards.

Key Features

  • Integrates two Class-T fuse holders directly onto a 1000A continuous-rated busbar
  • Connects and fuses up to two lithium battery strings in a single compact module
  • Compatible with 225A, 250A, 350A, and 400A Class-T fuses for tailored protection
  • Modular design links with all Victron Lynx M10 products for scalable system building
  • Tinned copper busbars (8x30mm) resist corrosion and ensure low-resistance connections
  • Includes M10 stud terminals for secure, high-current cable lugs
  • Dedicated ground connection point for DC system earthing
  • Operating temperature range: -40°C to +60°C for harsh environments

Built for Demanding Environments

Victron Energy designs its Lynx series for reliability in mobile and stationary applications. The Lynx Class-T Power In features a robust ABS enclosure and corrosion-resistant tinned copper busbars, suitable for marine, RV, and off-grid solar installations. With an operating range from -40°C to +60°C and up to 95% non-condensing humidity, it withstands the temperature swings and moisture levels common in Australian conditions.

By centralising battery connections and fuse protection, this module reduces the risk of loose connections, accidental shorts, and uneven current sharing between parallel battery strings. The result is a safer, more maintainable power system that protects your investment in premium lithium batteries.

Simplify Your High-Current DC Installation

Whether you're upgrading a marine electrical system, building a large off-grid solar array, or outfitting a commercial vehicle with lithium power, the Victron Lynx Class-T Power In (M10) delivers the integrated protection and modular flexibility required for professional-grade results. Pair it with a Victron Lynx Shunt VE.Can for complete battery monitoring, and a Lynx Distributor for fused DC loads.

Order the Victron Lynx Class-T Power In (M10) today and build a safer, more efficient DC distribution backbone for your lithium battery system.


SKU: VIC-LYN060404010

SPECIFICATIONS

Specifications

Power
Voltage range 9 - 60Vdc
Current rating 1000Adc 1000Adc continuous
Physical
Enclosure material ABS
Enclosure dimensions (hxwxd) 290 x 170 x 80mm
Unit weight 2.1kg
Busbar material Tinned copper
Busbar dimensions (hxw) 8 x 30mm
Environmental
Operating temperature range -40°C to +60°
Storage temperature range -40°C to +60°
Humidity Max. 95% (non-condensing)
Protection class IP22

SKU: VIC-LYN060404010
Barcode: 8719076062967
Model #: LYN060404010
MPN: LYN060404010
