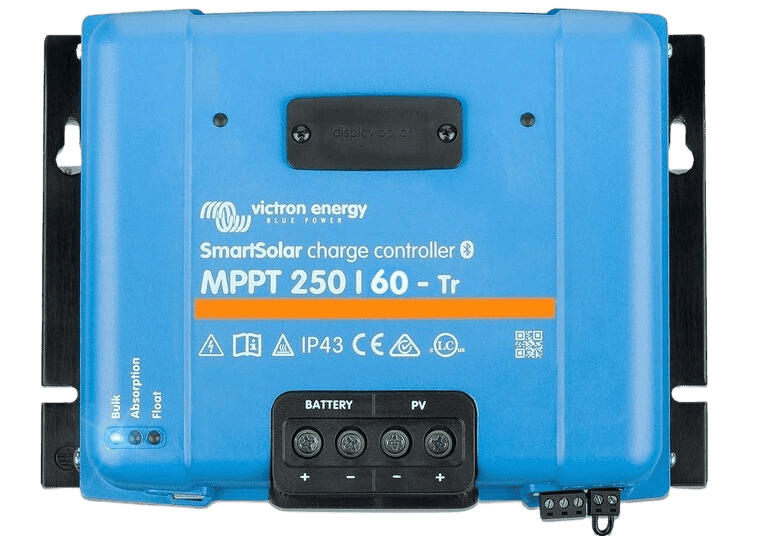

Victron 12/24/48V 60A SmartSolar MPPT 250/60-Tr Bluetooth Solar Charge Controller

99% Peak Efficiency, Built-in Bluetooth, VE.Direct, 250V PV Input


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Victron SmartSolar MPPT 250/60-Tr: High-Performance Solar Charge Controller for 12V, 24V, and 48V Systems

Advanced MPPT Technology for Maximum Energy Harvest

The Victron SmartSolar MPPT 250/60-Tr is a professional-grade solar charge controller engineered to extract the maximum available power from your photovoltaic array. Utilising ultra-fast Maximum Power Point Tracking (MPPT), this controller continuously adapts to changing light conditions, delivering up to 30% more energy compared to traditional PWM controllers and up to 10% more than slower MPPT alternatives. This is particularly beneficial under partially cloudy skies or intermittent shading, where rapid adjustments are critical.

With an exceptional peak conversion efficiency of 99% and full rated output up to 40°C ambient temperature, the 250/60-Tr ensures minimal energy loss and reliable operation without the need for a cooling fan. Its advanced algorithm excels in partial shading scenarios, intelligently locating the global maximum power point rather than settling for a local peak, thereby safeguarding your energy yield in real-world installations.

Seamless Connectivity and Intelligent Control

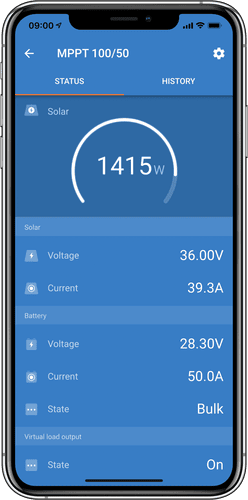

Built-in Bluetooth Smart enables wireless configuration, monitoring, and firmware updates via the VictronConnect app on your smartphone or tablet. Access real-time data on solar production, battery state of charge, and historical performance. For wired integration, the VE.Direct port allows connection to GX devices (such as the Cerbo GX or Color Control GX), PCs, or other compatible equipment, forming the backbone of a comprehensive energy management system.

The controller supports fully programmable charge algorithms alongside eight pre-defined battery presets, selectable via a rotary switch. This flexibility accommodates a wide range of battery chemistries, including lithium, AGM, and gel. An internal temperature sensor automatically compensates charge voltages, while optional external sensing via a Smart Battery Sense or BMV-712 Smart Battery Monitor provides precise voltage and temperature data at the battery terminals for enhanced accuracy.

Robust Protection and System Integration

Designed for demanding environments, the SmartSolar MPPT 250/60-Tr incorporates extensive electronic safeguards: PV reverse polarity protection, PV short circuit protection, and over-temperature protection with power derating. The unit is rated IP43 for electronics and IP22 for the connection area, making it suitable for indoor, unconditioned spaces. A programmable relay can be configured for alarms or load control, and a remote on/off terminal allows integration with a VE.BUS BMS for lithium battery systems.

Up to 10 controllers can be synchronised via Bluetooth for parallel operation, enabling scalable solar arrays. The 35 mm² (AWG 2) battery and PV terminals accept large gauge cable, minimising resistive losses in high-current installations.

Key Features

  • Ultra-fast MPPT tracking for up to 30% greater energy harvest versus PWM
  • 99% peak conversion efficiency with fanless, silent operation
  • Built-in Bluetooth for wireless monitoring and configuration via VictronConnect
  • VE.Direct port for wired integration with GX monitoring systems
  • Advanced partial shading detection to lock onto the optimal power point
  • Comprehensive electronic protection: reverse polarity, short circuit, over-temperature
  • Programmable charge profiles for lithium, AGM, gel, and other battery types
  • Supports 12V, 24V, and 48V battery banks (36V with software tool)
  • Optional plug-in LCD display for local readout (sold separately)

Ideal Applications

This controller is an excellent choice for off-grid solar systems, marine and RV installations, remote telecommunications, and industrial backup power. Its high 250V PV input voltage allows long series strings of panels, reducing wiring costs and improving efficiency. Whether you are building a residential off-grid system or upgrading a mobile power setup, the Victron SmartSolar MPPT 250/60-Tr delivers dependable, high-efficiency charge control.

Take Control of Your Solar Harvest

Equip your system with the Victron SmartSolar MPPT 250/60-Tr and experience precise, efficient battery charging backed by decades of power electronics expertise. Order today to maximise your solar investment.


SKU: VIC-SCC125060221

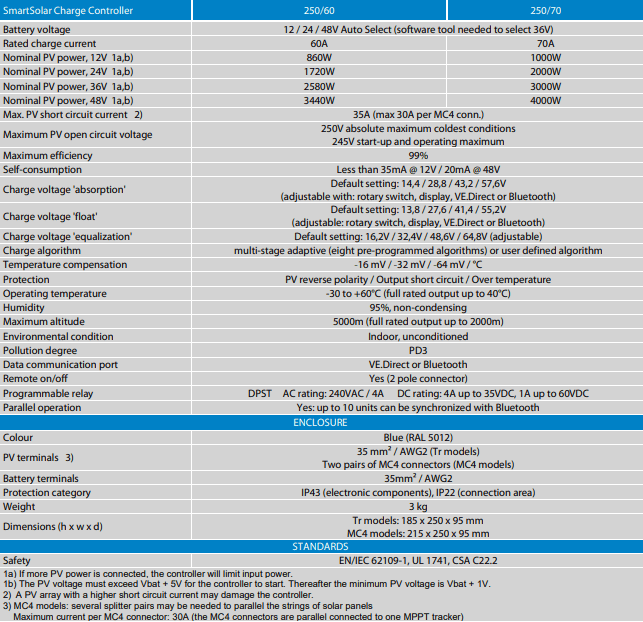

SPECIFICATIONS

Specifications

ModelSmartSolar MPPT 250/60-Tr
Part NumberSCC125060221
Battery Voltage12 / 24 / 48 V Auto Select (software tool needed to select 36 V)
Rated Charge Current60 A
Nominal PV Power, 12 V860 W
Nominal PV Power, 24 V1720 W
Nominal PV Power, 36 V2580 W
Nominal PV Power, 48 V3440 W
Max. PV Short Circuit Current35 A
Maximum PV Open Circuit Voltage250 V absolute maximum coldest conditions; 245 V start-up and operating maximum
Maximum Efficiency99 %
Self-consumptionLess than 35 mA @ 12 V / 20 mA @ 48 V
Charge Voltage 'Absorption'Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage 'Float'Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage 'Equalization'Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable)
Charge AlgorithmMulti-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
Temperature Compensation-16 mV / -32 mV / -64 mV / °C
ProtectionPV reverse polarity / Output short circuit / Over temperature
Operating Temperature-30 to +60 °C (full rated output up to 40 °C)
Humidity95 %, non-condensing
Maximum Altitude5000 m (full rated output up to 2000 m)
Environmental ConditionIndoor, unconditioned
Pollution DegreePD3
Data Communication PortVE.Direct or Bluetooth
Remote On/OffYes (2 pole connector)
Programmable RelayDPST AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Parallel OperationYes: up to 10 units can be synchronized with Bluetooth
PV Terminals35 mm² / AWG 2 (Tr models)
Battery Terminals35 mm² / AWG 2
Protection CategoryIP43 (electronic components), IP22 (connection area)
Weight3 kg
Dimensions (H x W x D)185 x 250 x 95 mm
SafetyEN/IEC 62109-1, UL 1741, CSA C22.2

SKU: VIC-SCC125060221
Barcode: 8719076050841
Model #: SCC125060221
MPN: SCC125060221

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
