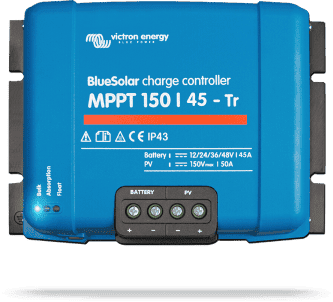

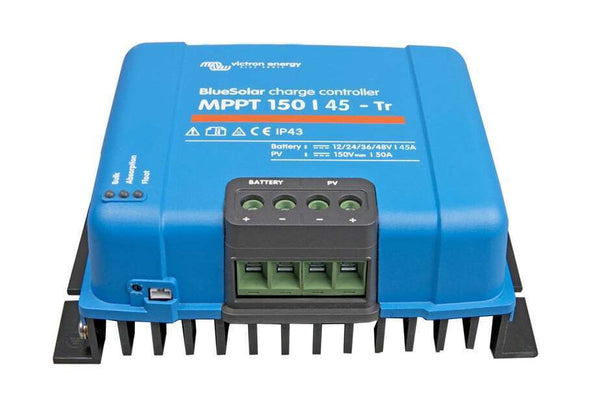

Victron 12/24/48V 45A BlueSolar MPPT 150/45-Tr Non-Bluetooth Solar Charge Controller

150V PV input, fanless 98%+ efficiency, VE.Direct monitoring ready


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

High-voltage MPPT charging for demanding off-grid systems

Designed for serious solar installations, this Victron MPPT controller efficiently converts higher PV voltage into usable charging current for your battery bank. The 150V PV input headroom supports longer panel strings, helping reduce cable losses and improve layout flexibility across caravans, cabins, marine builds and remote industrial sites. With 45A charging capacity and a proven Victron control platform, it’s a strong choice when you want stable charging performance across varying weather and load conditions.

Faster tracking for better harvest in changing conditions

Solar conditions rarely stay constant—passing cloud, heat and partial shading can cause rapid changes in panel output. Victron’s ultra-fast MPPT technology continuously tracks the optimum operating point, which can improve energy harvest compared with PWM controllers and slower MPPT designs (performance gains depend on conditions and array design). For installations where panels experience intermittent shading—roof racks, rigging, antennas, trees or nearby structures—the controller’s advanced maximum power point detection is built to avoid getting “stuck” on a sub-optimal point and keep charging more consistently.

High efficiency, passive cooling and real-world reliability

With a peak conversion efficiency above 98%, more of your solar energy is delivered to the battery rather than wasted as heat. The unit is fanless and uses a substantial heat sink for passive cooling, reducing moving parts and simplifying installation in enclosed electrical bays. It’s engineered to deliver strong performance at elevated ambient temperatures, with protective power derating when required to support long-term reliability in Australian conditions.

Flexible charging profiles for different battery chemistries

Charging requirements vary significantly between battery types. This controller offers a fully programmable charge algorithm plus multiple preset profiles selectable via the rotary switch, making it suitable for a wide range of lead-acid and other supported battery setups. An internal temperature sensor helps compensate absorption and float voltages, supporting healthier charging when temperatures swing between hot engine bays, coastal climates and cold inland nights.

Protection features that reduce common installation risks

Off-grid electrical systems need robust protection against wiring errors and harsh operating conditions. The controller includes electronic protections such as over-temperature management, PV short-circuit protection, PV reverse polarity protection and reverse current protection. These features help reduce the chance of damage from common faults and make commissioning and maintenance more straightforward for both DIY users and professional installers.

Monitoring options when you need visibility

For system diagnostics and performance checks, real-time data can be viewed using compatible Victron accessories such as a VE.Direct to Bluetooth Low Energy dongle or a Colour Control panel. This makes it easier to verify charge stages, troubleshoot low harvest days and confirm the controller is operating as expected.

Key features

  • Ultra-fast MPPT to respond quickly to changing irradiance and cloud cover
  • Advanced tracking under partial shading to help locate the optimum power point
  • Fanless, high-efficiency design (maximum efficiency exceeds 98%)
  • Programmable charging with presets selectable via rotary switch
  • Integrated protections for temperature, polarity and PV fault conditions
  • Optional monitoring via VE.Direct accessories (Bluetooth dongle / control panel)

Build a smarter solar charging system

If you’re configuring a 12V, 24V or 48V solar battery system and want the flexibility of a higher-voltage array with Victron-grade MPPT control, this controller is a practical upgrade for mobile and fixed off-grid power. Select it for your next solar install to improve array design flexibility and maintain confident, consistent charging in the field.


SKU: Vic-SCC115045222

SPECIFICATIONS


SKU: Vic-SCC115045222
Barcode: 8719076053033
Model #: SCC115045222
MPN: SCC115045222

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
