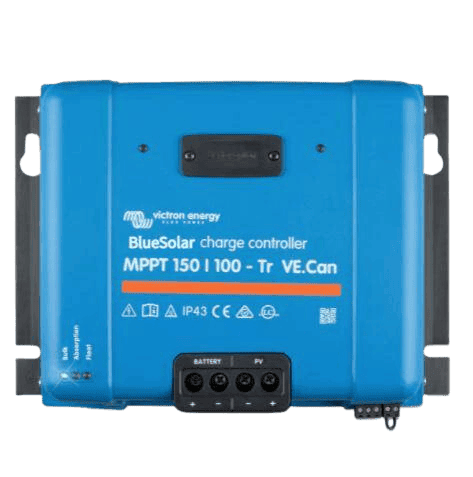

Victron 12/24/48V 100A BlueSolar MPPT 150/100-Tr VE.Can Non-Bluetooth Solar Charge Controller
100A MPPT for 12/24/48V systems, VE.Can networking, up to 5800W PV input
Victron 48V 10A BlueSolar PWM-LCD&USB Solar Cha...DESCRIPTION
Victron BlueSolar MPPT 150/100-Tr VE.Can: High-Capacity Solar Charge Controller for Large Off-Grid Systems
Advanced MPPT Technology for 12V, 24V, and 48V Battery Banks
The Victron BlueSolar MPPT 150/100-Tr VE.Can is a professional-grade solar charge controller engineered for demanding off-grid and hybrid energy systems. With a 100 A rated charge current and support for 12V, 24V, and 48V battery banks (36V configurable via software), it efficiently manages large solar arrays up to 5800 W at 48V. Its ultra-fast Maximum Power Point Tracking (MPPT) algorithm continuously optimises energy harvest, even under partial shading or fluctuating light conditions, ensuring your batteries receive maximum available power throughout the day.
Unlike generic PWM controllers, the BlueSolar MPPT 150/100-Tr uses advanced MPPT technology to convert excess voltage into higher charge current, significantly improving overall system efficiency—up to 98% peak conversion efficiency. This means faster charging, reduced energy loss, and better utilisation of your solar investment, particularly in cooler climates where panel voltage rises.
Designed for Large-Scale and Parallel Installations
This controller is built for scalability. With VE.Can communication, you can synchronise up to 25 units in parallel, making it ideal for large residential, commercial, or industrial off-grid systems. The VE.Can interface also enables seamless integration with Victron GX monitoring devices (such as the Color Control GX or Cerbo GX) and the VRM online portal, allowing remote monitoring, firmware updates, and system management from anywhere.
For installations requiring Bluetooth connectivity, the BlueSolar model can be upgraded with an optional VE.Direct Bluetooth Smart dongle (sold separately). This provides wireless access to VictronConnect for configuration and real-time data, while maintaining the security benefit of a physically disconnected Bluetooth module when not in use.
Robust Protection and Adaptive Charging
Engineered for reliability in harsh environments, the BlueSolar MPPT 150/100-Tr features comprehensive electronic protection including PV reverse polarity, output short circuit, and over-temperature safeguards. The controller automatically derates power output when internal temperatures rise, preventing damage and extending service life. Its IP43-rated electronics (IP22 for connection area) provide resistance against dust and water ingress, suitable for unconditioned indoor installations.
The multi-stage adaptive charge algorithm with eight preprogrammed battery presets ensures optimal charging for various battery chemistries, including lead-acid, AGM, gel, and lithium (with user-defined settings). Temperature compensation adjusts charge voltages based on ambient conditions, protecting batteries from overcharging in heat and undercharging in cold.
Key Features
- Ultra-fast MPPT with advanced shading detection maximises energy yield
- 100 A charge current supports large battery banks and high-power loads
- 150 V PV input allows series wiring of multiple panels for reduced current and thinner cabling
- VE.Can and VE.Direct ports for system integration, monitoring, and optional Bluetooth
- Parallel synchronised operation (up to 25 units) for scalable power systems
- Programmable DPST relay for generator start, alarms, or load control
- Remote on/off and virtual load output functionality via VE.Direct
- Natural convection cooling ensures silent, maintenance-free operation
Installation and Connectivity
The controller features robust 35 mm² (AWG 2) screw terminals for both battery and PV connections, accommodating heavy-gauge cables for minimal voltage drop. The compact dimensions (216 x 295 x 103 mm) and 4.5 kg weight allow flexible mounting, while the blue anodised aluminium housing (RAL 5012) provides durability and corrosion resistance.
For advanced system control, the BlueSolar MPPT 150/100-Tr supports optional accessories such as the SmartSolar Control Display (plug-on LCD) and the MPPT Control remote panel. These provide local monitoring and configuration without needing a smartphone or computer.
Why Choose the Victron BlueSolar MPPT 150/100-Tr?
This controller addresses the limitations of smaller or less sophisticated charge controllers by delivering higher power handling, superior efficiency, and extensive communication options. It reduces the risk of undercharged batteries during cloudy periods, prevents overvoltage damage to sensitive electronics, and enables future system expansion through parallel operation. For installers and system owners seeking a dependable, high-performance charge controller backed by Victron's engineering heritage, the BlueSolar MPPT 150/100-Tr is a proven solution.
Upgrade your solar installation with the Victron BlueSolar MPPT 150/100-Tr VE.Can and experience precise, efficient battery charging for your off-grid or backup power system.
SKU: VIC-SCC115110420
SPECIFICATIONS
Specifications
| Battery Voltage | 12 / 24 / 48 V Auto Select (Software Tool Needed to Select 36 V) |
|---|---|
| Rated Charge Current | 100 A |
| Nominal PV Power, 12 V | 1450 W |
| Nominal PV Power, 24 V | 2900 W |
| Nominal PV Power, 36 V | 4350 W |
| Nominal PV Power, 48 V | 5800 W |
| Max. PV Short Circuit Current | 70 A |
| Maximum PV Open Circuit Voltage | 150 V absolute maximum coldest conditions; 145 V start-up and operating maximum |
| Maximum Efficiency | 98% |
| Self-Consumption | Less than 35 mA @ 12 V / 20 mA @ 48 V |
| Charge Voltage 'Absorption' | Default Setting: 14.4 / 28.8 / 43.2 / 57.6 V |
| Charge Voltage 'Float' | Default Setting: 13.8 / 27.6 / 41.4 / 55.2 V |
| Charge Voltage 'Equalization' | Default Setting: 16.2 / 32.4 / 48.6 / 64.8 V |
| Charge Algorithm | Multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Temperature Compensation | -16 mV / -32 mV / -48 mV / -64 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating Temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95%, non-condensing |
| Maximum Altitude | 5000 m (full rated output up to 2000 m) |
| Environmental Condition | Indoor, unconditioned |
| Pollution Degree | PD3 |
| Data Communication Port | VE.Direct and VE.Can |
| Remote On/Off | Yes (2 Pole Connector) |
| Programmable Relay | DPST; AC Rating: 240 VAC / 4 A; DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel Operation | Yes, parallel synchronised operation with VE.Can (max. 25 units) |
| Colour | Blue (RAL 5012) |
| PV Terminals | 35 mm² / AWG 2 |
| Battery Terminals | 35 mm² / AWG 2 |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Weight | 4.5 kg |
| Dimensions (H x W x D) | 216 x 295 x 103 mm |
| Safety Standards | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| SKU: | VIC-SCC115110420 |
| Barcode: | 8719076049852 |
| Model #: | SCC115110420 |
| MPN: | SCC115110420 |
WARRANTY
Victron Energy Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
