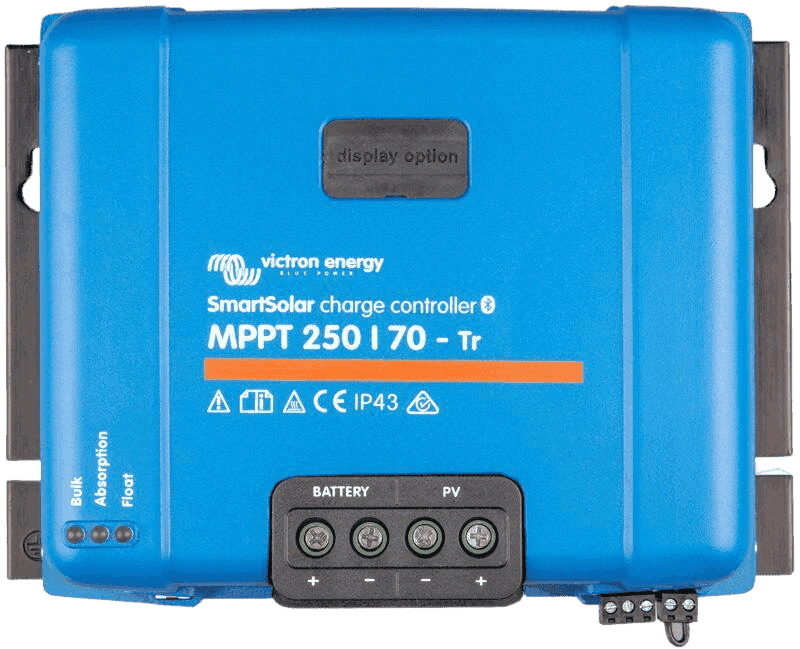

Victron 12/24/48V 70A SmartSolar MPPT 250/70-Tr Bluetooth Solar Charge Controller

70A MPPT with 250V Input, Built-in Bluetooth, and 99% Peak Efficiency


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Victron SmartSolar MPPT 250/70-Tr: High-Capacity Solar Charge Controller for 12V, 24V, and 48V Systems

Maximise Solar Yield with Ultrafast MPPT Technology

The Victron SmartSolar MPPT 250/70-Tr is a premium solar charge controller engineered for large-scale off-grid and mobile energy systems. Leveraging ultrafast Maximum Power Point Tracking (MPPT), this controller adapts to rapidly changing light conditions—such as partial cloud cover—to harvest up to 30% more energy than traditional PWM controllers and up to 10% more than slower MPPT alternatives. This ensures your battery bank receives the maximum available power throughout the day, reducing generator runtime and fuel costs in remote installations.

Designed for 12V, 24V, and 48V battery systems with automatic voltage detection, the 250/70-Tr supports substantial solar arrays—up to 1000W at 12V, 2000W at 24V, and 4000W at 48V. Its 250V maximum PV open-circuit voltage allows for long series strings of panels, minimising cable losses and simplifying installation in larger setups such as off-grid homes, commercial sites, and marine vessels.

Advanced Partial Shading Optimisation

In real-world conditions, partial shading from trees, antennas, or adjacent structures can create multiple power peaks on a solar array's voltage curve. Conventional MPPT controllers often lock onto a local peak, missing the true maximum power point. Victron's innovative BlueSolar algorithm actively scans and locks onto the optimal global peak, ensuring consistent energy harvest even in challenging shading scenarios. This feature is critical for installations where unshaded roof space is limited.

Built-In Bluetooth and VE.Direct Connectivity

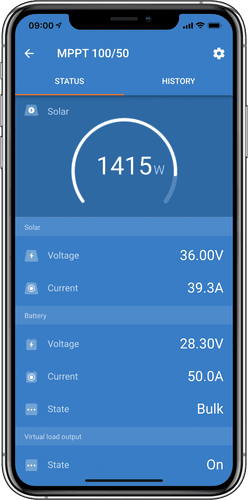

Integrated Bluetooth Smart enables wireless configuration, monitoring, and firmware updates via the free VictronConnect app on your smartphone or tablet. View real-time solar yield, battery state, and historical data without additional hardware. For wired integration, the VE.Direct port connects to GX monitoring devices (such as the Cerbo GX or Color Control GX), allowing seamless inclusion in a Victron Remote Management (VRM) portal for remote oversight.

Exceptional Efficiency and Thermal Design

With a peak conversion efficiency of 99% and full rated output up to 40°C ambient temperature, the 250/70-Tr operates without a cooling fan—reducing noise, maintenance, and potential points of failure. The fanless design relies on a robust aluminium heatsink for passive cooling, making it suitable for dusty or marine environments where fan-forced airflow could introduce contaminants.

Flexible Charging and System Integration

The controller features a fully programmable charge algorithm with eight pre-set battery profiles selectable via a rotary switch. This accommodates a wide range of battery chemistries, including flooded lead-acid, AGM, gel, and lithium (LiFePO₄). An internal temperature sensor provides automatic voltage compensation, while optional external sensing via a Victron Smart Battery Sense or BMV-712 Smart Battery Monitor improves accuracy for battery banks located away from the controller.

  • 70A rated charge current for large battery banks and high-power demands
  • 250V PV input voltage enables long panel strings and reduced wiring costs
  • 99% peak efficiency with fanless, maintenance-free operation
  • Advanced shading algorithm maximises output in partial shading conditions
  • Built-in Bluetooth and VE.Direct for local and remote monitoring
  • Programmable relay for alarms, generator start, or load control
  • Comprehensive electronic protection including PV reverse polarity, short circuit, and over-temperature safeguards

Robust Protection and Installation Flexibility

The 250/70-Tr is built to withstand harsh environments. Its electronics are rated IP43 for protection against water spray, while the connection area is IP22. Large 35mm² (AWG2) terminals accept heavy-gauge battery and PV cables, ensuring secure, low-resistance connections. The controller supports a remote on/off input, making it compatible with VE.BUS BMS systems for lithium battery integration. An optional plug-in LCD display is available for on-site status checks without a smartphone.

Ideal Applications

This controller is an excellent choice for:

  • Off-grid homes and cabins with large solar arrays
  • Commercial and industrial remote power systems
  • Marine and RV installations requiring high reliability
  • Telecom and monitoring stations in isolated locations

Whether upgrading an existing system or designing a new installation, the Victron SmartSolar MPPT 250/70-Tr delivers the efficiency, durability, and control needed to keep your batteries charged and your loads running. Add this controller to your system today and experience the Victron difference in energy management.


SKU: VIC-SCC125070221

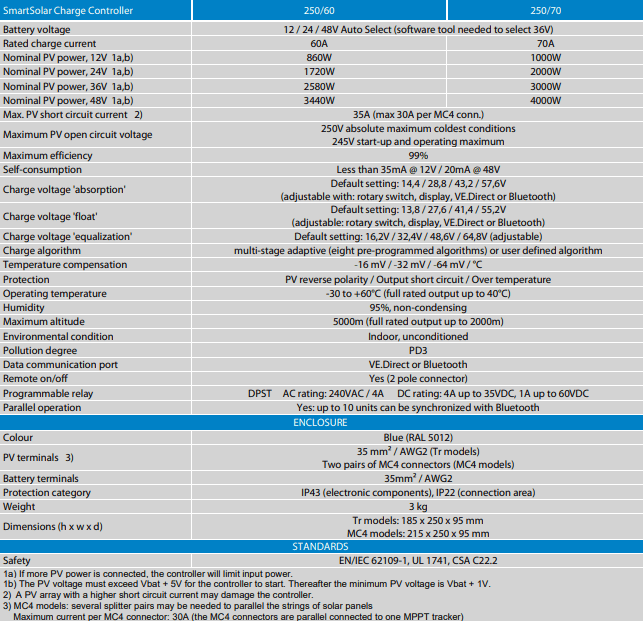

SPECIFICATIONS

Specifications

Battery Voltage12 / 24 / 48 V Auto Select (Software Tool Needed to Select 36 V)
Rated Charge Current70 A
Nominal PV Power, 12 V1000 W
Nominal PV Power, 24 V2000 W
Nominal PV Power, 36 V3000 W
Nominal PV Power, 48 V4000 W
Max. PV Short Circuit Current35 A
Maximum PV Open Circuit Voltage250 V Absolute Maximum Coldest Conditions; 245 V Start-up and Operating Maximum
Maximum Efficiency99 %
Self-consumptionLess than 35 mA @ 12 V / 20 mA @ 48 V
Charge Voltage 'Absorption'Default Setting: 14.4 / 28.8 / 43.2 / 57.6 V
Charge Voltage 'Float'Default Setting: 13.8 / 27.6 / 41.4 / 55.2 V
Charge Voltage 'Equalization'Default Setting: 16.2 / 32.4 / 48.6 / 64.8 V
ProtectionPV Reverse Polarity / Output Short Circuit / Over Temperature
Operating Temperature-30 to +60 °C (Full Rated Output up to 40 °C)
Data Communication PortVE.Direct or Bluetooth
Programmable RelayDPST AC Rating: 240 VAC / 4 A; DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC
PV Terminals35 mm² / AWG2
Battery Terminals35 mm² / AWG2
Protection CategoryIP43 (Electronic Components), IP22 (Connection Area)
Weight3 kg
Dimensions (H x W x D)185 x 250 x 95 mm
SafetyEN/IEC 62109-1, UL 1741, CSA C22.2

SKU: VIC-SCC125070221
Barcode: 8719076050865
Model #: SCC125070221
MPN: SCC125070221

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
