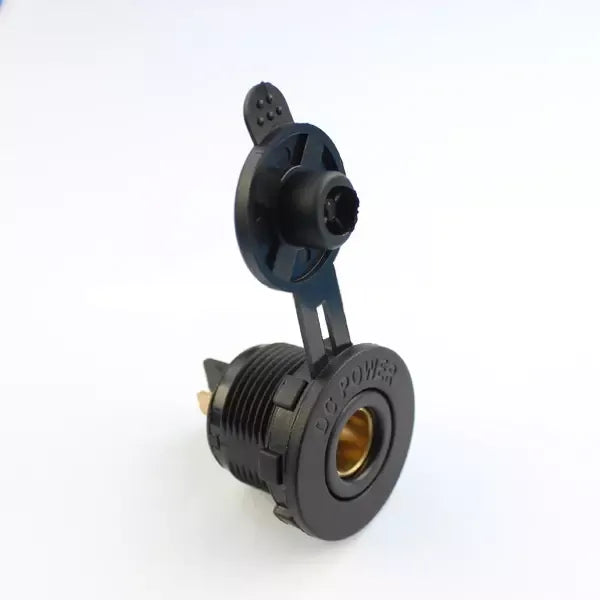

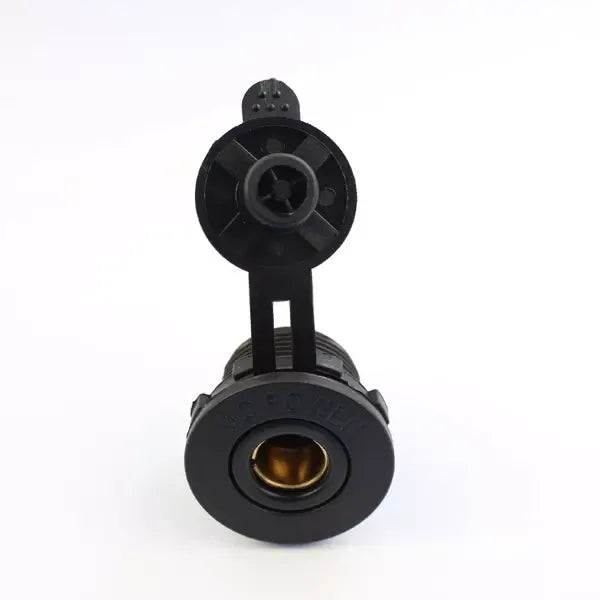

Exotronic Euro/Merit Flush Mount Socket

Heavy-Duty 12V and 24V Merit Power Socket for Off-Grid Systems

The Exotronic Euro/Merit Flush Mount Socket delivers a robust and highly secure power connection for high-demand 12V and 24V accessories. Standard cigarette lighter sockets are prone to vibrating loose on corrugated roads, often leading to disconnected portable fridges or failing air compressors. By utilising a specialised Merit and DIN (Hella) compatible design, this socket provides a firm, vibration-resistant mechanical connection that keeps your essential gear running reliably across challenging terrains.

Engineered for caravans, 4WD canopies, marine vessels, and remote solar setups, this flush mount socket supports a broad 5-30V operating range. Whether you are running a 12V dual battery system or a 24V industrial off-grid power bank, the brass internal contacts ensure optimal conductivity and minimal voltage drop for your connected appliances.

Superior Power Transfer and Low Resistance

One of the most common issues in mobile 12V systems is excessive voltage drop across poor connections, which can trigger low-voltage disconnects on portable 12V fridges. The Exotronic Euro/Merit Socket is engineered with a maximum contact resistance of just 35mΩ. This highly efficient power transfer ensures that power-hungry devices, such as portable air compressors and travel ovens, receive the current they require without generating excessive heat at the plug.

Built for Outback and Marine Conditions

Australia's harsh environments demand electrical components that can withstand extreme temperature fluctuations, dust, and moisture. Featuring an IP65 waterproof rating, this socket includes a heavy-duty rubberised dust cap that tightly seals the interface when not in use. This protects the internal brass contacts from corrosive salt spray in marine applications and fine dust ingress on outback tracks. Furthermore, the unit is rated to operate safely in extreme temperatures ranging from -40°C to +85°C, ensuring consistent performance in both freezing alpine conditions and sweltering desert heat.

Key Features

• Vibration-Resistant Connection: Designed specifically for Euro, DIN, Hella, and Merit-style plugs to prevent accidental disconnections on rough roads.
• High-Efficiency Contacts: Premium brass internal contacts with ultra-low resistance maximise power delivery to your appliances.
• IP65 Weather Protection: Integrated protective cover seals the socket against dust and moisture, making it ideal for marine and exterior applications.
• Broad Compatibility: Rated for a 5-30V operating range, seamlessly integrating into both 12V and 24V DC battery systems.
• Extended Lifespan: Rated for over 10,000 electrical cycles and 100,000 mechanical cycles for long-term dependability.

Clean Flush Mount Installation

Installing the Exotronic Euro/Merit Socket is straightforward and results in a highly professional finish. The durable threaded housing requires a standard 29mm mounting hole, allowing it to integrate perfectly into dashboard panels, custom 4WD canopy switchboards, or marine consoles. A robust backing nut securely clamps the socket in place, preventing any rotation or loosening over time. At the rear, standard 6.35mm tab terminals facilitate quick and reliable wiring directly to your fused DC distribution block.

Versatile DC Power Applications

Upgrading to a Merit-style connection is a smart choice for any serious mobile power system. This socket is an excellent component for:

• Powering portable 12V fridges and freezers in 4WDs and camper trailers.
• Providing secure connections for high-draw 12V air compressors and lighting kits.
• Upgrading marine dashboards with weather-resistant auxiliary power outlets.
• Integrating into custom off-grid battery boxes and portable power stations.
• Replacing unreliable standard cigarette sockets in heavy machinery and agricultural equipment.

Secure Your Mobile Power Network

Eliminate the frustration of loose connections and intermittent power loss in your vehicle or vessel. Upgrade your 12V or 24V electrical system with the Exotronic Euro/Merit Flush Mount Socket for a secure, professional, and weather-resistant power solution. Order yours today to ensure your essential gear stays powered wherever your off-grid travels take you.
