Exotronic 50A Anderson, Cig, USB & USB-C Socket Flush Mount Panel

Exotronic 50A Anderson, Cig, USB & USB-C Socket Flush Mount Panel

The Exotronic 50A Anderson, Cig, USB & USB-C Socket Flush Mount Panel is a comprehensive solution for managing your off-grid electrical needs. Designed for permanent installation, this 12V flush mount panel provides an organised and secure hub for high-current connections and modern device charging. Whether outfitting a caravan, 4x4 canopy, or marine vessel, consolidating your power outputs into a single flush-mounted faceplate improves both aesthetics and functional safety.

Bridge High-Current DC with Modern USB-C Charging

A common challenge in off-grid electrical setups is balancing heavy-duty power requirements with the need to charge delicate modern electronics. If you have been searching for an Anderson to USB-C solution, this panel bridges the gap perfectly. It allows you to run high-draw appliances like portable fridges or solar inputs through the integrated 50A Anderson-style connector while simultaneously delivering stable power to the dual USB ports. This eliminates the need for messy adapter cables and ensures a safe, direct connection to your primary 12V or 24V battery bank.

Intelligent Voltage Monitoring and Fast Charging

Monitoring your battery health is critical when operating off the grid. This panel features an integrated digital voltage display, allowing you to check system status at a glance and prevent deep discharge events. The built-in USB module includes both Quick Charge 3.0 (USB-A) and Power Delivery (USB-C) ports, engineered to provide up to 5V, 2.5A of stable output. This configuration ensures smartphones, tablets, and other USB-powered devices charge rapidly and efficiently, without requiring bulky power inverters.

Marine-Grade Durability for Harsh Environments

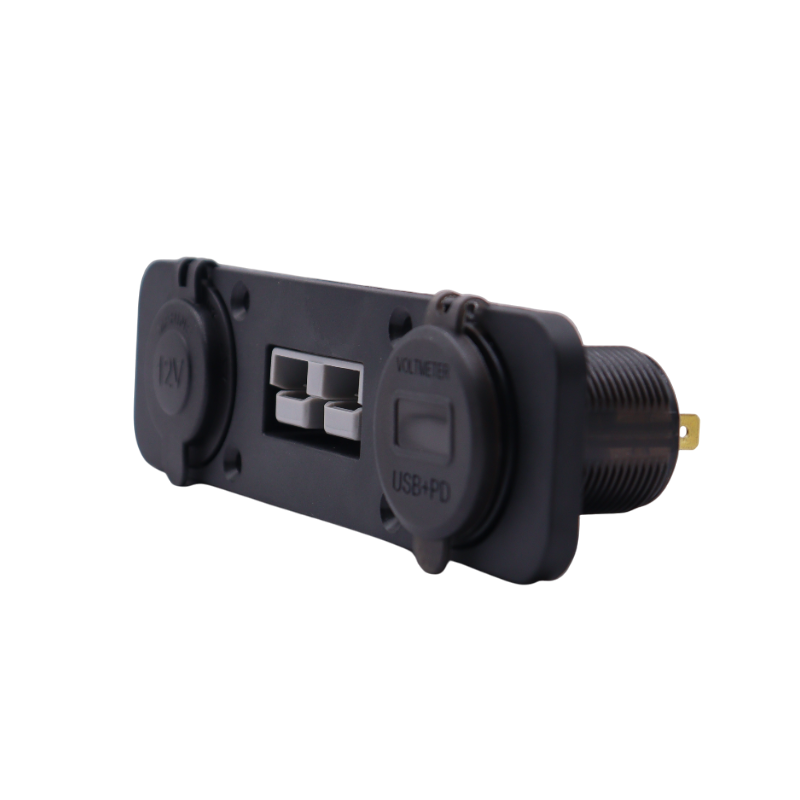

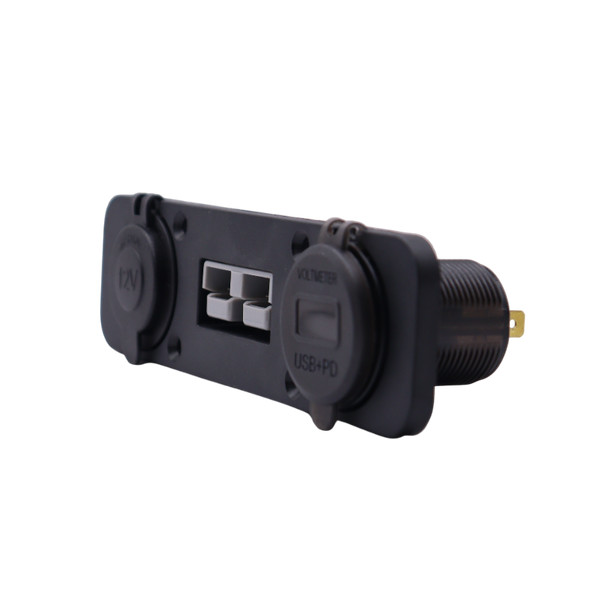

Mobile power systems are frequently exposed to dust, moisture, and vibration. To protect internal connections, this flush mount panel is equipped with locking dust-proof covers for the accessory and USB sockets. The marine-grade 12V accessory socket is rated for a substantial 20A at 12V and 10A at 24V, providing ample capacity for air compressors, lighting, or secondary power distribution. The rear of the panel features standard spade terminals and a threaded body, allowing for a secure installation that resists vibration on corrugated roads.

Key Features and Specifications

• Integrated 50A Anderson-style connector for high-current inputs or outputs
• Dual USB charging module featuring QC 3.0 and PD USB-C ports
• Heavy-duty accessory socket rated for 20A at 12V or 10A at 24V
• Digital voltage display for real-time battery monitoring
• Marine-grade dust covers protect against moisture and debris ingress
• Clean flush-mount faceplate design for a professional finish

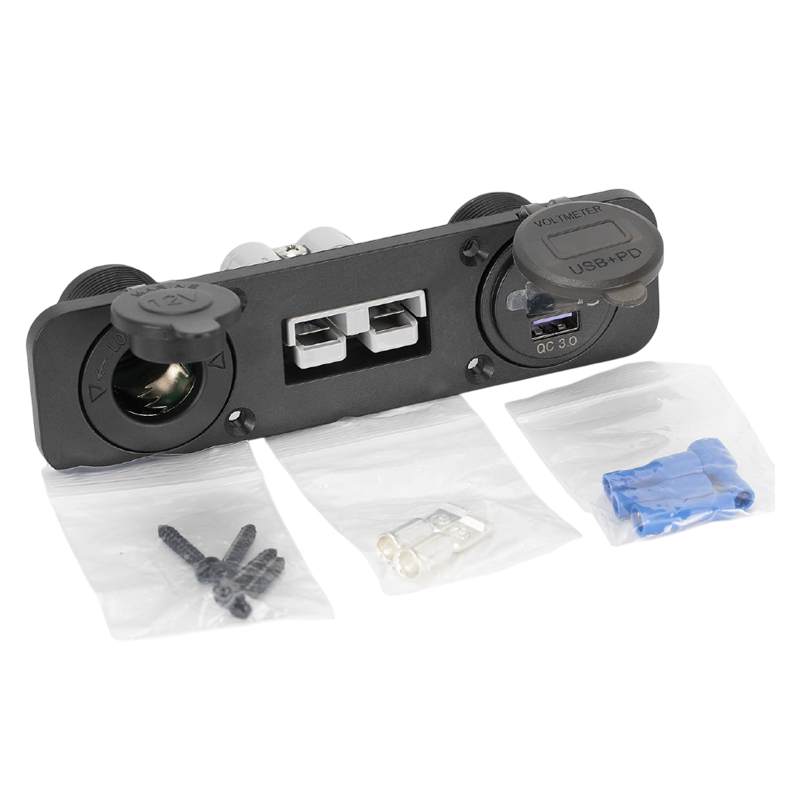

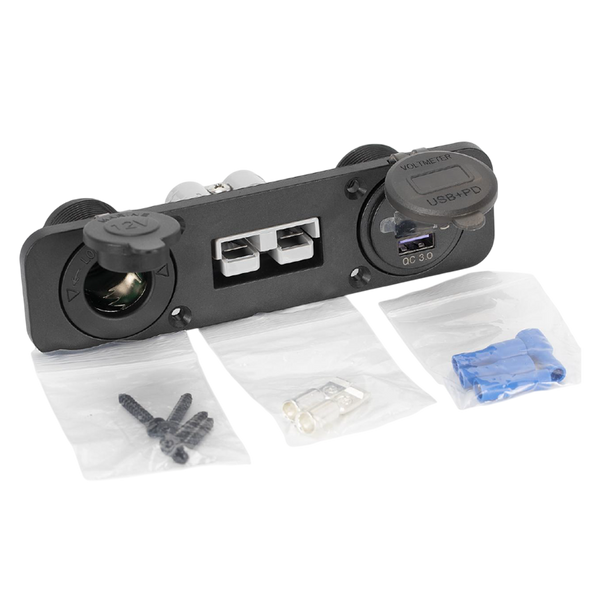

• Complete installation kit included with mounting screws and crimp terminals

Streamline Your Mobile Power Setup

Consolidating your power connections reduces wiring complexity and minimizes potential failure points in your electrical system. This multi-socket flush mount panel offers the versatility required for demanding environments, making it highly suited for 12V caravan systems, marine dashboards, and custom 4x4 builds. By integrating high-performance Anderson connectivity with rapid USB charging, you ensure that every device, from high-draw compressors to sensitive mobile phones, receives reliable power.

Ready to refine your vehicle electrical system? Upgrade your power distribution setup today with a panel engineered for clean installation and maximum utility across all your off-grid applications.
