Exotronic 12/24V 5x LED Rocker Marine Switch Panel

Exotronic 12/24V 5x LED Rocker Marine Switch Panel

Professional-Grade Marine Switch Panel for Reliable 12V and 24V Control

The Exotronic 12/24V 5x LED Rocker Marine Switch Panel delivers precise, centralised control for your vehicle, vessel, or off-grid electrical system. Engineered for demanding environments, this panel combines a corrosion-resistant aluminium faceplate with durable ABS switch housings, offering a robust solution for managing lights, pumps, electronics, and accessories. Whether you are outfitting a 4WD, caravan, boat, or RV, this panel provides the reliability and clarity needed for safe operation.

Unlike generic switch panels that can fail under load or corrode in marine conditions, the Exotronic panel is built with marine-grade materials and high-current contacts rated for 20 A at 12 V and 10 A at 24 V. This ensures stable performance even when powering multiple high-draw devices simultaneously. The blue LED indicators on each rocker switch provide clear status visibility day or night, reducing the risk of leaving equipment accidentally powered on and draining your battery.

Built for Harsh Australian Conditions

Designed to withstand temperature extremes from -25°C to 80°C, this switch panel is suitable for everything from freezing alpine mornings to scorching outback heat. The black anodised aluminium faceplate resists corrosion, UV damage, and salt spray, making it an excellent choice for coastal and marine applications. The ABS switch bodies are flame-retardant and impact-resistant, adding an extra layer of safety in confined installations such as engine bays or battery compartments.

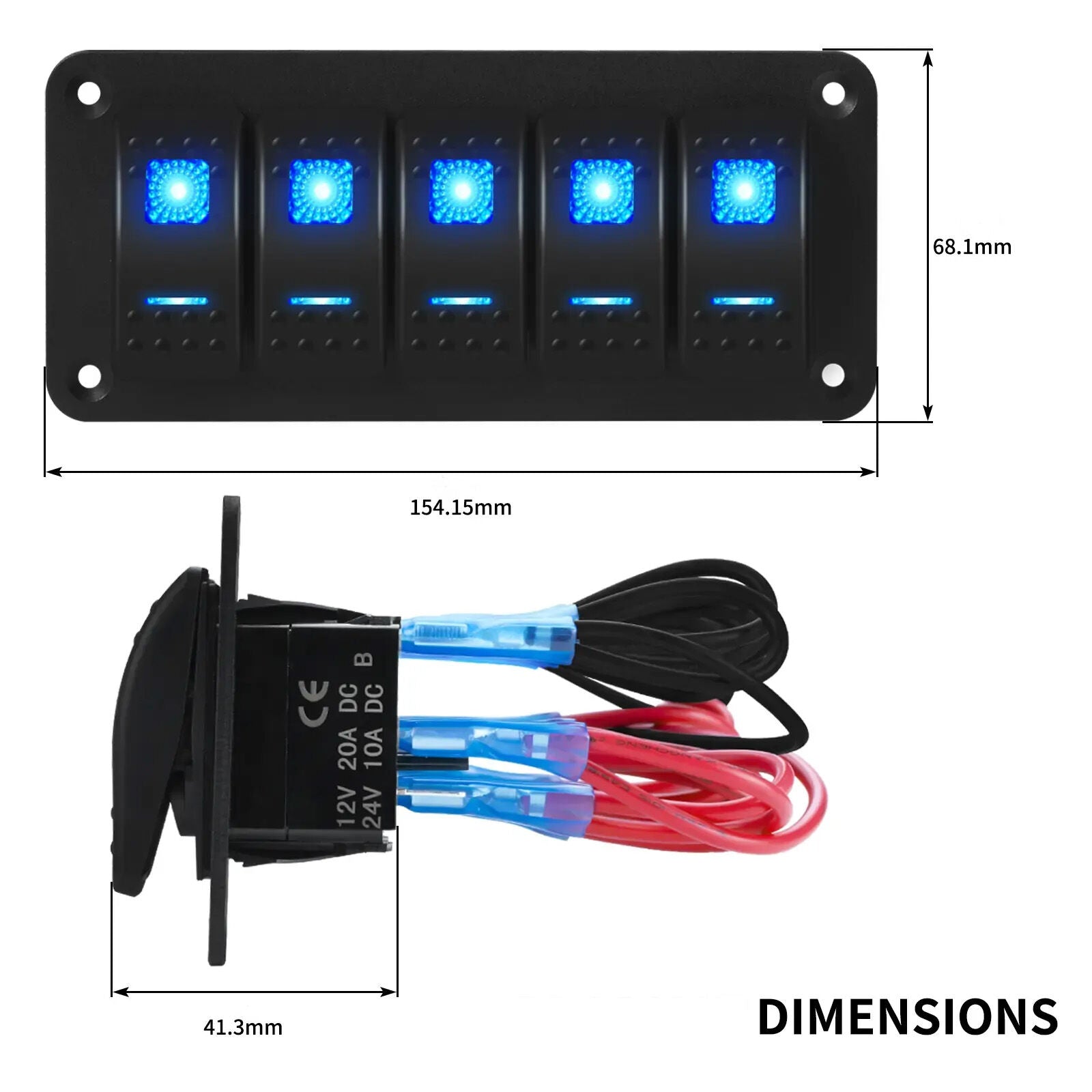

Installation is straightforward thanks to the pre-wired harness with insulated spade connectors, which minimises wiring errors and saves time. The compact footprint—154 mm wide by 68 mm high—allows it to fit neatly into most dashboards, consoles, or overhead panels without requiring extensive modification.

Key Features

• Dual voltage compatibility — operates seamlessly on both 12 V and 24 V DC systems, covering cars, trucks, boats, and off-grid setups
• High current rating — 20 A at 12 V / 10 A at 24 V per switch, supporting demanding loads like driving lights, compressors, or inverters
• Marine-grade construction — aluminium faceplate and ABS switch bodies resist corrosion, UV, and salt spray
• Blue LED indicators — dual-function illumination for night-time location and active status confirmation
• Custom labelling kit — includes a sheet of DIY icon stickers to personalise each switch for lights, pumps, fans, and more

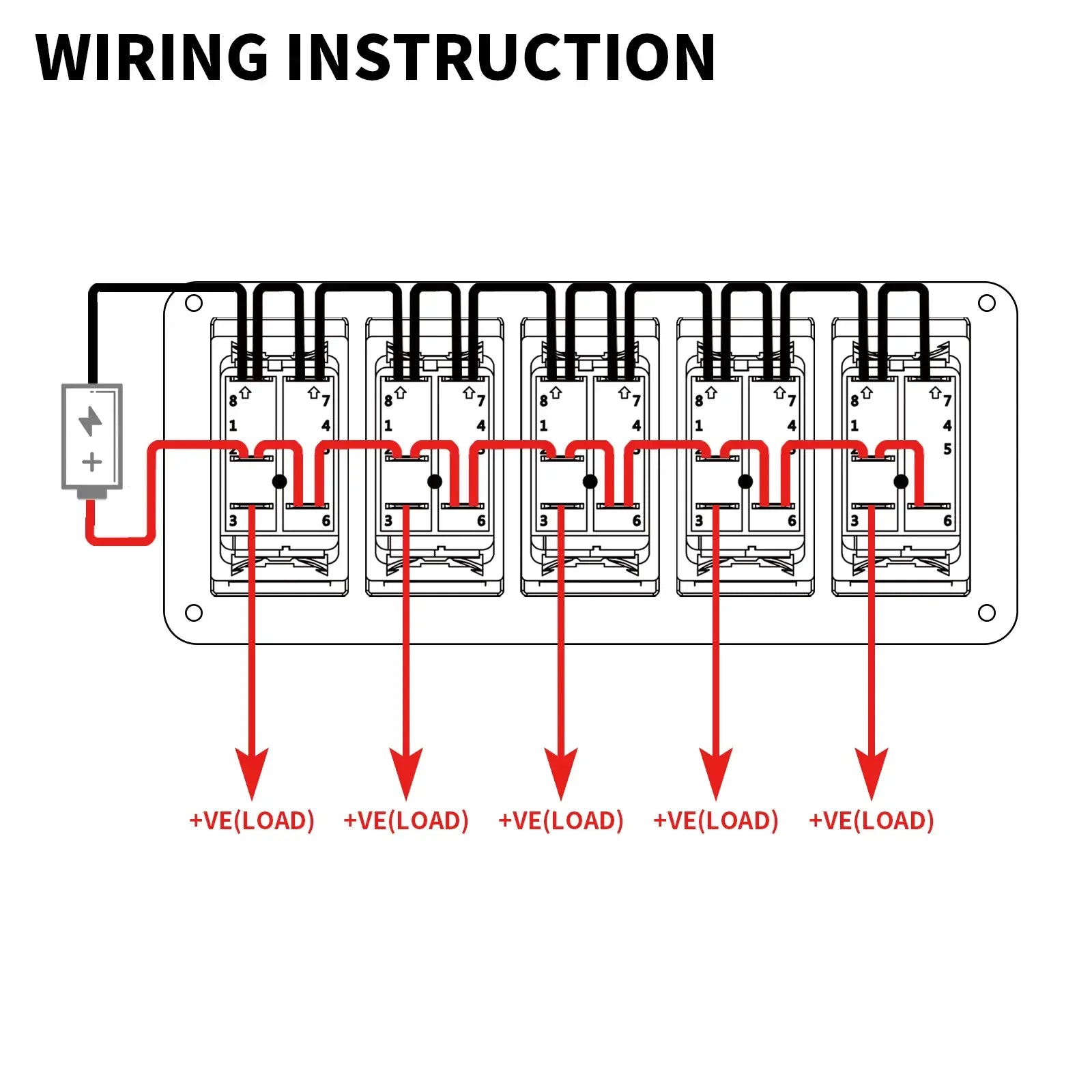

• Pre-wired harness — daisy-chained power and ground wiring with insulated connectors for quick, tidy installation
• Wide operating temperature — rated from -25°C to 80°C for reliable performance in extreme climates

Flexible Configuration for Any Setup

The panel’s 5 independent rocker switches allow you to control multiple circuits from a single, organised location. Each switch can be wired individually if your application requires the full 20 A per circuit—simply remove the existing daisy-chain harness and connect directly. This flexibility makes the panel suitable for everything from basic lighting control to managing complex auxiliary systems in camper trailers, work utes, and fishing boats.

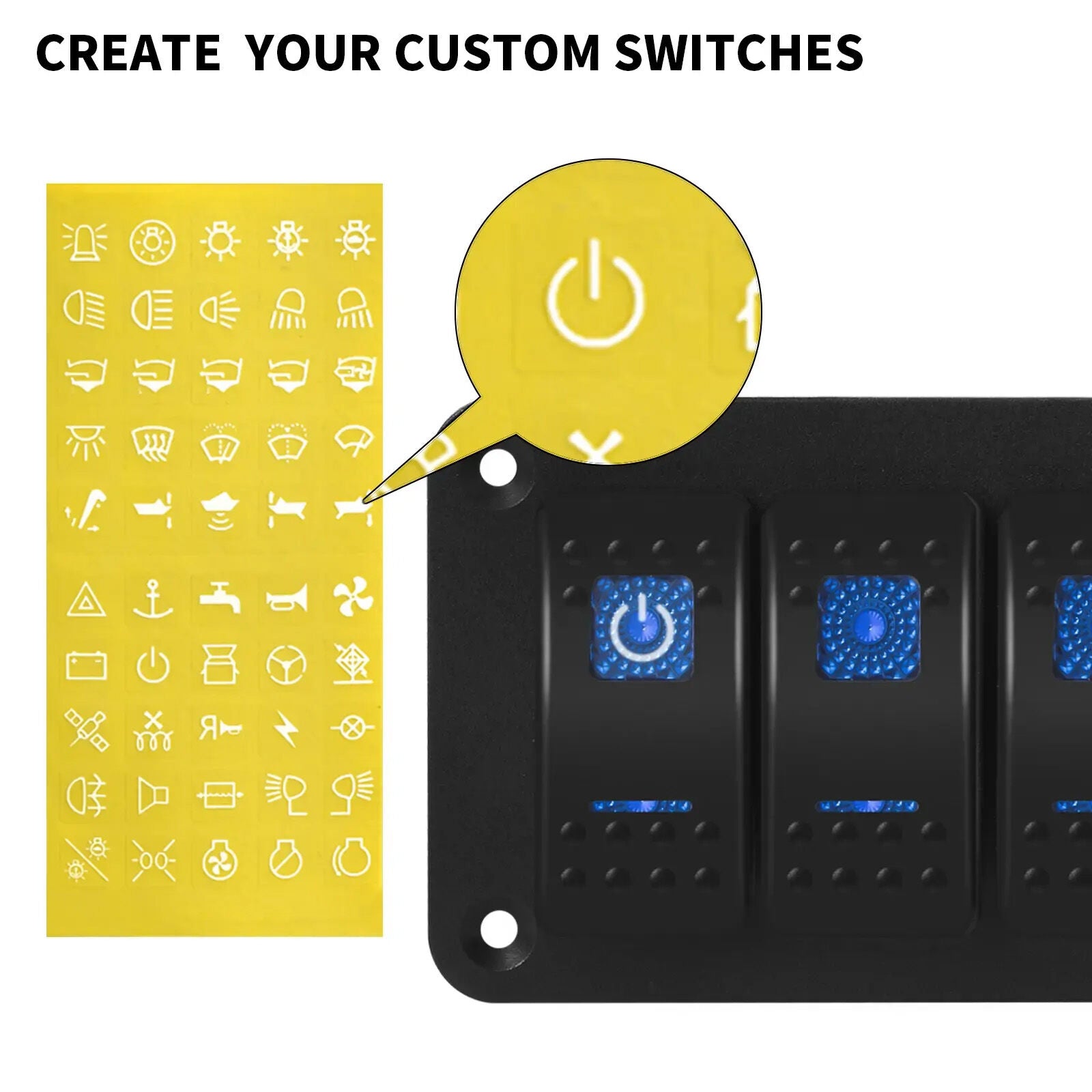

The included sticker sheet features a variety of common marine and automotive icons, letting you label switches for functions such as navigation lights, bilge pumps, fridges, or USB outlets. This not only improves usability but also enhances safety by ensuring all operators can quickly identify the correct switch in an emergency.

Reduce Risk and Downtime

Electrical failures in remote locations can be more than inconvenient—they can be dangerous. The Exotronic switch panel reduces this risk through robust internal contacts and secure screw terminals that resist vibration and thermal cycling. The flame-retardant ABS housing provides peace of mind when installed near fuel systems or battery banks, while the fully insulated connectors minimise the chance of accidental shorts during installation or maintenance.

By centralising your switching in a single, purpose-built panel, you also reduce the clutter and potential failure points associated with multiple inline switches or improvised wiring. This professional approach not only looks cleaner but also simplifies troubleshooting and future upgrades.

Take Command of Your Electrical System

Whether you are building a new 12V electrical system for your caravan, upgrading the switchgear on your aluminium boat, or adding controlled accessory circuits to your 4WD, the Exotronic 12/24V 5x LED Rocker Marine Switch Panel offers the durability, clarity, and performance you need. Order yours today and experience the confidence that comes with professional-grade power management.
