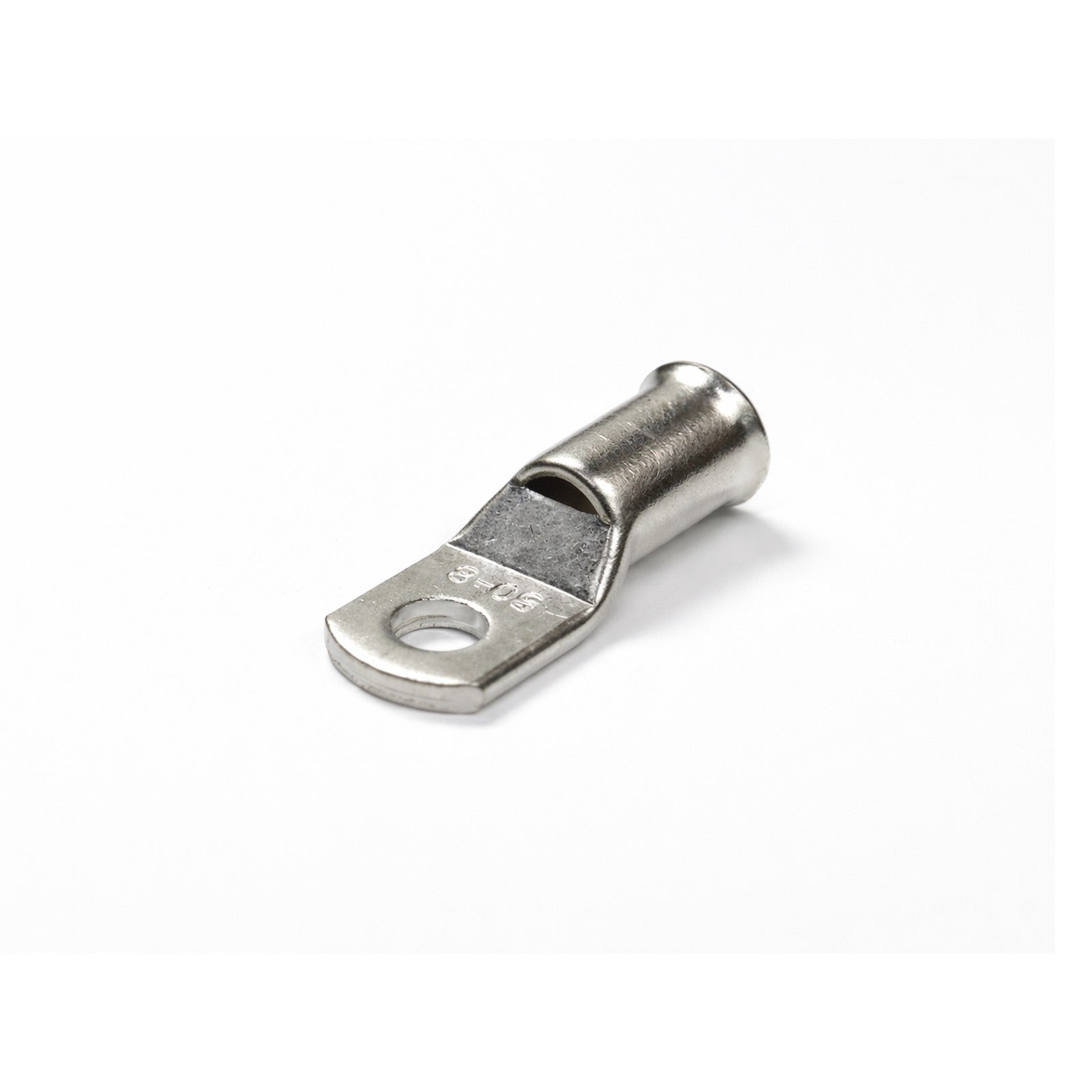

Exotronic 50mm² Copper Lug M8 | Bellmouth

Exotronic 50mm² Copper Lug M8 | Bellmouth: Precision Tinned Copper Lug with Bellmouth Entry for High-Current Connections

Engineered for Reliable, Low-Resistance Terminations in Demanding Environments

The Exotronic 50mm² Copper Lug M8 | Bellmouth is a high-performance tinned copper lug designed to create secure, low-resistance electrical connections in caravan, RV, marine, off-grid solar, and industrial applications. Manufactured from 99.9% pure C11000 ETP copper and electroplated with 99.9% pure tin, this lug delivers exceptional conductivity (99.7% IACS) while providing robust protection against corrosion, oxidation, and harsh environmental conditions. Whether you are wiring a 12V battery bank, terminating solar inverter cables, or building a marine electrical system, this lug ensures a durable, professional-grade connection that maintains performance over time.

Unlike generic lugs that may use lower-grade copper or inconsistent plating, the Exotronic bellmouth lug is fully annealed to prevent cracking during crimping and features a seamless barrel for uniform conductivity. The 5-micron tin plating provides a reliable barrier against moisture and salt spray, making it suitable for coastal and marine environments where corrosion is a primary concern. This attention to material quality and manufacturing precision reduces the risk of hot spots, voltage drop, and premature failure often seen in inferior terminals.

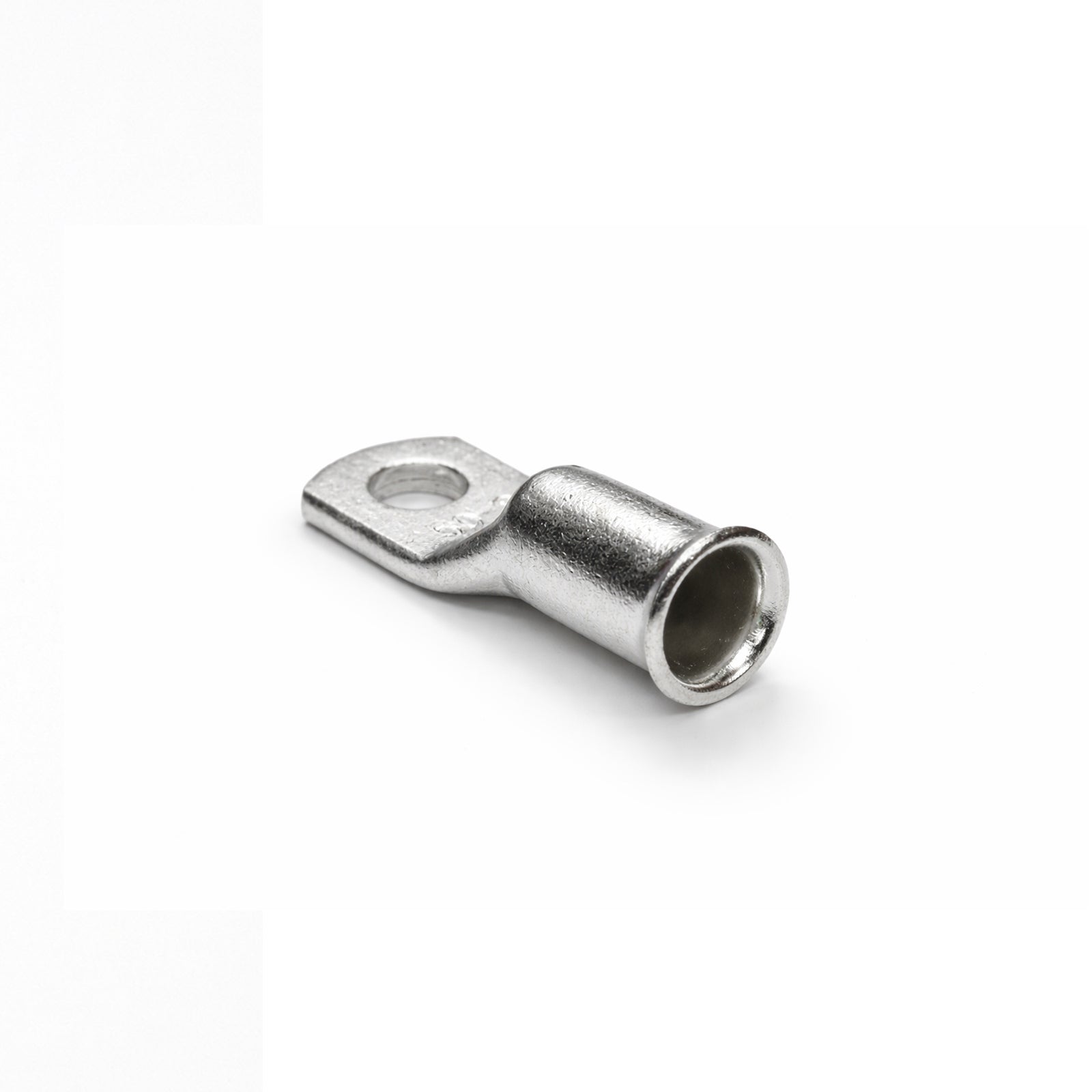

Bellmouth Entry: Faster, Cleaner Installations with Fine-Stranded Cable

A standout feature of this lug is its flared bellmouth barrel opening, which simplifies the insertion of fine-stranded copper cable. The smooth, funnel-shaped entry guides individual strands into the barrel without splaying or folding, reducing installation time and minimising the chance of a poor crimp. This design is particularly beneficial when working with high-flex battery cable or welding cable, where strand management can be challenging. The result is a neat, reliable crimp that maximises contact area and mechanical strength.

Key Features

• 99.9% pure C11000 ETP copper with 99.7% IACS conductivity for minimal power loss
• Electro-tin plated (5 microns) for superior corrosion resistance in marine and outdoor settings
• Flared bellmouth entry enables quick, damage-free insertion of fine-stranded cables
• Fully annealed to prevent cracking and ensure a gas-tight crimp connection
• Seamless barrel construction for consistent wall thickness and uniform current distribution
• Wide operating temperature range from -55°C to 155°C for extreme environments
• Manufactured to AS/NZS 4325.1:1995 for quality assurance and compatibility with standard crimping tools

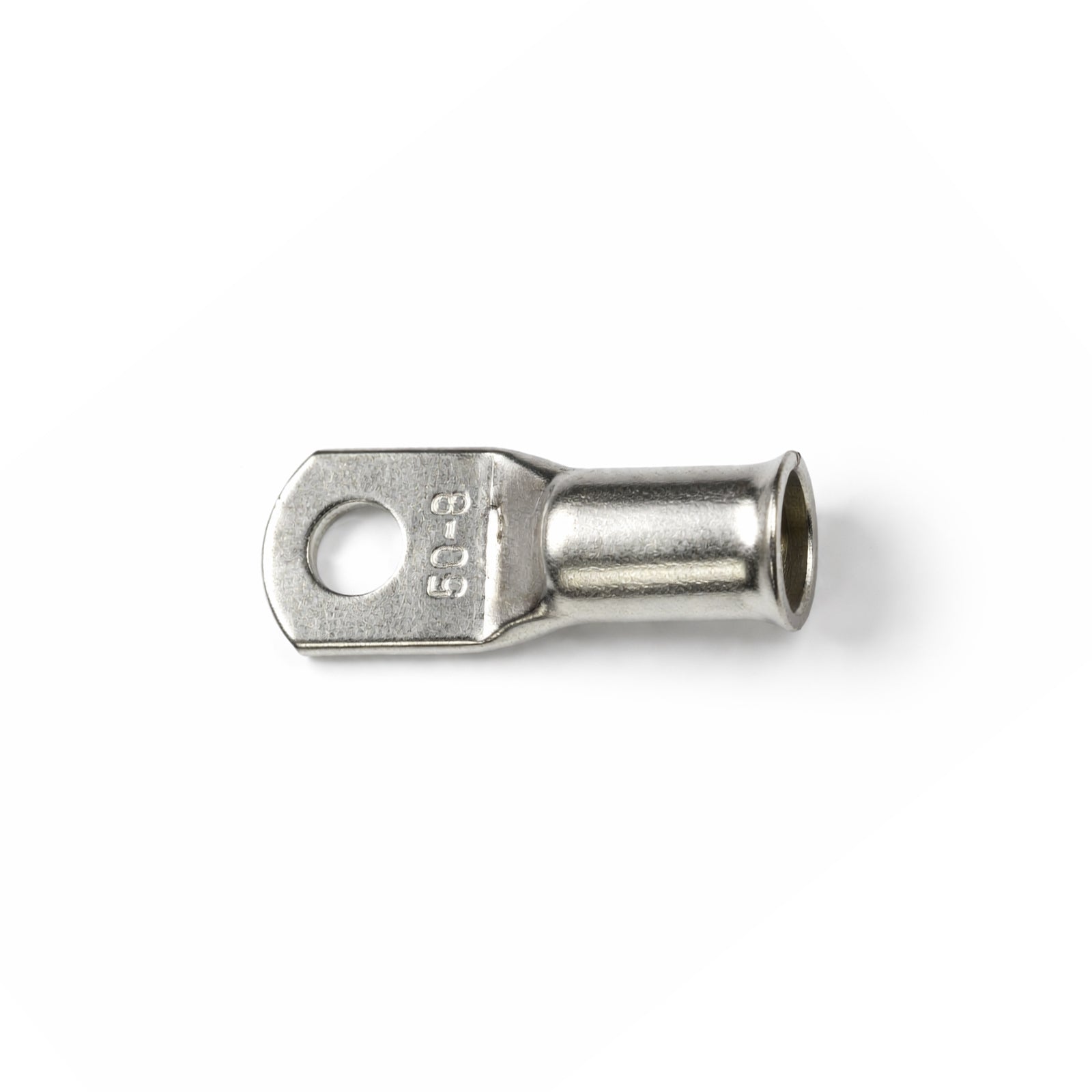

• Clearly stamped size identification for quick selection and inventory management

Built for Australian Conditions

From the corrosive salt air of coastal installations to the vibration and temperature swings of outback touring, this lug is built to endure. The oxygen-free copper base material resists embrittlement at low temperatures, while the thick tin plating withstands humidity and chemical exposure. Whether you are securing connections in a 4WD dual-battery system, a solar charge controller, or an industrial control panel, you can trust this lug to maintain a stable, low-resistance joint over the long term.

Applications

• Caravan and RV battery wiring – reliable terminations for house and starter batteries
• Marine and boat electrical systems – corrosion-resistant connections for bilge pumps, switch panels, and busbars
• Off-grid solar and battery storage – secure lugs for inverters, charge controllers, and battery interconnects
• Industrial machinery and equipment – heavy-duty terminations for motors, generators, and distribution boards
• Tiny homes and portable buildings – compact, high-current connections for limited-space wiring

Why Choose Exotronic Copper Lugs?

Exotronic lugs are specified by installers who demand consistent quality and long-term reliability. By using high-purity materials and adhering to Australian standards, these lugs help eliminate common failure points such as corrosion-induced resistance, cracked barrels from work-hardened copper, and poor crimp adhesion. The bellmouth design further reduces installation errors, making it easier to achieve a professional result even in tight spaces or with less accessible cable runs.

For critical connections where safety and performance are non-negotiable, the Exotronic 50mm² Copper Lug M8 | Bellmouth provides the peace of mind that comes from using a properly engineered component rather than a generic alternative.

Secure Your Electrical System with Confidence

Upgrade your wiring project with the Exotronic 50mm² Copper Lug M8 | Bellmouth and experience the difference that precision manufacturing and quality materials make. Whether you are a professional installer or a DIY enthusiast, this lug delivers the reliable, low-resistance connection your system deserves. Add it to your toolkit today and build electrical systems that last.
