10 Pack of Exotronic 95mm² Copper Lug M10 | Bellmouth

Exotronic Tinned Copper Bellmouth Lugs: Professional-Grade Terminations for Critical DC Systems

Engineered for Low-Resistance, High-Reliability Connections

The Exotronic Bellmouth Copper Lug range delivers a superior termination solution for 95mm² conductors in high-current battery and power systems. Fabricated from 99.9% pure C11000 oxygen-free copper and electroplated with 99.9% pure tin, these lugs provide exceptional conductivity (99.9% IACS) and robust corrosion resistance, ensuring a stable, low-loss connection over the life of your system. Unlike generic brass or thinly plated alternatives, the heavy 5-10 micron tin layer and fully annealed barrel resist cracking, oxidation, and galvanic corrosion, even in harsh Australian coastal and outback environments.

Each lug is precision-stamped with its cable and stud size for instant identification, and the integrated inspection window allows a visual check that the conductor is fully seated before crimping. This attention to detail reduces the risk of high-resistance joints, localised heating, and premature failure, common problems with substandard terminals.

Bellmouth Entry: Faster, Cleaner Installations

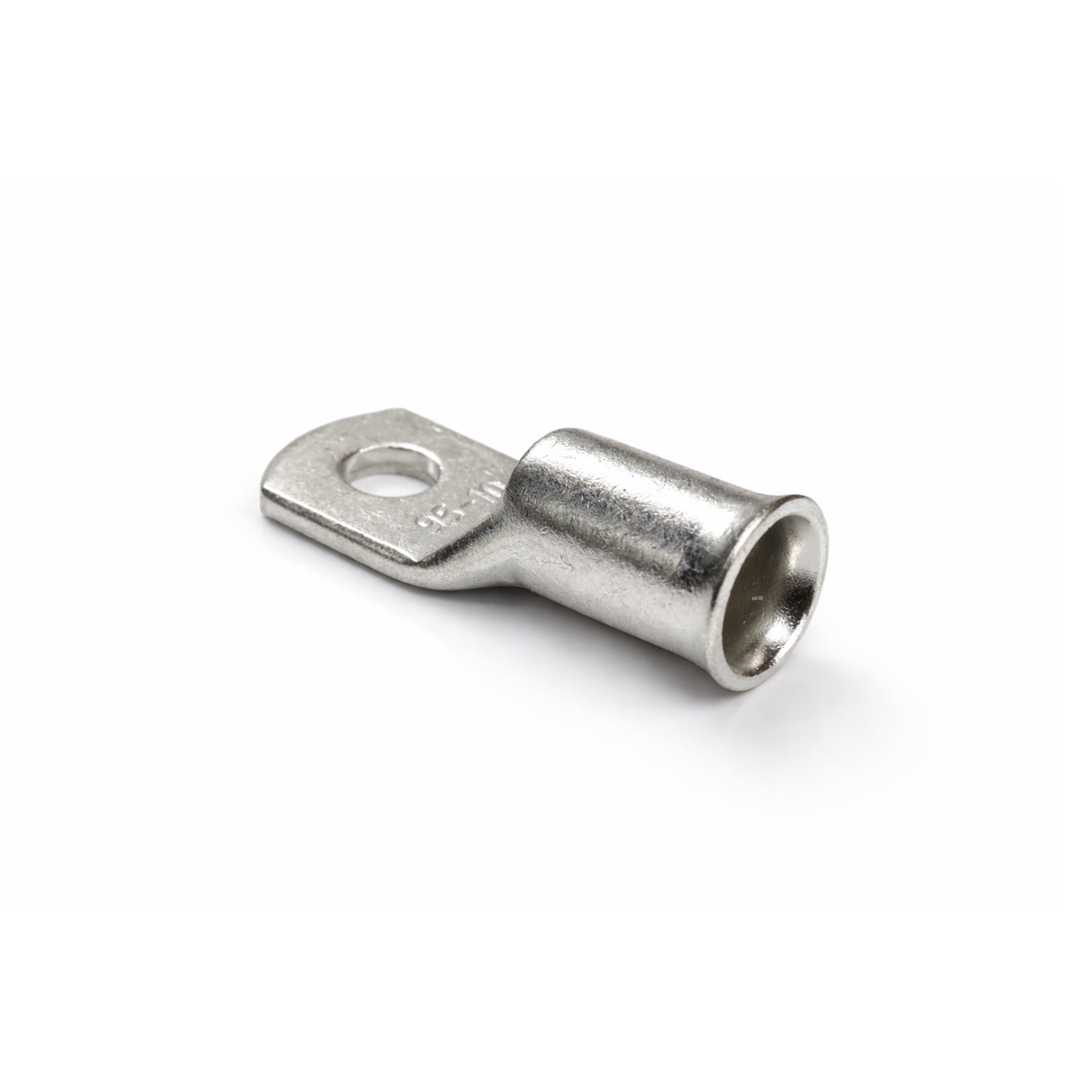

The defining feature of this lug is its flared bellmouth barrel entry. This design guides fine-stranded and multi-strand copper cables smoothly into the barrel, eliminating strand snagging, splaying, or birdcaging during insertion. The result is a faster, more consistent crimp with full conductor capture, which is critical for high-vibration environments such as caravans, RVs, marine vessels, and off-grid solar systems. The fully annealed copper barrel deforms uniformly under a standard hexagonal or indent crimp, creating a cold-welded, gas-tight connection that maintains low resistance across a wide temperature range (-55°C to 155°C).

Key Features

• 99.9% Pure Tinned Copper: C11000 grade with 5-10 micron tin plating for maximum conductivity and corrosion protection
• Bellmouth Cable Entry: Flared barrel prevents strand damage and speeds up insertion of fine-stranded cables

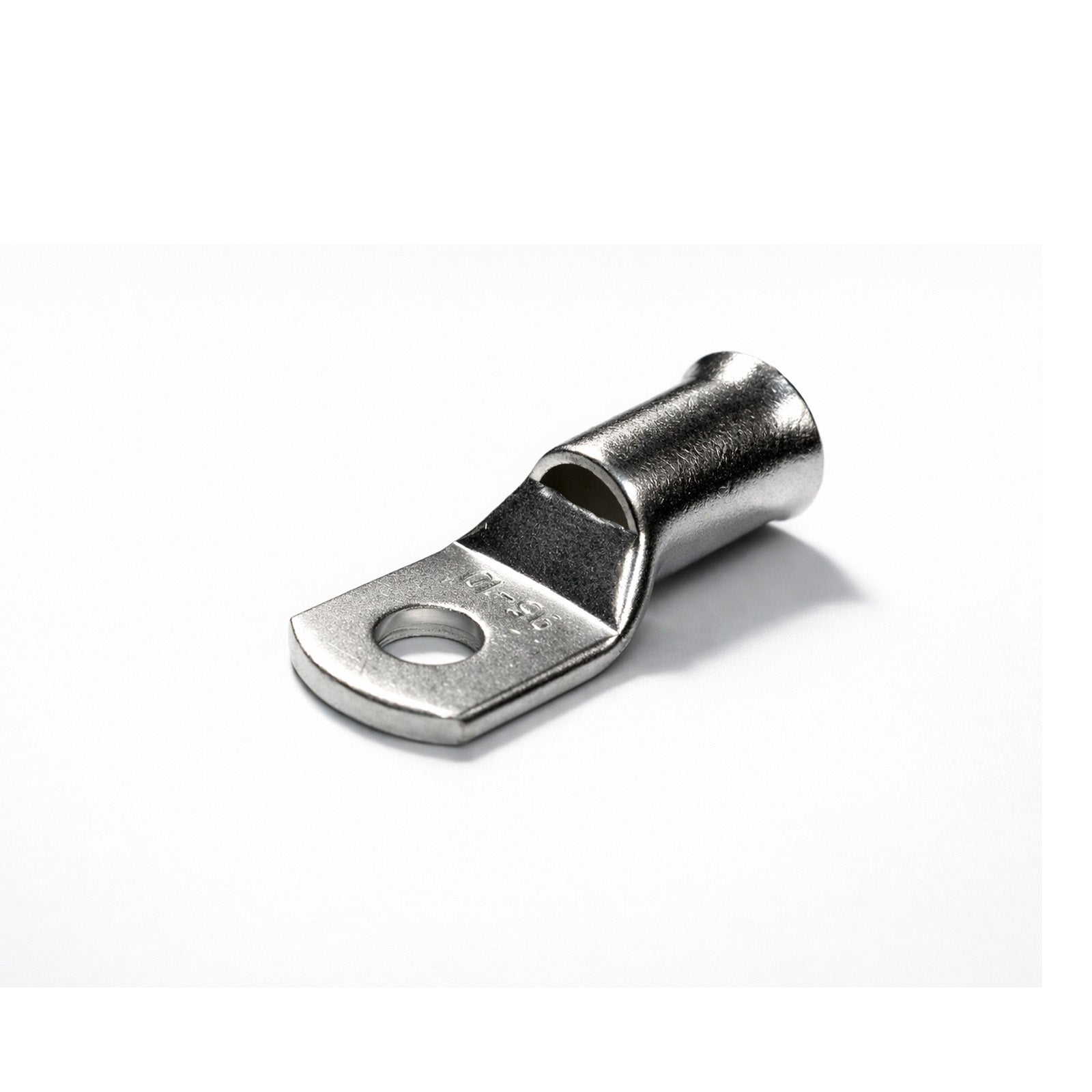

• Inspection Window: Allows visual confirmation of full conductor insertion before crimping
• Fully Annealed Barrel: Ensures crack-free crimping and excellent strain relief

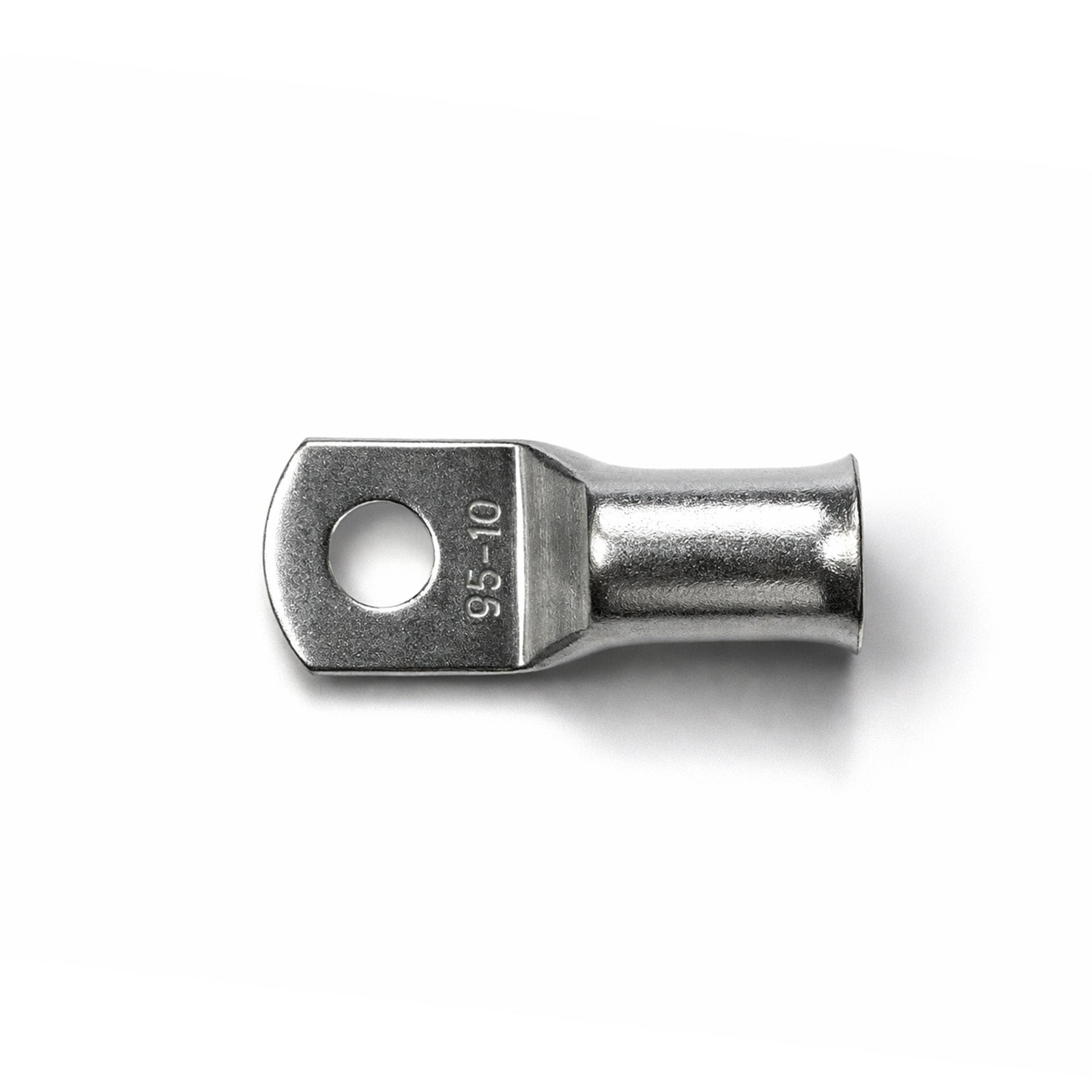

• Clear Size Markings: Stamped with cable cross-section and stud diameter for easy identification
• Manufactured to AS/NZS 4325.1:1995: Manufactured to meet Australian and New Zealand standards for electrical terminals
• Wide Operating Range: Reliable performance from -55°C to 155°C

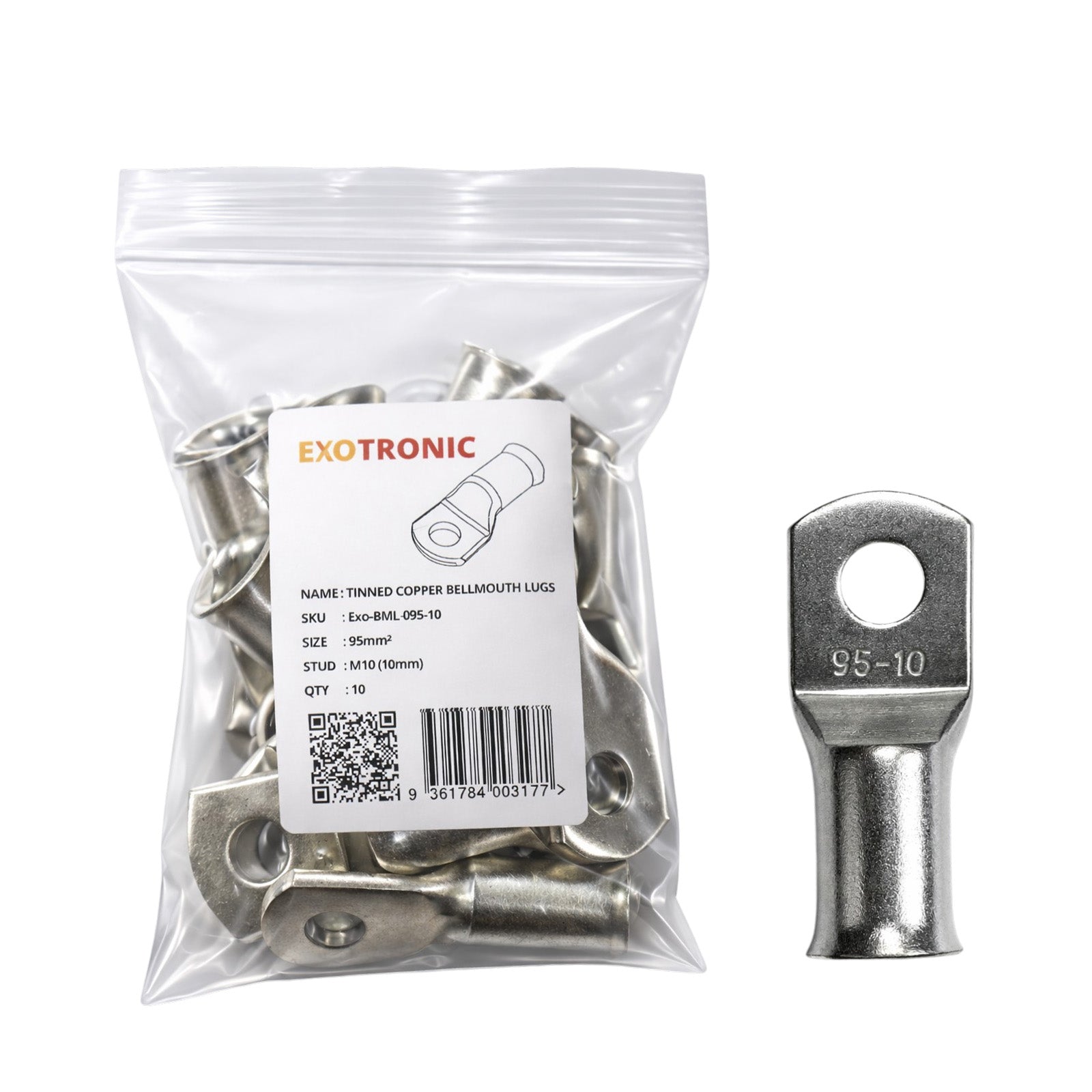

• Pack of 10: Convenient quantity for professional installers and serious DIY projects

Built to Outperform Generic Terminals

Many off-the-shelf lugs use lower-grade copper alloys or minimal tin flash plating that wears through after a few thermal cycles, exposing the copper to oxidation and increasing contact resistance. Exotronic lugs use a thick, uniform electro-tin coating over high-purity oxygen-free copper, maintaining a stable, low-resistance interface even in humid, salty, or high-temperature conditions. The bellmouth entry also addresses a common frustration: inserting finely stranded cable into a sharp-edged barrel often leads to bent or broken strands, reducing the effective cross-sectional area and creating hot spots. By eliminating this risk, Exotronic lugs help ensure your terminations remain cool and reliable under load.

Applications

These lugs are ideal for high-current battery and power systems, including:

• Battery interconnects and main power feeds in caravans, RVs, and marine vessels
• Off-grid solar battery banks and inverter cabling
• Industrial machinery and mobile equipment with high-vibration profiles
• Emergency backup power systems and telecommunications sites
• DIY electrical projects requiring professional-grade terminations

Secure Your Connections with Confidence

Whether you are upgrading a caravan, RV, marine, or off-grid solar system or building a new off-grid power system, the Exotronic Bellmouth Copper Lug provides the conductivity, durability, and ease of installation that professionals demand. Stock your workshop with a pack of 10 and experience the difference that precision-engineered terminations make in your next project.
