10 Pack of Exotronic 25mm² Copper Lug M10 | Bellmouth

Exotronic Tinned Copper Bellmouth Lugs: Professional-Grade Terminations for Critical DC Systems

Engineered for Low-Resistance, High-Reliability Connections

The Exotronic Bellmouth Copper Lug range delivers a superior termination solution for 25mm² conductors in caravan, RV, marine, solar, and industrial applications. Fabricated from 99.9% pure C11000 oxygen-free copper and electroplated with 99.9% pure tin, these lugs provide exceptional conductivity (99.9% IACS) and robust corrosion resistance, ensuring a stable, low-loss connection over the life of your system. Unlike generic brass or thinly plated alternatives, the heavy 5-10 micron tin layer and fully annealed barrel resist cracking, oxidation, and galvanic corrosion, even in harsh Australian coastal and outback environments.

Each lug is precision-stamped with its cable and stud size for instant identification, and the integrated inspection window allows a visual check that the conductor is fully seated before crimping. This attention to detail reduces the risk of high-resistance joints, localised heating, and premature failure, common problems with substandard terminals.

Bellmouth Entry: Faster, Cleaner Installations

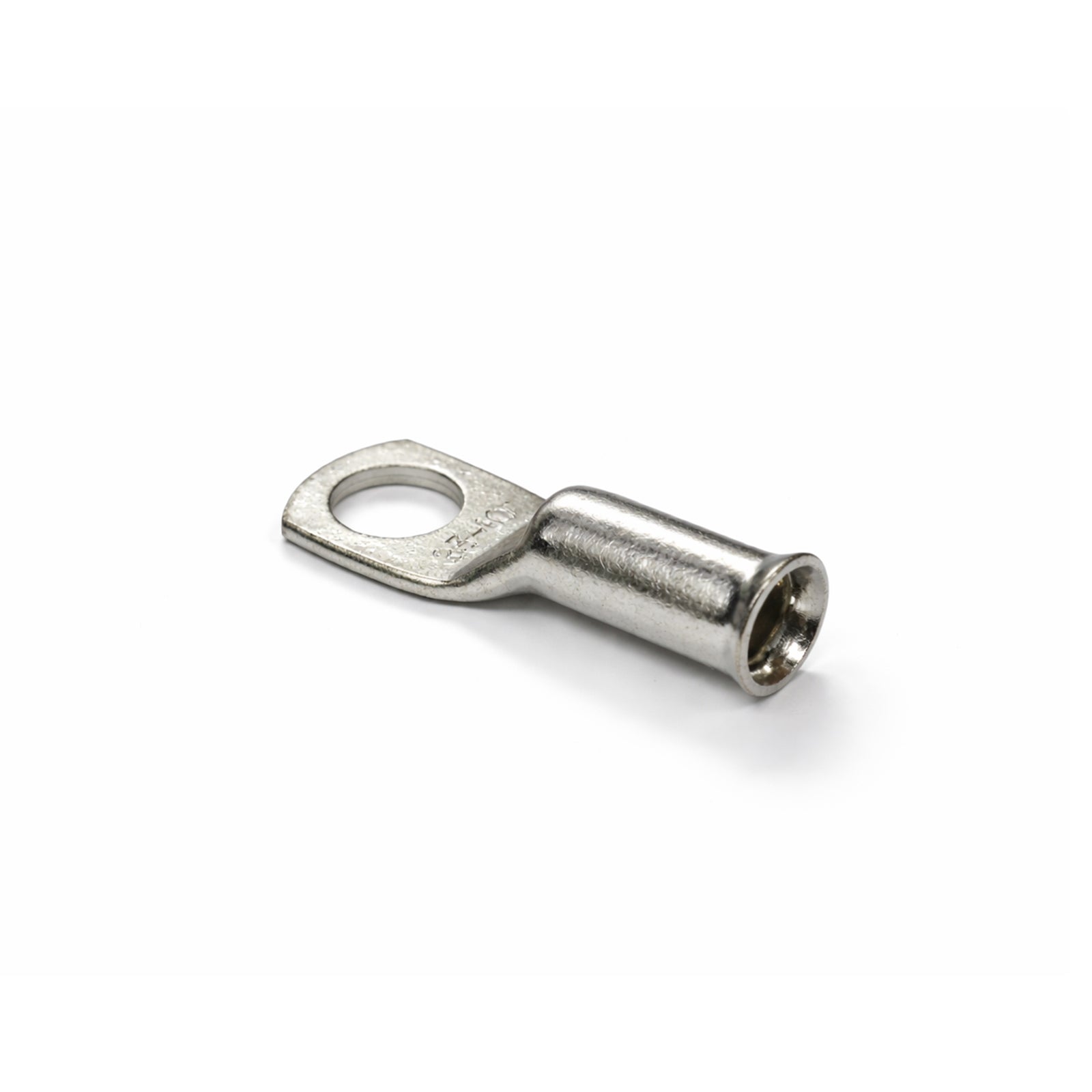

The defining feature of this lug is its flared bellmouth barrel entry. This design guides fine-stranded and multi-strand copper cables smoothly into the barrel, eliminating strand snagging, splaying, or birdcaging during insertion. The result is a faster, more consistent crimp with full conductor capture, which is critical for high-vibration environments such as caravan, RV, marine, solar, and industrial applications. The fully annealed copper barrel deforms uniformly under a standard hexagonal or indent crimp, creating a cold-welded, gas-tight connection that maintains low resistance across a wide temperature range (-55°C to 155°C).

Key Features

• 99.9% Pure Tinned Copper: C11000 grade with 5-10 micron tin plating for maximum conductivity and corrosion protection
• Bellmouth Cable Entry: Flared barrel prevents strand damage and speeds up insertion of fine-stranded cables

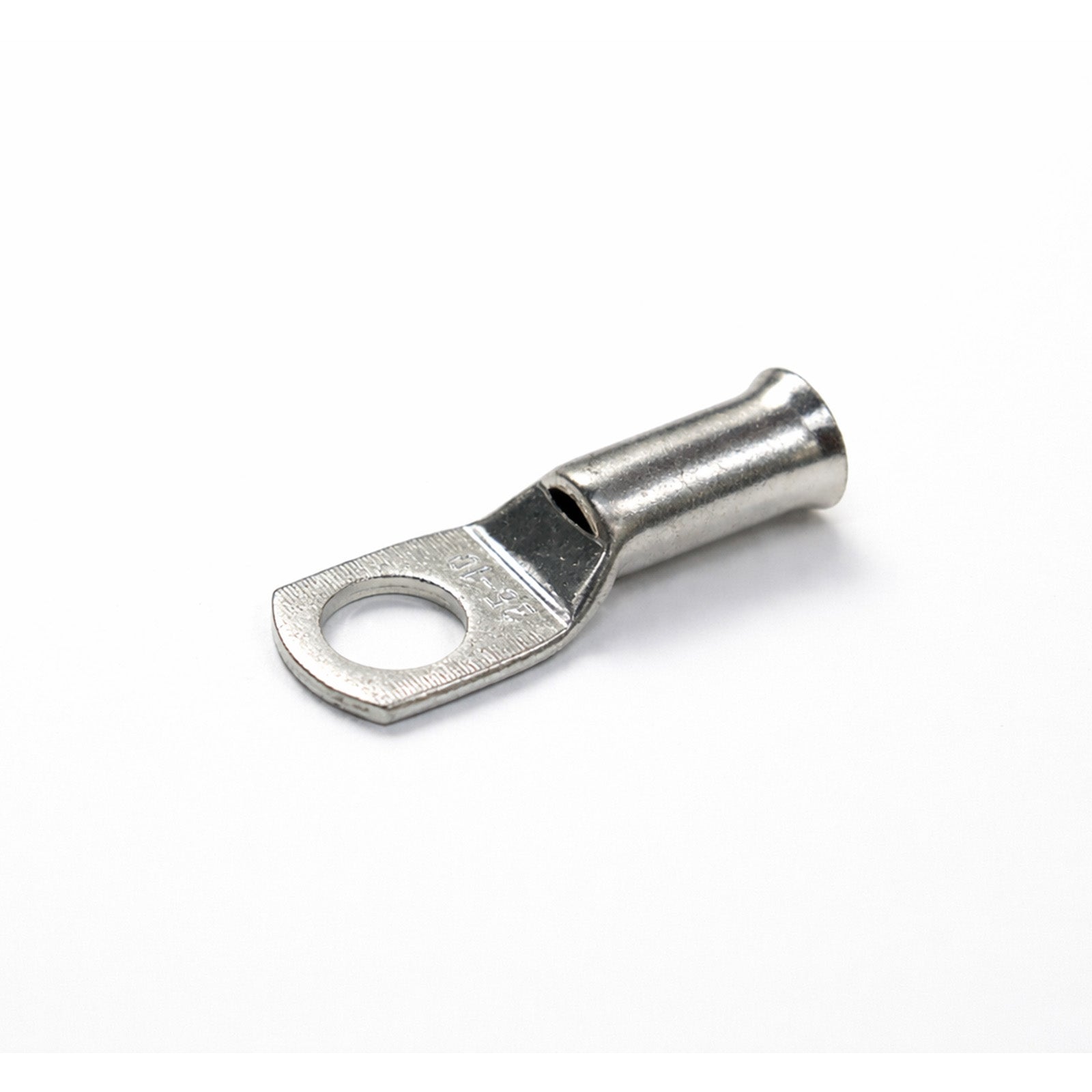

• Inspection Window: Allows visual confirmation of full conductor insertion before crimping
• Fully Annealed Barrel: Ensures crack-free crimping and excellent strain relief

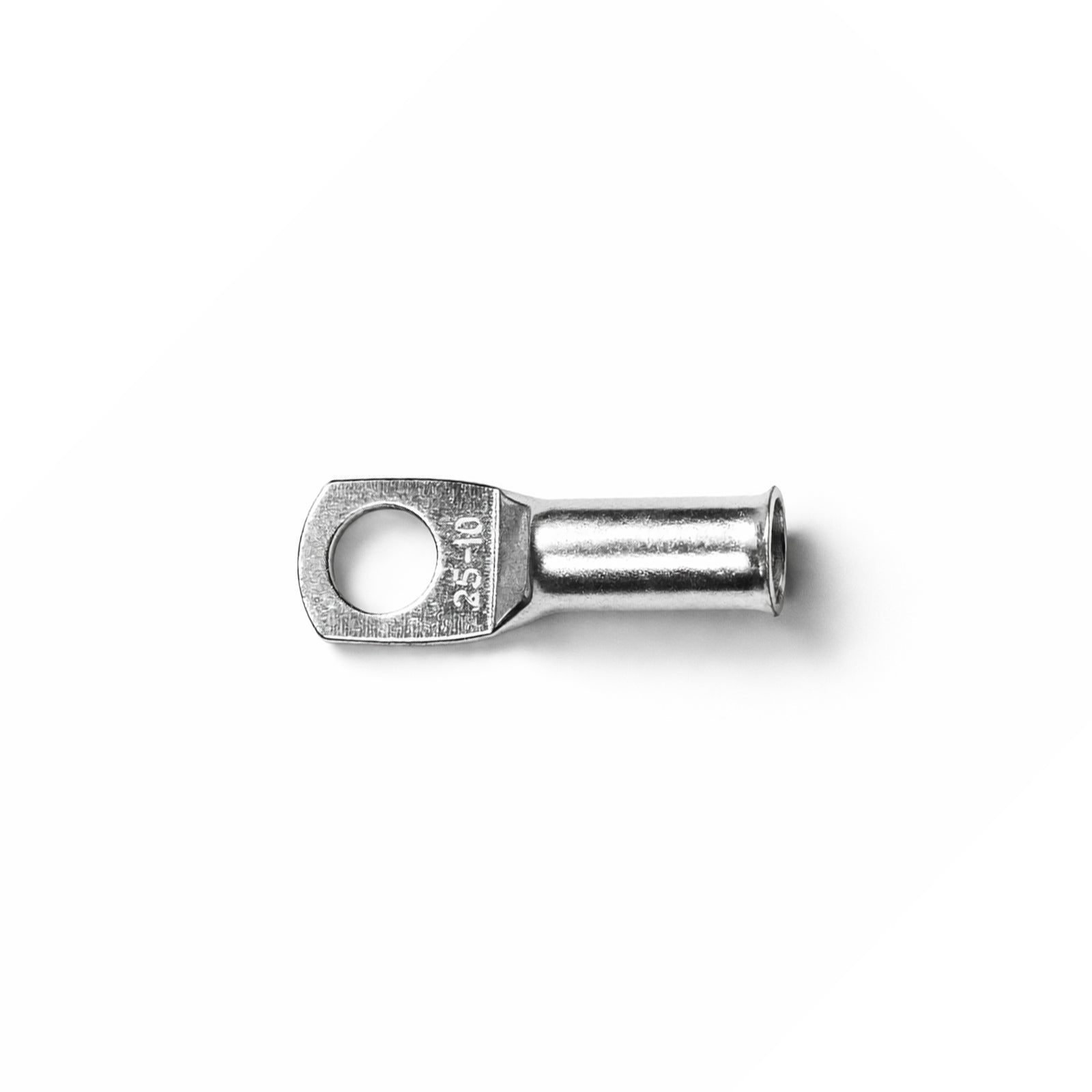

• Clear Size Markings: Stamped with cable cross-section and stud diameter for easy identification
• Manufactured to AS/NZS 4325.1:1995: Manufactured to meet Australian and New Zealand standards for electrical terminals
• Wide Operating Range: Reliable performance from -55°C to 155°C

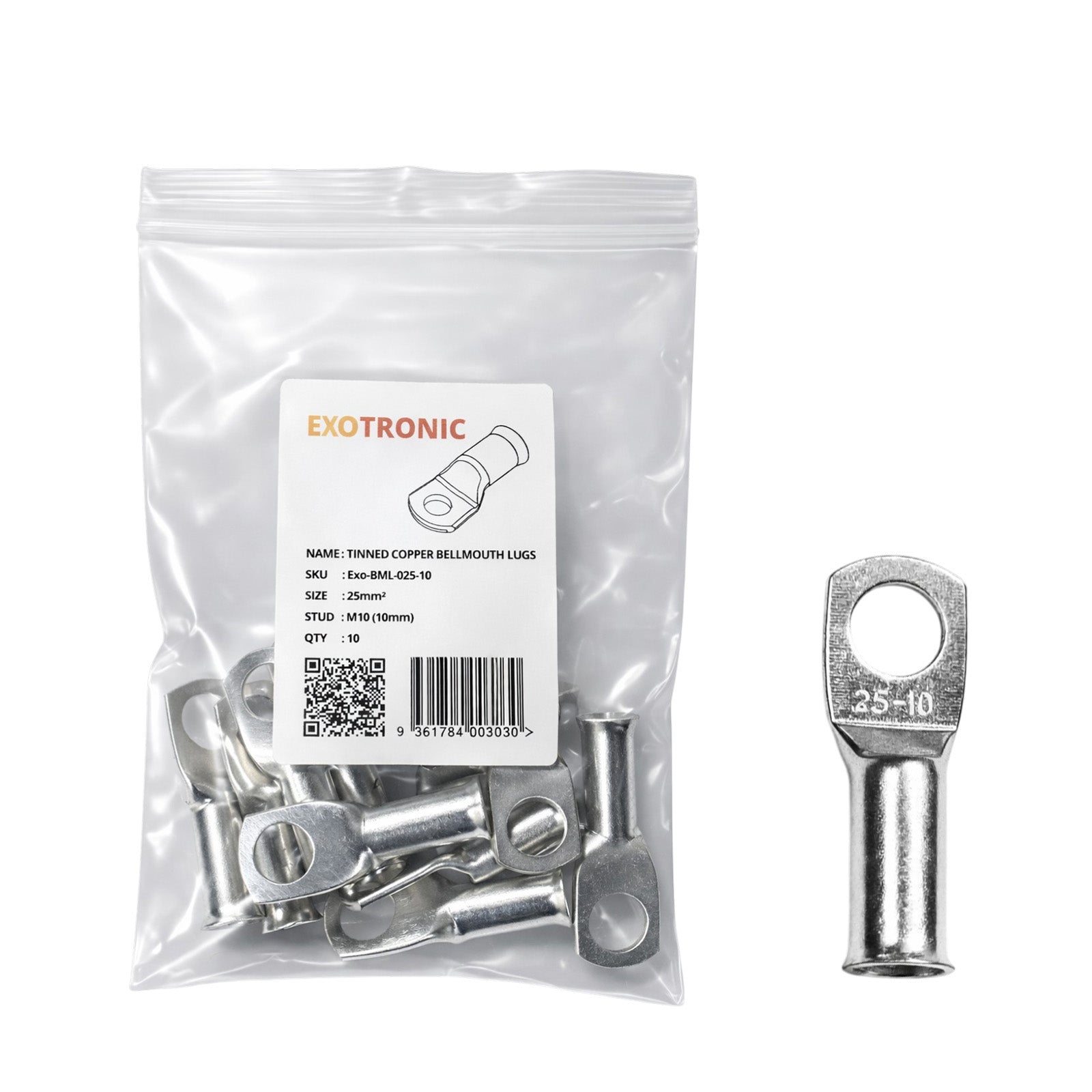

• Pack of 10: Convenient quantity for professional installers and serious DIY projects

Built to Outperform Generic Terminals

Many off-the-shelf lugs use lower-grade copper alloys or minimal tin flash plating that wears through after a few thermal cycles, exposing the copper to oxidation and increasing contact resistance. Exotronic lugs use a thick, uniform electro-tin coating over high-purity oxygen-free copper, maintaining a stable, low-resistance interface even in humid, salty, or high-temperature conditions. The bellmouth entry also addresses a common frustration: inserting finely stranded cable into a sharp-edged barrel often leads to bent or broken strands, reducing the effective cross-sectional area and creating hot spots. By eliminating this risk, Exotronic lugs help ensure your terminations remain cool and reliable under load.

Applications

These lugs are ideal for caravan, RV, marine, solar, and industrial applications, including:

• Battery interconnects and main power feeds in caravans, RVs, and marine vessels
• Off-grid solar battery banks and inverter cabling
• Industrial machinery and mobile equipment with high-vibration profiles
• Emergency backup power systems and telecommunications sites
• DIY electrical projects requiring professional-grade terminations

Secure Your Connections with Confidence

Whether you are upgrading a caravan, RV, marine, solar, or industrial system or building a new off-grid power system, the Exotronic Bellmouth Copper Lug provides the conductivity, durability, and ease of installation that professionals demand. Stock your workshop with a pack of 10 and experience the difference that precision-engineered terminations make in your next project.
