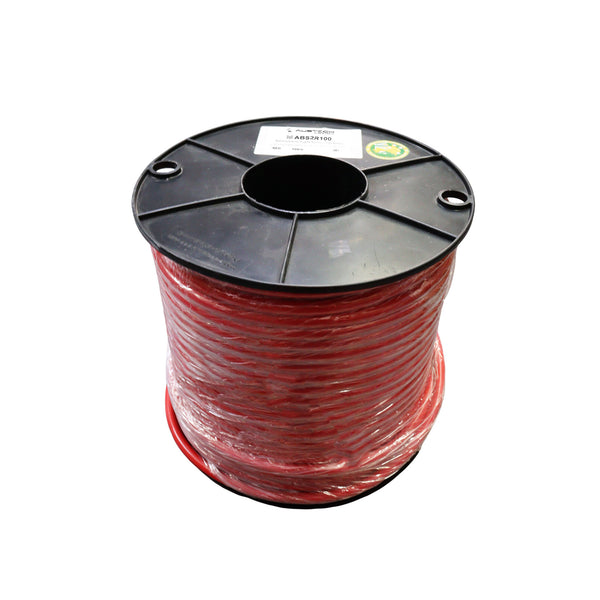

100m Roll of 2B&S (32mm²) Red Single Core Automotive Cable

High-Performance 2 B&S (32mm²) Automotive Cable for Heavy-Duty Power Systems

Reliable power delivery is the backbone of any 12V, 24V, or 48V electrical setup. This 100m Roll of 2 B&S (32mm²) Red Single Core Automotive Cable is engineered to meet the rigorous demands of Australian automotive, marine, and industrial environments. Featuring Oxygen Free High Conductivity (OFHC) copper, this cable offers superior electrical performance compared to standard starter cables, ensuring that your accessories, batteries, and starter motors receive the current they need without excessive voltage drop.

Designed for auto electricians and serious enthusiasts, this 100-meter roll provides a cost-effective solution for large-scale wiring projects, fleet maintenance, or workshop inventory. With a substantial 32mm² cross-sectional area (approx. 2 B&S) and a continuous rating of 190A, it serves as a robust foundation for dual battery systems, winch power supplies, and high-output alternator wiring.

The Oxygen-Free Copper Advantage

Not all copper cables are created equal. This series utilises OFHC copper, which is refined to remove oxygen and impurities that typically impede electron flow. In standard "tough pitch" copper, impurities can lead to increased resistance and heat generation under load.

Furthermore, OFHC copper exhibits exceptional resistance to hydrogen embrittlement. In high-temperature environments or specific atmospheric conditions, standard copper can become brittle and prone to cracking, leading to circuit failure. By choosing OFHC, you are investing in a conductor that maintains its mechanical integrity and flexibility, ensuring long-term reliability even in vibrating vehicle chassis or engine bays. This high purity also makes it an excellent choice for high-fidelity car audio installations where signal integrity and power stability are paramount.

Engineered for High-Current 12V, 24V, and 48V Systems

While commonly used for 12V automotive applications, the specifications of this cable allow for much greater versatility. Rated for a maximum DC voltage of 120V, this cable is fully compatible with modern 24V truck systems and emerging 48V lithium battery banks. The substantial 190A current rating (at 30°C) allows it to handle significant power surges from starter motors and sustained loads from inverters or DC-DC chargers. Using an undersized cable for these applications can result in dangerous overheating and significant power loss.

*Typical de-rating factors apply relative to ambient temperature and installation grouping.

Australian Standards Compliance and Durability

Safety and compliance are non-negotiable in professional installations. This cable is manufactured to AS/NZS 1125 for the conductor and AS/NZS 3808:2000 for the insulation material. The V90 grade insulation is capable of withstanding operating temperatures up to 90°C, providing a critical safety margin in hot engine compartments.

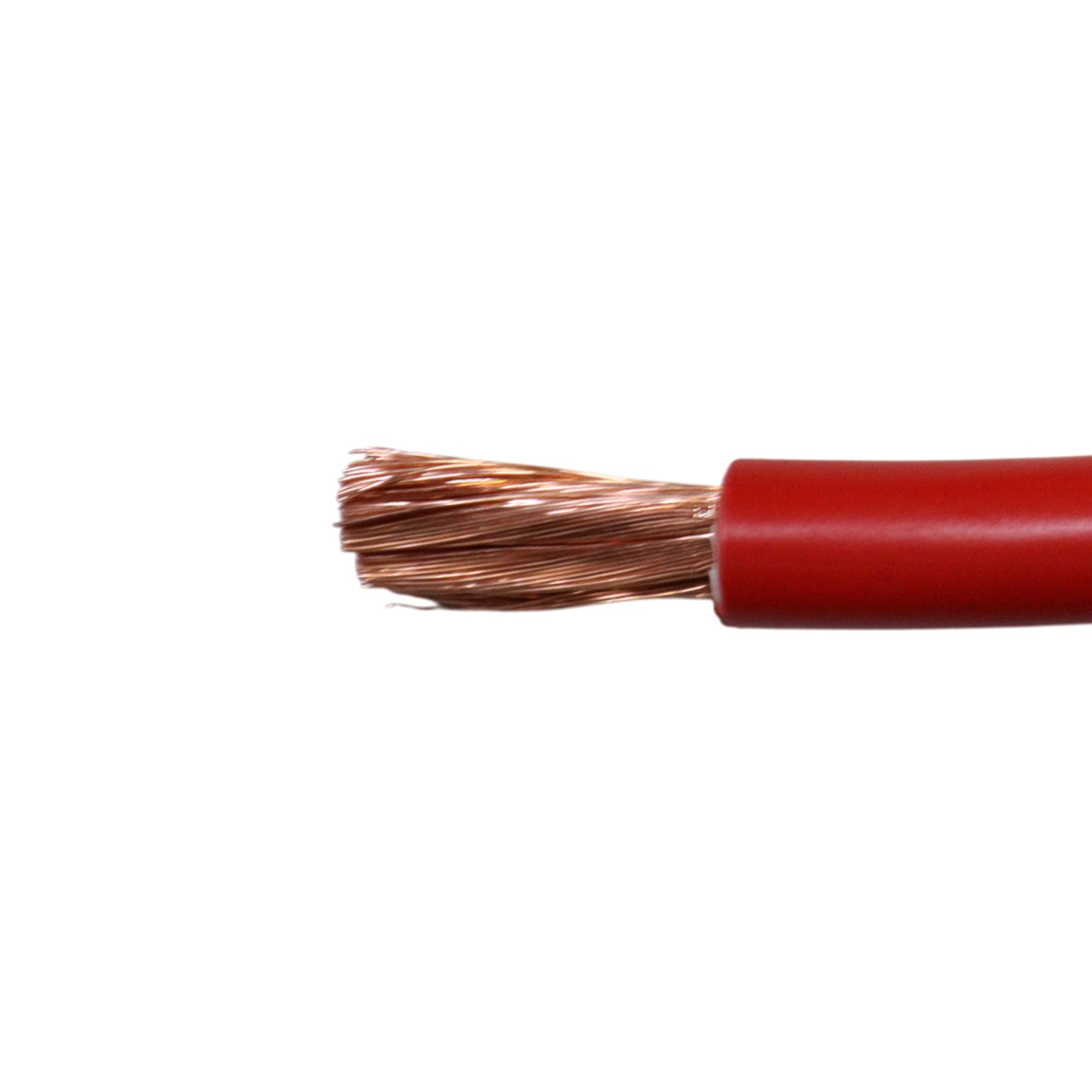

The outer sheath is durable yet flexible, with a nominal outer diameter of 10.7mm. It resists abrasion, oil, and common automotive chemicals. The internal conductor consists of 455 strands of 0.30mm wire, a configuration that offers the perfect balance between flexibility for routing through tight grommets and the density required for heavy current carrying capacity.

Ideal Applications

• Dual Battery Linking: Efficiently charge auxiliary batteries in utes, caravans, and 4WDs.
• Starter and Alternator Wiring: Replace corroded or undersized factory wiring to improve starting performance.
• High-Power Inverters: Supply clean power to 1000W+ inverters without tripping low-voltage alarms due to cable loss.
• Industrial DC Projects: Reliable cabling for solar banks and off-grid control systems.
• Positive Feeds: Specifically coloured for easy identification of live power circuits.

Key Specifications and Features

• Conductor Area: 32mm² (2 B&S / 2 AWG equivalent)
• Current Rating: 190 Amps (at 30°C)
• Material: Oxygen Free High Conductivity (OFHC) Copper
• Voltage Rating: Suitable for 12V, 24V, 48V (Max DC 120V)
• Construction: 455/0.30 stranding for optimal flexibility
• Compliance: AS/NZS 1125 and AS/NZS 3808:2000
• Roll Length: 100m – ideal for workshops and large projects

Equip Your Vehicle with Professional Cabling

Don't let inferior wiring compromise your vehicle's reliability. Whether you are upgrading a winch, installing a custom sound system, or wiring a fleet of service vehicles, the 100m Roll of 2 B&S (32mm²) Red Single Core Automotive Cable delivers the performance and safety margin professional installers trust.

Upgrade your power distribution today with this heavy-duty, AS/NZS compliant automotive cable.
