Victron 1000A/50mV-0.5 / 2xM10 Shunt

1000A Continuous Rating, 50mV Output, M10 Brass Studs, Insulated Base


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Victron 1000A/50mV Current Shunt for BMV Battery Monitors

Precision Current Measurement for High-Capacity DC Systems

The Victron 1000A/50mV shunt is a robust, high-accuracy current sensing resistor designed to extend the measurement range of your Victron BMV battery monitor. By replacing the standard 500A shunt with this 1000A model, you can safely monitor larger current flows in demanding 12V, 24V, and 48V DC systems. This makes it an essential upgrade for off-grid solar installations, marine electrical systems, RV and caravan power setups, and industrial battery banks where high currents are common.

Engineered with solid brass terminal blocks and multiple M10 connection studs, this shunt ensures low-resistance, high-conductivity connections that minimise power loss and heat buildup. The 50mV output at rated current provides a precise signal to your BMV monitor, enabling accurate state-of-charge tracking, current flow monitoring, and battery health analysis.

Why Upgrade to a 1000A Shunt?

Standard battery monitors often ship with a 500A shunt, which can become a bottleneck in systems with large inverters, multiple charging sources, or high surge loads. Upgrading to the Victron 1000A shunt eliminates this limitation, allowing you to:

  • Monitor high-current DC circuits without risk of shunt saturation or inaccurate readings
  • Support large inverter/charger systems up to 1000A continuous
  • Improve system safety by using a shunt rated well above your maximum expected current
  • Maintain accurate battery monitoring even during heavy engine cranking or winch operations

Built for Demanding Environments

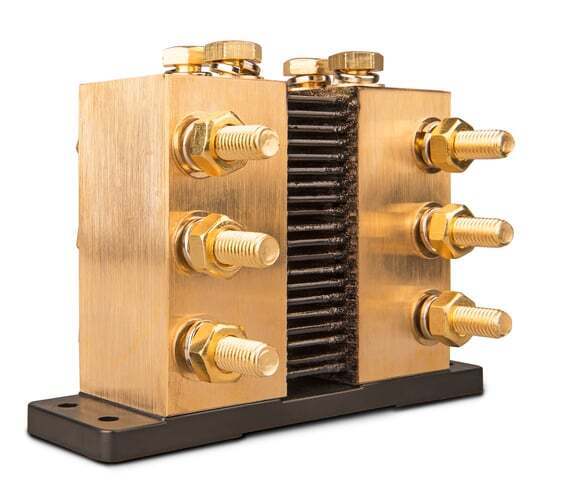

Victron shunts are known for their durability and precision. This model features a sturdy non-conductive insulated base with pre-drilled mounting holes for secure, vibration-resistant installation. The parallel resistive elements are designed for stable current sensing and effective thermal management, ensuring consistent performance even under sustained high loads. The solid brass blocks provide significant thermal mass, helping to dissipate heat and maintain accuracy.

  • 1000A continuous current rating for high-demand applications
  • 50mV output for precise, low-noise signal transmission to your BMV monitor
  • M10 brass stud terminals accept heavy-duty cable lugs for secure, low-resistance connections
  • Compact footprint (168 x 58 x 25.6 mm) fits easily into existing battery compartments
  • Insulated mounting base with 6 mm holes for straightforward installation

Seamless Integration with Victron BMV Series

This shunt is a direct replacement for the 500A shunt included with Victron BMV-700, BMV-702, BMV-712, and BMV-712 Smart battery monitors. It connects using the same voltage sensing screws and RJ12 communication cable, making the upgrade quick and tool-free. Once installed, your BMV will automatically scale its readings to the 1000A range, giving you full visibility into your system's performance.

For systems requiring even higher current measurement, Victron also offers a 2000A and 6000A shunt, but the 1000A model strikes an excellent balance between capacity, size, and cost for most marine, RV, and off-grid solar applications.

Applications

  • Marine electrical systems: Monitor house and starter battery banks with confidence, even during engine cranking or bow thruster operation
  • RV and caravan power: Track energy usage from inverters, solar chargers, and DC loads without exceeding shunt limits
  • Off-grid solar installations: Accurately measure charge and discharge currents in 24V and 48V battery banks
  • Industrial backup power: Ensure reliable battery monitoring in UPS and telecom systems

Note: This shunt is rated for 1000A continuous current. For optimal accuracy and longevity, ensure your system's maximum sustained current does not exceed this rating. Typical de-rating factors apply in high-temperature environments.

Upgrade Your Battery Monitoring Today

Don't let an undersized shunt limit your system's potential. Order the Victron 1000A/50mV shunt and gain the precision and capacity you need for reliable, high-current battery monitoring. Whether you're cruising the coast, living off-grid, or managing a critical power system, this shunt delivers the accuracy and durability Victron is known for.


SKU: VIC-SHU102050200

SPECIFICATIONS

Specifications

ModelShunt 1000A/50mV-0.5 / 2xM10
Part NumberSHU102050200
Current Rating1000 A
Voltage Drop50 mV
TerminalsM10
Overall Dimensions (L x H x W)168 ±1 x 58 ±1 x 25.6 ±0.5 mm
Mounting Hole DiameterØ 6 mm (2x)

SKU: VIC-SHU102050200
Barcode: 8719076026198
Model #: SHU102050200
MPN: SHU102050200

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
