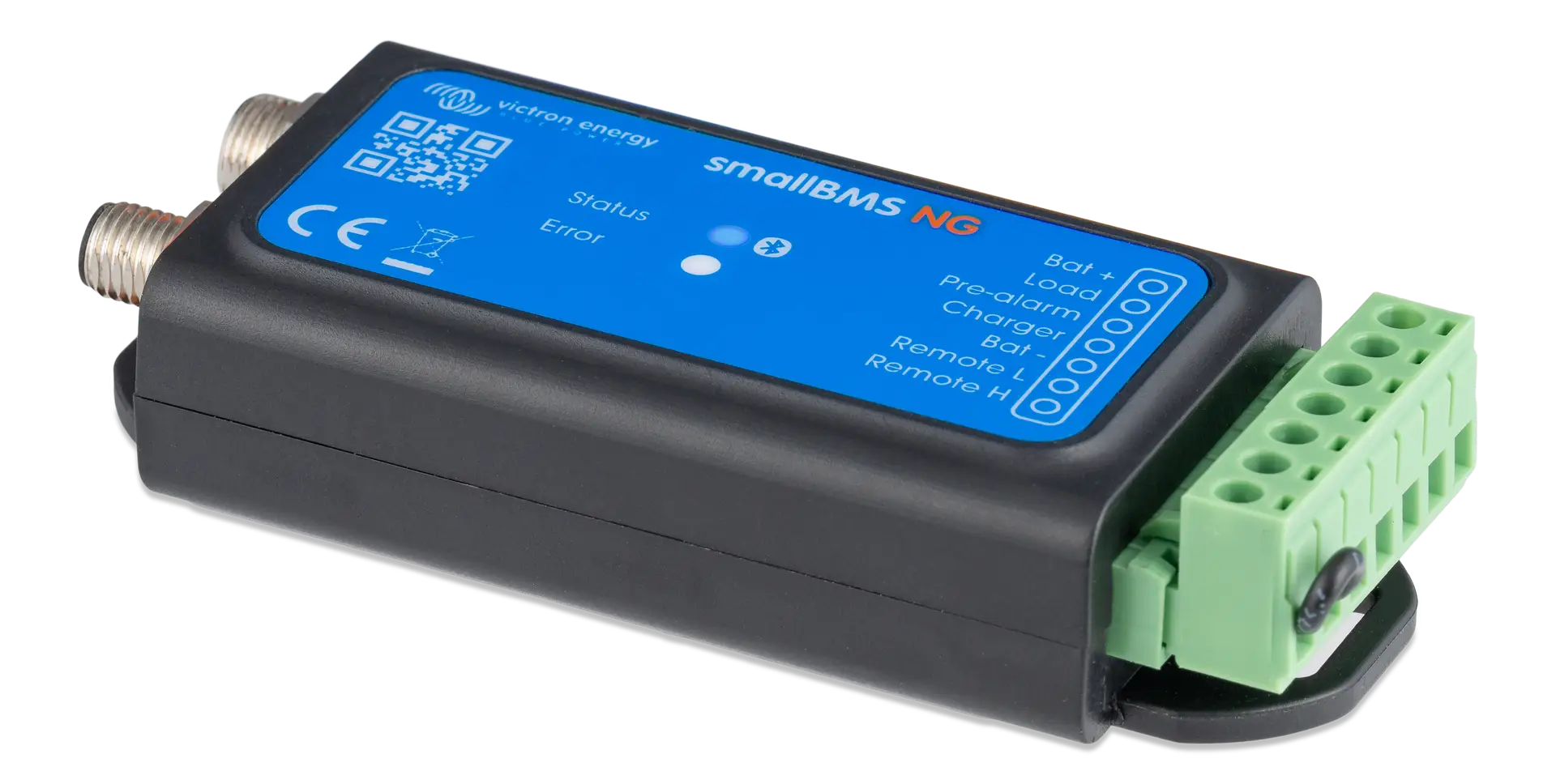

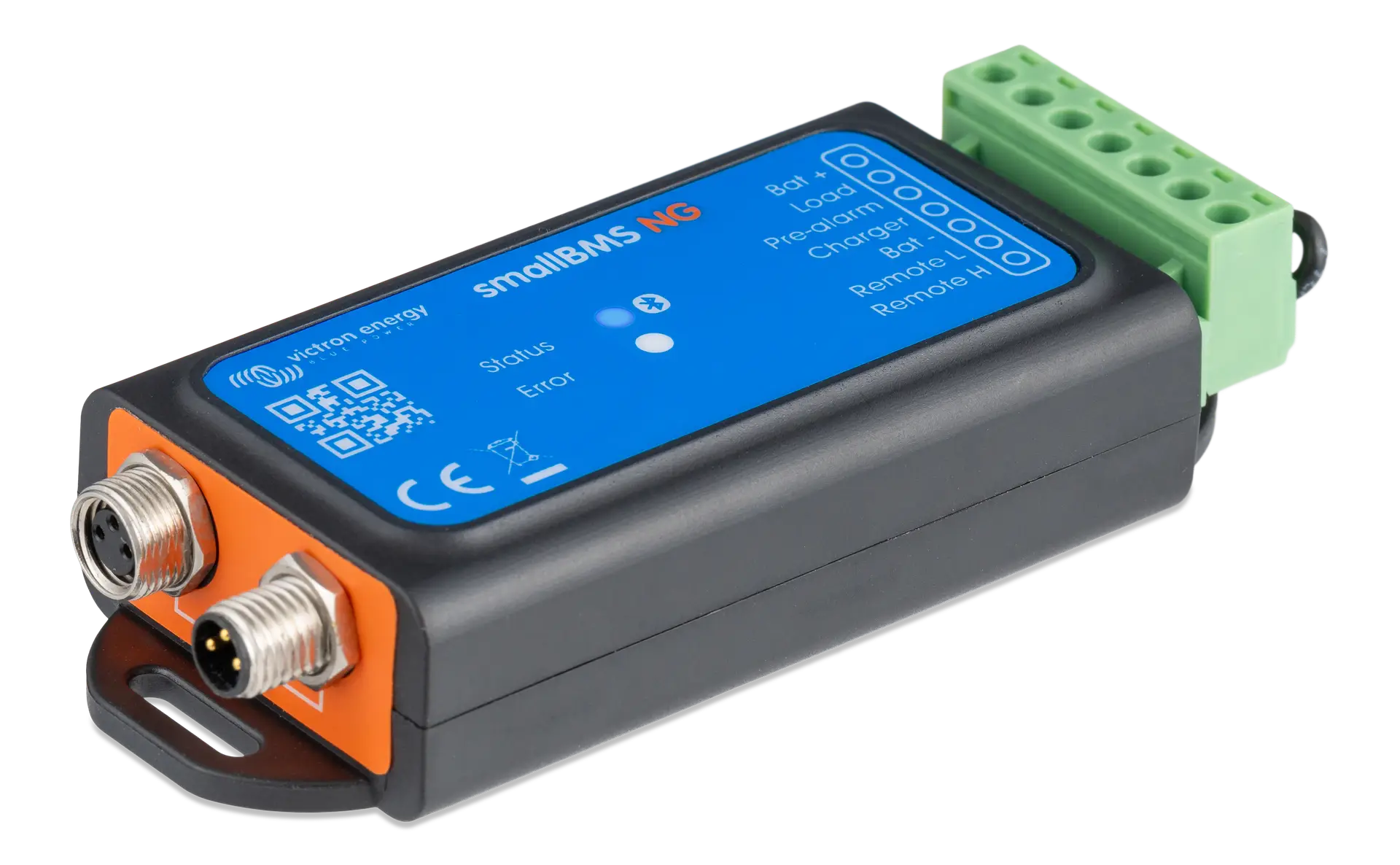

Victron miniBMS /smallBMS NG

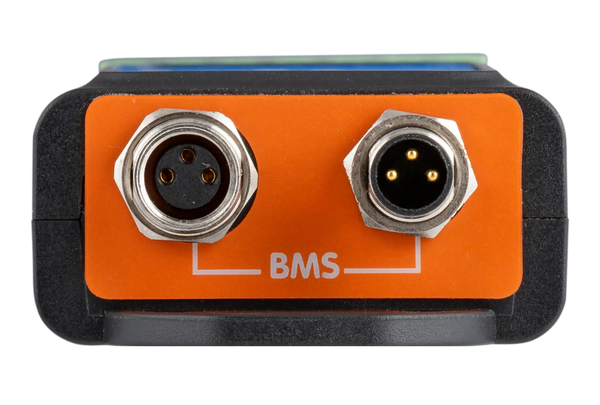

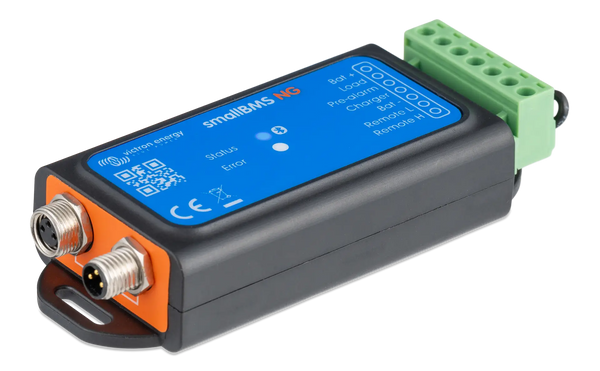

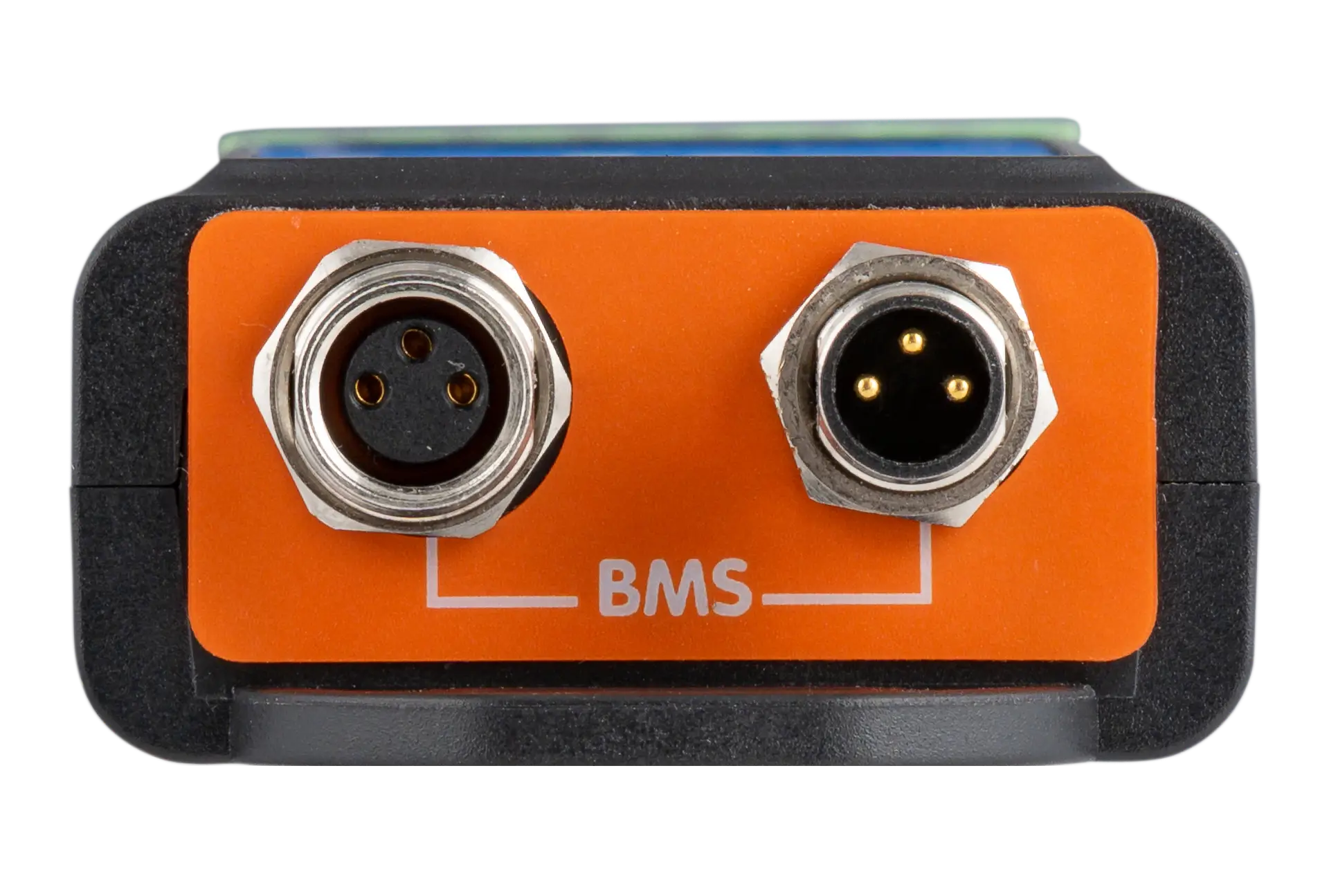

Protects 12V/24V/48V LiFePO₄ Batteries with M8 Connectors


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Victron smallBMS NG: Advanced Battery Management for Victron Smart LiFePO₄ Systems

Compact, Reliable Protection for 12V, 24V, and 48V Lithium Setups

The Victron smallBMS NG is a next-generation battery management system engineered to safeguard Victron Smart LiFePO₄ batteries with M8 circular connectors. This compact unit delivers essential cell-level monitoring and control, preventing damage from over-voltage, under-voltage, and temperature extremes. Unlike generic BMS solutions, the smallBMS NG integrates directly with Victron’s ecosystem, ensuring precise communication and reliable operation in mobile, marine, and off-grid applications.

Designed for 12V, 24V, and 48V systems, it operates across a wide 8–70V DC range, making it suitable for diverse installations. The unit draws minimal current—as low as 1.2 mA in remote-off or low-cell-voltage states—reducing parasitic drain on your battery bank.

Key Features

  • Load Disconnect Output: Normally high (Vbat – 0.1V), sources up to 1A to drive external relays or contactors, protecting against deep discharge.
  • Pre-Alarm Warning: Provides a 30-second early alert before load disconnect, allowing time for graceful system shutdown or generator start.
  • Charge Disconnect Output: Normally high, sources up to 500mA to control compatible chargers or Cyrix-Li relays, preventing over-charge and over-temperature conditions.

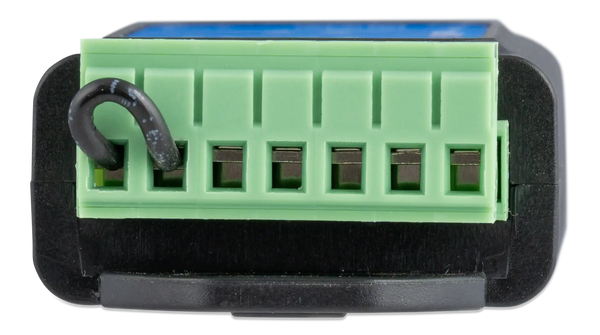

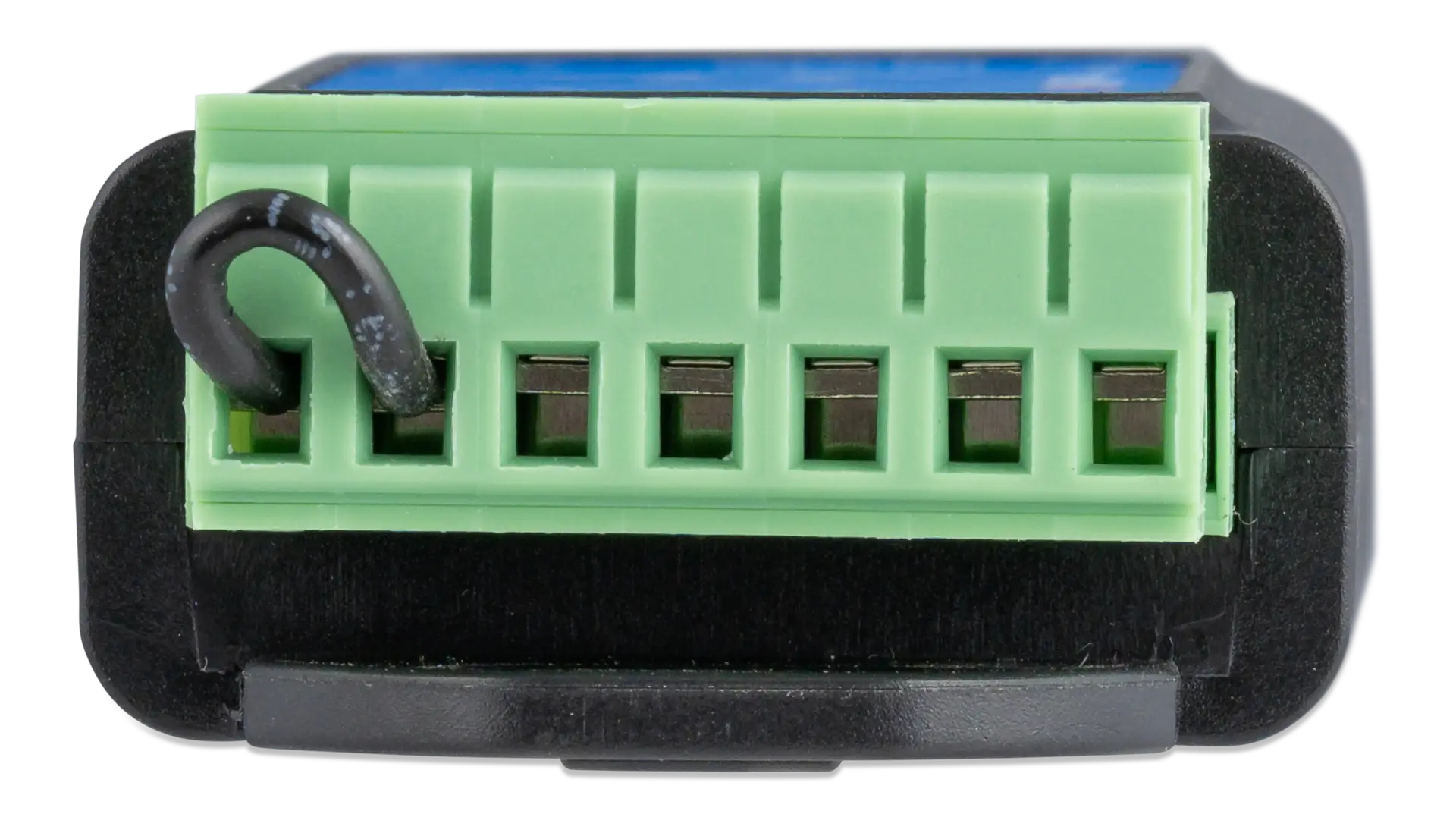

  • Remote On/Off Control: Flexible input via Remote L/H terminals for external switching, enabling integration with system-level controls.

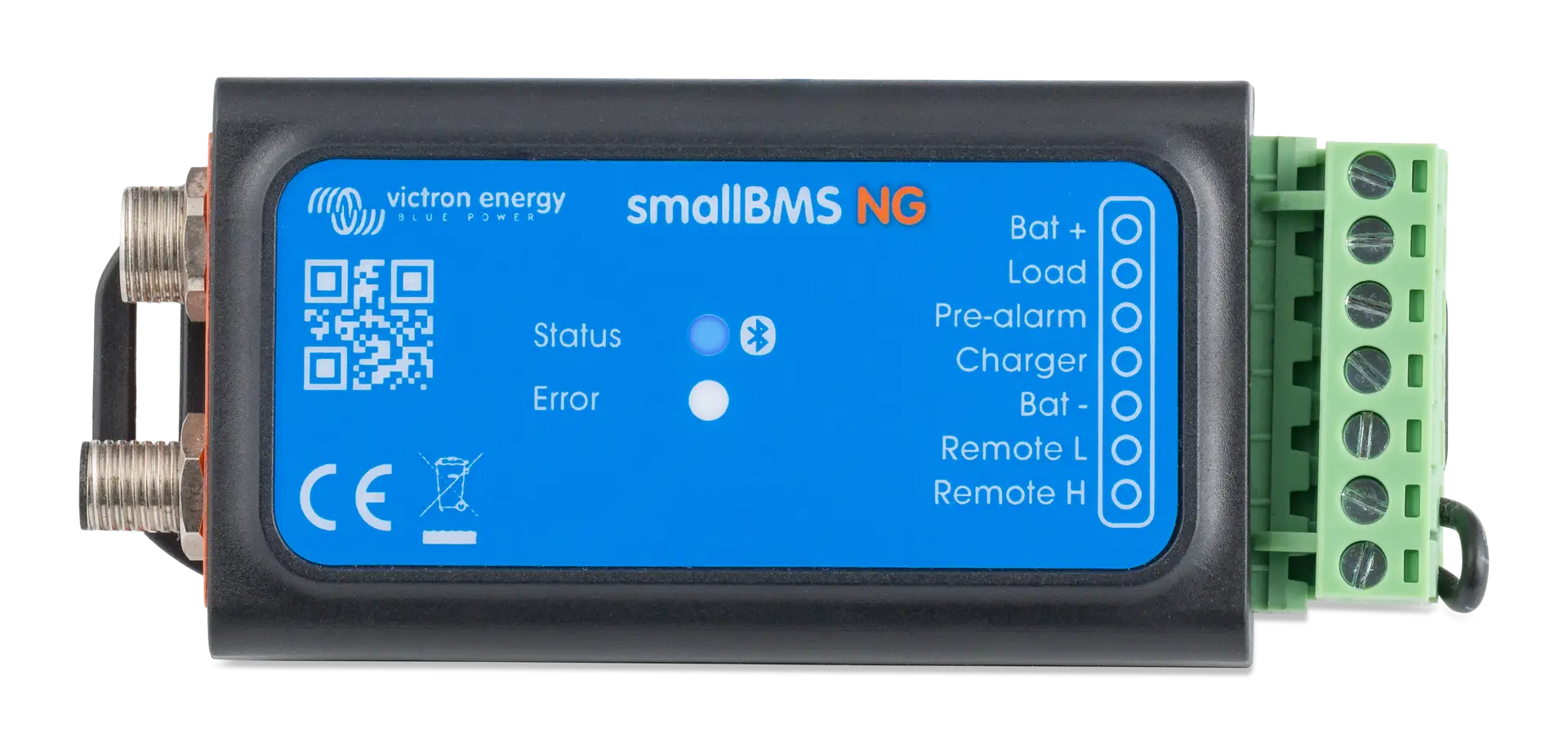

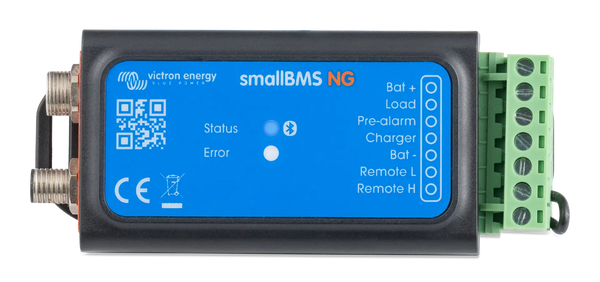

  • LED Status Indicators: Blue 'Load ON' and red 'Temp or OVP' LEDs provide at-a-glance system status without additional monitoring tools.

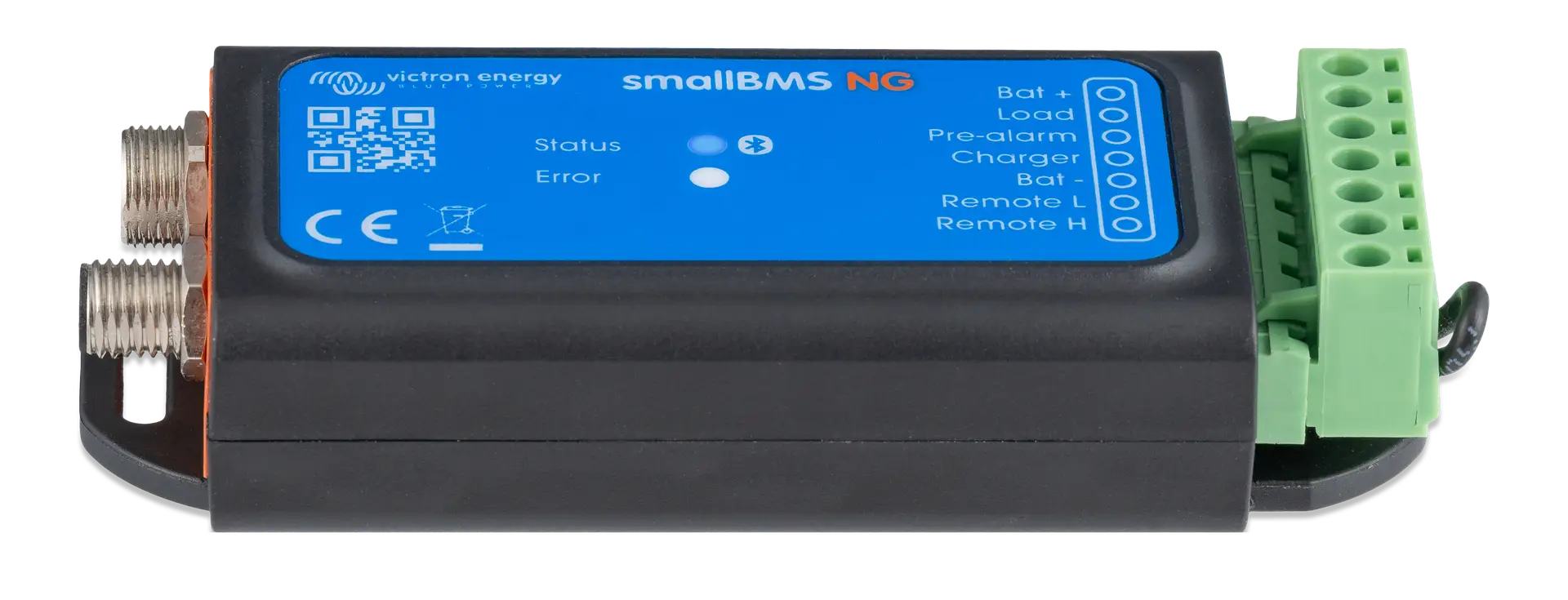

  • Compact, Durable Enclosure: ABS matt black housing (106 x 42 x 23 mm, 0.1 kg) with IP20 rating, suitable for protected indoor installations.

Why Choose the smallBMS NG?

This BMS is purpose-built for Victron Smart LiFePO₄ batteries, eliminating compatibility risks associated with generic battery management systems. It ensures your lithium investment is protected by precise, factory-matched thresholds. The pre-alarm feature reduces the risk of unexpected system shutdowns, while the charge disconnect output prevents charger-induced damage. With its low power consumption and robust signal outputs, the smallBMS NG is ideal for caravans, marine vessels, and remote off-grid systems where reliability is critical.

Note: This unit does not include a VE.Bus interface and is not intended for direct control of VE.Bus inverter/chargers such as MultiPlus or Quattro. For those applications, consider the Victron VE.Bus BMS.

Ready to Protect Your Lithium Battery Bank?

Integrate the Victron smallBMS NG into your energy system today for dependable, automated battery protection. Whether you're upgrading an existing setup or building a new off-grid solution, this BMS provides the essential safeguards to maximise battery lifespan and performance.


SKU: VIC-BMS400100300

SPECIFICATIONS

ProductsmallBMS NG
Operating voltage (Vbat)8 – 70 Vdc
Power supply cable and fuse (not supplied)
Recommended fuse size0.3 A - 2.5 A, dependent on devices connected to Load disconnect and pre-alarm output
Current consumption, remote on3mA (excluding Load and Charge disconnect output current)
Current consumption, low cell voltage1.2 mA
Current consumption, remote off1.2 mA
Load disconnect output Normally high (Vbat – 0.1 V) Source max current: 1 A (not short circuit protected) Sink current: 0 A (output free floating)
Charge disconnect output Normally high (Vbat – 0.1 V) Source max current: 500 mA (not short circuit protected) Sink current: 0A (output free floating)
Pre-alarm output Normally free-floating (low) In case of alarm: output voltage Vbat -0.1 V Maximum output current: 500 mA (not short circuit protected)
Remote on/off: Remote L and Remote H Use modes: 1. ON when the L and H terminal are interconnected 2. ON when the L terminal is pulled to battery minus (V < 3.5 V) 3. ON when the H terminal is high (2.9V < VH < Vbat) 4. OFF in all other conditions
GENERAL
Operating temperature range-20 to +50 °C (0 – 120 °F)
HumidityMax. 95 % (non-condensing)
Protection gradeIP20
ENCLOSURE
Material and colourABS, matt black
Weight0.1 kg
Dimensions (h x w x d)106 x 42 x 23 mm
STANDARDS
SafetyEN 60950
EmissionEN 61000-6-3, EN 55014-1
ImmunityEN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive RegulationUN/ECE-R10 Rev.4 - pending

SKU: VIC-BMS400100300
Barcode: 8719076063537
Model #: BMS400100300
MPN: BMS400100300
