Victron 7.3/22kW Type 2 EV Charger / Charging Station

22kW 3-Phase / 7.3kW Single-Phase, Solar Surplus Mode, Wi-Fi & LCD


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
1

DESCRIPTION

Victron Type 2 EV Charging Station: Intelligent 22kW AC Charging with Solar Integration

Smart Electric Vehicle Charging for Homes and Businesses

The Victron Type 2 EV Charging Station delivers up to 22kW AC three-phase or 7.3kW single-phase charging, making it a versatile solution for home EV charging and commercial installations. Designed to integrate seamlessly with Victron energy systems, this intelligent AC charging station can prioritise surplus solar power, helping reduce grid reliance and lower operating costs.

Unlike basic EV chargers, the Victron EV Charging Station features integrated Wi-Fi, Bluetooth, a built-in 4.3-inch LCD touch screen, and a programmable RGB light ring for fast status recognition. Its IP44 rated enclosure is suitable for indoor or protected outdoor installation, while the IEC 62196 Type 2 connection supports modern EV charging requirements.

Manual, Automatic and Scheduled Charging Modes

Choose Manual Mode for fixed current control, with adjustable output from 6-32A via the touch screen, web interface, VictronConnect, GX device or VRM Portal. Automatic Mode intelligently detects excess PV production and can direct surplus solar energy to your vehicle, maximising self-consumption and improving the return on your solar investment.

Scheduled Mode adds further flexibility by allowing charging during selected time periods, such as off-peak electricity windows. This makes the Victron EV Charging Station ideal for solar-compatible EV charging, grid-connected systems, hybrid systems and off-grid Victron installations.

Seamless Victron Ecosystem Integration

Monitor and control the charging station directly from a GX device, such as a Cerbo GX or Color Control GX, or remotely via the VRM Portal. Modbus TCP over Wi-Fi and Bluetooth connectivity through VictronConnect allow flexible setup, monitoring and control, keeping your EV charger fully integrated within your Victron energy management system.

Key Features

  • 22kW three-phase / 7.3kW single-phase AC charging output
  • Automatic solar surplus charging to help reduce grid energy use
  • Manual, Automatic and Scheduled charging modes

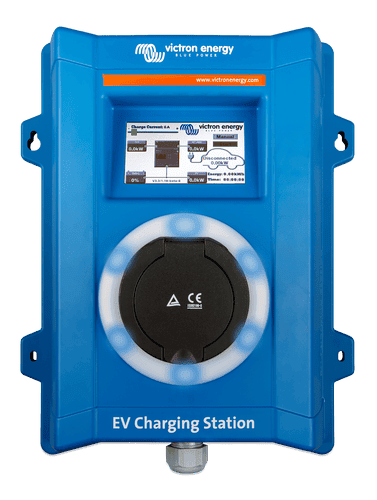

  • Built-in 4.3-inch LCD touch screen for local monitoring and control
  • Web interface, VictronConnect, GX device and VRM Portal control options

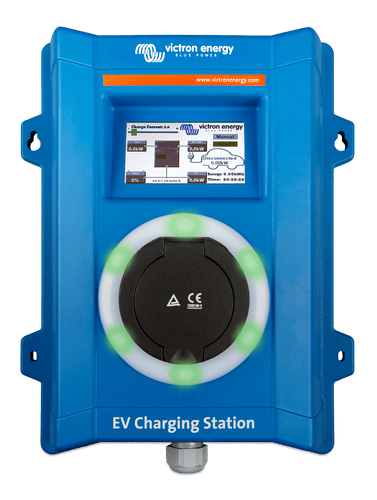

  • 55-effect programmable RGB light ring for at-a-glance status monitoring
  • Integrated Wi-Fi 802.11 b/g/n and Bluetooth communication
  • Modbus TCP over Wi-Fi for system integration

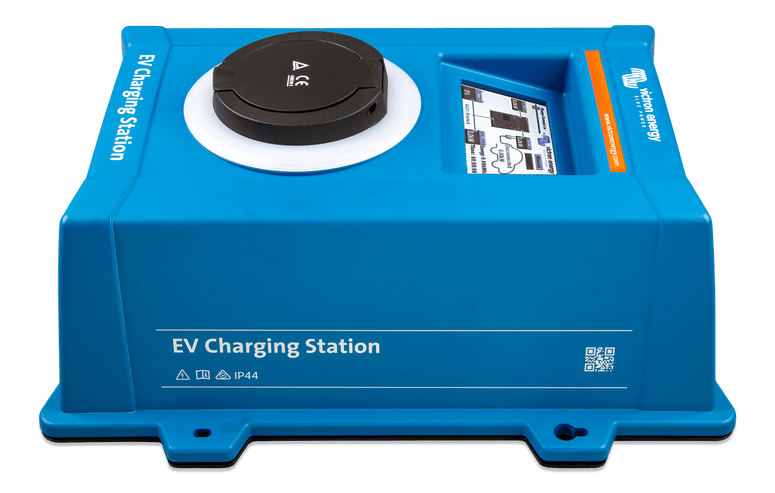

  • IP44 protection with robust light blue RAL 5012 enclosure

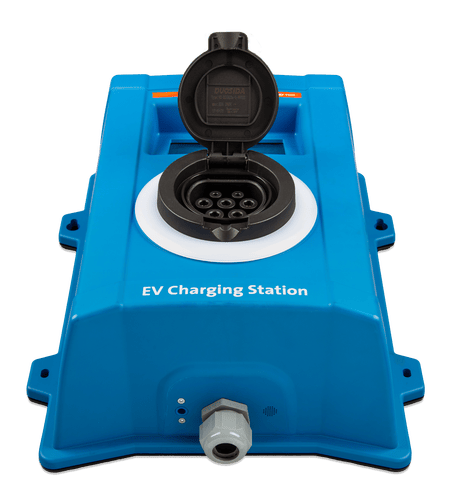

  • IEC 62196 Type 2 connection for modern EV charging
  • 6-32A configurable current output
  • Built-in safety detections for welded relay contact, missing protective conductor, missing ground and shorted CP

Built-In Safety and Reliability

The Victron EV Charging Station includes advanced safety features such as detection for missing protective conductor, missing ground, welded relay contact and shorted CP. It is designed to meet IEC 61851-1 and IEC 61851-22 safety standards.

An external RCD is required, and circuit protection should be selected according to the available input power and cable cross-section, up to a maximum of 40A. The power terminals accept 6-10mm² cable, and the compact 377 x 307 x 148mm design weighs only 3kg for straightforward wall mounting.

Why Choose the Victron EV Charging Station?

Many electric vehicle charging stations simply draw from the grid without considering solar availability. The Victron EV Charging Station is designed to work as part of a complete Victron energy system, dynamically managing charging around available solar production, system loads and configured charging modes.

For Victron system owners, native GX and VRM integration removes the need for third-party monitoring platforms and gives you a centralised view of your energy system and EV charging activity. Whether you want to charge manually, use excess solar, or schedule charging for off-peak periods, the Victron EV Charging Station gives you flexible control from the charger, app, web interface or remote portal.

Ideal Applications

  • Home EV charging with solar integration for maximum self-consumption
  • Commercial EV charging where energy management and reporting are important
  • Off-grid and hybrid systems using Victron inverters and GX devices
  • Caravan, motorhome and workshop installations requiring compact AC EV charging

Upgrade your Victron energy ecosystem with the Victron Type 2 EV Charging Station and experience intelligent, solar-optimised charging that puts you in control.


SKU: VIC-EVC300400300

SPECIFICATIONS

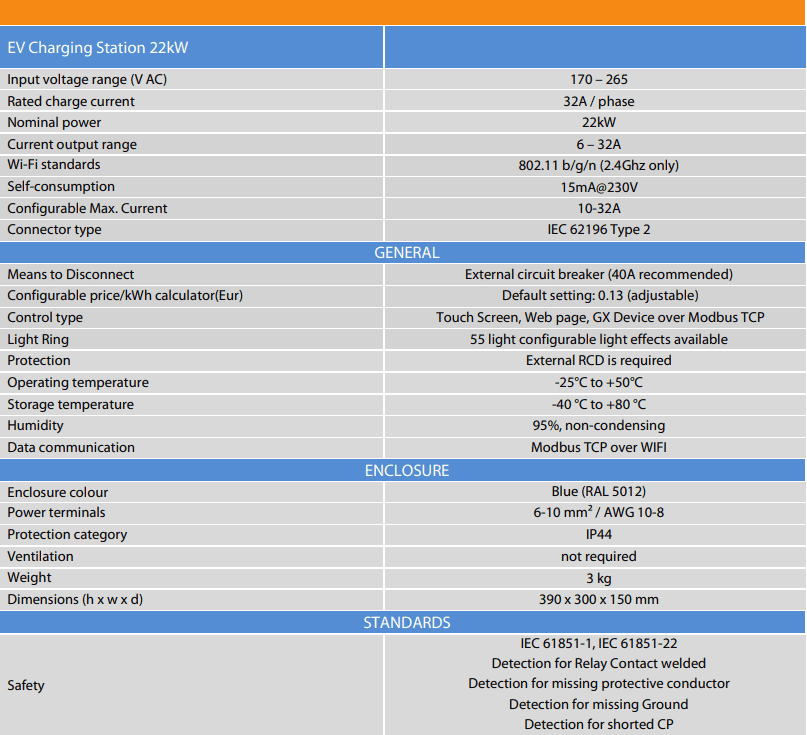

Specifications

Specification Details
Input voltage range (V AC) 170 – 265 VAC
Rated charge current 32 A / phase
Nominal power 22 kW
Current output range 6 – 32 A
WiFi standards 802.11 b/g/n (2.4 GHz only)
Self-consumption 15 mA@230 V
Configurable Max. Current 10-32 A
Configurable Min. Current 6 A up to 1 A below max. value
Connector type IEC 62196 Type 2
GENERAL
Means to Disconnect External circuit breaker (40 A recommended)
Configurable price/kWh calculator (EUR) Default setting: 0.13 (adjustable)
Control type Web page, GX Device over Modbus TCP, VictronConnect via Bluetooth
Light Ring 55 light configurable light effects available
Protection External RCD is required
Operating temperature -25 °C to +50 °C
Storage temperature -40 °C to +80 °C
Humidity 95 %, non-condensing
Data communication Modbus TCP over WiFi, Bluetooth
ENCLOSURE
Enclosure colour Light Blue (RAL 5012), Traffic Black (RAL 9017), Traffic White (RAL 9016)

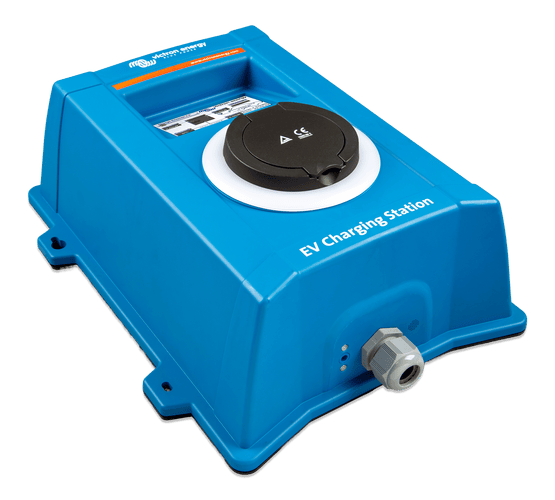

Power terminals 6-10 mm² / AWG 10-8
Protection category IP44
Ventilation Not required
Weight 3 kg

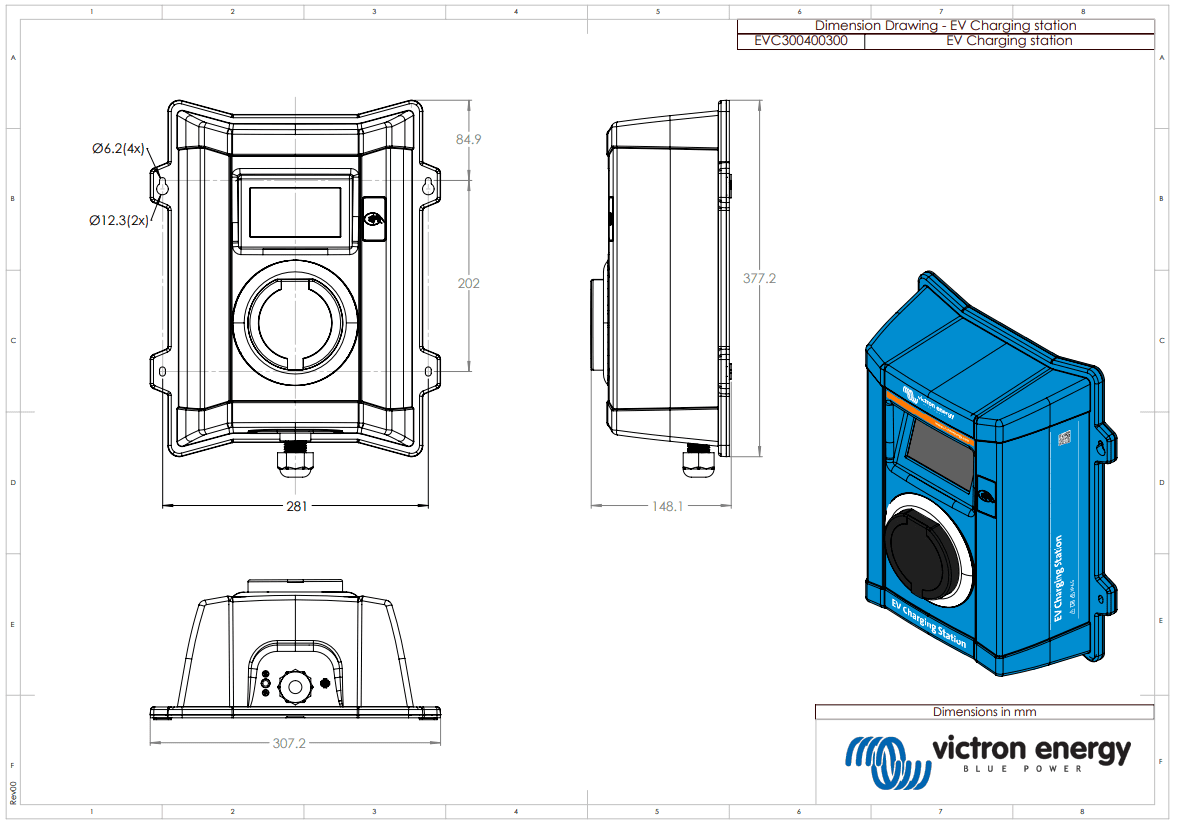

Dimensions (h x w x d) 372 x 292 x 122 mm
STANDARDS
Safety IEC 61851-1, IEC 61851-22
Detection for Relay Contact welded
Detection for missing protective conductor Yes
Detection for missing Ground Yes
Detection for shorted CP Yes

SKU: VIC-EVC300400300
Barcode: 8719076051305
Model #: EVC300400300
MPN: EVC300400300

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
