Victron Cerbo GX MK2 & GX Touch 70 Display Combo
Centralised System Monitoring with 7-Inch Touchscreen Control - Dual-Core Processor, VRM & NMEA 2000
Victron 12V 30A Multi-Bank Phoenix Smart IP43 1...DESCRIPTION

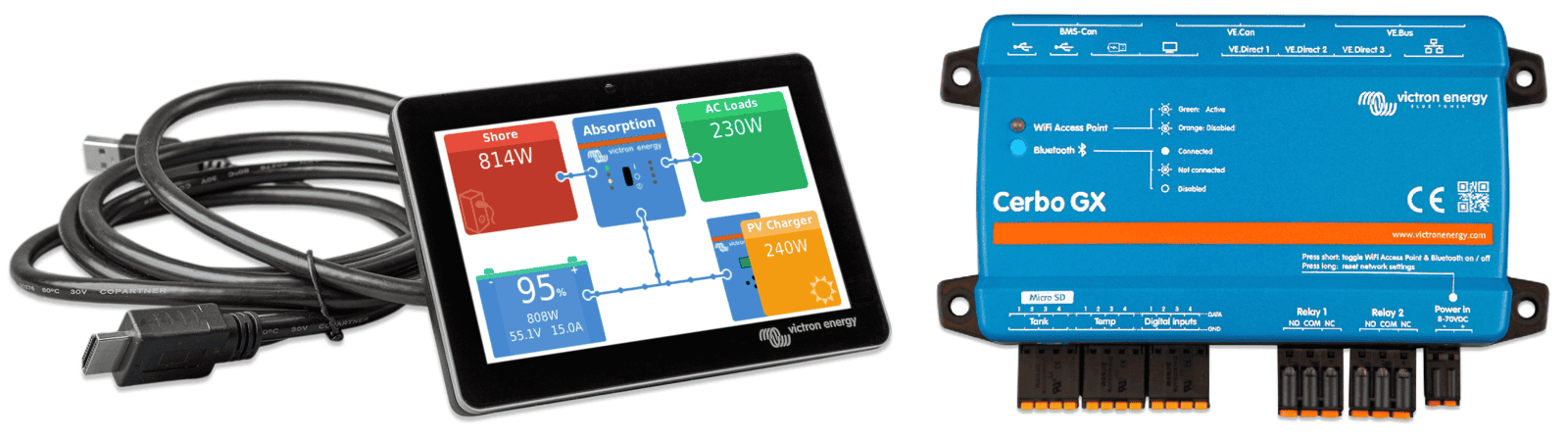

Victron Cerbo GX MK2 & GX Touch 70 Display Combo: Advanced System Monitoring and Control
Centralised Communication Hub for Victron Energy Systems

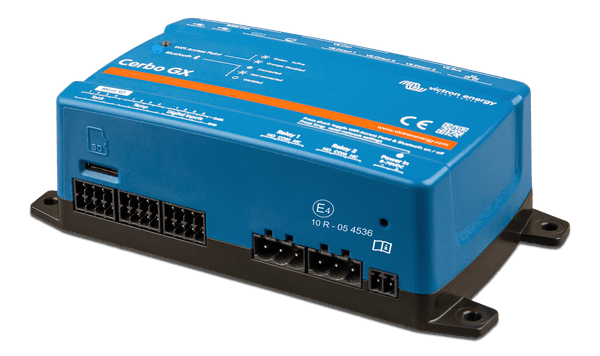

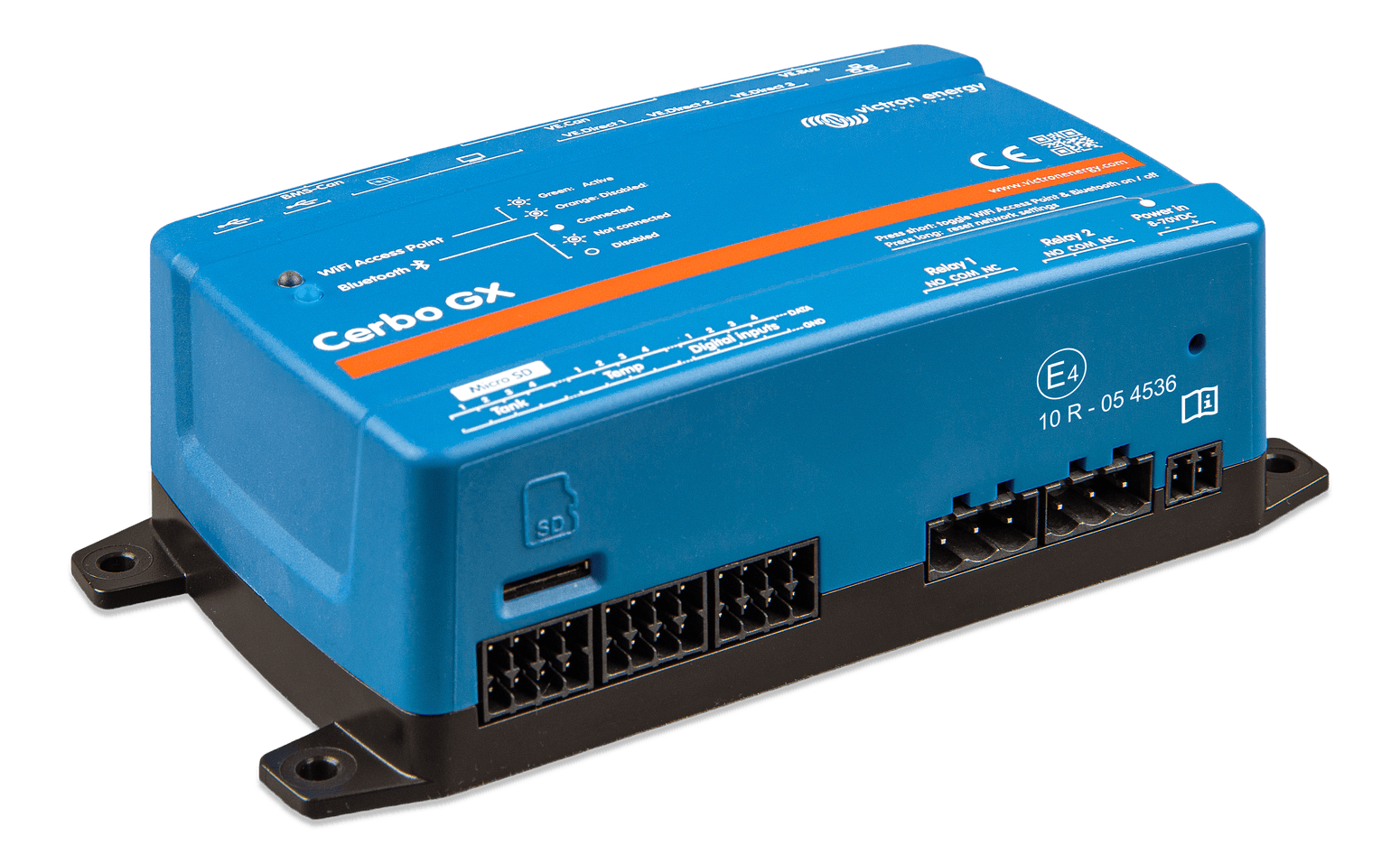

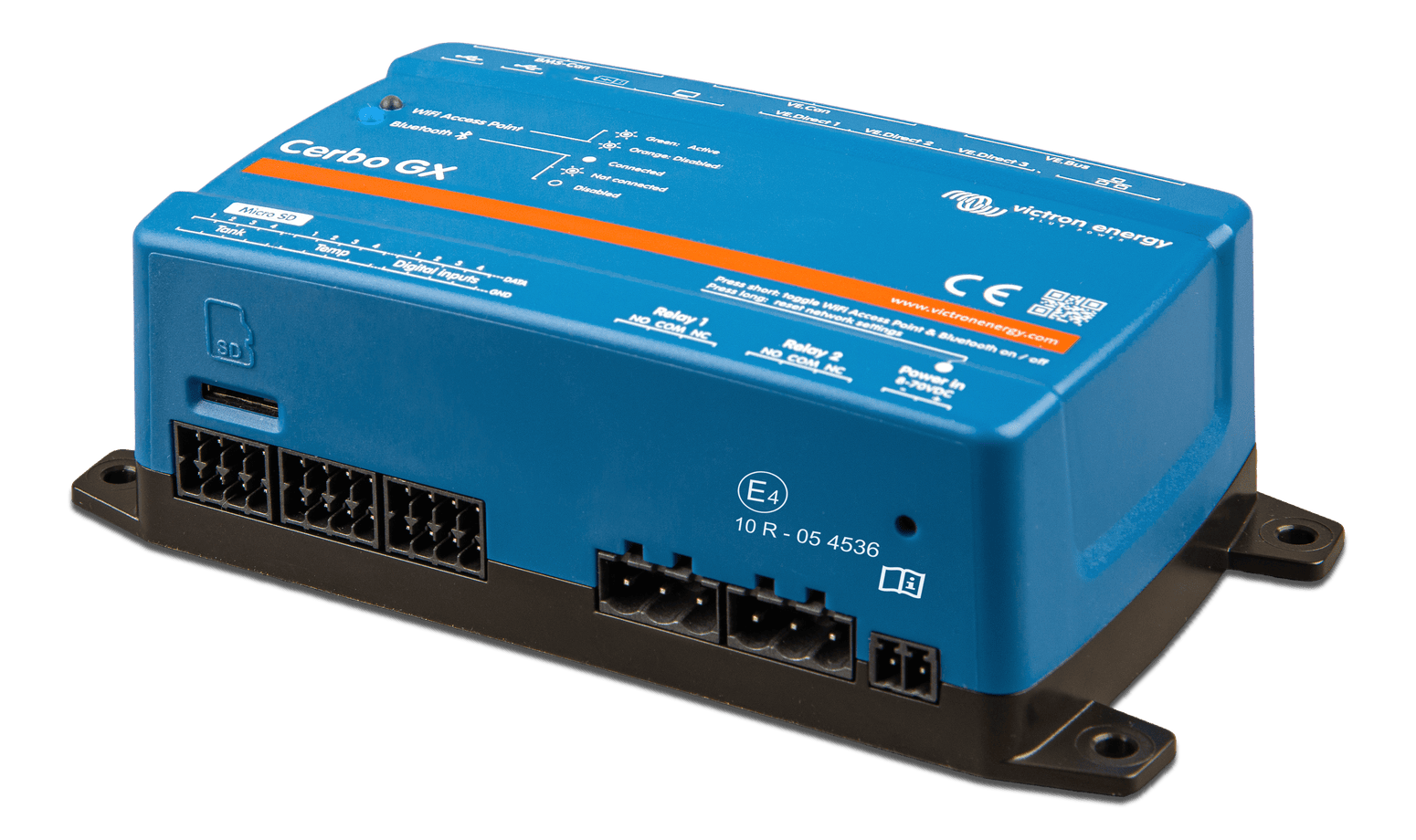

The Victron Cerbo GX MK2 serves as the intelligent core of your power system, providing seamless monitoring and control across all connected Victron devices. Paired with the GX Touch 70 display, this combo delivers a professional-grade interface that transforms how you interact with your off-grid, marine, or backup energy setup. Whether you're managing a remote solar installation or a complex vehicular system, the Cerbo GX MK2 ensures every component operates in harmony, maximising efficiency and reliability.
Designed for installers and system owners who demand precision, this communication centre consolidates data from solar chargers, inverters, batteries, and sensors into a single, intuitive platform. The result is a smarter, more responsive energy ecosystem that adapts to your needs in real time.
Why the Cerbo GX MK2 Outperforms Generic Monitoring Solutions
Unlike basic monitoring devices that offer limited connectivity and shallow data insights, the Cerbo GX MK2 is purpose-built for the Victron ecosystem. It solves the common problem of fragmented system oversight by unifying all components under one protocol. This reduces the risk of configuration errors, missed alerts, and inefficient energy use—issues that plague generic alternatives. With its dual-core processor and expanded communication ports, it handles larger, more demanding installations without lag, ensuring you never lose visibility or control.
For critical applications like marine navigation or off-grid living, where power failure is not an option, the Cerbo GX MK2 provides peace of mind through robust, isolated connections and remote access capabilities. It mitigates the risk of undetected battery drain or generator failure by enabling proactive management from anywhere.
Key Features
- Centralised monitoring of all Victron components via VRM portal, GX Touch 70 display, or VictronConnect app
- Dual-core processor supports up to 15 VE.Direct devices and 25 VE.Can solar chargers for scalable system design
- Integrated Bluetooth for quick setup and configuration via smartphone
- Four tank level inputs and four temperature sensors for comprehensive environmental monitoring
- Two programmable relays for generator start/stop, alarms, or temperature-controlled switching
- Wide 8–70 VDC supply voltage range compatible with 12V, 24V, and 48V systems
- Compact DIN-rail or wall-mountable design (78 x 154 x 48 mm) for flexible installation
- NMEA 2000 output for seamless integration with marine electronics

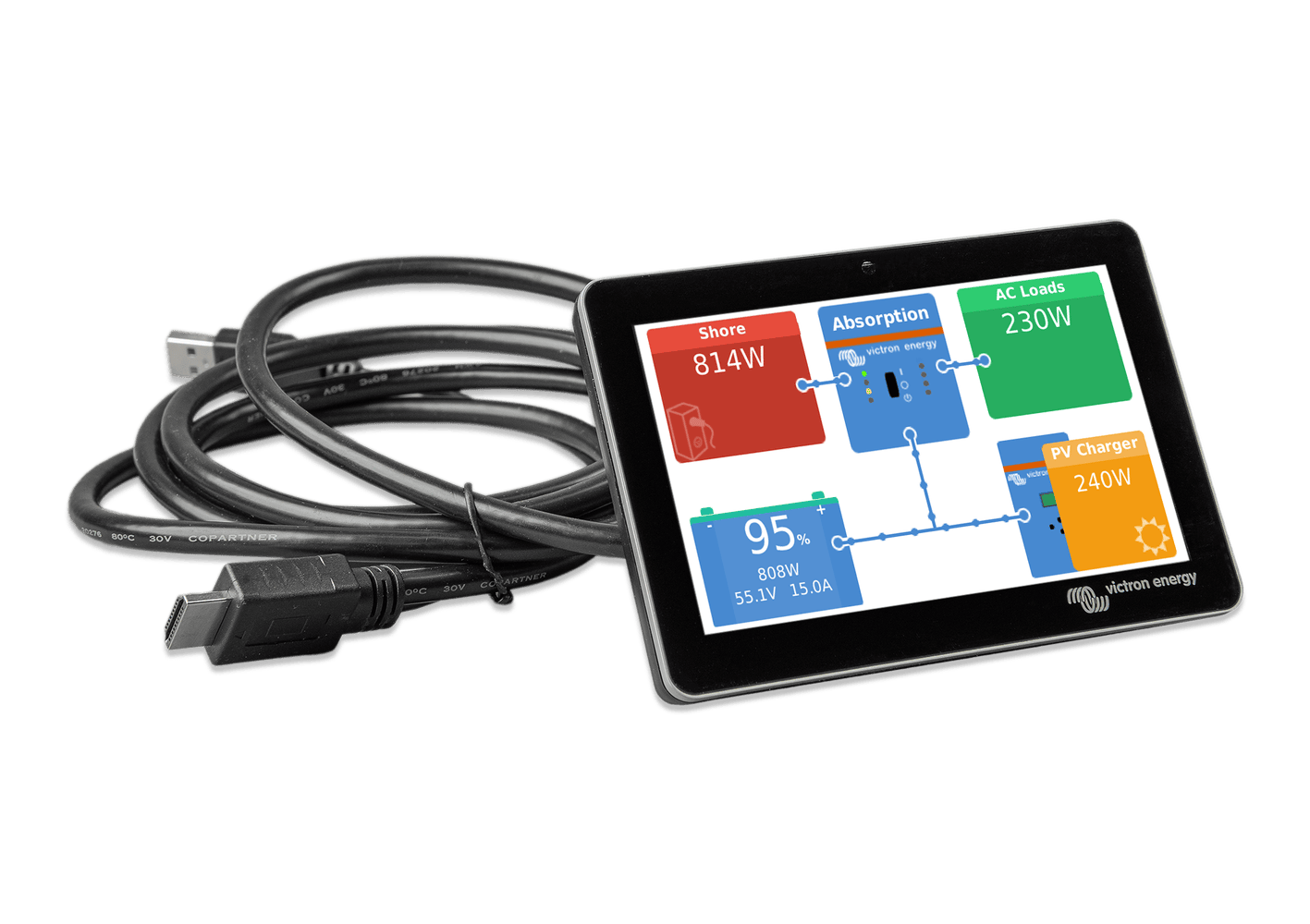

Intuitive Touchscreen Control with the GX Touch 70 Display

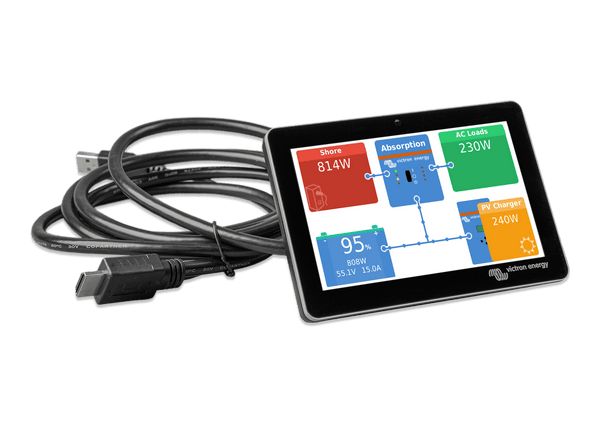

The included GX Touch 70 display elevates your user experience with a vibrant, responsive 7-inch touchscreen that puts system data at your fingertips. Its slim, waterproof design mounts directly onto a dashboard or panel with a single cable connection, eliminating the need for complex cut-outs. The display provides an instant overview of battery state of charge, solar harvest, power consumption, and more, allowing you to adjust settings like shore power limits or generator triggers with a simple tap. The larger screen offers enhanced visibility and detailed dashboards, ideal for larger installations or when multiple data points need to be monitored simultaneously.
Remote Management and Real-Time Alerts
Stay connected to your system from anywhere via the Victron Remote Management (VRM) portal. The Cerbo GX MK2 uploads data to the cloud, enabling you to monitor performance, receive instant alerts for faults or low battery, and perform diagnostic checks remotely. This capability is invaluable for off-grid properties, marine vessels, or backup systems where on-site visits are impractical. By catching issues early, you reduce downtime and prevent costly damage to batteries or equipment.
Versatile Applications Across Industries
The Cerbo GX MK2 and GX Touch 70 combo adapts to a wide range of scenarios, making it a cornerstone of modern energy management:
- Marine and RV: Monitor tank levels, battery health, and solar input while integrating with NMEA 2000 networks for navigation data.
- Off-Grid and Backup: Automate generator start/stop based on battery state of charge or quiet hours, and divert excess solar to self-consumption.
- Energy Storage Systems: Keep backup batteries at optimal charge, kick in during grid outages, and maximise self-consumption to reduce energy bills.
- Industrial and Remote: Oversee multiple solar chargers and inverters in large-scale installations with reliable, low-power operation (as low as 2.8 W).
Built for Professional Installers and DIY Enthusiasts

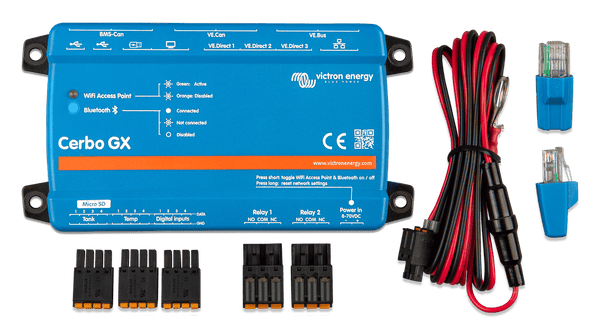

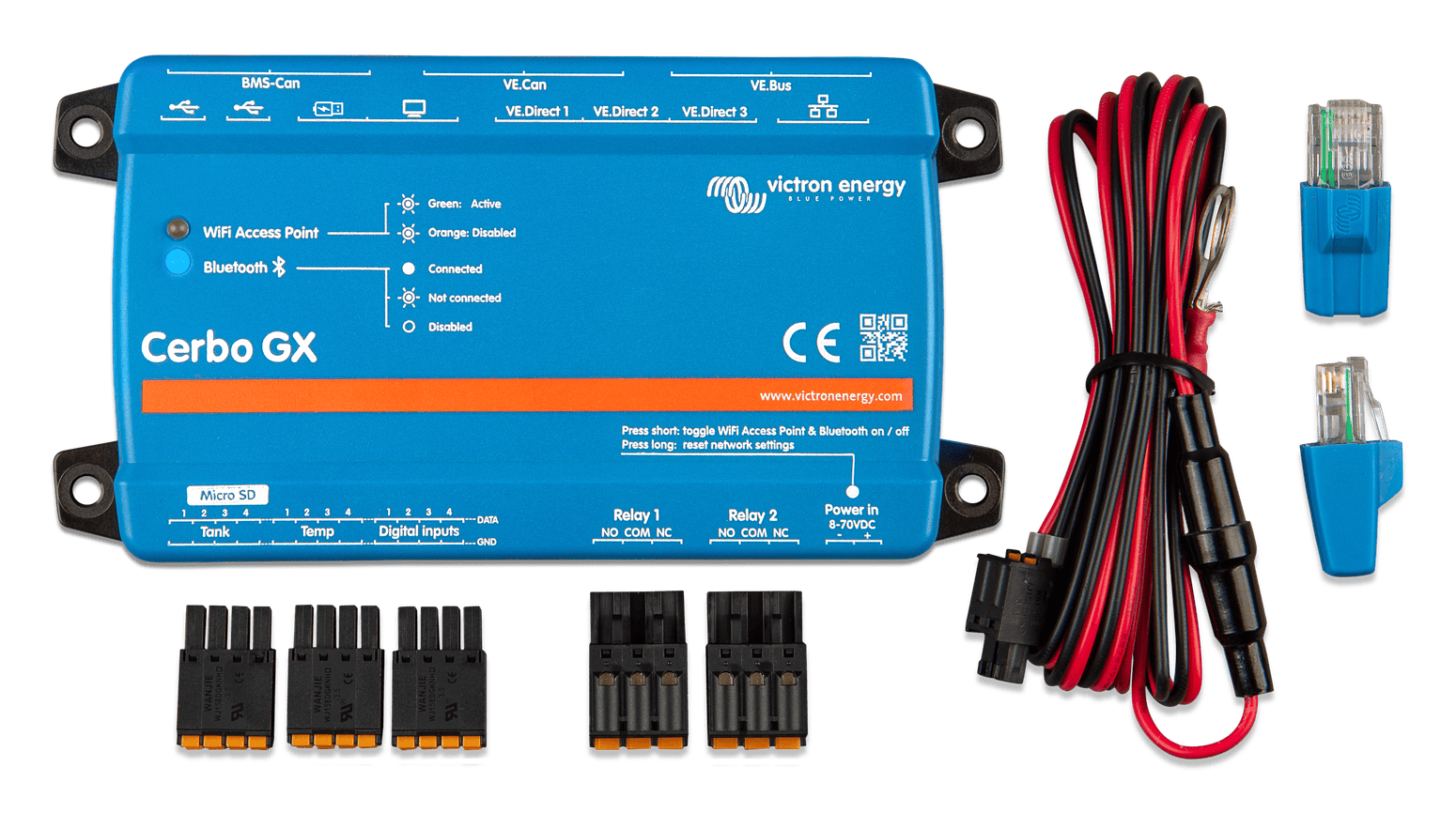

Installation is streamlined with options for DIN-rail mounting (using the separately available DIN35 adapter) or direct wall fixing. The Cerbo GX MK2's terminal blocks accept wires up to 2.5 mm², and the GX Touch 70 connects via a single USB-style cable, reducing wiring complexity. Bluetooth connectivity allows initial configuration through the VictronConnect app, speeding up commissioning. With an operating temperature range of -20 to +50 °C and IP20 rating, it is suited for protected indoor environments like electrical cabinets or control panels.
Take Command of Your Energy System
Upgrade your power management with the Victron Cerbo GX MK2 and GX Touch 70 display combo. Whether you're outfitting a yacht, securing a remote homestead, or optimising a commercial backup system, this duo delivers the insight and control you need to keep your energy flowing reliably. Order today and experience the confidence of a fully connected Victron ecosystem.
SKU: VIC-Cerbo-MK2-Touch_70-01
SPECIFICATIONS
Specifications
| Cerbo GX | |
|---|---|
| Supply voltage | 8 – 70 VDC |
| Power draw without GX Touch | 2.8 W @ 12 V |
| Power draw with GX Touch | Backlight off: 3.8 W @ 12 V |
| Backlight at max: 4.8 W @ 12 V | |
| Mounting | Wall or DIN rail (35 mm) |

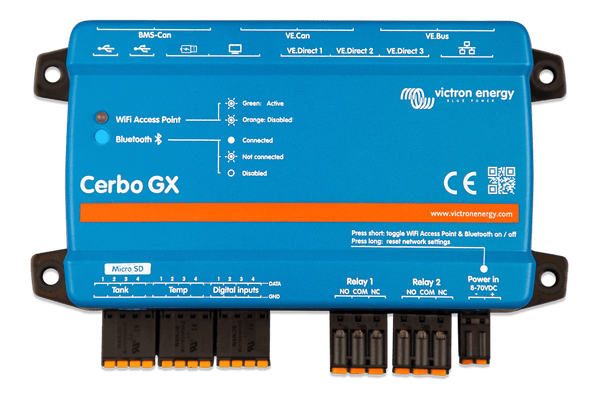

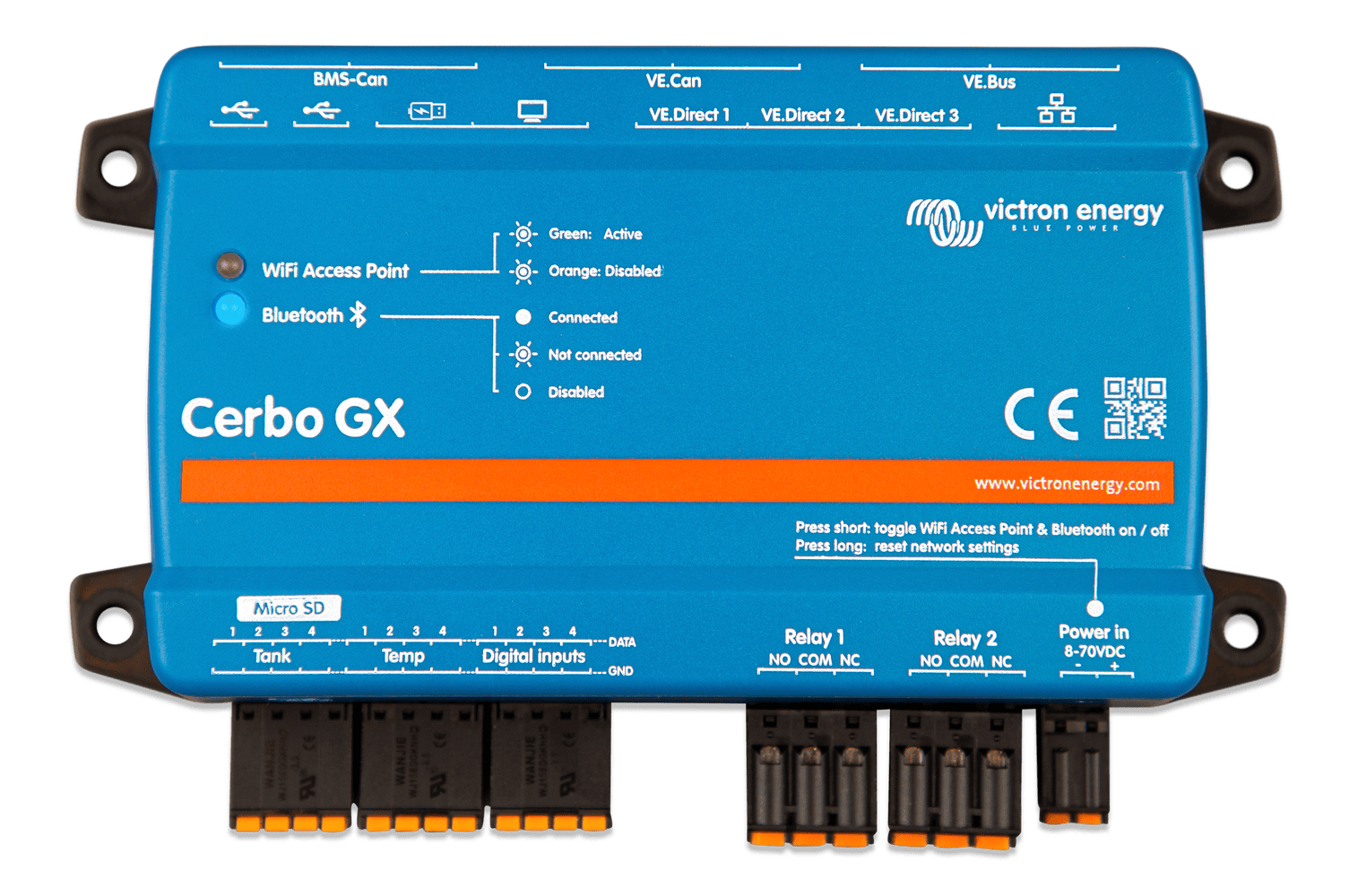

| Communication ports | |
| VE.Direct ports (always isolated) | 3 (max. possible VE.Direct devices: 15) |
| VE.Bus (always isolated) | 2 paralleled RJ45 sockets |
| VE.Can | yes - non isolated |
| BMS-Can port | Yes |
| Bluetooth | Yes (4) |
| IO | |
| Resistive tank level inputs | 4 |
| Temperature sense inputs | 4 |
| Digital Inputs | 4 |
| Relays | 2 x NO/NC 30VDC:6A or 70VDC: 1A or 125VAC: 6A |
| Other | |
| Outer dimensions (h x w x d) | 78 x 154 x 48 mm |
| Operating temperature range | -20 to +50 °C |
| IP Rating | IP20 |
| Standards | |
| Safety | IEC 62368-1 |
| EMC | EN 301489-1, EN 301489-17 |
| Automotive | ECE R10-6 |
Notes:
- For more detailed information about the Cerbo GX and the GX Touch, please visit the Victron GX product range page at Victron live
- DIN rail mounting requires an additional accessory purchased separately - DIN35 Adapter.
- The listed maximum in the above table is the total of connected VE.Direct devices such as MPPT Solar Charge controllers. 'Total' means all directly connected devices plus the devices connected over USB. The limit is mostly bound by CPU processing power. Note that there is also a limit to the number of other types of devices, of which often multiple are connected: PV Inverters. Up to three or four three-phase inverters can typically be monitored on a Cerbo GX. Devices with a higher power CPU can monitor more.
- Bluetooth functionality is intended to be used to assist with initial connection and networking configuration. You cannot use Bluetooth to connect to other Victron products (e.g., SmartSolar charge controllers).
- In Cerbo GX hardware, there are two relays. Currently, Relay 1 can be used for programming as an alarm relay, generator start/stop, tank pump, temperature-controlled relay, or manual operation. Relay 2 is available for programming as a temperature-controlled relay or manual operation in the Relay menu of the GX (requires firmware 2.80 or higher).
| SKU: | VIC-Cerbo-MK2-Touch_70-01 |
WARRANTY
Victron Energy Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
