Ruuvi Gateway Router

Advanced Remote Monitoring for Bluetooth Sensors

The Ruuvi Gateway Router provides a robust bridge between your local Bluetooth environmental sensors and the internet, allowing for seamless global remote monitoring. By routing data directly to the Ruuvi Cloud, this gateway overcomes standard Bluetooth range limitations, ensuring you have constant access to critical environmental data, no matter your location.

Designed for both residential and commercial applications, this system transforms standalone Bluetooth trackers into a fully integrated RuuviTag WiFi and Ethernet monitoring network. Whether you are tracking temperature variations in a cold storage facility, monitoring humidity in a greenhouse, or ensuring optimal conditions in a remote server room, this device delivers reliable, continuous data transmission.

Flexible Connectivity: Wi-Fi and Ethernet Integration

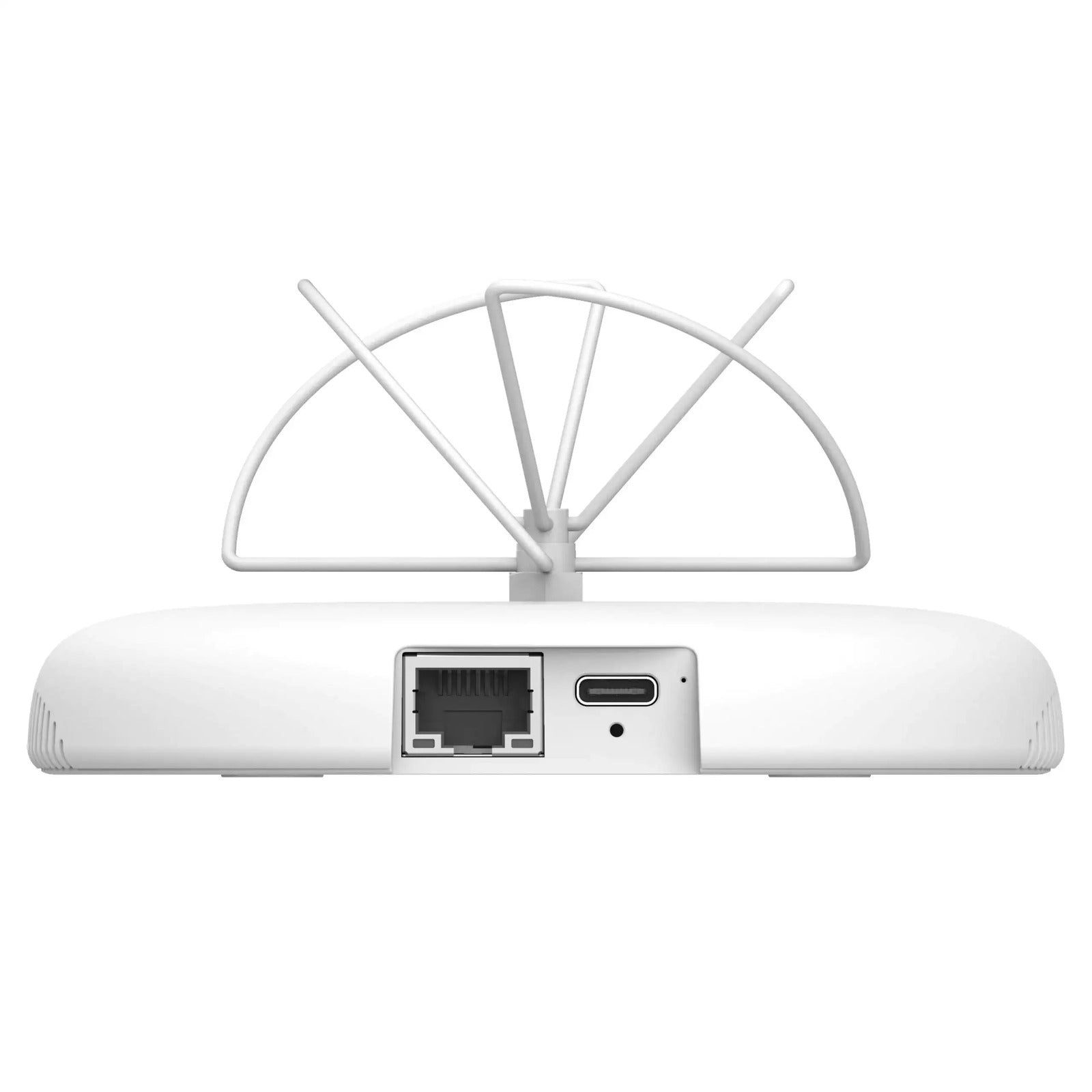

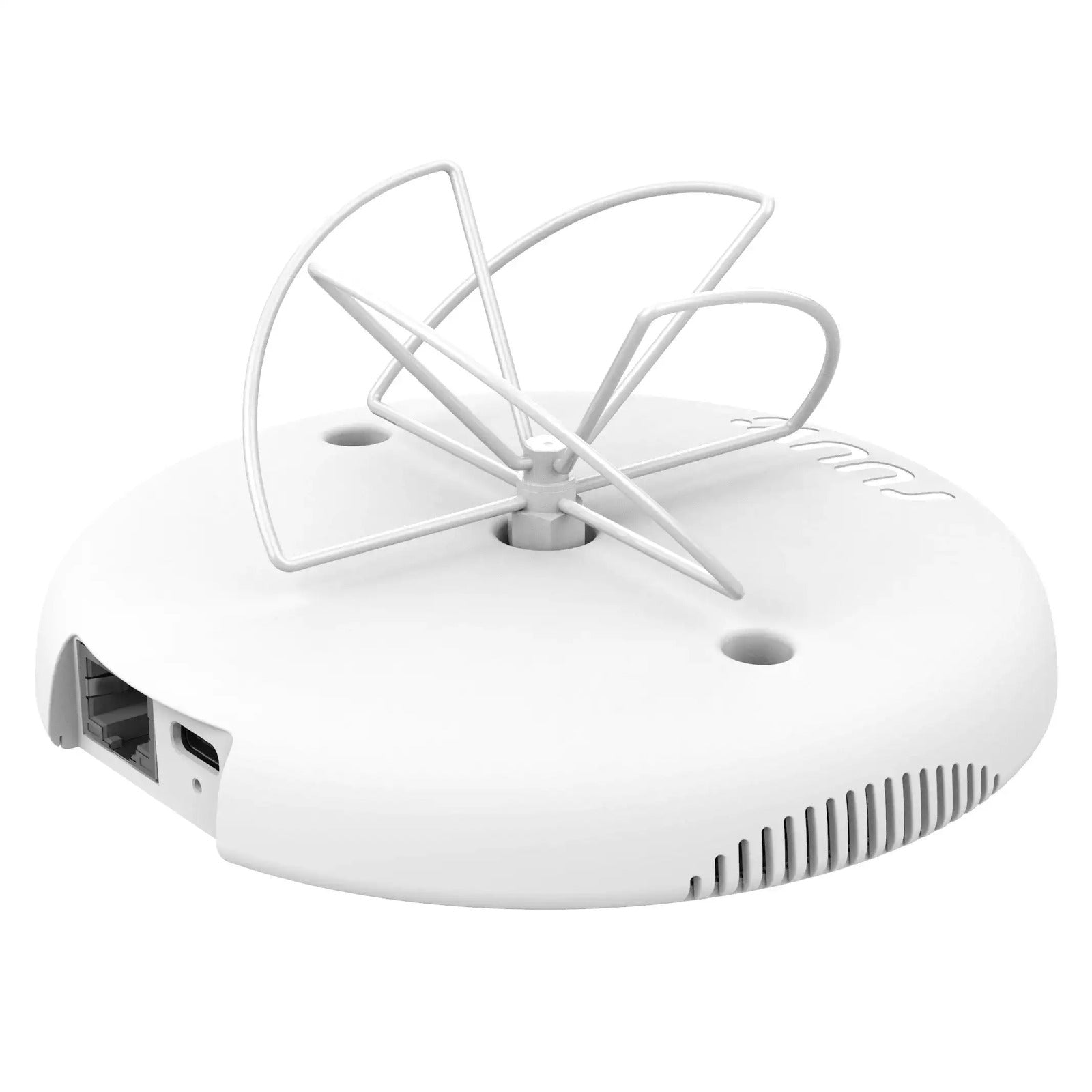

To accommodate diverse networking environments, the gateway supports both wired and wireless connections. Users can connect via standard 2.4 GHz Wi-Fi for flexible placement or utilise the 10/100 Mbit/s Ethernet port for a highly stable, hardwired connection. This dual-connectivity approach ensures consistent data logging and significantly reduces the risk of data loss due to network interruptions.

Comprehensive Data Management with Ruuvi Station

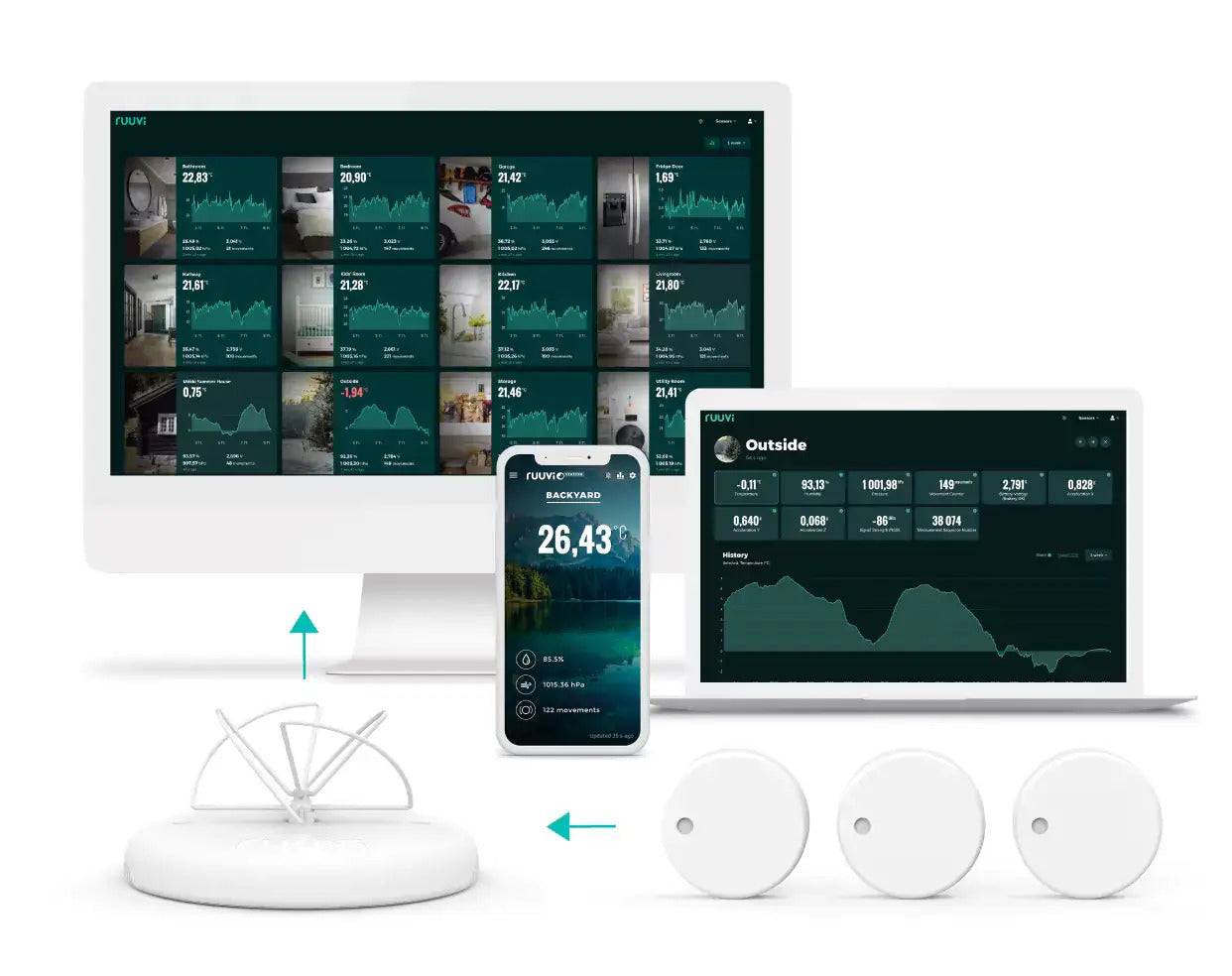

Once connected, the gateway seamlessly routes your sensor data securely to the Ruuvi Cloud. This allows users to access real-time metrics and historical trends through the Ruuvi Station mobile and web applications. You can efficiently manage multiple gateways under a single account, creating a comprehensive and scalable environmental monitoring network.

Each unit includes an activation code for a complimentary 6-month trial of the Ruuvi Cloud Pro subscription. This upgraded tier unlocks extended historical data retention of up to two years and provides the ability to configure reliable email alerts, ensuring immediate notification if environmental parameters fall out of specification.

Key Features

• Global Accessibility: Monitor your local Ruuvi sensors from anywhere in the world via the internet.
• Dual Networking Options: Connect securely using a 10/100 Mbit/s Ethernet connection or 2.4 GHz Wi-Fi.

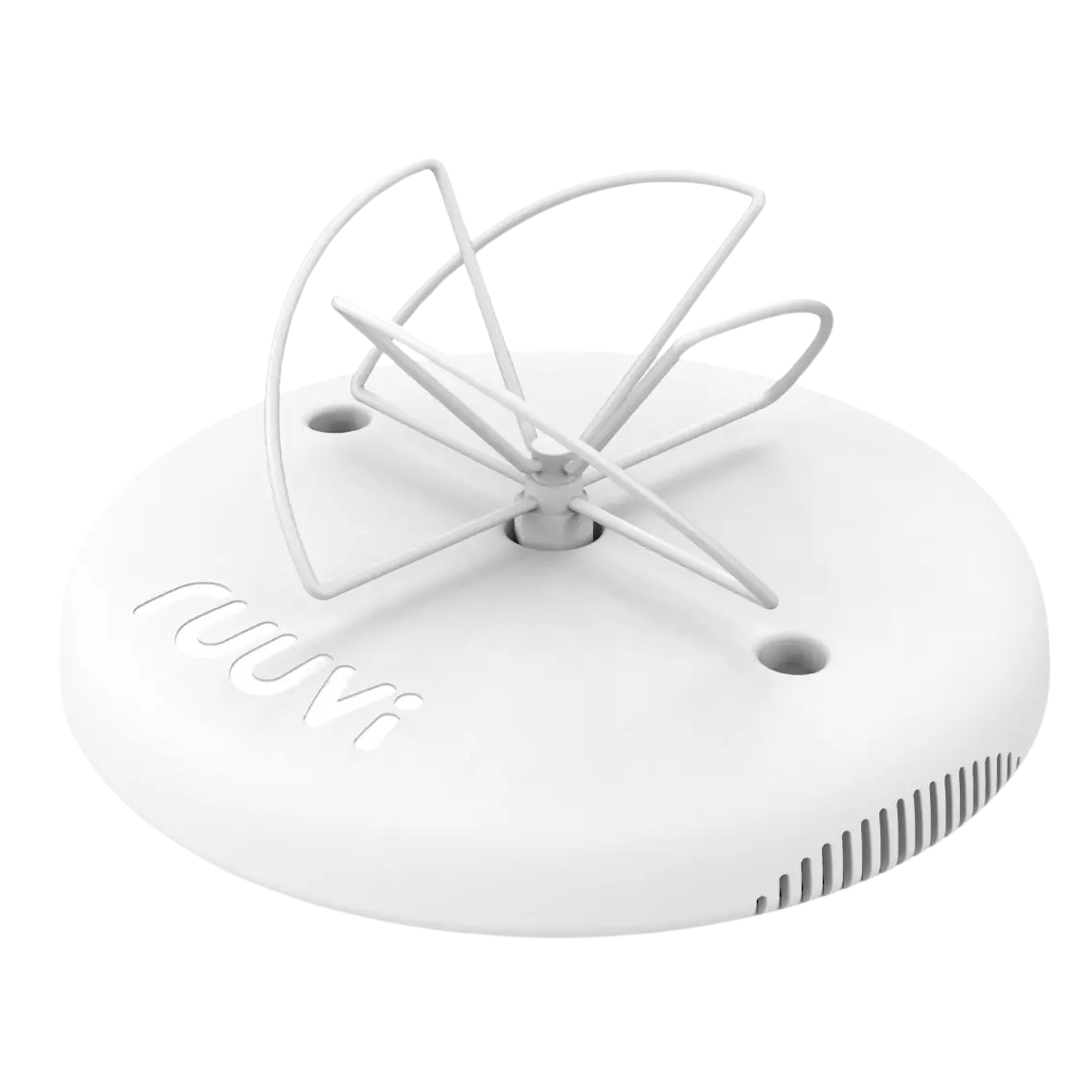

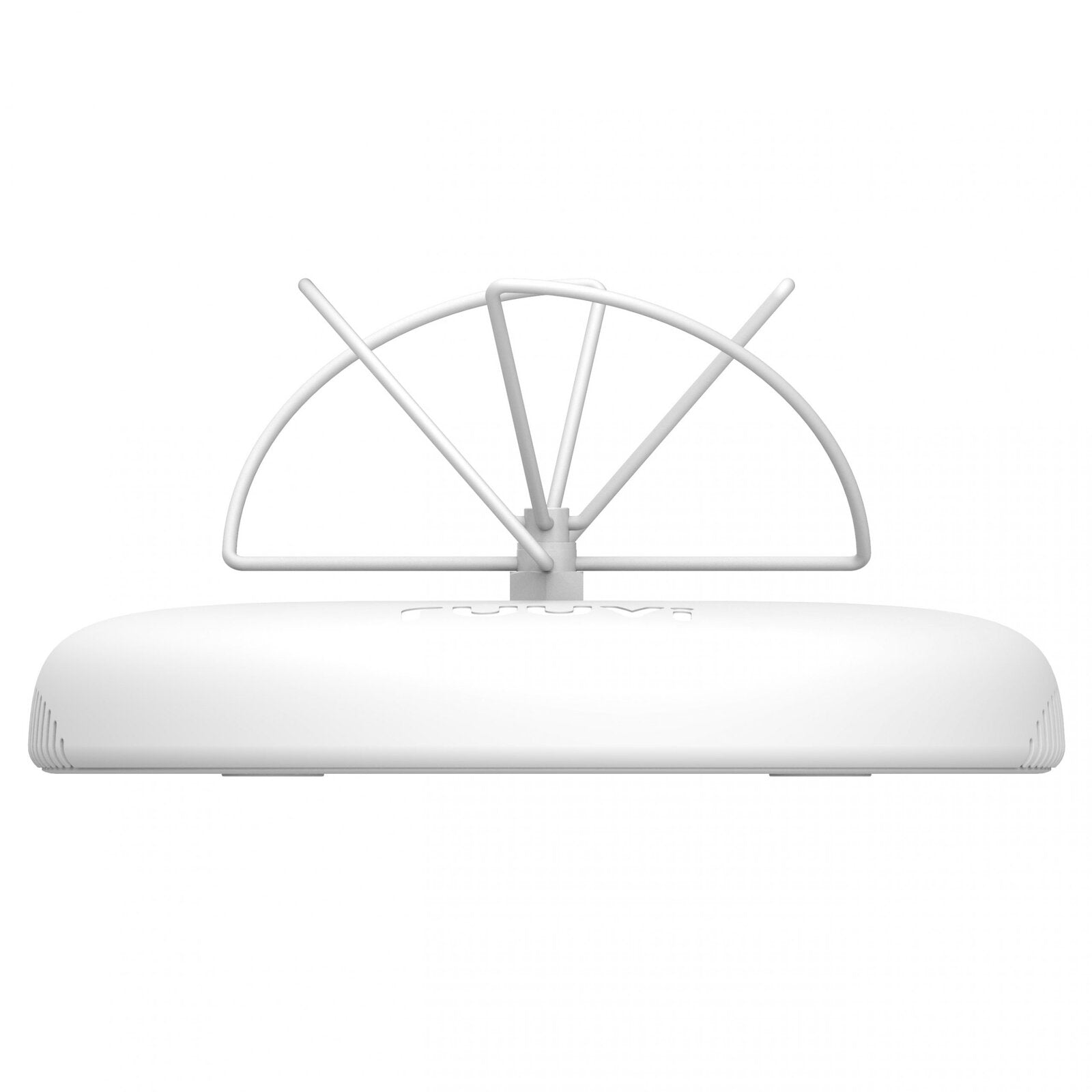

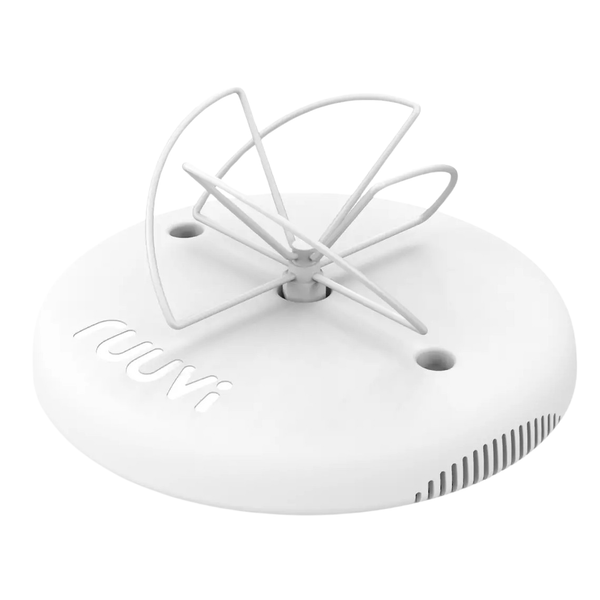

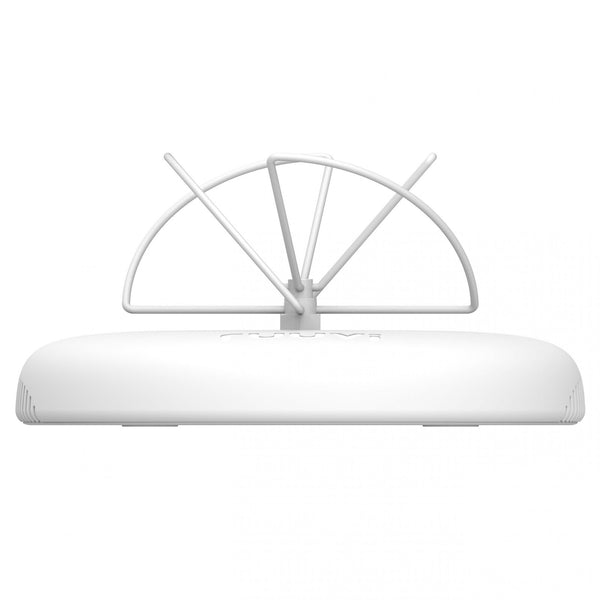

• Advanced Antenna Design: Features an SMA female connector and includes a high-performance cloverleaf antenna to maximise Bluetooth reception.
• Broad Temperature Tolerance: Engineered to operate reliably in environments ranging from -20 °C to +70 °C.
• Custom Server Support: Highly configurable software allows routing to custom servers via HTTP or MQTT protocols.
• Open-Source Architecture: Provides ultimate flexibility for developers and advanced systems integrators.

Open-Source Flexibility for Advanced Users

Powered by an Espressif Systems ESP32 main processor and a Nordic Semiconductor nRF52811 Bluetooth receiver, the gateway is built on a fully open-source software platform. This design choice provides advanced users and developers with the freedom to integrate the hardware into proprietary systems. By enabling custom HTTP and MQTT server configurations, the device caters to highly specialised data logging and automation requirements without locking users into a restrictive ecosystem.

Everything Required for Immediate Deployment

The package contains all necessary components to establish your monitoring network immediately. Inside the box, you will find the gateway device, a cloverleaf antenna for enhanced Bluetooth reception, a high-quality Ethernet cable, a USB-C power supply with a compatible cable, and the necessary mounting screws for permanent installation. The enclosure is constructed from the same durable polycarbonate used in the standard sensors, ensuring a uniform and professional appearance across your deployment.

Upgrade Your Environmental Monitoring Today

Expand your data collection capabilities and eliminate local range constraints. Invest in the Ruuvi Gateway Router to build a reliable, cloud-connected monitoring system for your critical assets and environments.
