Stäubli 32.6126 Professional MC4 Solar Toolset

Comprehensive PV Assembly Kit for Flawless Solar Connections

Achieving secure, low-resistance connections is a critical aspect of any photovoltaic installation. The Stäubli professional toolset provides solar technicians and installers with everything required to assemble industry-standard MC4 and MC4-Evo 2 connectors. Designed for precision and reliability, this comprehensive kit ensures that every crimp, strip, and connection meets strict electrical compliance standards, significantly reducing the risk of system faults or safety hazards.

Mitigate Risks with Precision Engineering

In off-grid, marine, and industrial solar systems, poor connector assembly is a leading cause of high-resistance faults, arc faults, and system inefficiencies. Using generic or improper tools can lead to under-crimped wires, damaged insulation, or loose weather seals. This specialised kit eliminates those risks. By utilising precision-engineered instruments specifically calibrated for original Stäubli components, installers can ensure optimal electrical conductivity and reliable weatherproofing for long-term stability.

Essential Instruments for Reliable PV Installations

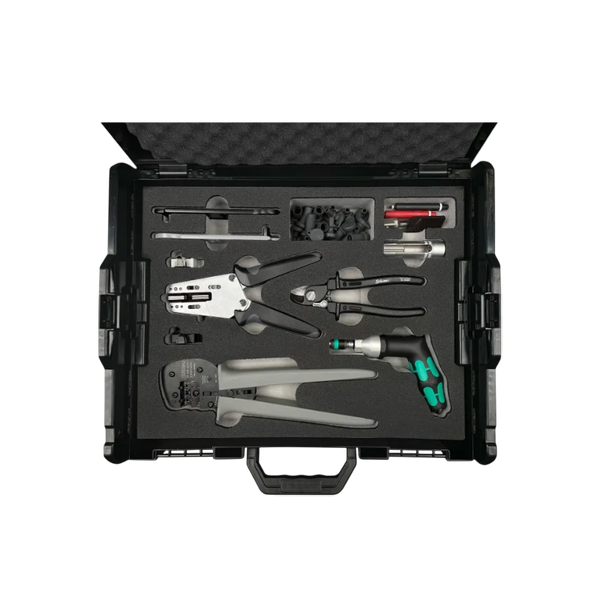

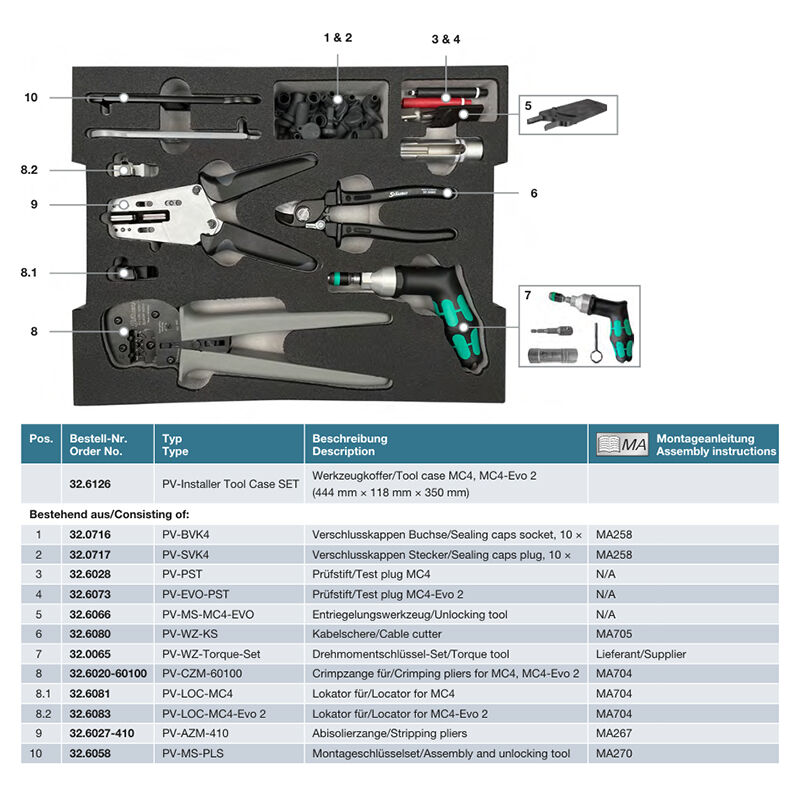

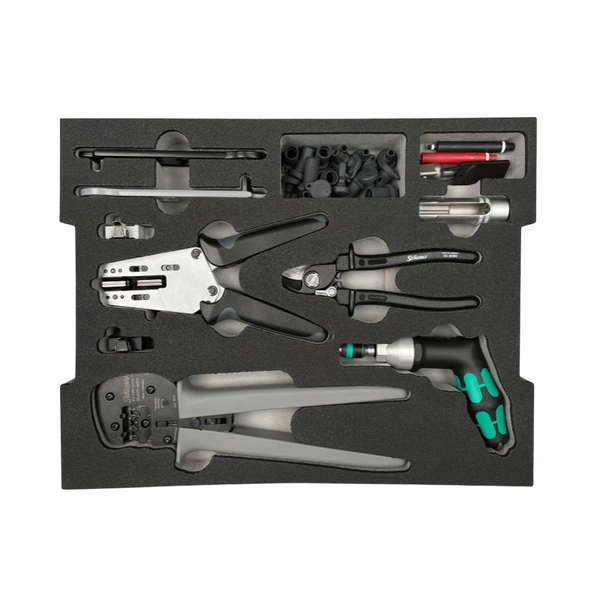

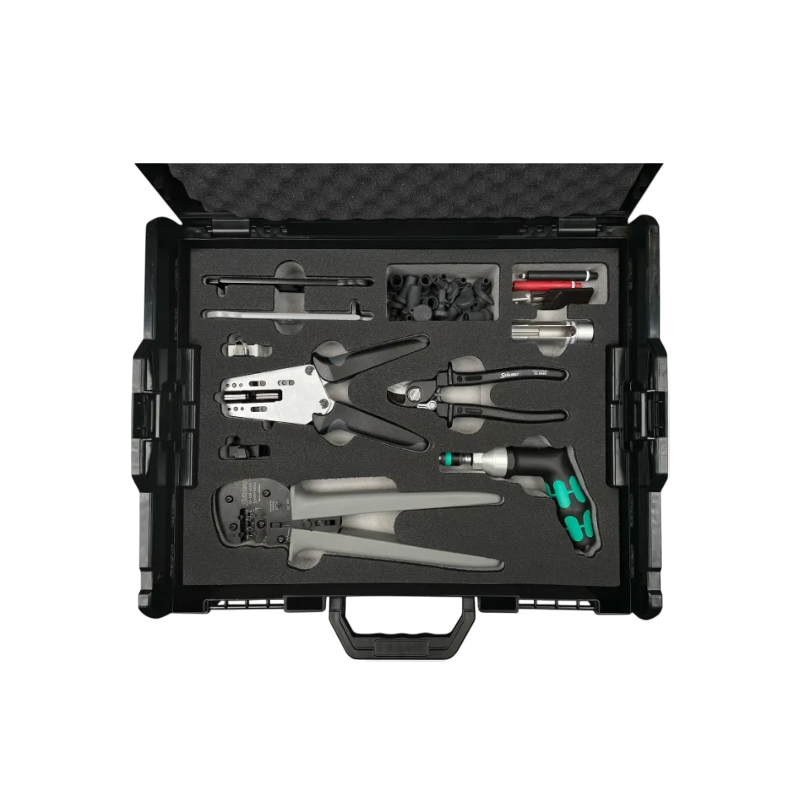

Every tool in this robust transport case serves a critical function in the cable preparation and termination process. The kit caters directly to 4mm², 6mm², and 10mm² solar cables, addressing the most common wire gauges found in modern solar arrays.

• Precision Crimping Pliers: Features an integrated die-set for 4, 6, and 10mm² connectors, applying the exact mechanical pressure required for a flawless, low-resistance electrical bond.
• Calibrated Torque Tool: Ensures uniformity across all connector housings, preventing the over-tightening that cracks plastics and the under-tightening that compromises water seals.
• Clean Cable Preparation: The included stripping pliers cleanly remove tough PV cable insulation without nicking the copper strands, while the dedicated cable cutter delivers smooth, burr-free cuts essential for optimal crimping.
• Accurate Alignment and Testing: Specialised locator tools ensure contacts are perfectly seated within the housing, while the included test plugs verify proper alignment before final assembly.
• Specialised Assembly Wrenches: An open-end spanner and an unlocking tool allow for the rapid and secure assembly or disassembly of connectors without damaging the protective outer housing.

Built for Demanding Environments

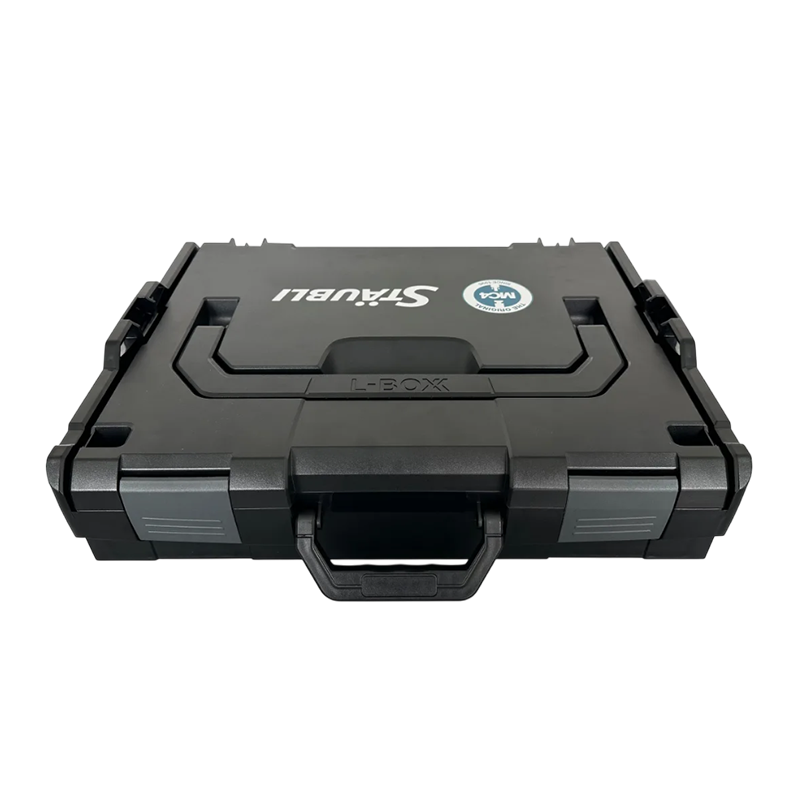

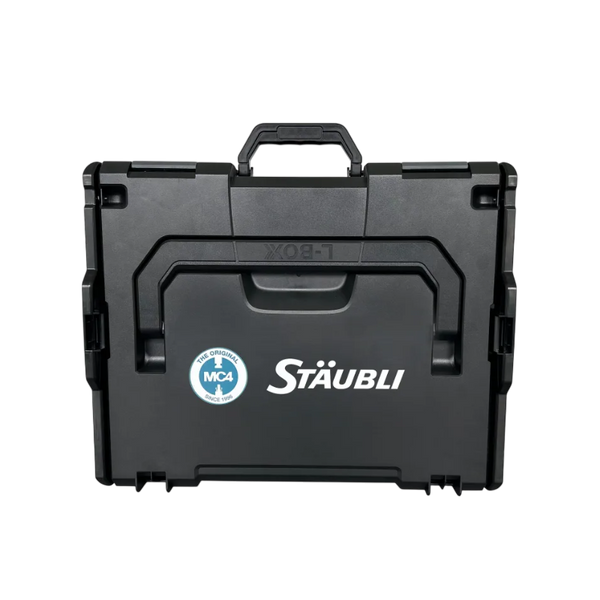

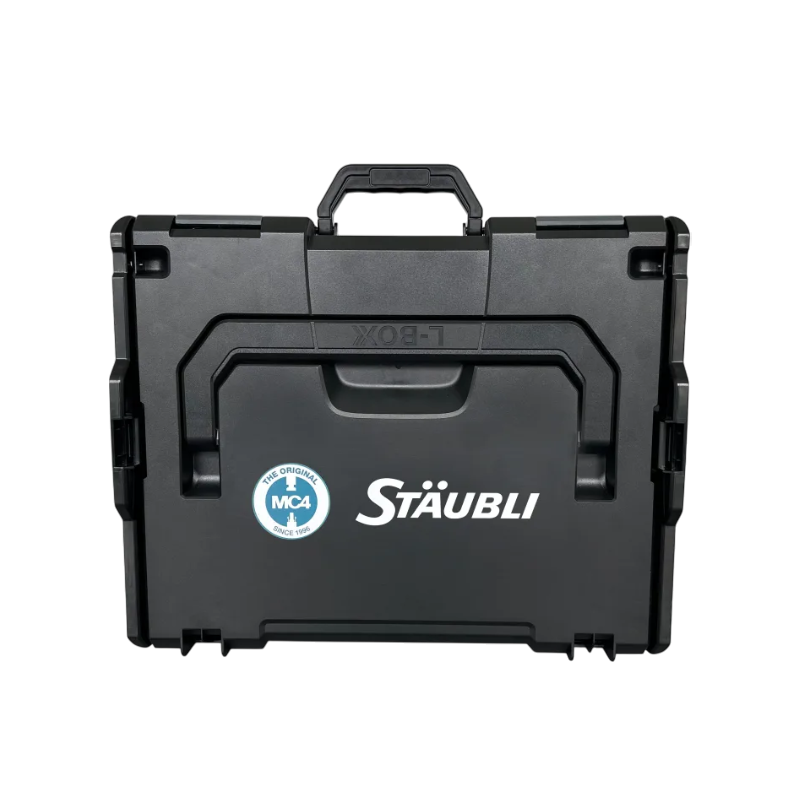

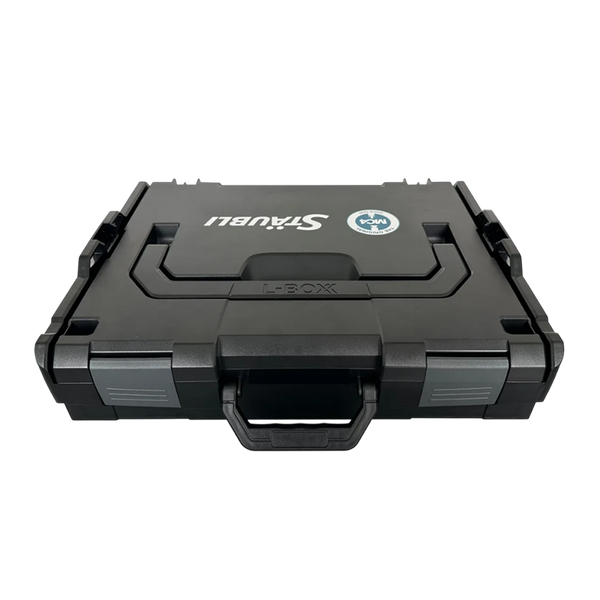

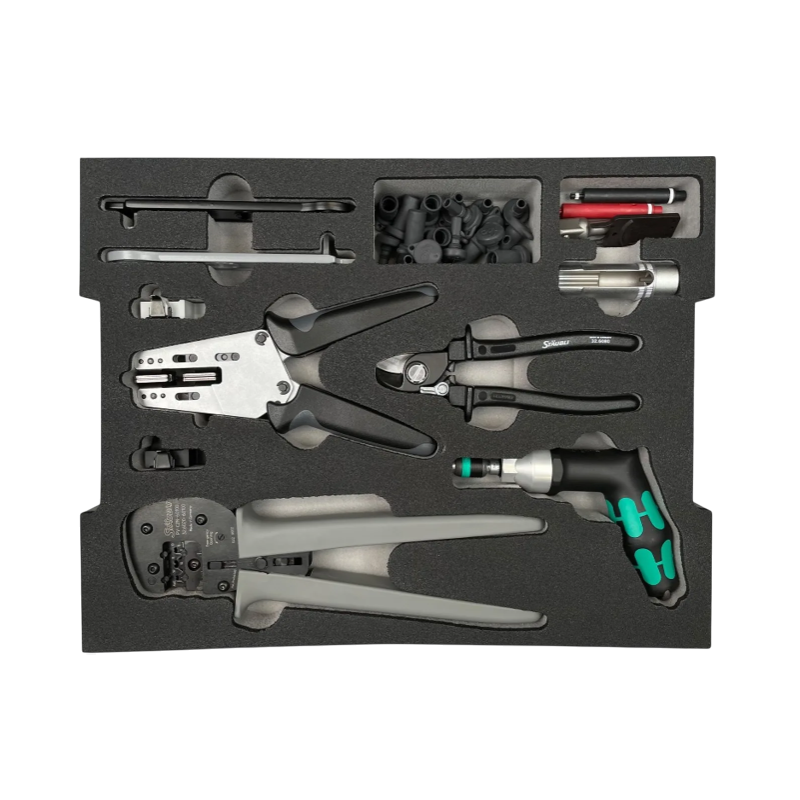

Whether you are outfitting a caravan or camper trailer with a 12V solar setup, wiring a 48V remote off-grid cabin, or managing a large-scale industrial array, the quality of your connections dictates the performance of your system. Note that while many mobile setups utilise 12V or 24V architectures, these tools are designed to meet the stringent demands of high-voltage industrial solar environments, ensuring optimal safety across all system sizes. Organised within a durable L-Boxx transport case with custom foam inserts, these tools are protected from the rigours of the Australian job site. The kit also includes sealing caps to protect unused sockets and plugs from dust and moisture ingress during the installation process.

Elevate Your Solar Installations

Equip your workshop or service vehicle with the definitive solution for photovoltaic assembly. By standardising your workflow with genuine, precision-calibrated instruments, you ensure optimal safety and performance across all your projects. Upgrade your toolkit today to execute flawless, compliant solar connections on every job.
