Victron Battery Indicator Eyelet (M8 eyelet / 30A ATO fuse) (Suits IP65 Battery Charger)

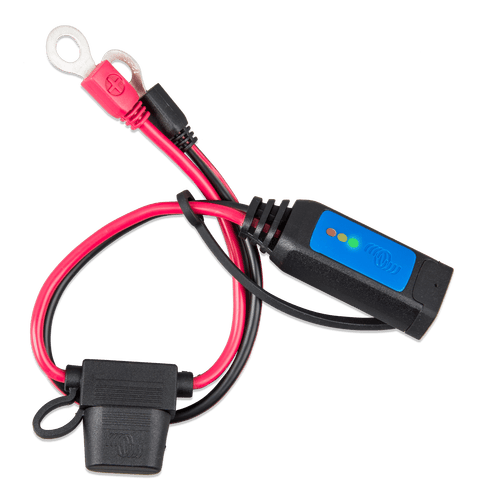

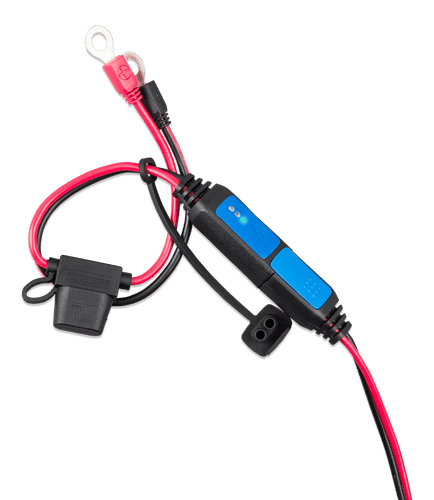

Tri-colour LED battery monitor with M8 eyelets and 30A ATO fuse


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
4

DESCRIPTION

Victron Battery Indicator Eyelet: Real-Time Battery Monitoring for IP65 Blue Smart Chargers

Stay Informed with At-a-Glance Battery Status

The Victron Battery Indicator Eyelet provides a simple yet effective way to monitor your battery’s state of charge when using a Victron Blue Smart IP65 Charger. Designed for permanent connection to your battery via M8 eyelet terminals, this accessory integrates a tri-colour LED status module that displays green, orange, or red to indicate voltage level, so you always know your battery’s condition without needing a multimeter or opening the battery box.

Ideal for caravan, marine, 4WD, and off-grid battery systems, this indicator helps prevent unexpected battery depletion and extends battery life by encouraging timely recharging. The inline 30A ATO fuse adds a layer of circuit protection, while the IP65-rated weather-resistant construction ensures reliable operation in dusty or wet environments.

Key Features

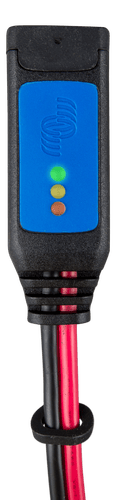

  • Tri-colour LED battery indicator — green, orange, and red lights give instant voltage status at a glance
  • M8 eyelet connectors — secure, permanent attachment to battery terminals for continuous monitoring
  • 30A ATO fuse — integrated fuse holder with weather-resistant cap protects the circuit
  • Quick-connect charger port — plugs directly into Victron Blue Smart IP65 chargers for hassle-free setup
  • IP65 protection — dust-tight and water-jet resistant, suitable for engine bays and exposed installations
  • Low back-current drain — draws just 0.9 mA, so it won’t flatten your battery over time
  • Compact design — small footprint (22 x 18 x 55 mm) fits neatly in tight battery compartments

Engineered for Reliable Battery Awareness

Unlike generic voltage meters that require separate wiring or displays, the Victron Battery Indicator Eyelet is purpose-built for the Blue Smart IP65 charger ecosystem. The 0.3 m cable with 3.3 mm² (AWG12) conductors handles up to 30 A maximum current, making it suitable for most 12V battery setups. The LED module clearly indicates battery voltage: green for healthy, orange for moderate, and red for low, helping you decide when to recharge before damage occurs.

This indicator solves the common problem of not knowing your battery’s state of charge when a charger isn’t connected. It reduces the risk of deep discharge, which can permanently damage lead-acid and lithium batteries, and eliminates the guesswork of manual voltage checks. The M8 eyelets (approx. 5/16" ring terminals) fit standard battery posts, and the 30A ATO fuse provides overcurrent protection that generic indicators often lack.

*Note: Maximum current rating is 30 A; typical de-rating factors apply for continuous loads and elevated temperatures.

Simple Installation, Immediate Feedback

Installation is straightforward: connect the M8 eyelets to your battery terminals, plug the quick-connect lead into your Victron Blue Smart IP65 Charger, and the LED module immediately begins reporting battery voltage. The weather-resistant design means you can mount it in engine bays, battery boxes, or under-bonnet areas without concern for moisture or dust ingress.

Whether you’re maintaining a deep-cycle battery in a caravan, a marine battery on a boat, or a secondary battery in a 4WD, this indicator gives you confidence that your battery is ready when you need it.

Add Confidence to Your Charging Setup

Pair your Victron Blue Smart IP65 Charger with the Battery Indicator Eyelet and take the guesswork out of battery maintenance. Order today to keep your battery health visible and your adventures on track.


SKU: VIC-BPC900120114

SPECIFICATIONS

Specifications

Voltage6-15 V
Back Current Drain0.9 mA
Maximum Current30 A
Length of Cable0.3 m
Cable Diameter3.3 mm² [AWG12]
Size22 x 18 x 55 mm
Battery Connection TypeM8 Eyelet Connectors
Fuse30 A ATO Fuse
Weight0.17 kg
Protection CategoryIP65

SKU: VIC-BPC900120114
Barcode: 8719076043065
Model #: BPC900120114
MPN: BPC900120114

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
