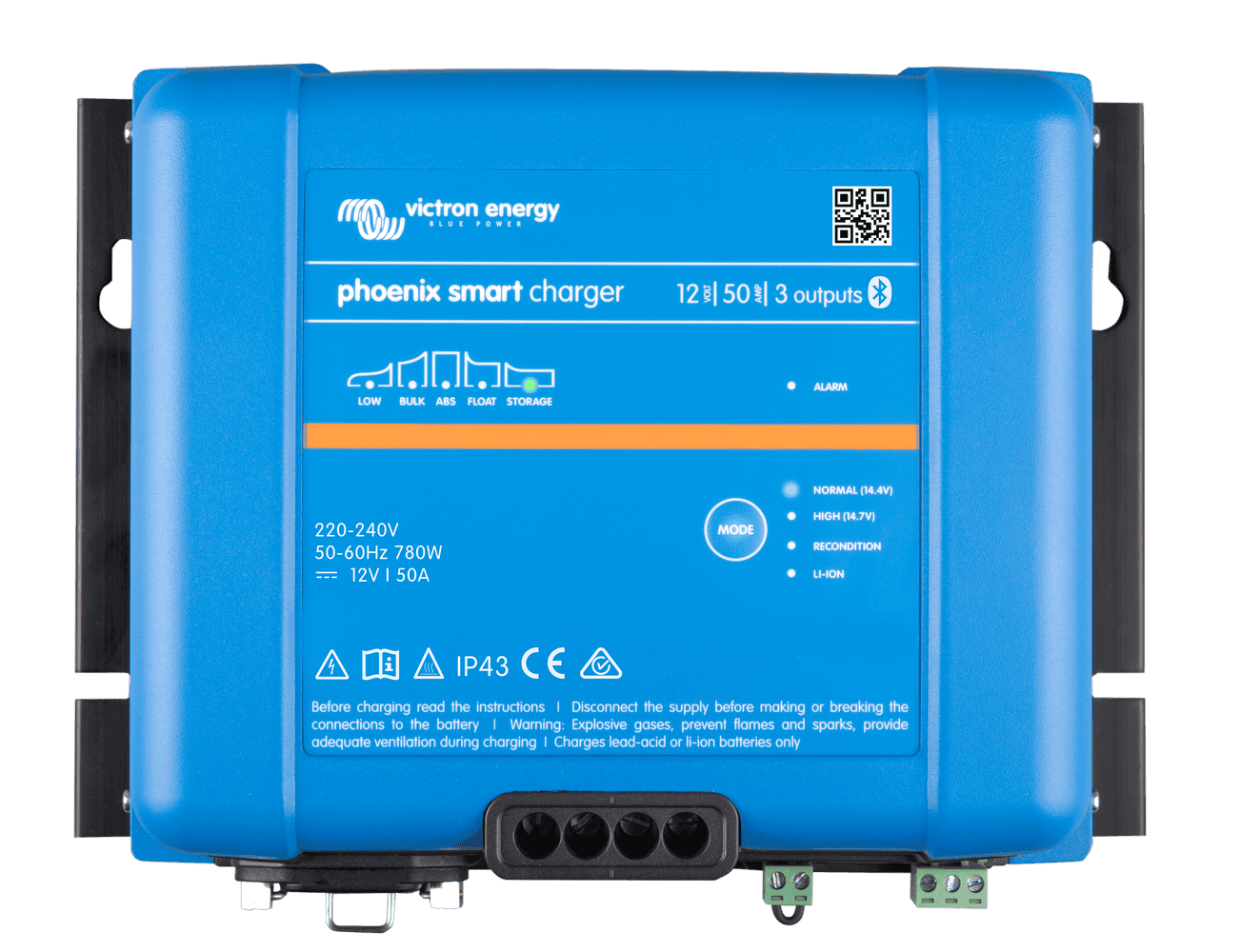

Victron 12V 50A Multi-Bank Phoenix Smart IP43 12/50(3) Battery Charger

Deliver intelligent, adaptive battery maintenance with this 12V 50A charger, featuring built-in Bluetooth and multi-bank capabilities for marine and off-grid systems.


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Intelligent Adaptive Charging for Marine and Off-Grid Systems

The Victron 12V 50A Multi-Bank Phoenix Smart IP43 12/50(3) Battery Charger offers professional-level battery maintenance for demanding marine, automotive, and off-grid applications. Designed to handle the rigours of mobile power systems, this intelligent Victron smart charger ensures your batteries receive the precise energy they need to maximise lifespan and performance. With a robust 12V architecture and 50A output, it is an essential component for any reliable standalone power system.

Complete Control with Bluetooth Smart

Built-in Bluetooth connectivity transforms how you interact with your power system. Using the free VictronConnect app on your smartphone or tablet, you can monitor charge status, adjust settings, and update firmware completely wirelessly. For larger, integrated setups, the VE.Direct port provides seamless wired communication with Victron GX devices, enabling comprehensive system oversight.

Adaptive 5-Stage Battery Management

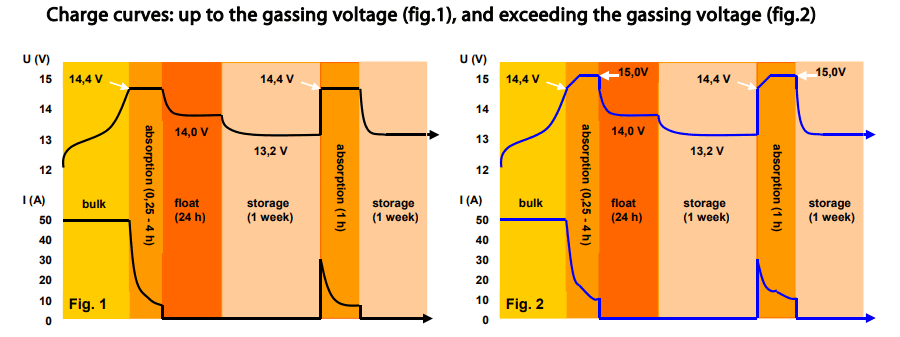

Standard chargers can easily overcharge batteries during extended periods of shore power or standby use. This unit employs a highly advanced, adaptive 5-stage algorithm: bulk, absorption, recondition, float, and storage. By automatically adjusting the charging process based on how the battery is being used, it delivers the exact right amount of charge.

If the battery experiences only shallow discharges, the absorption time is reduced to prevent overcharging. Conversely, after deep discharges, the system automatically extends the absorption phase to ensure a complete recharge.

Superior Battery Protection

Prolonged periods of inactivity often lead to early battery failure due to sulphation and corrosion. The innovative Storage Mode activates automatically after 24 hours without discharge. It reduces the float voltage to minimise gassing and positive plate corrosion, while initiating a weekly refresh cycle to prevent electrolyte stratification. Furthermore, the BatterySafe mode prevents damage from excessive gassing by automatically limiting the rate of voltage increase during rapid charging.

This multi-bank model is equipped with three fully isolated outputs. Each connection can supply the maximum rated current, allowing you to charge up to three separate battery banks simultaneously, provided the total combined draw does not exceed the charger's overall rating.

Built for Harsh Australian Environments

Operating in marine vessels or off-grid caravans means exposing equipment to challenging conditions. The IP43 protection rating ensures the internal electronic components are shielded against dust and water spray up to 60 degrees from vertical, provided the unit is mounted correctly. The natural convection cooling system utilises a large aluminium heatsink, eliminating the need for noisy cooling fans while maintaining exceptional efficiency and thermal stability even in warmer climates. Additionally, automatic voltage compensation offsets DC cable voltage drop by slightly increasing output voltage when DC current increases, ensuring optimal delivery to your battery bank.

Versatile Chemistry Support

Whether you are using traditional lead-acid, AGM, Gel, or advanced Lithium-ion (LiFePO4) battery banks, this charger adapts to your specific chemistry. It features a fully programmable charge algorithm and a dedicated lithium mode. Charger remote on/off control can even be managed directly by a Lithium-ion Battery Management System (BMS) via the integrated two-pole terminal.

Key Features

  • Built-in Bluetooth for wireless monitoring and setup via the VictronConnect app
  • VE.Direct port for seamless integration into advanced monitoring networks
  • Adaptive 5-stage charging algorithm prolongs battery life and efficiency
  • Automatic voltage compensation ensures accurate power delivery
  • Programmable relay for triggering external alarms or generator start signals
  • IP43 protection rating for electronic components provides resilience in tough environments
  • Compatible with a wide range of battery chemistries including LiFePO4

Upgrade Your Power System Today

Maintaining healthy batteries is critical for any off-grid or marine adventure. Equip your setup with the Victron 12V 50A Multi-Bank Phoenix Smart IP43 12/50(3) Battery Charger to ensure reliable, intelligent charging day in and day out. Secure your Victron smart charger today and experience peace of mind on your next journey.


SKU: VIC-PSC125053095

SPECIFICATIONS

Specifications

ModelSmart IP43 Charger 12/50(3)
Nominal Input Voltage120 - 240 V
Input Voltage Range - AC Supply85 - 250 VAC (Full Power From 100 VAC, Startup From 90 VAC)
DC Input Voltage Range90 - 375 VDC
Frequency45 - 65 Hz
Maximum Efficiency94 %
Charge Voltage - Normal ModeAbsorption 14.4 V / Float 13.8 V / Storage 13.2 V
Charge Voltage - High ModeAbsorption 14.7 V / Float 13.8 V / Storage 13.2 V
Charge Voltage - Lithium ModeAbsorption 14.2 V / Float N/A / Storage 13.5 V
Temperature Compensation - Default-16 mV/°C
Charge Algorithm6-Stage Adaptive (Bulk - Absorption - Recondition - Float - Storage - Refresh)
Maximum Input Current Setting3 - 10 A
Number Of Battery Connections3
Charge Current50 A
Low Current Mode25 A
Fully ProgrammableYes, With Bluetooth And/Or VE.Direct
ProtectionBattery Reverse Polarity (Fuse, Not User Accessible) / Output Short Circuit / Over Temperature
Can Be Used As Power SupplyYes, Output Voltage Can Be Set With Bluetooth And/Or VE.Direct

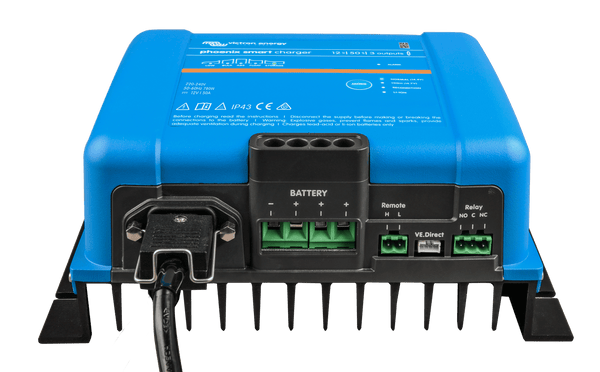

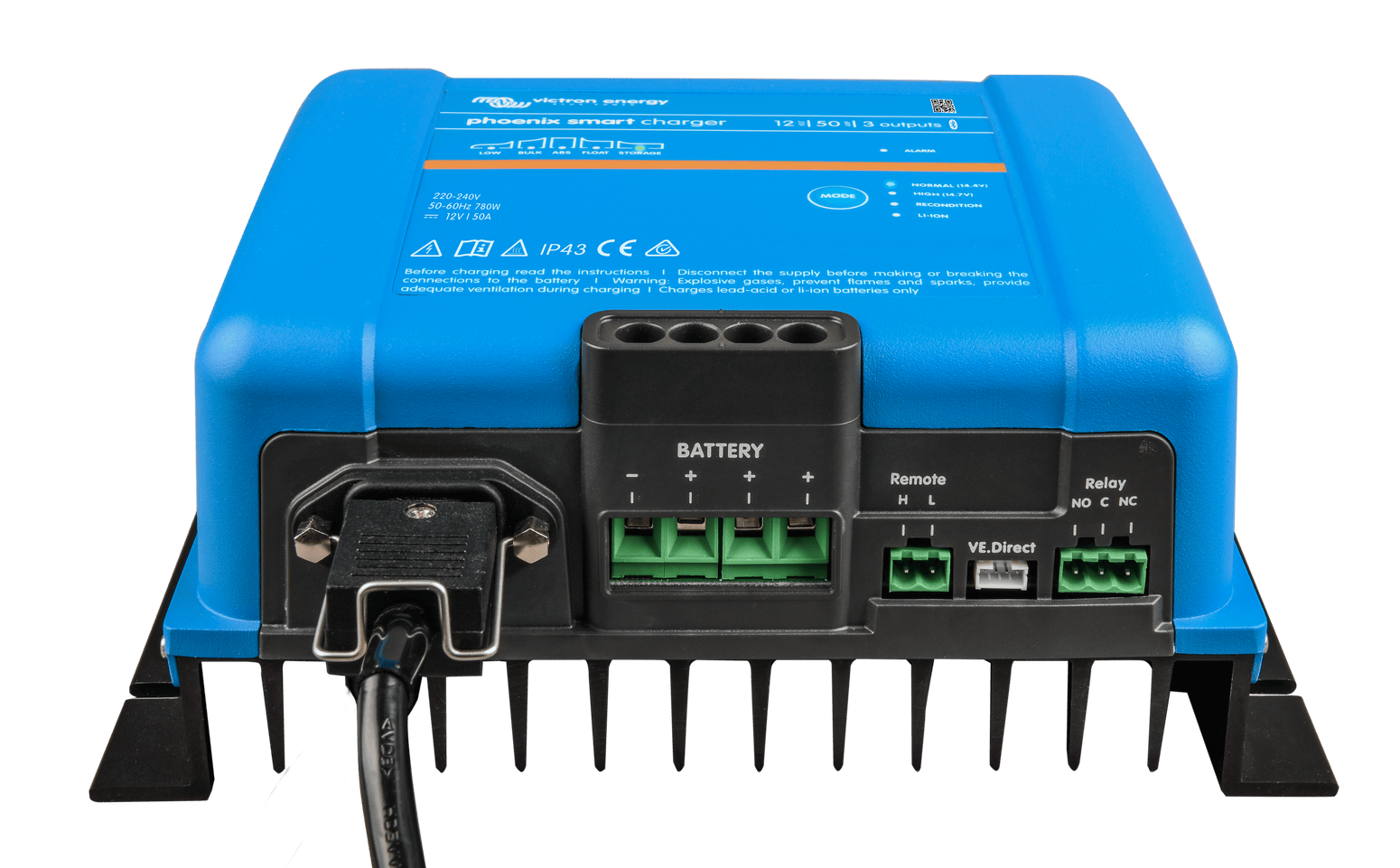

Remote On/OffYes (2 Pole Terminal)
Relay (Programmable)Yes (SPDT - 5 A Up To 250 VAC / 5 A Up To 28 VDC)
Battery ConnectionScrew Terminals 16 mm² (AWG 6)
AC ConnectionIEC 320 C14 Inlet With Retainer Clip (AC Cord Ordered Separately)
Protection CategoryElectronic Components: IP43 | Connection Area: IP22
Operating Temperature Range-20 to 60 °C (0 - 140 °F)
Weight2.7 kg (6 lbs)

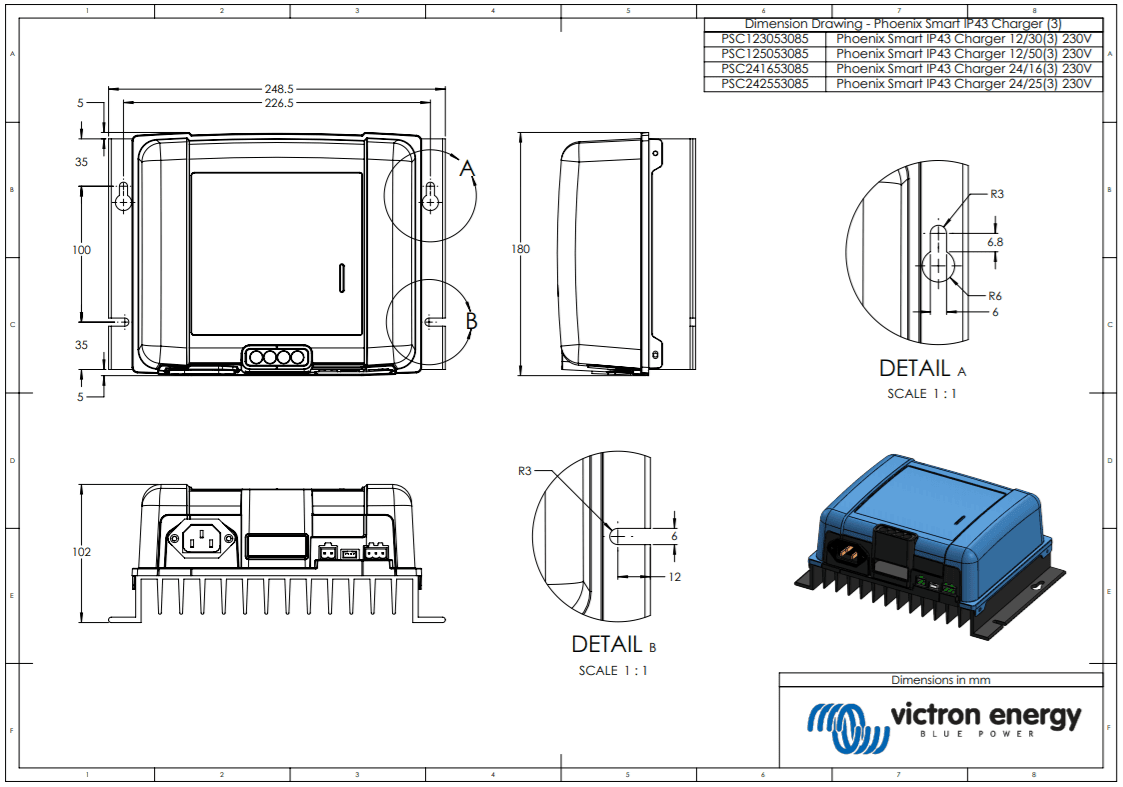

Dimensions (H x W x D)180 x 249 x 116 mm (7.1 x 9.8 x 4.6 inch)

SKU: VIC-PSC125053095
Barcode: 8719076053514
Model #: PSC125053095
MPN: PSC125053095

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
