Victron Cyrix-i Intelligent Battery Combiner 12/24V-400A

400A Continuous | Trend-Based Switching | Zero Voltage Drop


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

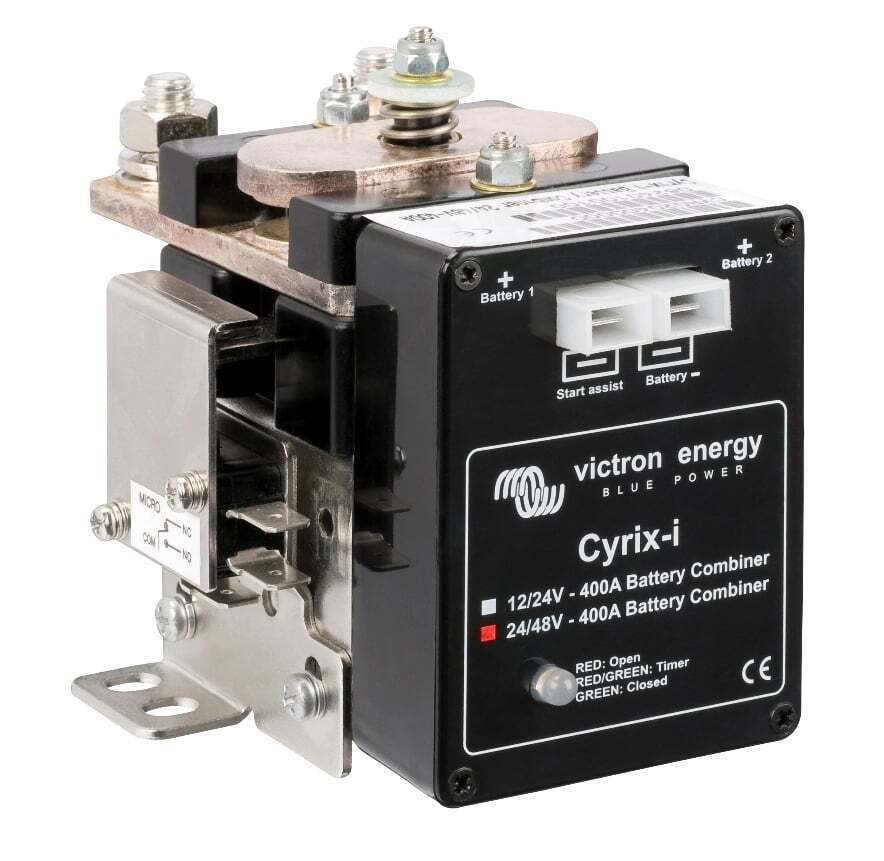

Victron Cyrix-i 12/24V-400A: Intelligent Battery Combiner for Dual-Battery Systems

Advanced Voltage Sensing and Smart Switching for Reliable Parallel Charging

The Victron Cyrix-i 12/24V-400A is a microprocessor-controlled intelligent battery combiner designed to manage dual-battery systems in vehicles, boats, and off-grid installations. Unlike conventional voltage-sensitive relays (VSRs) that rely on simple voltage thresholds and fixed timers, the Cyrix-i analyses voltage trends to prevent nuisance switching caused by momentary loads or deeply discharged batteries. This ensures your auxiliary battery charges reliably without unnecessary cycling, extending the lifespan of your entire system.

With a continuous current rating of 400 A and a peak capacity of 2000 A, this combiner handles high-demand applications such as winching, bow thrusters, or large inverter loads. The auto-ranging input (8-36 VDC) automatically detects 12V or 24V systems, simplifying installation and reducing inventory complexity for installers.

Why Trend-Based Switching Matters

Standard battery combiners often disconnect under short, high-current loads or fail to engage a depleted battery bank because the voltage collapses below the disconnect threshold. The Cyrix-i overcomes these limitations by evaluating the voltage trend over time. It only reverses a connection if the trend direction changes for a sustained period, preventing false triggers and ensuring stable parallel operation. Four selectable timing profiles allow customisation for different battery chemistries and usage patterns.

Zero Voltage Drop for Maximum Efficiency

Diode-based isolators introduce a forward voltage drop (typically 0.6-0.7 V), requiring higher alternator or charger output voltages and wasting energy as heat. The Cyrix-i uses high-current relay contacts, resulting in virtually no voltage loss. This means your batteries receive the full charging voltage, improving charge efficiency and reducing strain on your alternator or charger.

Bidirectional Sensing and Dual Power Supply

The Cyrix-i monitors voltage on both connected batteries and can be powered from either side. If one battery is too low to operate the relay, the other battery provides the necessary power. This ensures the combiner engages even when the starter battery is deeply discharged, as long as the auxiliary battery has sufficient voltage. For safety, the unit will not close if either terminal voltage is below 2 V (12V), 4 V (24V), or 8 V (48V), preventing unexpected operation during installation or maintenance.

Emergency Parallel Start Feature

A built-in push-button or remote switch input allows manual parallel connection for 30 seconds, providing an emergency start assist if the starter battery is flat. This feature is invaluable for marine, RV, and off-road applications where a failed start could leave you stranded.

Key Features

  • 400 A continuous / 2000 A peak current rating for high-demand loads
  • Intelligent trend-based switching prevents nuisance disconnects and ensures reliable charging
  • Auto-ranging 12/24V detection simplifies installation and reduces setup errors
  • Virtually zero voltage drop compared to diode isolators, maximising charge efficiency
  • Bidirectional voltage sensing and dual power supply for robust operation
  • Emergency start assist via push-button or remote switch for peace of mind
  • Microswitch output for remote status monitoring
  • Compact, vibration-resistant design with durable metal mounting bracket

Built for Demanding Environments

Encased in a rugged housing with high-current copper terminals, the Cyrix-i is engineered for the harsh conditions of engine rooms, vehicle chassis, and marine installations. The bicolour LED provides at-a-glance status indication, while the microswitch terminals enable integration with remote monitoring systems. Weighing just 0.9 kg, it adds minimal weight while delivering industrial-grade reliability.

Applications

Ideal for dual-battery systems in 4WDs, caravans, motorhomes, boats, and commercial vehicles. Use it to combine a starter battery with an auxiliary deep-cycle battery, or to link multiple battery banks for charging from a single alternator or charger. The Cyrix-i is also suitable for 24V systems in trucks, buses, and heavy equipment.

Upgrade Your Battery Management Today

Replace unreliable diode isolators or basic VSRs with the Victron Cyrix-i Intelligent Battery Combiner and experience smarter, more efficient parallel charging. Order now to ensure your dual-battery system delivers dependable power when you need it most.


SKU: Vic-CYR010400000

SPECIFICATIONS

Specifications

ModelCyrix-i 12/24-400
Continuous Current400 A
Peak Current2000 A During 1 Second
Input Voltage8-36 VDC
Switch Timing Profiles4 Selectable Profiles
Over Voltage Disconnect16 V / 32 V / 64 V
Current Consumption When Open4 mA
Emergency StartYes, 30 s
Micro Switch For Remote MonitoringYes
Status IndicationBicolour LED
Weight0.9 kg (2.0 lbs)
Dimensions (H X W X D)78 x 102 x 110 mm (3.1 x 4.0 x 4.4 in)

SKU: Vic-CYR010400000
Barcode: 8719076022251
Model #: CYR010400000
MPN: CYR010400000

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
