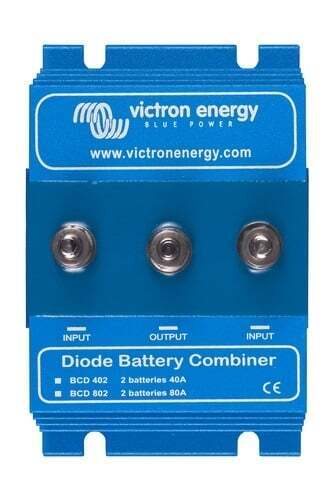

Victron 80A Diode Battery Combiner: Reliable Dual-Battery Isolation for Critical DC Systems
Continuous Power for Mission-Critical Equipment
The Victron 80A Diode Battery Combiner (model BCD 802) is engineered to maintain uninterrupted DC power to essential electronics, such as engine control units, navigation systems, and communication gear. By allowing two independent battery banks to feed a common load through high-efficiency Schottky diodes, this unit ensures that a failure in one battery source will not compromise the supply to your critical equipment. Whether you're operating a commercial vessel, an off-grid power system, or a remote monitoring station, this combiner provides the redundancy needed to keep vital systems online.
Unlike basic relay-based isolators, the diode design offers instantaneous, maintenance-free switching with no moving parts. The low forward voltage drop—approximately 0.3 V at low current and 0.45 V at the full 80 A rating—minimises energy loss while preserving isolation between battery banks. This makes it an ideal solution for 12 V and 24 V DC systems where reliability is non-negotiable.
Schottky Diode Technology: Efficiency and Thermal Management
At the core of the combiner are Schottky diodes, selected for their exceptionally low forward voltage characteristics. This reduces heat generation compared to standard silicon diodes, allowing the unit to sustain an 80 A continuous current without active cooling. The integrated aluminium heat sink with cooling fins dissipates thermal energy effectively, even in confined installations. For optimal safety, the combiner must be mounted on a non-flammable surface, as the enclosure can reach elevated temperatures during high-load operation.

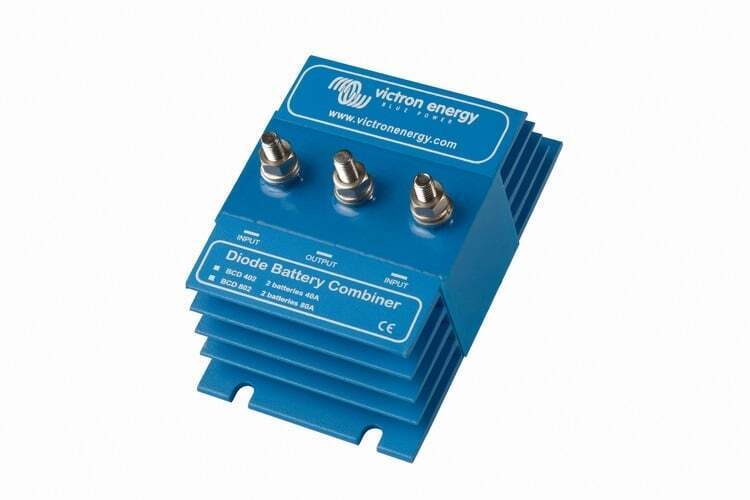

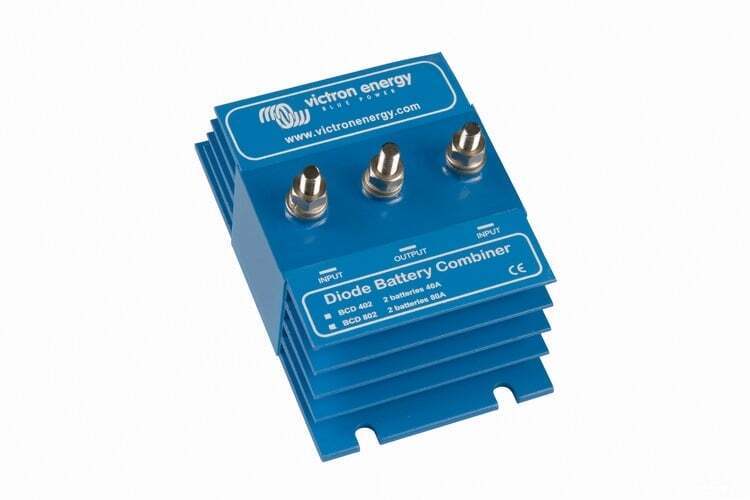

The robust metal housing and blue anodised finish provide durability in harsh environments, including marine engine rooms and industrial enclosures. Pre-slotted mounting holes enable secure vertical or horizontal installation, while the M6 bolt terminals (approx. 1/4"-20) accept heavy-duty ring lugs for reliable, low-resistance connections.
Key Features
- 80 A continuous current rating for demanding DC loads
- Dual-battery input with isolated diode paths prevents back-feeding
- Low voltage drop (0.3 V at low current, 0.45 V at rated output) maximises available voltage
- Schottky diode design reduces heat and improves efficiency
- Integrated aluminium heat sink for passive thermal management
- M6 bolt terminals (approx. 1/4"-20) for secure, high-current connections
- Compact footprint (60 x 120 x 75 mm) suits space-constrained installations
- Compatible with 12 V and 24 V nominal battery systems
Applications Where Redundancy Matters
This diode combiner is purpose-built for scenarios where power continuity is critical. Common use cases include:
- Marine electronics: Supply navigation lights, GPS, and autopilots from two battery banks without risk of cross-drain.
- Emergency and safety systems: Keep fire alarms, bilge pumps, and communication radios powered even if one battery fails.
- Off-grid and remote installations: Combine solar-charged and generator-backed battery banks for uninterrupted DC supply.
- Vehicle and heavy equipment: Isolate starter and auxiliary batteries while sharing a common load like a winch or hydraulic pump.
By eliminating single points of failure in your DC power architecture, the Victron BCD 802 reduces the risk of unexpected downtime and protects sensitive electronics from voltage transients that can occur with relay-based combiners.
Installation and Safety Considerations

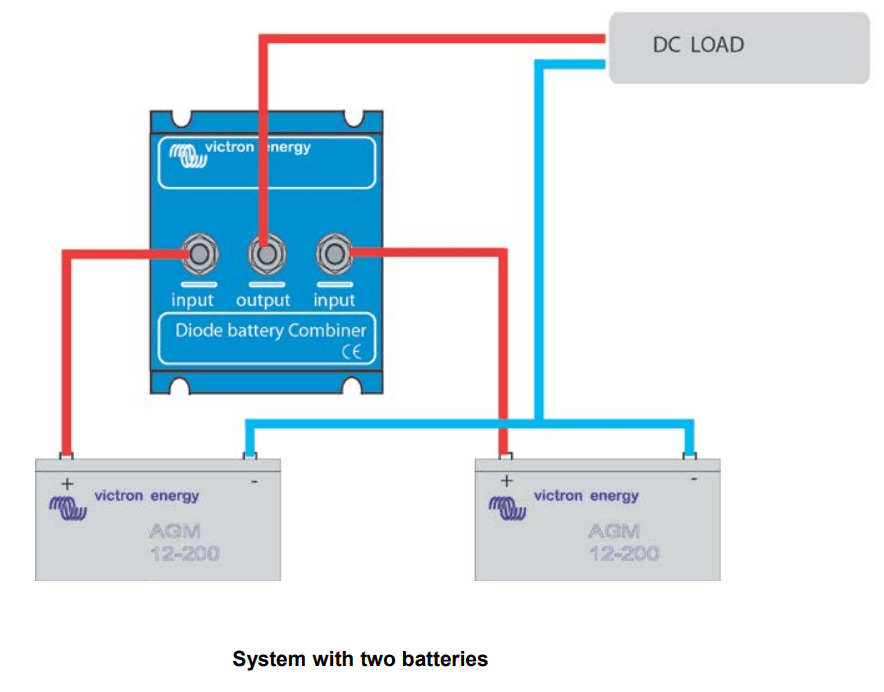

Installation is straightforward: connect each battery bank to the designated input terminals and the load to the common output. The diode arrangement inherently blocks reverse current, so no additional switching or control wiring is required. However, due to the heat generated at full load, the unit must be mounted on a non-flammable surface with adequate ventilation. The compact dimensions (60 x 120 x 75 mm) and lightweight design (0.8 kg) allow flexible placement in electrical panels or bulkhead mounts.
For optimal performance, use appropriately sized cables and ensure all connections are torqued to the M6 terminal specifications. The combiner is rated for both 12 V and 24 V systems, making it versatile across a range of DC architectures.
Secure Your Critical Power Path
When power continuity is essential, trust the Victron 80A Diode Battery Combiner to deliver reliable isolation and uninterrupted DC supply. Add the BCD 802 to your system today and ensure your mission-critical equipment stays online, no matter what.
SKU: Vic-BCD000802000

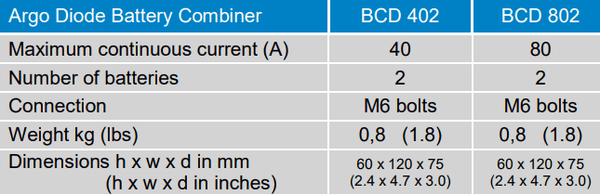

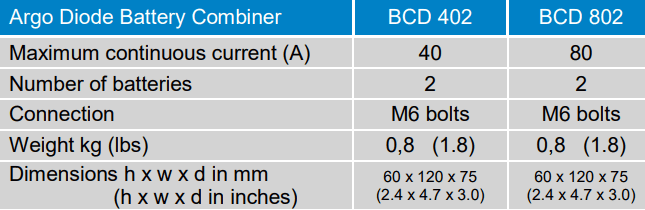

SPECIFICATIONS
Specifications
| Maximum Continuous Current | 80 A |
|---|---|
| Number of Batteries | 2 |
| Nominal Battery Voltage | 12 V and 24 V |
| Connection | M6 Bolts |
| Weight | 0.8 kg (1.8 lbs) |
| Dimensions H x W x D | 60 x 120 x 75 mm (2.4 x 4.7 x 3.0 inches) |
| Voltage Drop at Low Current | Approximately 0.3 V |
| Voltage Drop at Rated Output | Approximately 0.45 V |
| SKU: | Vic-BCD000802000 |
| Barcode: | 8719076020974 |
| Model #: | BCD000802000 |
| MPN: | BCD000802000 |
