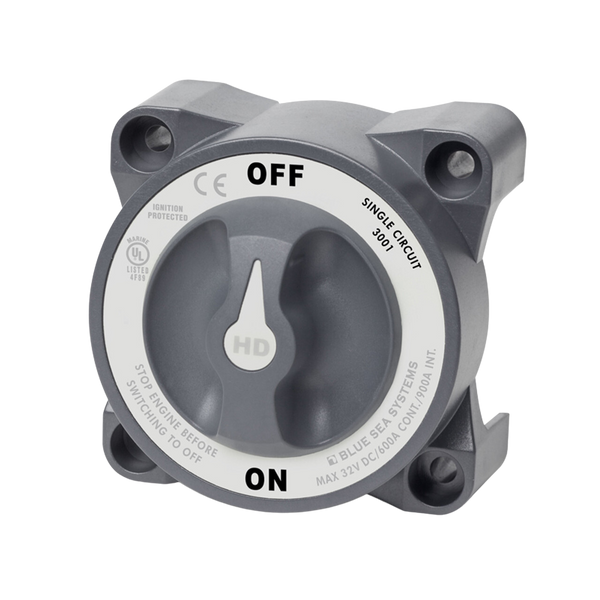

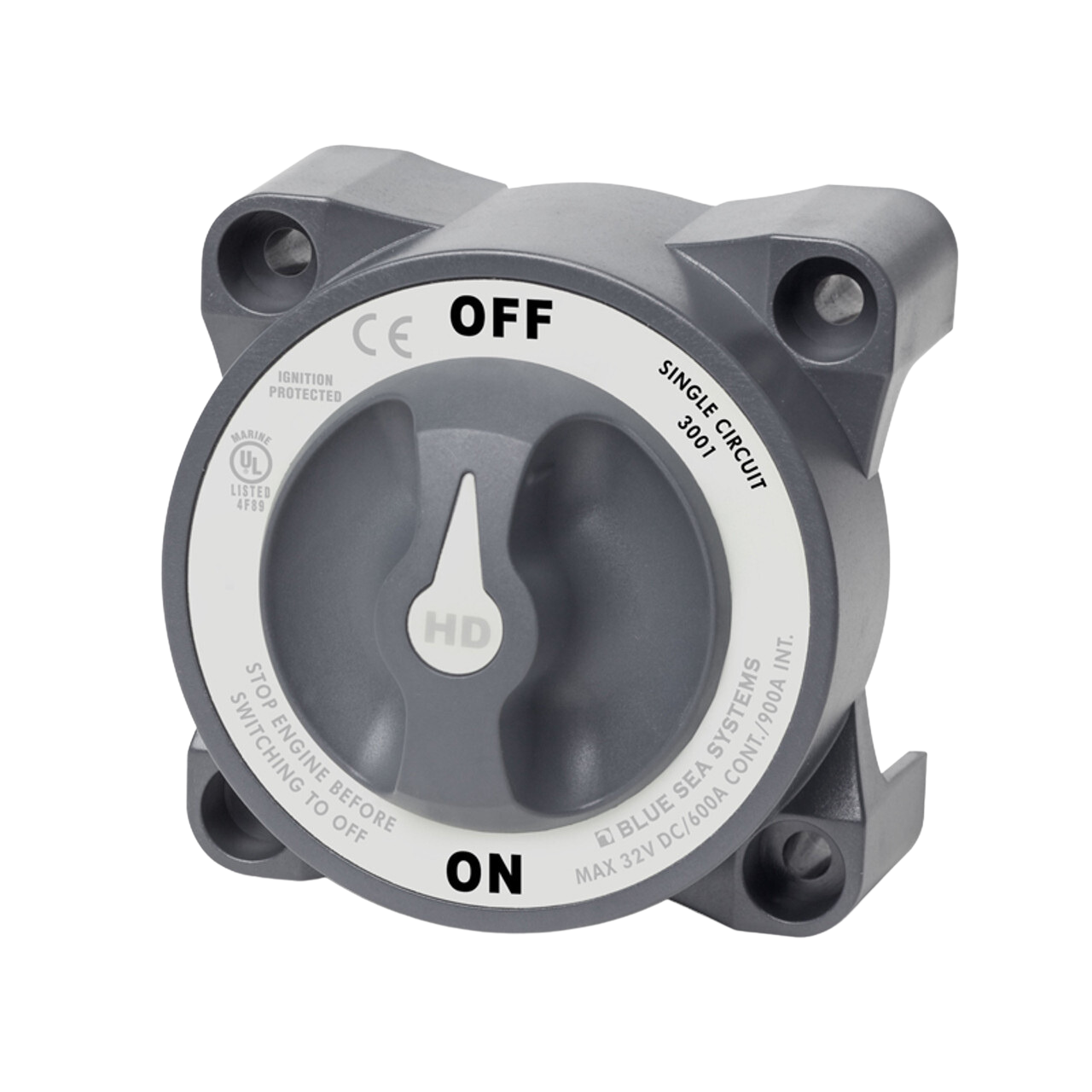

Blue Sea 600A HD-Series Heavy Duty On/Off Battery Switch w/ AFD
Heavy duty
0
Victron 80A Battery Isolator Argodiode80-2SC ...DESCRIPTION
Switches a single battery to a single load group

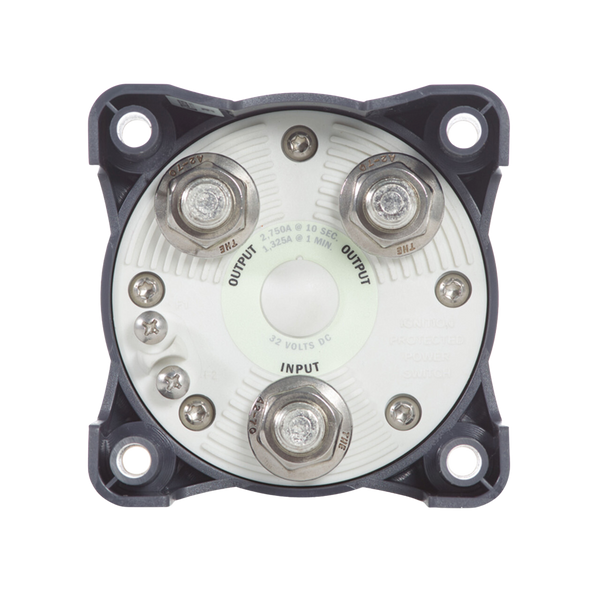

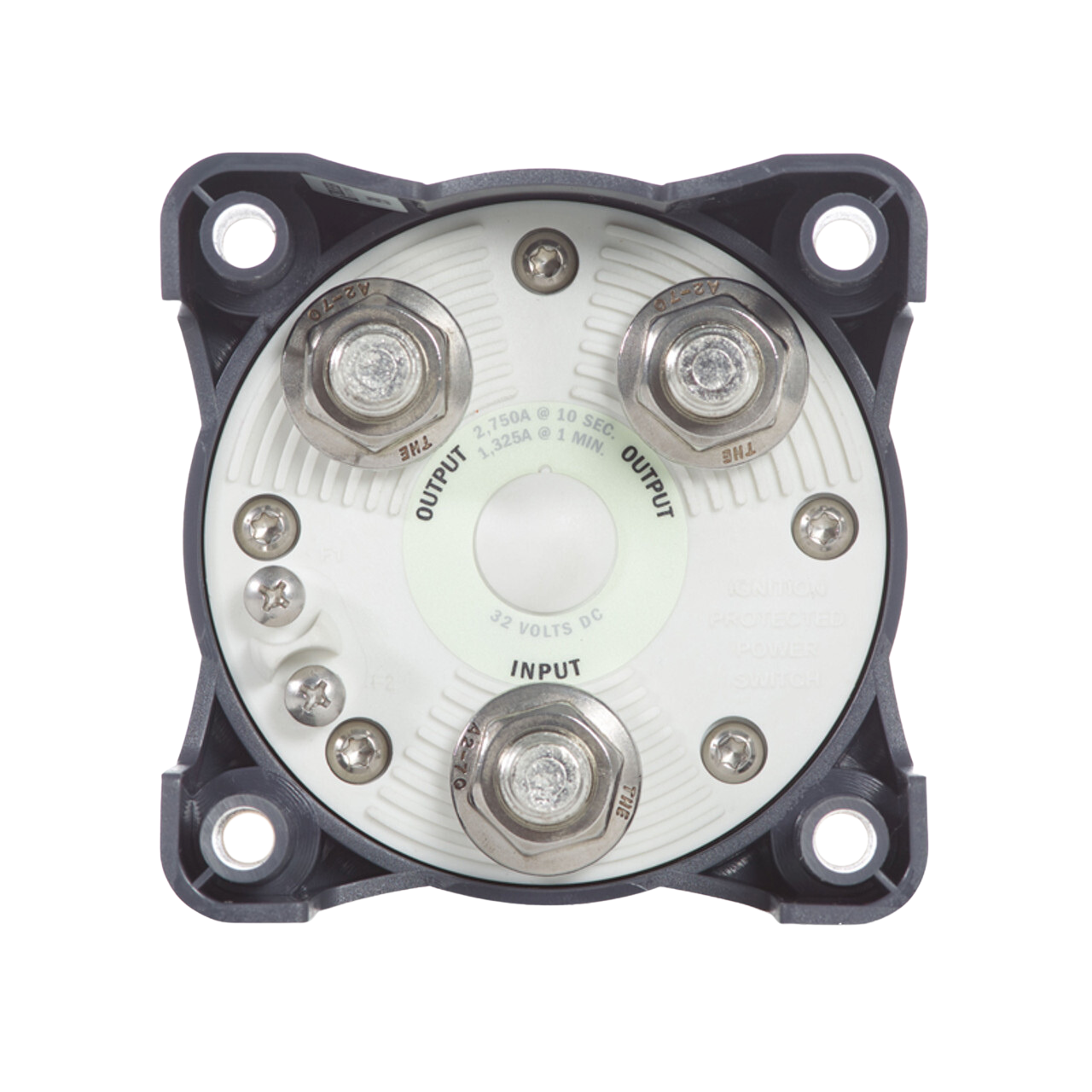

- Includes AFD (Alternator Field Disconnect)
- Ignition protected—safe for installation aboard gasoline powered boats

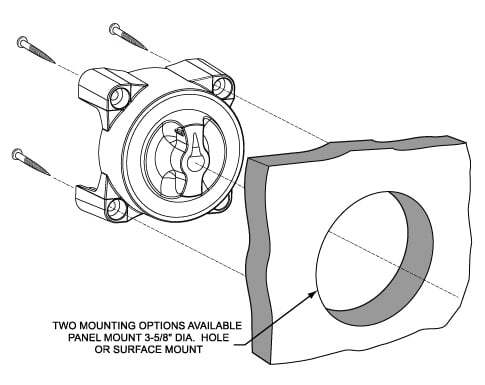

- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm²) battery cables
SKU: BS-3001B
SPECIFICATIONS
Specifications
| Switch Type | Single Circuit ON-OFF |
|---|---|
| Color | Grey |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | Yes |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque |
220 in-lb (24.86 N·m) (approx. 18.3 ft-lb; reference only) |
| Continuous Rating | 500A |
| Intermittent Rating | 900A (5 min) |
| Starting Rating (30 sec) | 1750A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables |
1.10in (27.94 mm) (reference only) |
| Cable Quantity to Meet Ratings | Two Cables |
| Cable Size to Meet Ratings |
4/0 AWG (120mm²) (AWG vs mm² is an approximate equivalence; reference only) |
| Mounting Holes |
Accept 1/4" (M6) Screw (1/4" ≈ 6.35 mm; M6 is 6 mm; reference only) |
| Stud Material | Tinned Copper |
| Switching Rating | 25A |
| Terminal Stud Size |
1/2" (M12) (1/2" ≈ 12.70 mm; M12 is 12 mm; reference only) |
| Weight (min / max) |
1.30–1.30 lb (0.59–0.59 kg) (approx. 590 g; reference only) |
| SKU: | BS-3001B |
| Model #: | BS-3001B |
| MPN: | BS-3001B |
