Victron 12V 130Ah Gel Deep Cycle Battery
12V 130Ah Deep Cycle Gel Battery – 12-Year Float Life, Up to 1800 Cycles at 30% DoD
Victron 12V 220Ah Gel Deep Cycle BatteryDESCRIPTION

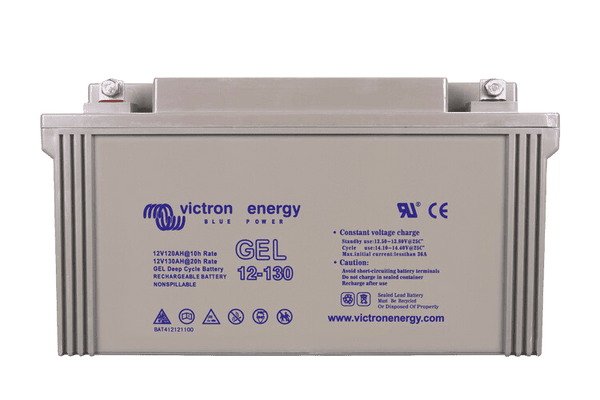

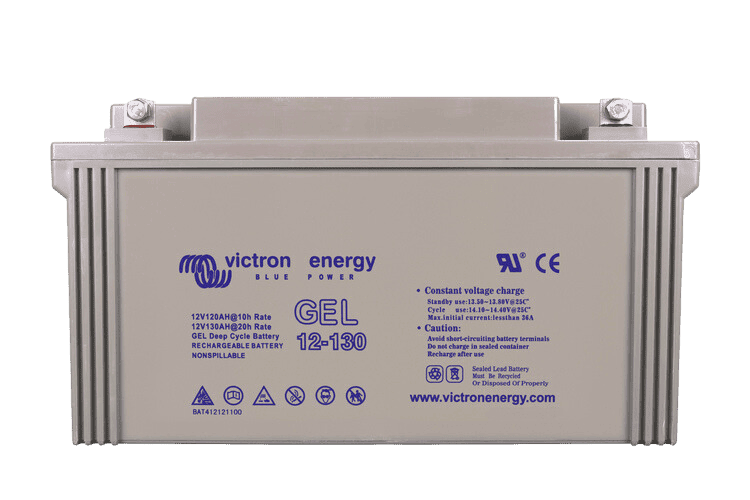

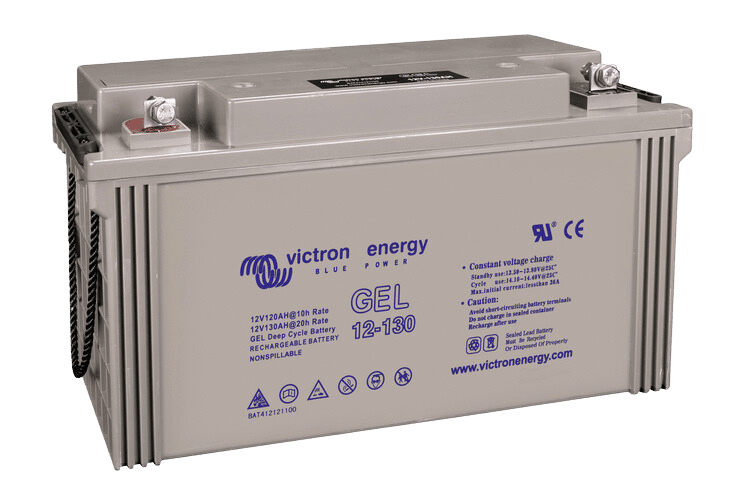

Victron 12V 130Ah Gel Deep Cycle Battery – High-Performance Gel Deep Cycle Battery for Reliable Off-Grid Energy
Advanced VRLA Gel Technology for Superior Cycle Life
The Victron 12V 130Ah Gel Deep Cycle Battery is a sealed, maintenance-free deep cycle battery engineered with flat plate GEL technology. Unlike conventional AGM batteries, the immobilised gel electrolyte provides exceptional deep discharge recovery and extended service life, making it ideal for demanding cyclic applications. With a float design life of 12 years at 20°C and up to 1800 cycles at 30% depth of discharge, this battery delivers long-term reliability for off-grid solar systems, marine installations, and mobile power setups.
Why Choose Victron Gel Batteries?
Victron's VRLA gel batteries are built using high-purity materials and lead calcium grids, ensuring very low self-discharge of less than 2% per month at 20°C. This means your battery remains ready for use even after extended storage periods. The robust construction, including durable ABS fireproof containers and integrated rope handles, provides safe handling and vibration resistance, critical for mobile and marine environments. Copper M8 terminals ensure secure, low-resistance connections for efficient power transfer.
Key Features
- Flat plate GEL technology for longer cycle life and better deep discharge recovery than AGM
- Maintenance-free VRLA design – no electrolyte topping up required
- Low self-discharge rate for seasonal or standby applications
- Robust ABS fireproof container with integrated rope handles for easy transport
- Copper M8 terminals for high-conductivity, corrosion-resistant connections
- Wide operating temperature range with recommended temperature compensation of -24 mV/°C for a 12V battery
- Compatible with Victron's adaptive four-step charging for optimised lifespan
Optimised for Deep Cycle Applications
Designed for repeated deep discharges, this battery excels in off-grid solar storage, caravan and RV house systems, marine trolling motors, and industrial backup power. Its ability to recover from deep discharge events ensures consistent performance, while the gel electrolyte minimises stratification and internal corrosion. Whether you're powering a remote cabin or a weekend camper, the Victron 12V 130Ah Gel Deep Cycle Battery provides dependable energy storage.
Installation and Charging Recommendations
To maximise service life, pair this battery with a quality charger that supports temperature-compensated voltage regulation. Absorption voltage should be set between 14.1V and 14.4V, with float voltage between 13.5V and 13.8V. Charge current should preferably not exceed 0.2C. Proper ventilation and secure mounting are essential for safe operation in mobile installations.
Power Your Adventure with Confidence
Upgrade your energy system with the Victron 12V 130Ah Gel Deep Cycle Battery and experience the reliability of advanced gel technology. Whether for solar storage, marine use, or off-grid living, this battery delivers consistent power and long service life. Add it to your setup today and enjoy maintenance-free energy for years to come.
SKU: VIC-BAT412121104

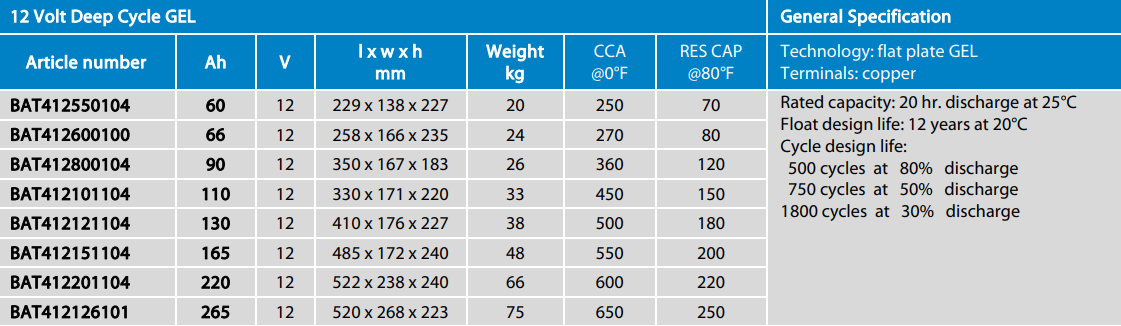

SPECIFICATIONS
Specifications
| Article Number | BAT412121104 |
|---|---|
| Technology | Flat Plate GEL |
| Voltage | 12 V |
| Capacity | 130 Ah |
| Rated Capacity | 20 hr. discharge at 25°C |
| Dimensions (L x W x H) | 410 x 176 x 227 mm |
| Weight | 38 kg |
| Float Design Life | 12 years at 20°C |
| Cycle Design Life (80% Discharge) | 500 cycles |
| Cycle Design Life (50% Discharge) | 750 cycles |
| Cycle Design Life (30% Discharge) | 1800 cycles |
| Self-Discharge | Less than 2% per month at 20°C |
| Terminals | Copper |
| Terminal Hole Diameter | Ø8 mm |
| SKU: | VIC-BAT412121104 |
| Barcode: | 8719076037026 |
| Model #: | BAT412121104 |
| MPN: | BAT412121104 |
