Victron VE.Bus Smart Bluetooth Dongle (MultiPlus/Quattro)
Adds Bluetooth control, voltage & temp sensing via VictronConnect app
Victron 24V to 12V Orion-Tr Smart 24/12-20A Iso...DESCRIPTION
Enable Wireless Monitoring for MultiPlus and Quattro Inverters
For users wondering how to add Bluetooth to their power system, the VE.Bus Smart Dongle provides a simple, highly effective solution. This device equips compatible Victron inverter/chargers with wireless connectivity, allowing you to monitor and manage your power setup directly from your smartphone or tablet using the VictronConnect app. It is engineered to integrate seamlessly with systems equipped with a VE.Bus port, including the MultiPlus, MultiPlus-II, Quattro, Quattro-II, and Phoenix Inverters.
Comprehensive System Management via VictronConnect
Adding this dongle transforms a standard inverter into a smart, connected device. Once linked to the VictronConnect app, you gain instant visibility into system performance. You can effortlessly adjust critical parameters such as shore power input current limits, ensuring you do not overload campground or marina power supplies. The app also allows you to switch operational modes between On, Off, and Charger-only, offering precise control over your energy usage without needing to access the physical inverter.
Advanced Voltage and Temperature Sensing

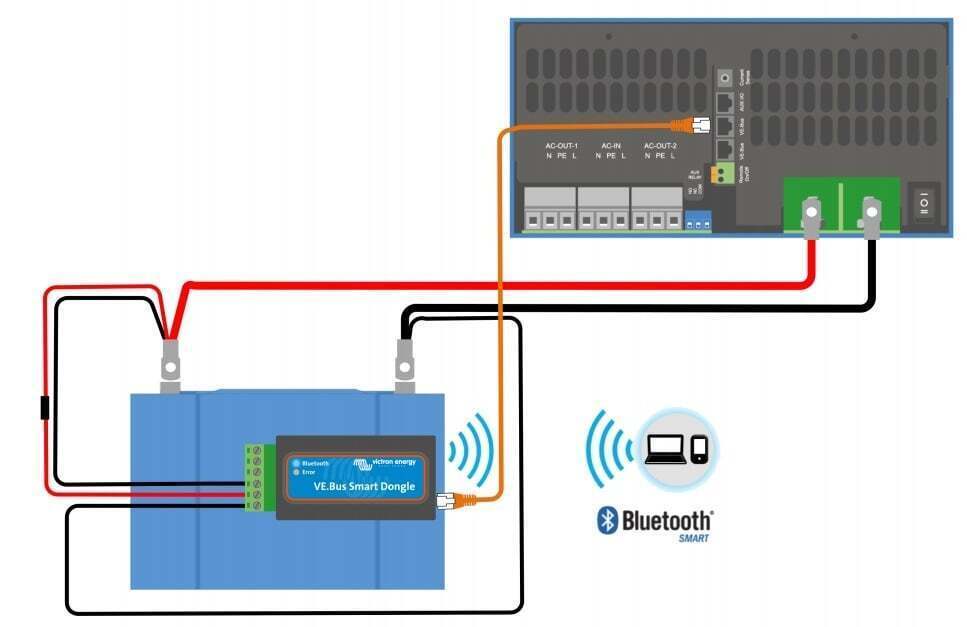

Beyond basic Bluetooth communication, this device acts as a vital sensing tool to protect your battery bank and improve charging efficiency. It measures on-battery voltage and temperature, transmitting this data back to the inverter. This function is essential for compensating for voltage drops over long cable runs and adjusting charge parameters based on environmental conditions. You can utilise the onboard temperature sensor by mounting the dongle directly to the battery case, or use the included external battery-terminal mounted sensor for even more accurate thermal readings.
Ideal for Caravans, Motorhomes, and Marine Environments
In mobile power setups where space is restricted, deploying a full-scale monitoring system like a Cerbo GX or Ekrano GX might not be practical. This compact dongle serves as an excellent standalone alternative for basic system oversight. It delivers essential monitoring and control capabilities without the complexity or footprint of a larger network setup, making it highly suitable for 12V, 24V, or 48V caravan and marine applications.
Seamless Integration with GX Devices
If you choose to expand your system later, the dongle remains a valuable component. When integrated into a larger system alongside a GX device, it continues to prioritise temperature and voltage data transmission, ensuring accurate energy management across the network. If no other data sources are present, the GX device will utilise the dongle's readings for essential voltage compensation and temperature-adjusted charging profiles.
Key Features
- Enables Bluetooth communication for VE.Bus equipped inverters and chargers
- Provides wireless monitoring and configuration via the free VictronConnect app
- Measures and transmits precise battery voltage and temperature data
- Includes an optional external battery-terminal temperature sensor for increased accuracy
- Compact design suitable for space-constrained mobile and off-grid installations
- Simplifies adjusting AC input current limits and inverter operational modes
What is in the Box?

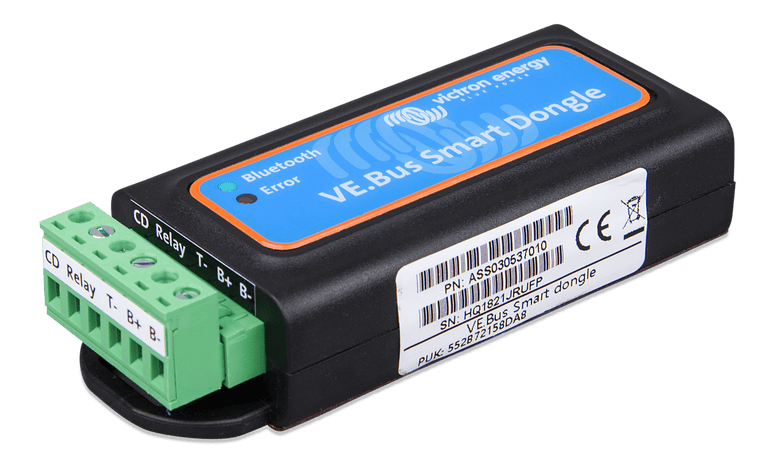

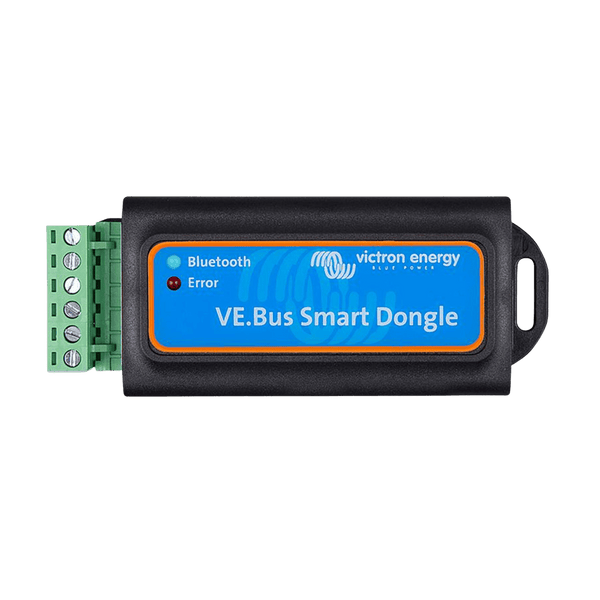

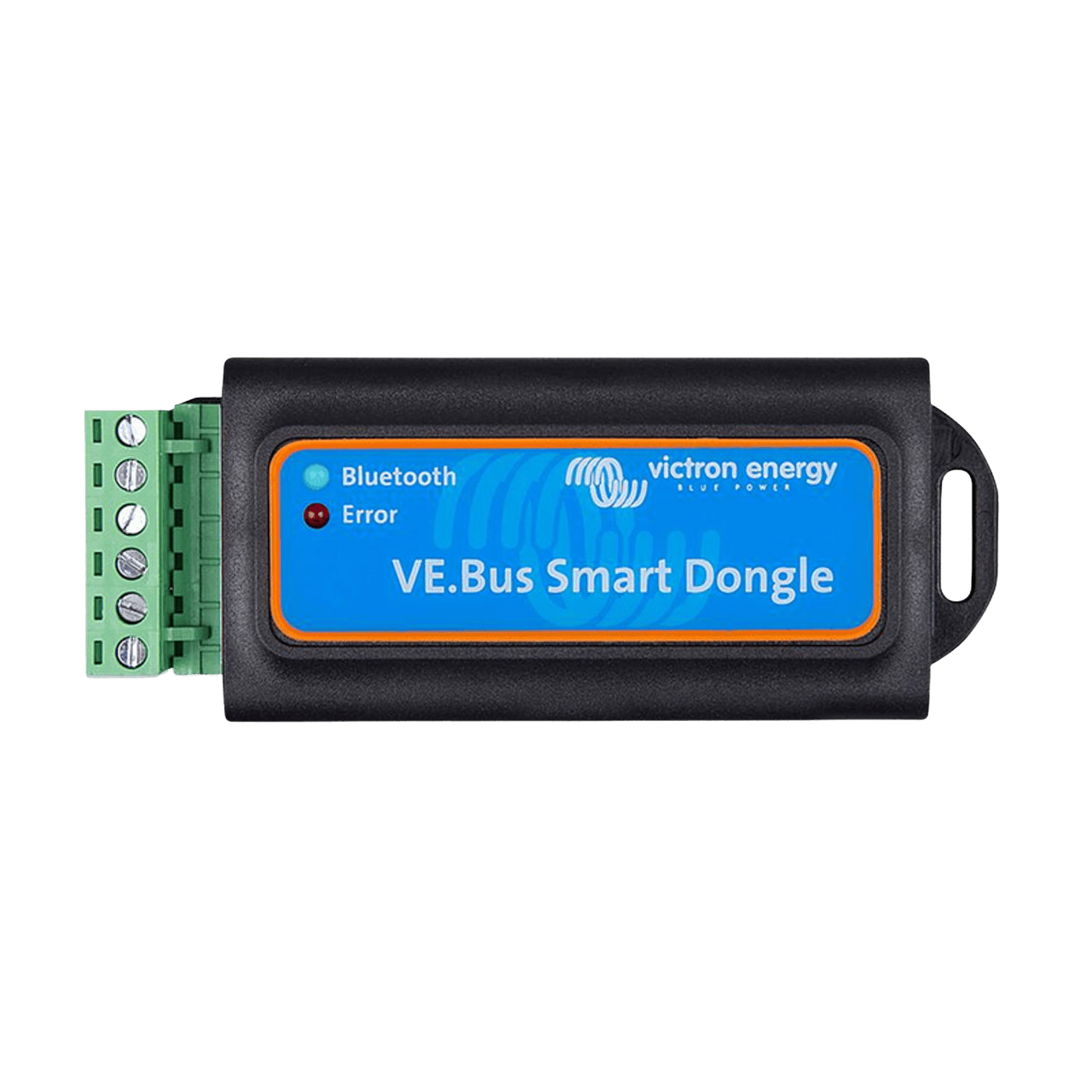

- VE.Bus Smart Dongle unit

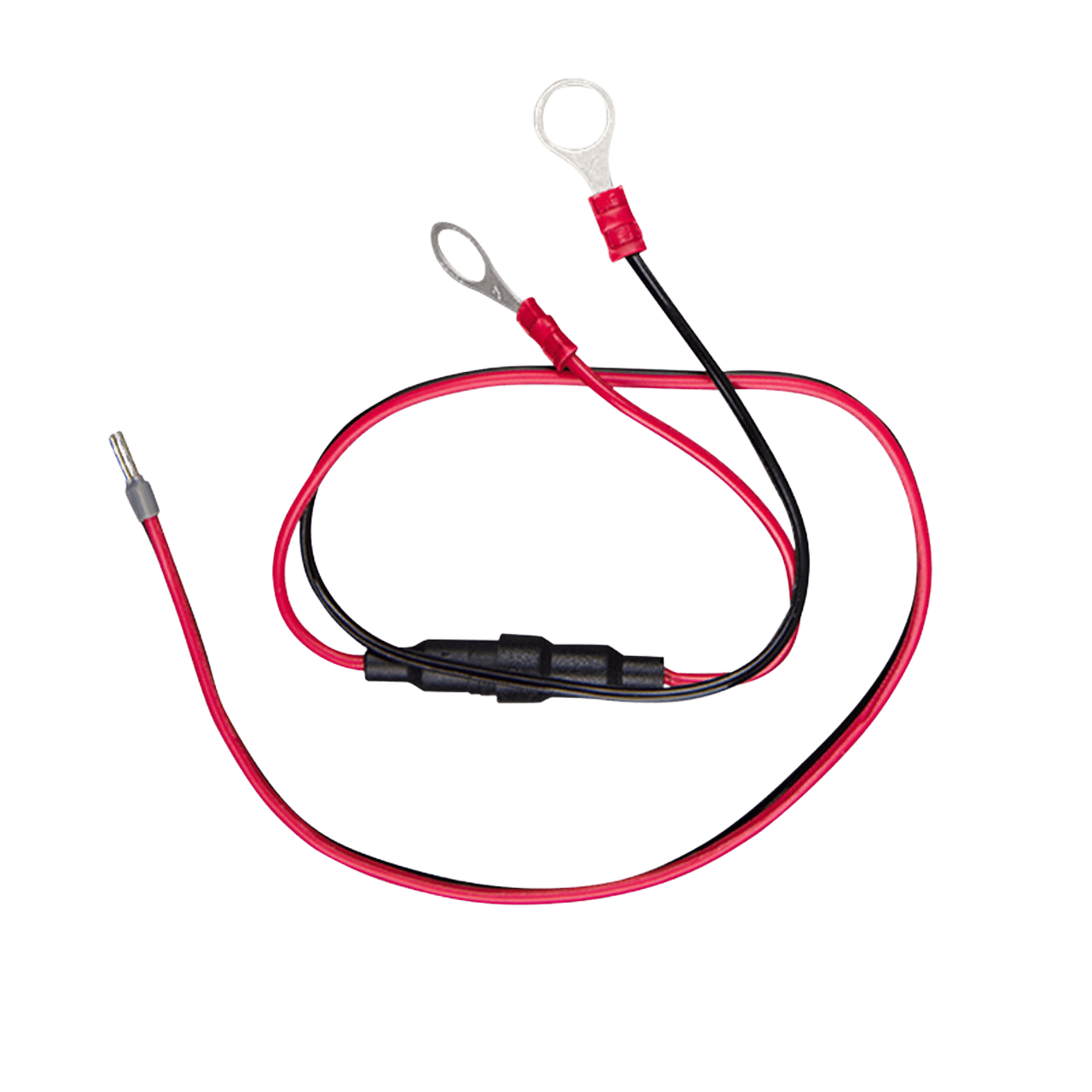

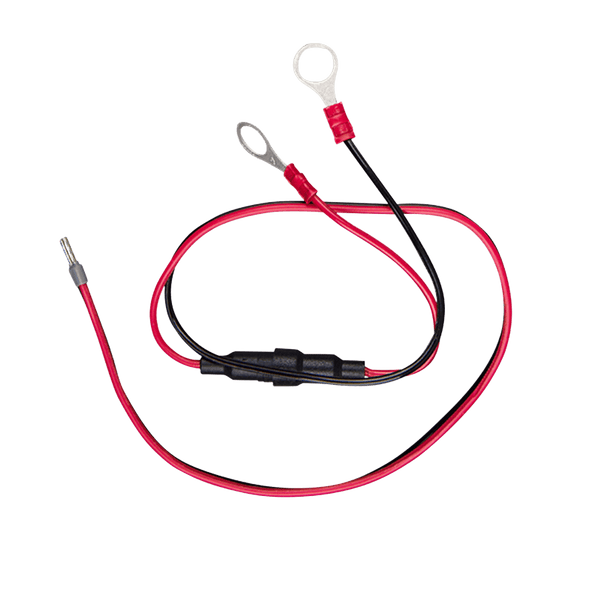

- Red (+) and Black (-) connection cables with eyelet terminals and an inline fuse
- Green connector block with secure screw terminals
- External battery-terminal mounted temperature sensor
Take Control of Your Off-Grid Power
Upgrading your electrical system with reliable wireless communication simplifies maintenance and protects your battery bank. Add the VE.Bus Smart Dongle to your mobile or off-grid power setup today and experience intuitive, real-time energy management from the palm of your hand.
SKU: VIC-ASS030537010
SPECIFICATIONS
Specifications
| Operating Input Voltage Range (Vbat) | 8 – 70Vdc |
|---|---|
| Current Draw (@12V) - BLE Not Connected to VictronConnect, VE.Bus Connected, Not Joining a VE.Smart Network | <6mA |
| Current Draw (@12V) - BLE Not Connected to VictronConnect, VE.Bus Connected, Joining a VE.Smart Network | <9mA |
| Current Draw (@12V) BLE Connected to VictronConnect, VE.Bus Connected, Not Joining a VE.Smart Network | <7mA |
| Current Draw (@12V) BLE Connected to VictronConnect, VE.Bus Connected, Joining a VE.Smart Network | <9mA |
| Operating Temperature | -20 to +50°C / 0 to 120°F |
| Humidity | Max. 95% (non-condensing) |
| Protection Grade | IP20 |
| Material and Colour | ABS, matt black |
| SKU: | VIC-ASS030537010 |
| Barcode: | 8719076035558 |
| Model #: | ASS030537010 |
| MPN: | ASS030537010 |
WARRANTY
Victron Energy Limited Warranty Policy
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.
During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.
Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.
Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.
For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
