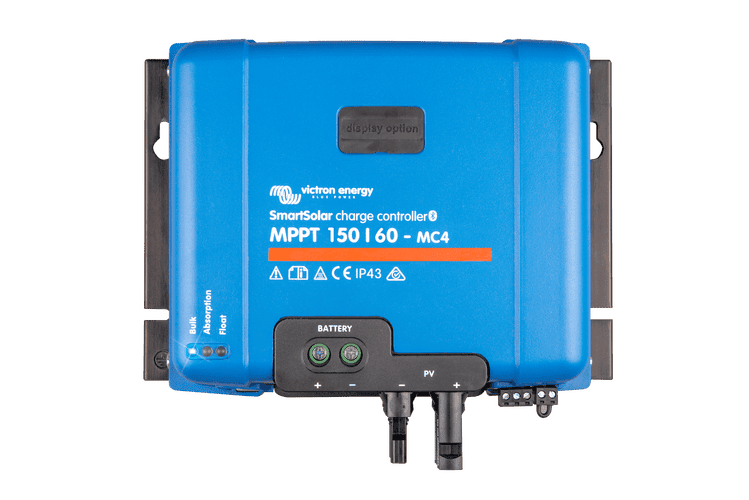

Victron 12/24/48V 60A SmartSolar MPPT 150/60-MC4 Bluetooth Solar Charge Controller
Dual PV Inputs, Built-in Bluetooth & 98% Peak Efficiency
5m Exotronic 6mm² Twin Solar Extension CableDESCRIPTION
Intelligent Energy Management for Off-Grid Systems
The Victron 12/24/48V 60A SmartSolar MPPT 150/60-MC4 delivers exceptional control and performance for sophisticated solar setups. Engineered for demanding off-grid, marine, and caravan applications, this high-capacity solar charge controller automatically detects 12V, 24V, or 48V battery banks and safely steps down high-voltage solar inputs. With a maximum open-circuit voltage of 150V and a robust 60A charging capacity, it provides the flexibility to run long, efficient solar arrays in series, minimising voltage drop and reducing cable size requirements.
Ultra-Fast Maximum Power Point Tracking (MPPT)
When operating in variable weather or partially shaded environments, rapid adaptability is essential. This controller features an ultra-fast MPPT algorithm that continuously analyses voltage and current from your solar panels. By locking onto the optimum power point, it maximises energy harvest by up to 30% compared to traditional PWM controllers, and up to 10% more than slower MPPT alternatives. This ensures your battery bank reaches full charge sooner, even during overcast Australian winters.

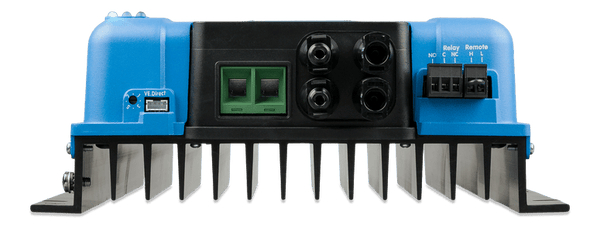

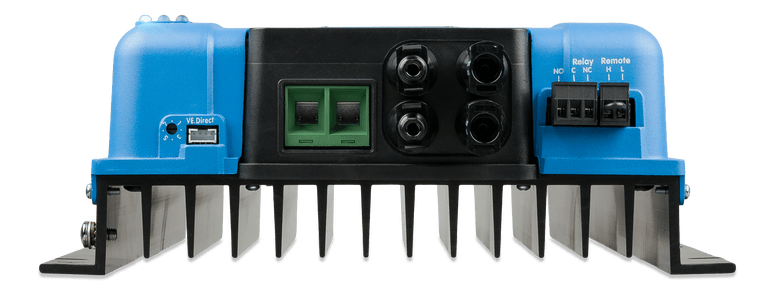

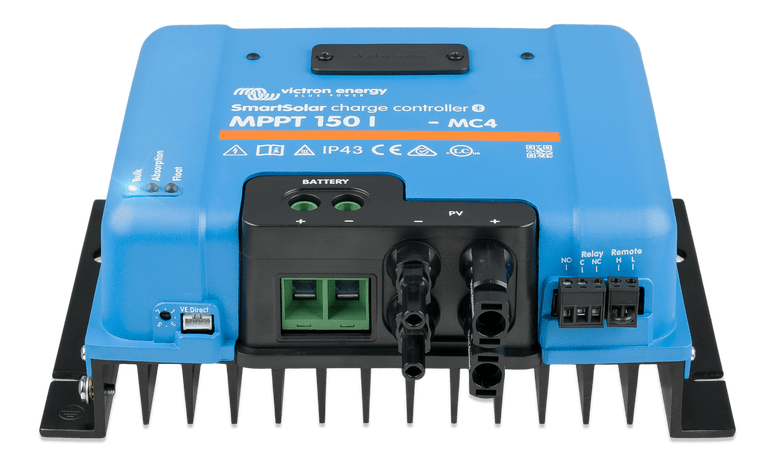

Streamlined Installation with Dual MC4 Inputs
Unlike standard controllers that require bare wire connections, the 150/60-MC4 model integrates two sets of standard MC4 connectors directly into the base of the unit. This plug-and-play design simplifies the installation process, allowing you to easily connect two separate solar panel strings without needing an external combiner box. The result is a cleaner, more secure wiring layout that reduces the risk of loose connections and optimises current flow.

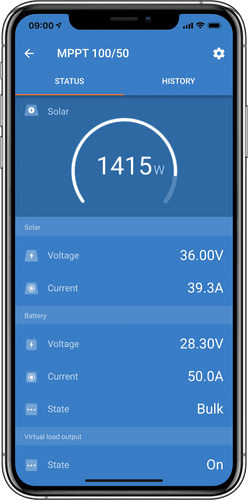

Comprehensive Monitoring via Bluetooth Smart
System configuration and monitoring are fully accessible via the integrated Bluetooth module. Using the free VictronConnect app on your smartphone or tablet, you can easily customise charge profiles, track historical performance data for up to 46 days, and monitor real-time inputs. For more advanced setups, the built-in VE.Direct port allows seamless integration with GX devices for local and remote monitoring via the VRM portal.
Advanced Battery Care and Thermal Performance
Prolonging battery life requires precise charging parameters. This unit utilises a multi-stage adaptive charge algorithm that adjusts to your specific battery chemistry, including lithium-ion (LiFePO4) and traditional lead-acid banks. It even features the capability to recover fully discharged batteries from zero volts. Operating with an impressive peak efficiency of 98%, the fanless design relies on a robust internal heat sink, eliminating moving parts and ensuring silent, highly reliable operation even in hot ambient temperatures.
Key Features
- Auto-ranging voltage support: Compatible with 12V, 24V, and 48V DC systems.
- High input capacity: Handles up to 150V maximum PV open-circuit voltage.
- Dual MC4 connectivity: Streamlines wiring for up to two solar strings directly into the unit.
- Ultra-fast tracking: Rapid response algorithm improves yield during shifting cloud cover.
- Intelligent networking: Synchronise up to 10 SmartSolar units via Bluetooth for coordinated parallel charging.
- Programmable relay: Customise triggers for external alarms, generators, or load disconnects.
- Exceptional efficiency: Operates at up to 98% efficiency without the need for active cooling fans.
Ready to Upgrade Your Power System?
Whether you are outfitting a high-end off-grid cabin or upgrading the power system on a touring caravan, ensuring your batteries receive the most efficient charge possible is critical. Add the Victron SmartSolar MPPT 150/60-MC4 to your setup today to experience excellent reliability, intelligent monitoring, and maximum solar yield.
SKU: VIC-SCC115060311

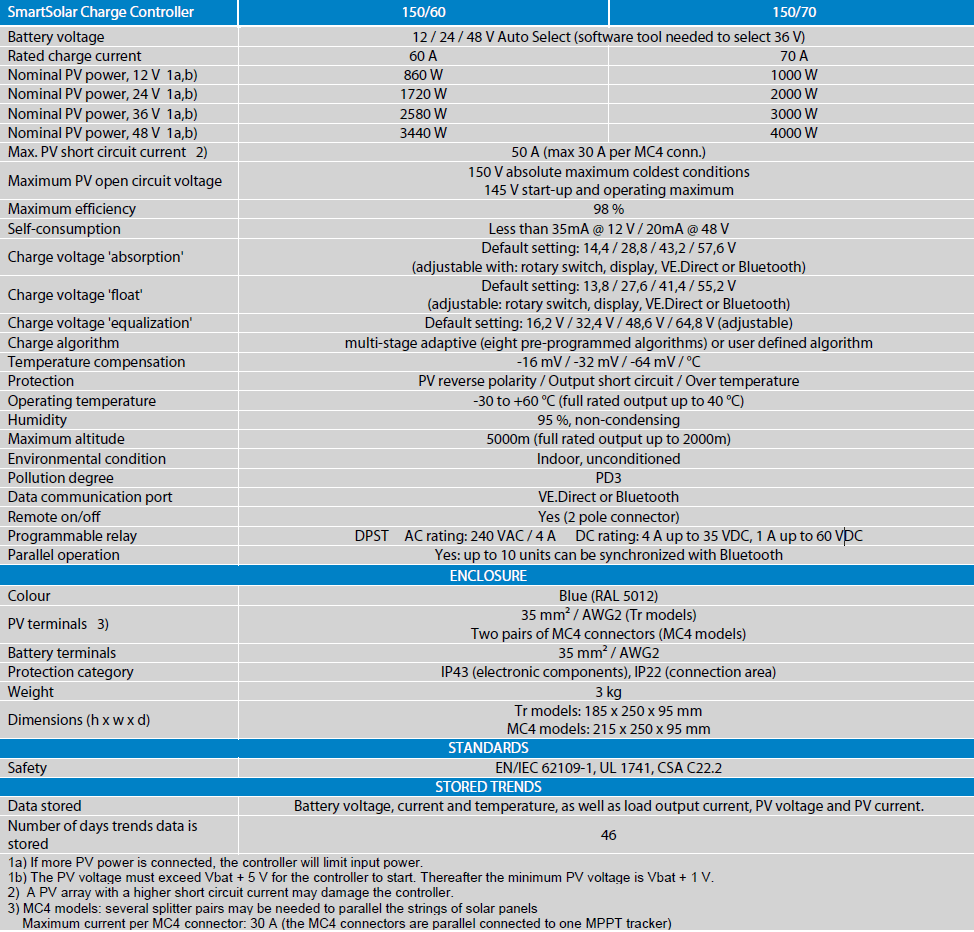

SPECIFICATIONS
Specifications
| SmartSolar Charge Controller | 150/60 |
| Battery voltage | 12 / 24 / 48 V Auto Select (software tool needed to select 36 V) |
| Rated charge current | 60 A |
| Nominal PV power, 12 V 1a,b) | 860 W |
| Nominal PV power, 24 V 1a,b) | 1720 W |
| Nominal PV power, 36 V 1a,b) | 2580 W |
| Nominal PV power, 48 V 1a,b) | 3440 W |
| Max. PV short circuit current 2) | 50 A (max 30 A per MC4 conn.) |
| Maximum PV open circuit voltage | 150 V absolute maximum coldest conditions 145 V start-up and operating maximum |
| Maximum efficiency | 98 % |
| Self-consumption | Less than 35mA @ 12 V / 20mA @ 48 V |
| Charge voltage 'absorption' | Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'float' | Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'equalization' | Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable) |
| Charge algorithm | Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Maximum altitude | 5000m (full rated output up to 2000m) |
| Environmental condition | Indoor, unconditioned |
| Pollution degree | PD3 |
| Data communication port | VE.Direct or Bluetooth |
| Remote on/off | Yes (2 pole connector) |
| Programmable relay | DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel operation | Yes: up to 10 units can be synchronized with Bluetooth |
| ENCLOSURE | |
| Colour | Blue (RAL 5012) |
| PV terminals 3) | 35 mm² / AWG2 (Tr models) Two pairs of MC4 connectors (MC4 models) |
| Battery terminals | 35 mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 3 kg |

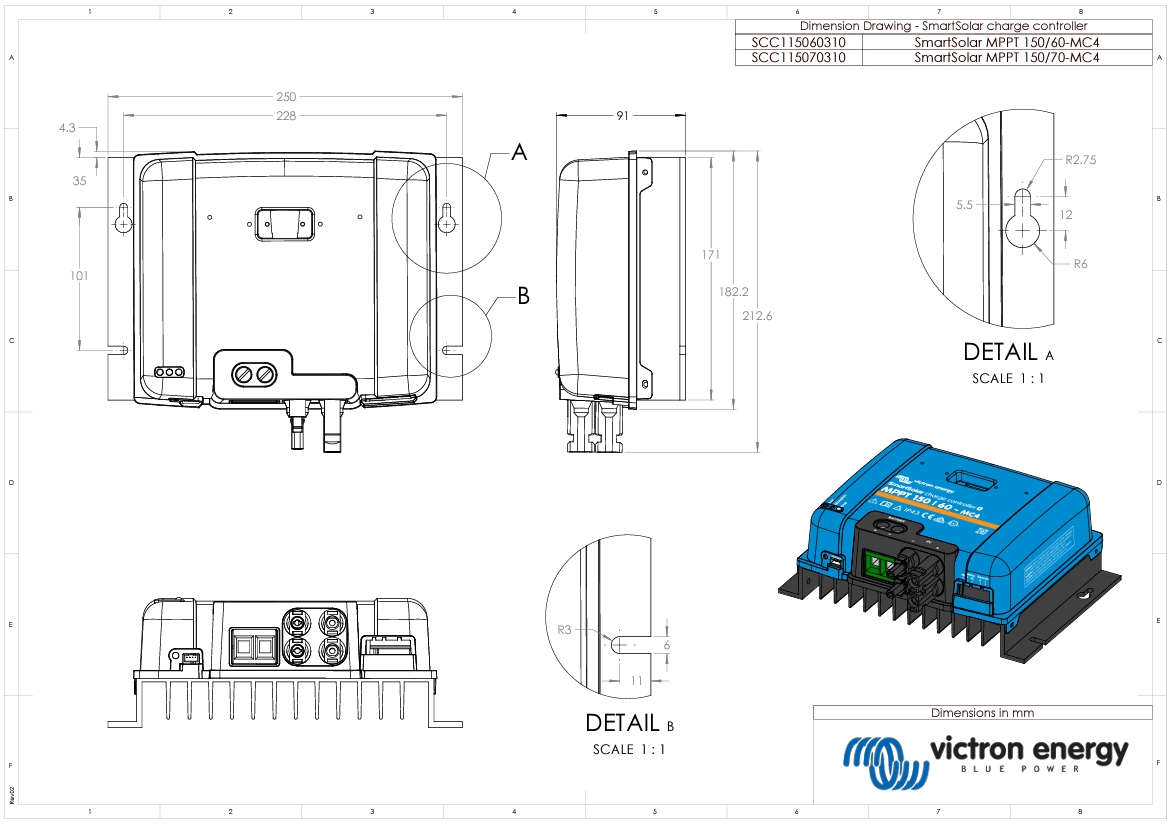

| Dimensions (h x w x d) | Tr models: 185 x 250 x 95 mm MC4 models: 215 x 250 x 95 mm |
| STANDARDS | |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| STORED TRENDS | |
| Data stored | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored | 46 |
1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V. 2) A PV array with a higher short circuit current may damage the controller. 3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels Maximum current per MC4 connector: 30 A (the MC4 connectors are parallel connected to one MPPT tracker)
| SKU: | VIC-SCC115060311 |
| Barcode: | 8719076051398 |
| Model #: | SCC115060311 |
| MPN: | SCC115060311 |
