Victron 12/24/48V 100A SmartSolar MPPT 150/100-Tr VE.CAN Bluetooth Solar Charge Controller

100A MPPT with Bluetooth, VE.Can, and 98% peak efficiency


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
2

DESCRIPTION

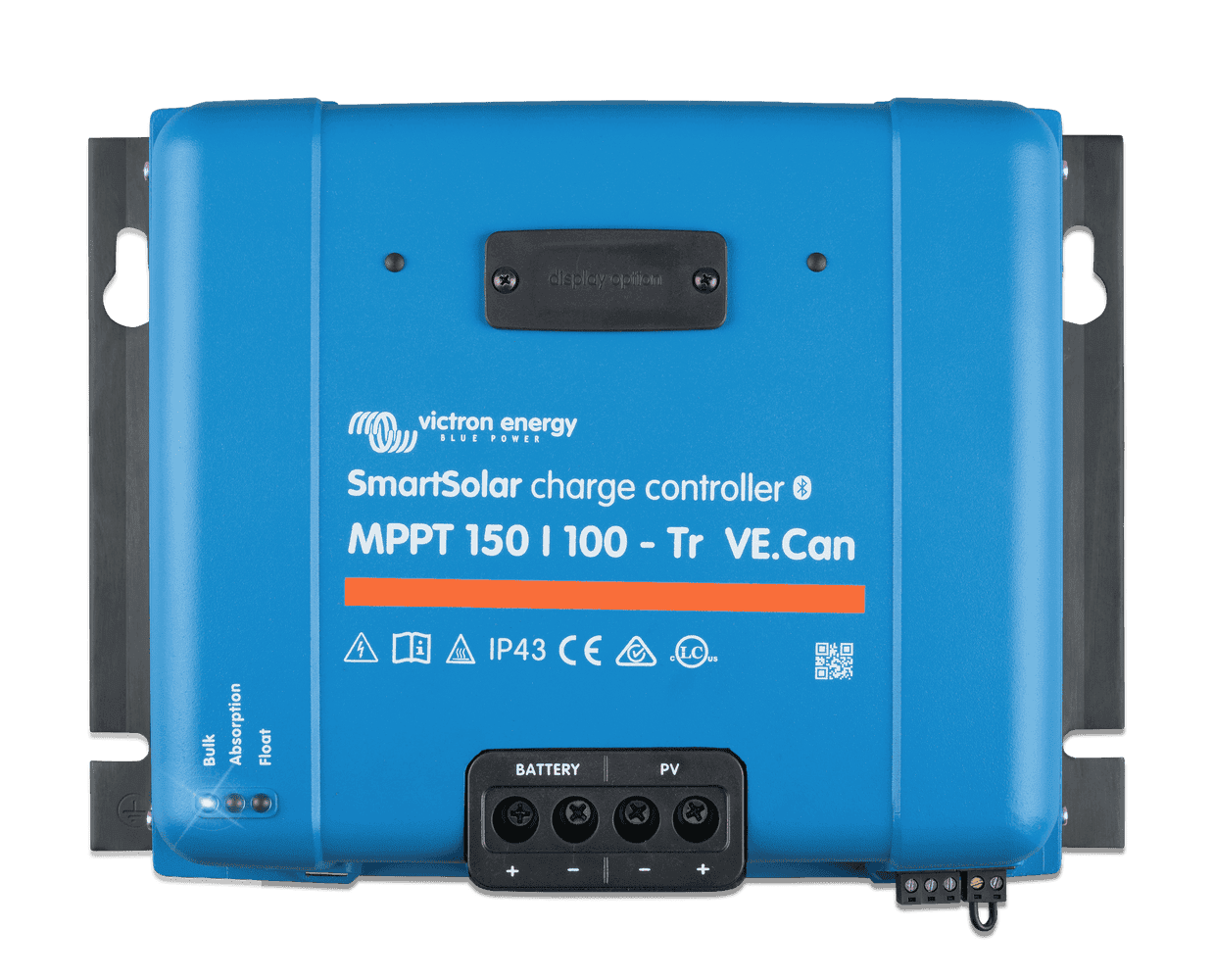

Victron SmartSolar MPPT 150/100-Tr VE.CAN: High-Capacity Solar Charge Controller for Large Off-Grid Systems

Advanced MPPT Technology for Maximum Energy Harvest

The Victron SmartSolar MPPT 150/100-Tr VE.CAN is a premium 100A solar charge controller engineered for demanding 12V, 24V, and 48V off-grid solar systems. Its ultra-fast Maximum Power Point Tracking (MPPT) algorithm continuously adjusts to changing light conditions, capturing up to 30% more energy than traditional PWM controllers and outperforming slower MPPT units by up to 10%. This is particularly valuable during overcast or rapidly changing weather, ensuring your battery bank receives optimal charge throughout the day.

In partial shading scenarios, where multiple power peaks can confuse conventional controllers, the SmartSolar algorithm intelligently locks onto the true global maximum power point. This prevents energy loss and maintains high system efficiency even when panels are partially obstructed.

High-Efficiency Design with Passive Cooling

With a peak conversion efficiency exceeding 98%, this controller minimises energy waste and operates without a cooling fan. The fanless design reduces potential points of failure, lowers maintenance, and ensures silent operation, making it suitable for installations in living spaces or noise-sensitive environments. The robust IP43-rated electronics protect against dust and water spray, while the connection area is rated IP22, providing reliable performance in unconditioned indoor locations.

Comprehensive Battery Management and Protection

The fully programmable charge algorithm, adjustable via the rotary switch, VictronConnect app, or VE.Direct, supports eight pre-programmed battery profiles and custom user-defined settings. An internal temperature sensor automatically compensates absorption and float voltages, promoting longer battery life. Extensive electronic safeguards include:

  • PV reverse polarity and short circuit protection
  • Over-temperature protection with automatic power derating above 40°C
  • PV reverse current blocking

Seamless Connectivity and System Integration

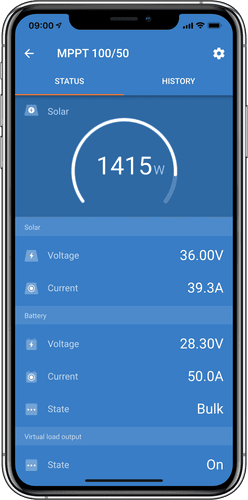

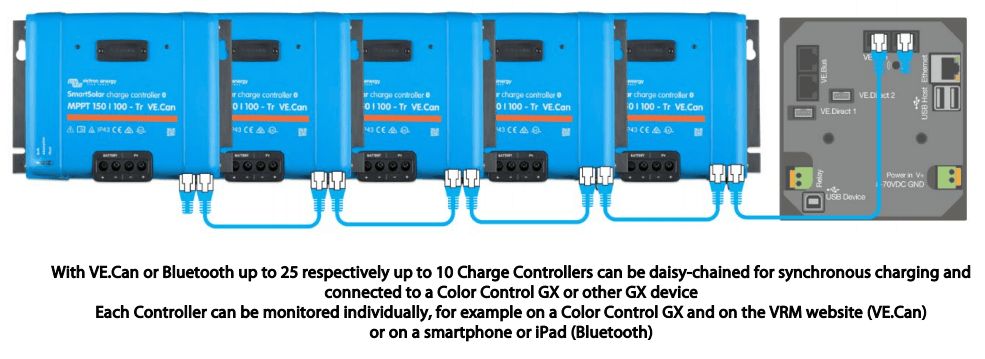

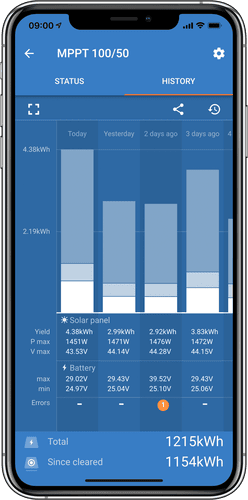

Built-in Bluetooth Smart allows wireless configuration, monitoring, and firmware updates via the VictronConnect app on iOS and Android devices. For wired integration, VE.Direct connects to a Color Control GX panel or PC, while VE.Can enables synchronised parallel operation of up to 25 controllers, ideal for large-scale systems. A programmable relay and remote on/off terminal provide flexible control, including integration with a VE.BUS BMS for lithium battery systems.

Key Features

  • 100A rated charge current for 12/24/48V battery banks (auto-select)
  • Ultra-fast MPPT with advanced shading optimisation
  • 98% peak efficiency with fanless, silent operation
  • Bluetooth, VE.Direct, and VE.Can communication ports
  • IP43 protection for electronics; operating range -30°C to +60°C
  • Supports up to 5800W PV input at 48V

Built for Large-Scale and Critical Applications

This controller is designed for serious off-grid power systems, including residential solar arrays, remote telecommunications, agricultural pumping, and marine installations. Its ability to handle high PV input power and synchronise multiple units makes it a scalable solution for growing energy demands. The 35 mm² (AWG2) battery and PV terminals accommodate heavy-duty cabling, ensuring secure, low-resistance connections for sustained high-current operation.

Take Control of Your Solar Harvest

Upgrade your energy system with the Victron SmartSolar MPPT 150/100-Tr VE.CAN and experience precise, efficient charge management. Whether you're expanding an existing array or building a new off-grid installation, this controller delivers the reliability and performance needed for critical power applications.


SKU: VIC-SCC115110411

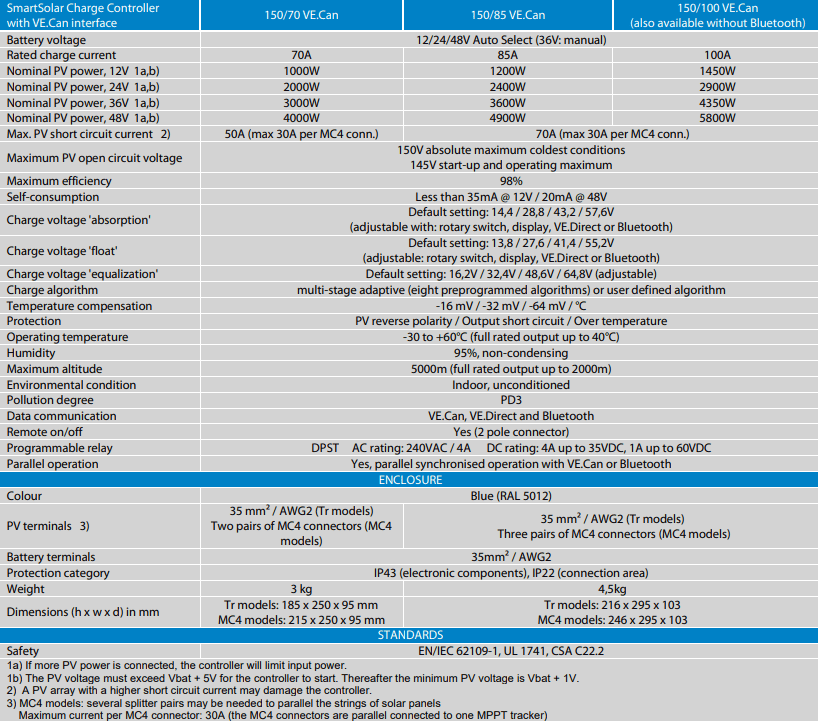

SPECIFICATIONS

Specifications

Battery Voltage12/24/48 V Auto Select (36 V: manual)
Rated Charge Current100 A
Nominal PV Power, 12 V1450 W
Nominal PV Power, 24 V2900 W
Nominal PV Power, 36 V4350 W
Nominal PV Power, 48 V5800 W
Max. PV Short Circuit Current70 A
Maximum PV Open Circuit Voltage150 V absolute maximum coldest conditions; 145 V start-up and operating maximum
Maximum Efficiency98 %
Self-ConsumptionLess than 35 mA @ 12 V / Less than 20 mA @ 48 V
Charge Voltage 'Absorption'Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage 'Float'Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage 'Equalization'Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable)
Charge AlgorithmMulti-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
Temperature Compensation-16 mV/°C / -32 mV/°C / -48 mV/°C / -64 mV/°C
ProtectionPV reverse polarity / Output short circuit / Over temperature
Operating Temperature-30 °C to +60 °C (full rated output up to 40 °C)
Humidity95 %, non-condensing
Maximum Altitude5000 m (full rated output up to 2000 m)
Environmental ConditionIndoor, unconditioned
Pollution DegreePD3
Data CommunicationVE.Can, VE.Direct and Bluetooth
Remote On/OffYes (2 pole connector)
Programmable RelayDPST AC rating: 4 A up to 240 Vac / DC rating: 4 A up to 35 Vdc, 1 A up to 60 Vdc
Parallel OperationYes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
ColourBlue (RAL 5012)
PV Terminals35 mm² / AWG2 (Tr models)
Battery Terminals35 mm² / AWG2
Protection CategoryIP43 (electronic components), IP22 (connection area)
Weight4.5 kg
Dimensions (H x W x D)216 x 295 x 103 mm
SafetyEN/IEC 62109-1, UL 1741, CSA C22.2

SKU: VIC-SCC115110411
Barcode: 8719076050353
Model #: SCC115110411
MPN: SCC115110411
